TYKT 885 – WIRELESS

Introduced for use on the Philip Payne Specto-XT wireless monitoring system, the TYKT885 communicates via adjacent Specto-XT luminaires to a wireless mesh communicating with the Gateway to provide a fully compliant monitored Emergency Lighting testing system with no additional wiring.

TYKT885 has a lumen output of 555lms and fits discretely through a minimal cut-out with the head on a flexible lead an extended battery life.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • TYKT LUMEN OUTPUT
    • 555
  • TYKP LUMEN OUTPUT
    • 555

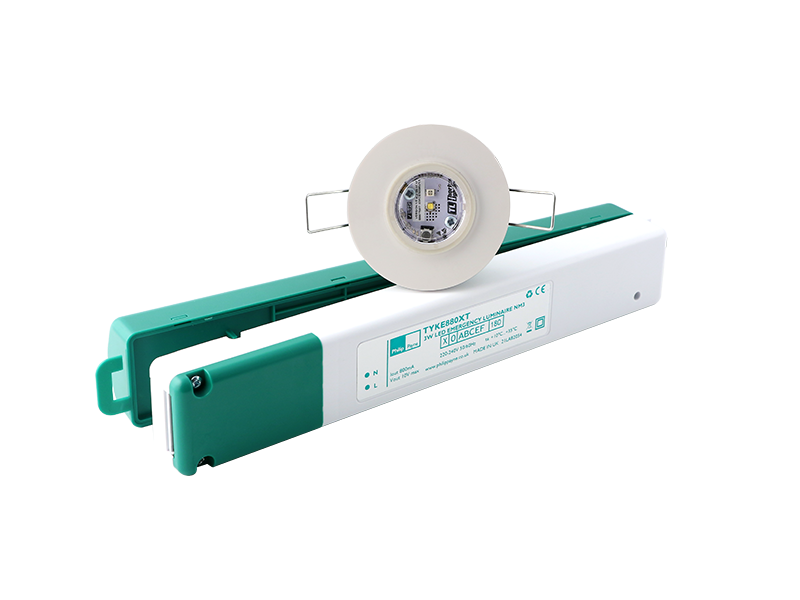

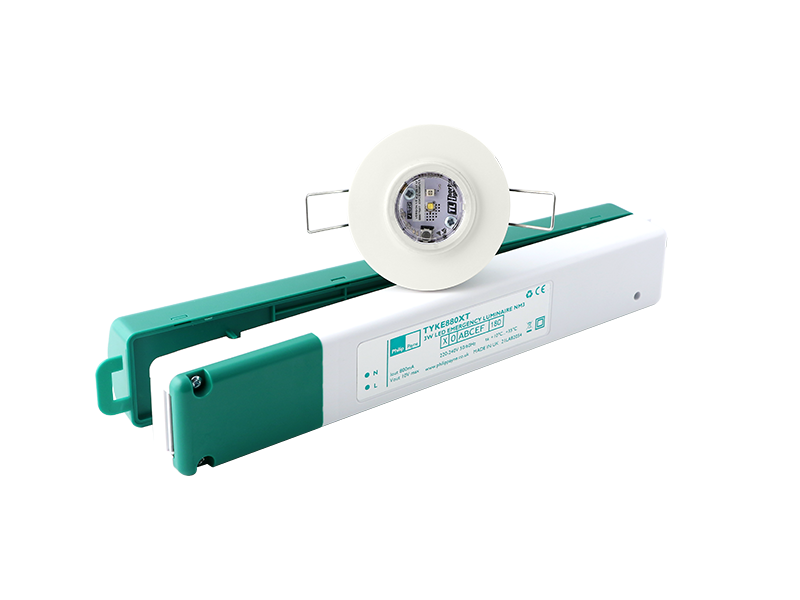

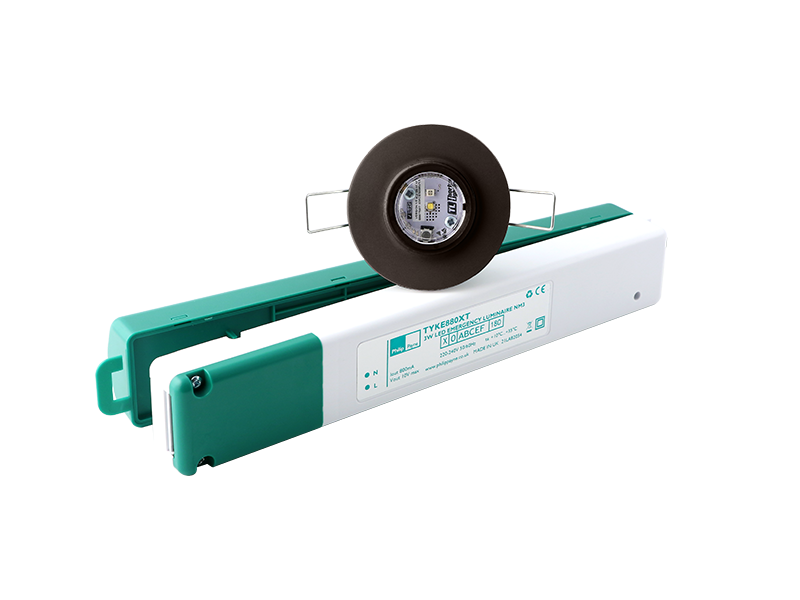

  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • IP 20

  • IP 65

  • Weight 0.35kg

  • CDA

  • BSI Kitemark

  • 001-015

    ICEL Endorsed
    001-015

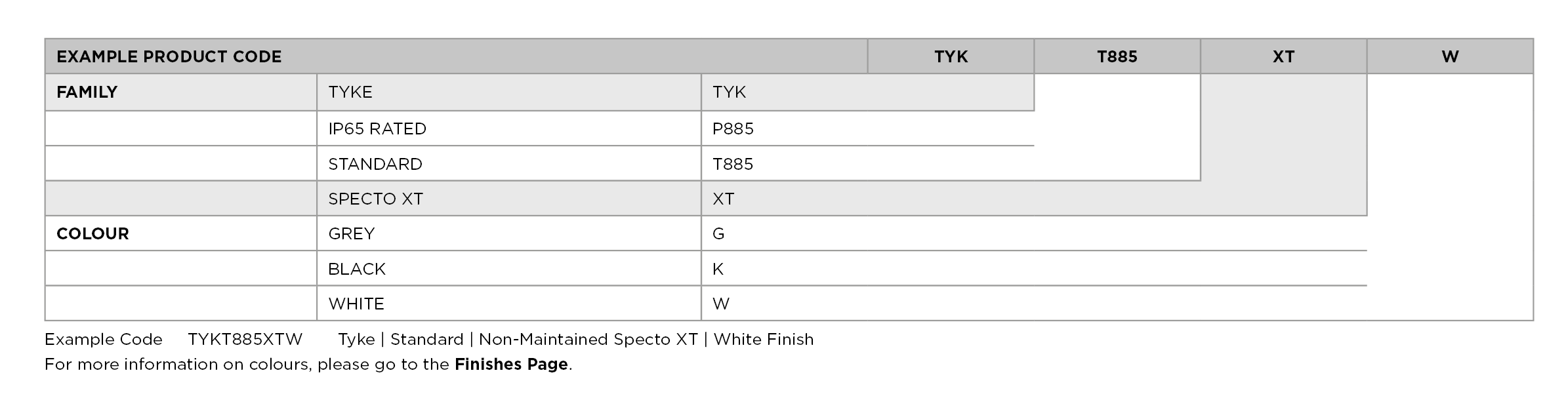

Part Numbers

Click image to expand

Part Numbers | TYKT 885 – WIRELESS

Dimensions

Click image to expand

Dimensions

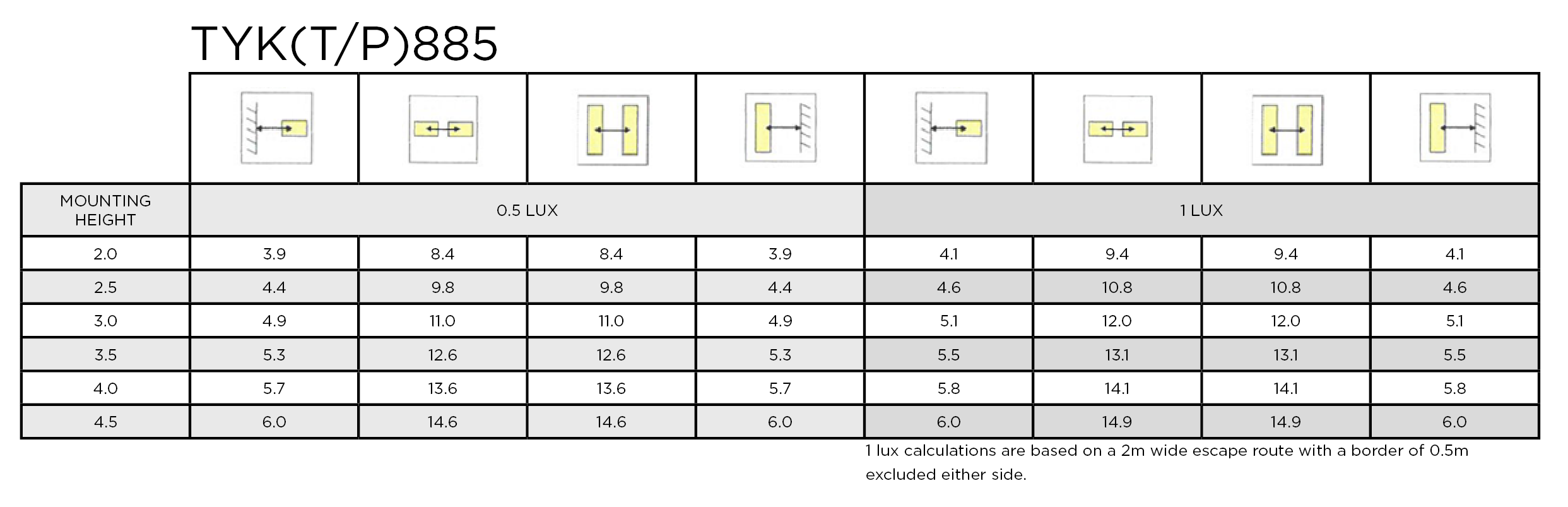

Spacing Tables

Click image to expand

Spacing Table

Polar Curves

Click image to expand

Polar Curve

Sustainability

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    TYKT885 Data Sheet
    500.72 KB | pdf

    Download
  • Photometric Files

    TYK_885 Photometric Files
    908.00 B | zip

    Download
  • Installation Sheet

    TYK_885 Installation Sheet
    1.42 MB | pdf

    Download
  • ICEL Endorsement

    TYKE ICEL Endorsement Certificate
    195.24 KB | pdf

    Download
  • Kitemark Certificate

    Luminaire Kitemark Certificate
    832.76 KB | pdf

    Download
