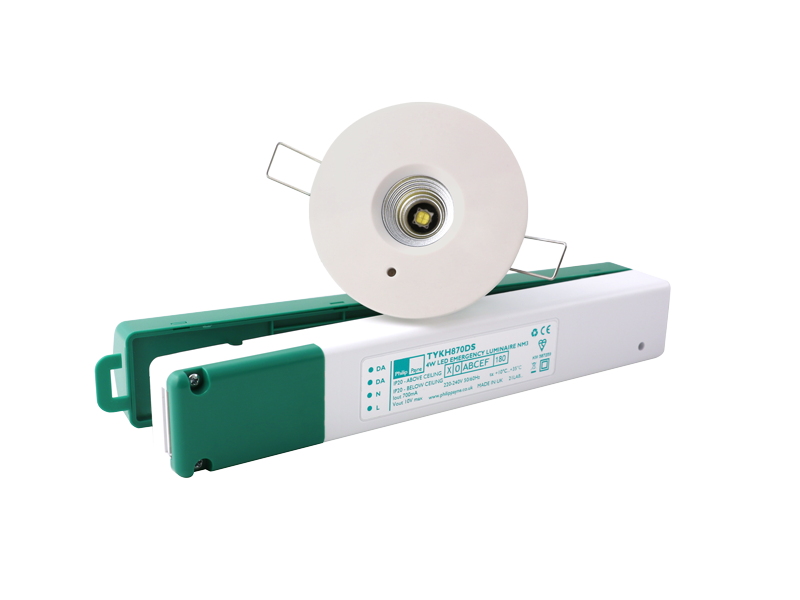

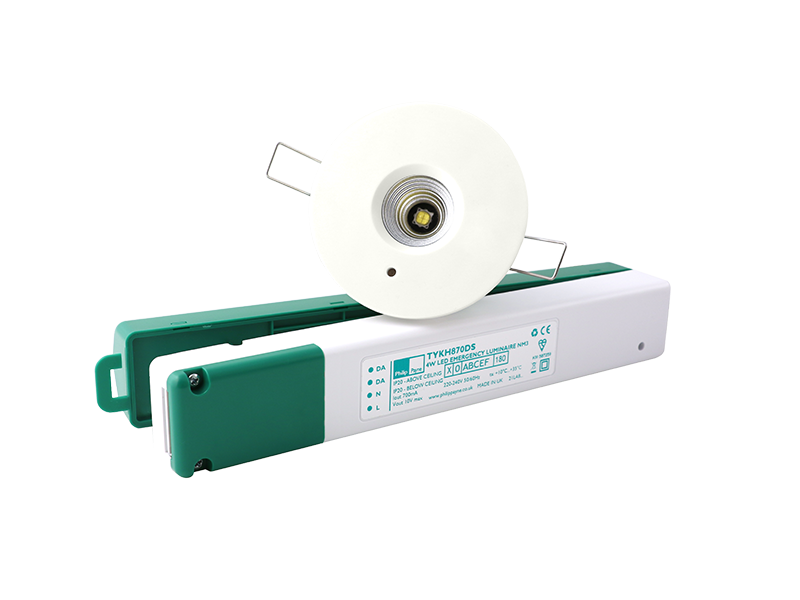

TYKH 870 – HIGH CEILING

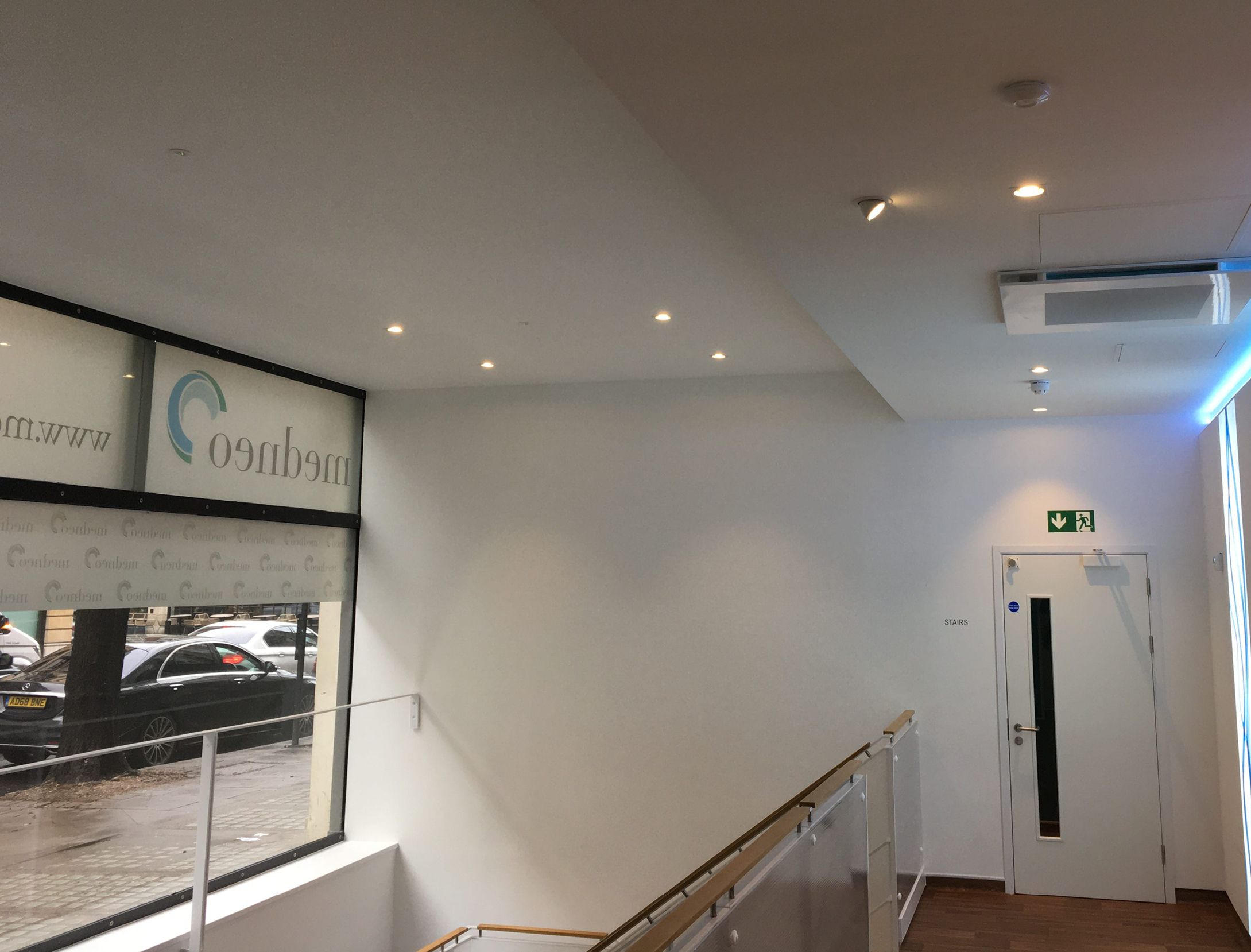

The 4W TYKH870 has been specifically designed for use on projects that require high mounted emergency lighting such as Atrium’s. The head contains an additional lens for this application and produces in excess of 500lms, providing 10.8 Lux at mounting heights up to 8 metres. Like the TYKT870 it is driven at a higher current than the standard TYKE860 and uses a high performance LED chip.

Like all members of the TYKE family the TYKH  is supplied as a single assembly and fits discreetly through a minimal cut-out with the head on a flexible lead. The driver and the batteries are compactly contained in an articulated enclosure.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • TYKH LUMEN OUTPUT
    • 545
  • Available Finish

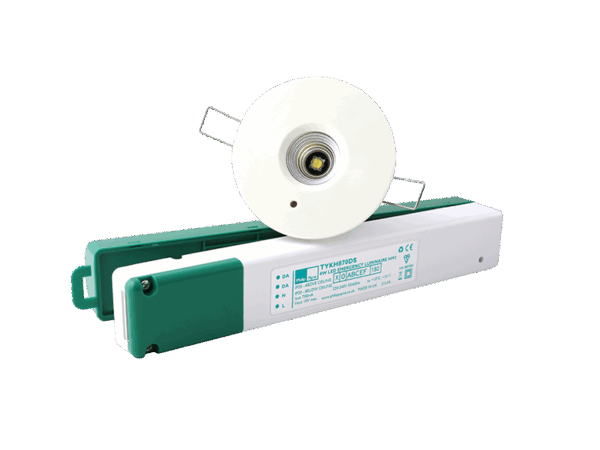

    • RAL 9016

    • RAL 9006

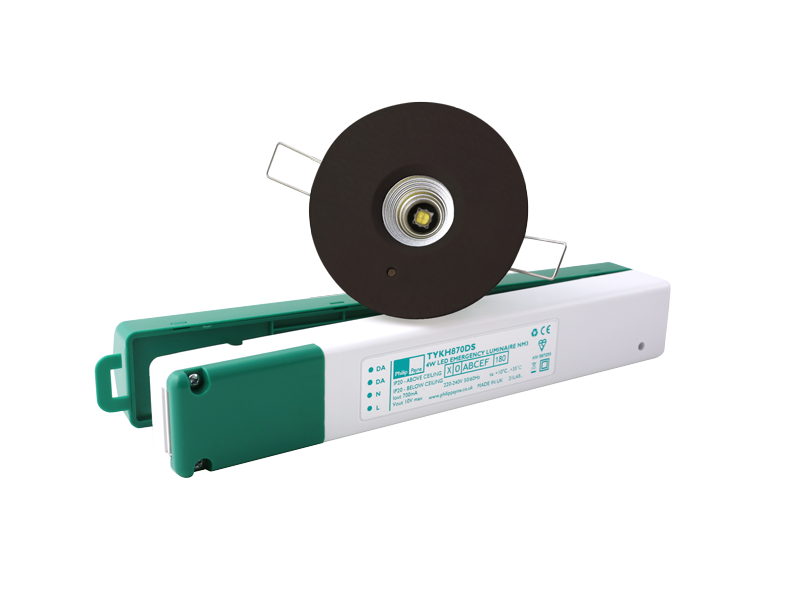

    • RAL 9005

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Weight 0.7kg

  • CDA

  • BSI Kitemark

  • 001-015

    ICEL Endorsed
    001-015

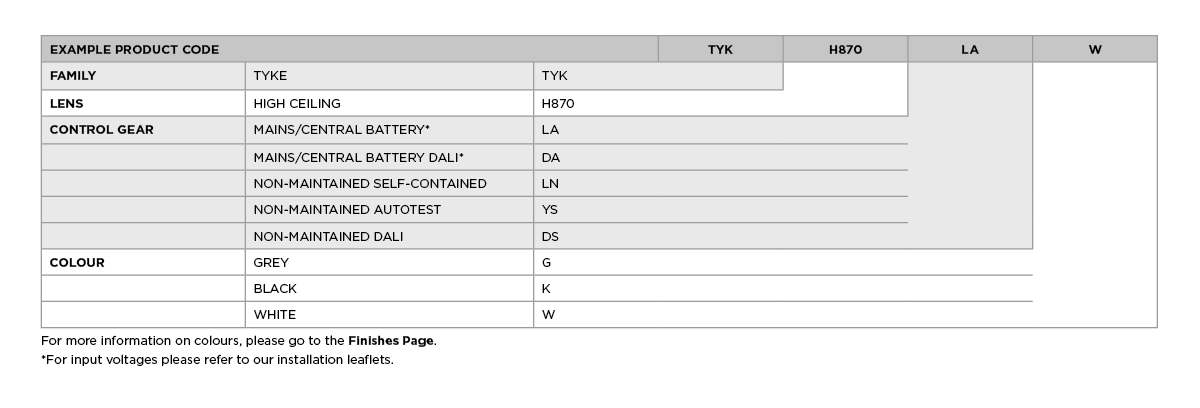

Part Numbers

Click image to expand

Part Numbers | TYKH 870 – HIGH CEILING

Dimensions

Click image to expand

Dimensions

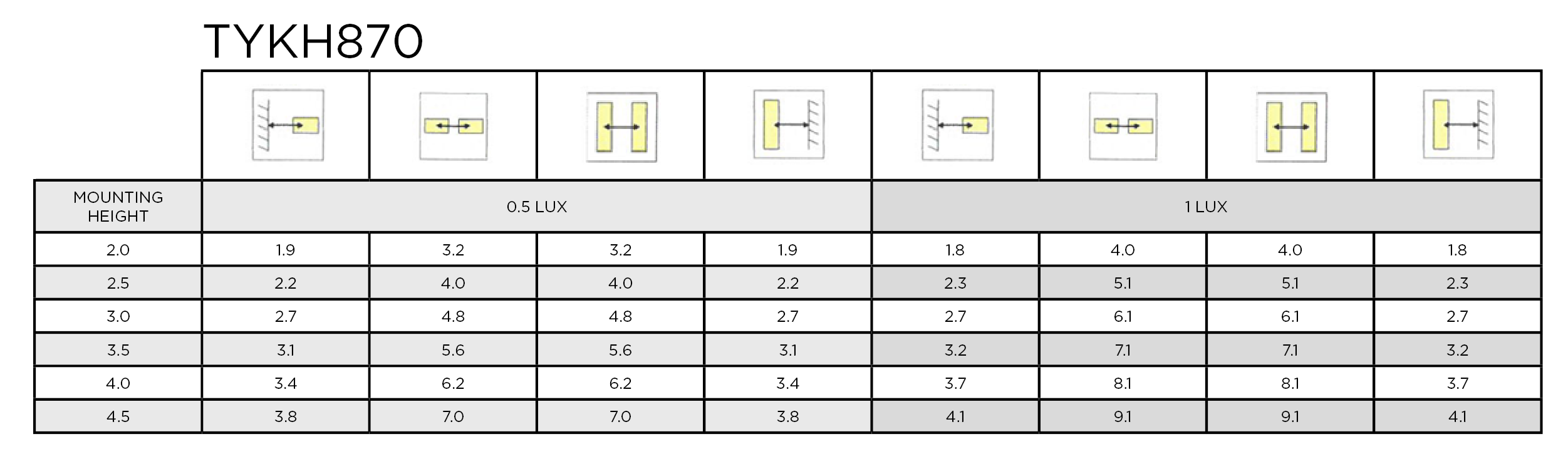

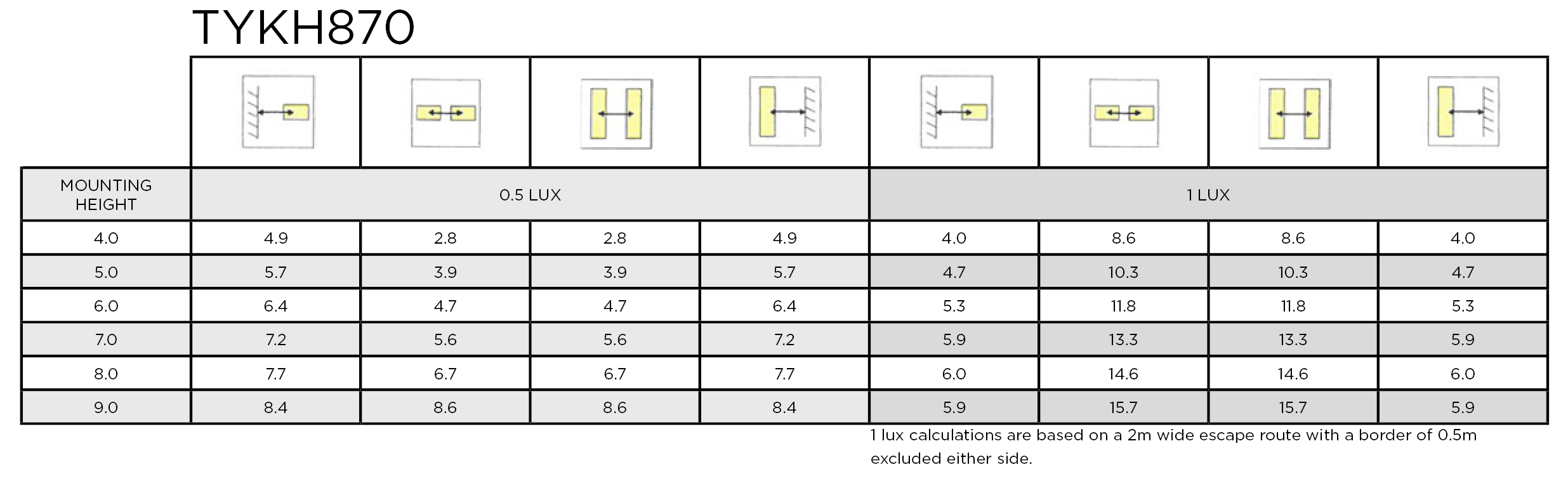

Spacing Tables

Click image to expand

Spacing Table

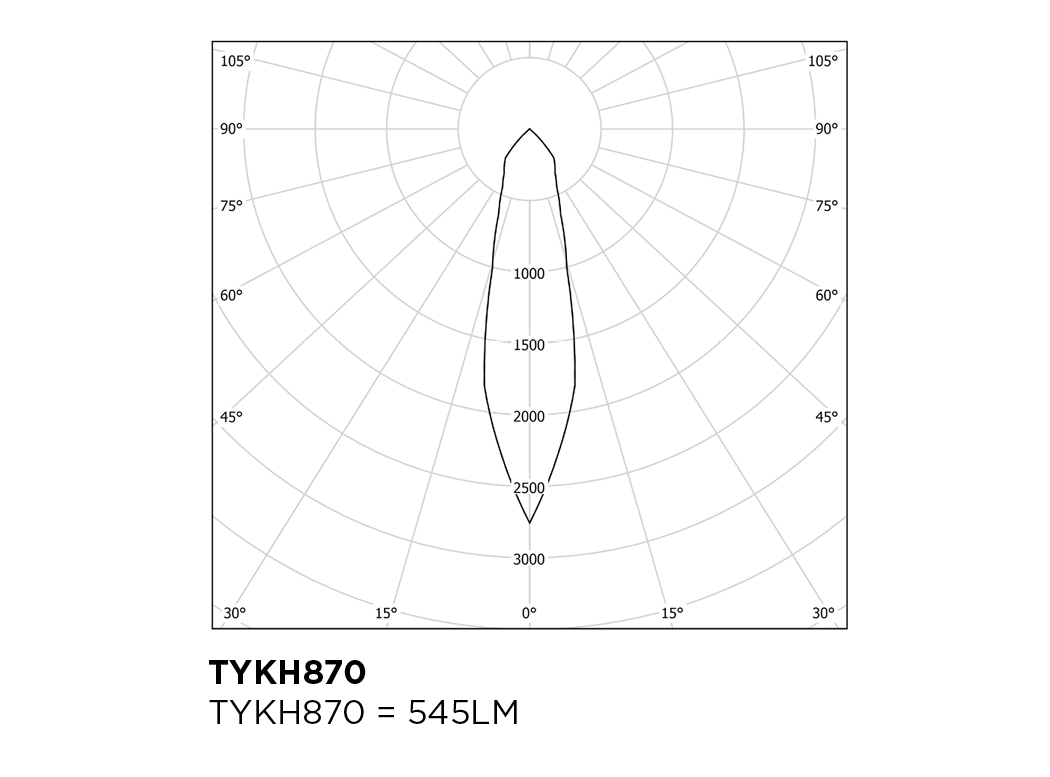

Polar Curves

Click image to expand

Polar Curve

Sustainability

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    TYKH 870 Data Sheet
    459.20 KB | pdf

    Download
  • Revit Files

    TYKH870 Revit Files
    562.58 KB | zip

    Download
  • Photometric Files

    TYKH 870 Photometric Files
    461.00 B | zip

    Download
  • Installation Sheets

    TYKH 870 Installation Sheets
    2.29 MB | pdf

    Download
  • ICEL Endorsement

    TYKE ICEL Endorsement Certificate
    195.24 KB | pdf

    Download
