TYKT 870 – HIGH OUTPUT

The higher output 4W TYKT870 produces in excess of 500lms for high risk areas to meet standards. The TYKT870 is driven at a higher current and uses an enhanced performance LED chip.

The TYKE is supplied as a single assembly designed to provide 10.8 Lux with very efficient spacings. Installation is simple as the Tyke fits discreetly through a minimal cutout with the head on a flexible lead. The driver and the batteries are compactly contained in an articulated enclosure.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • TYKT LUMEN OUTPUT
    • 555
  • TYKP LUMEN OUTPUT
    • 555

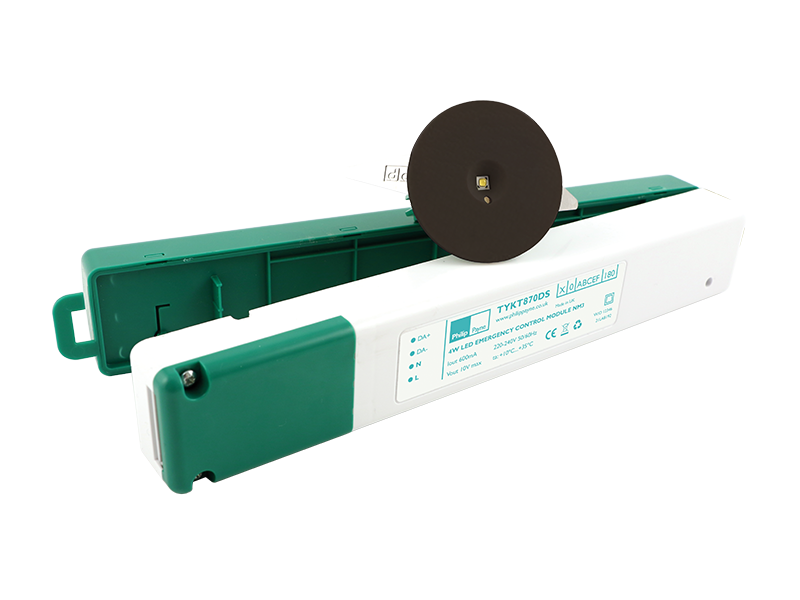

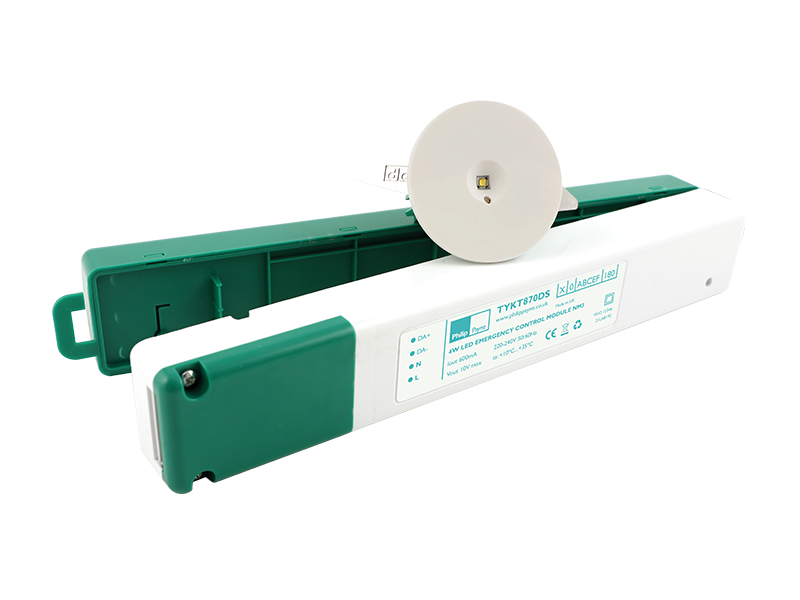

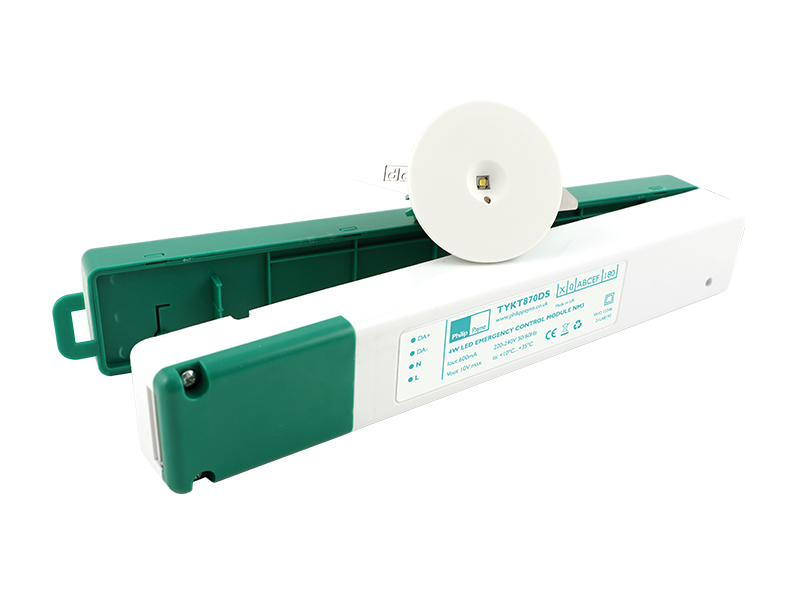

  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • IP 65

  • DALi

  • Weight 0.35kg

  • CDA

  • BSI Kitemark

  • 001-015

    ICEL Endorsed
    001-015

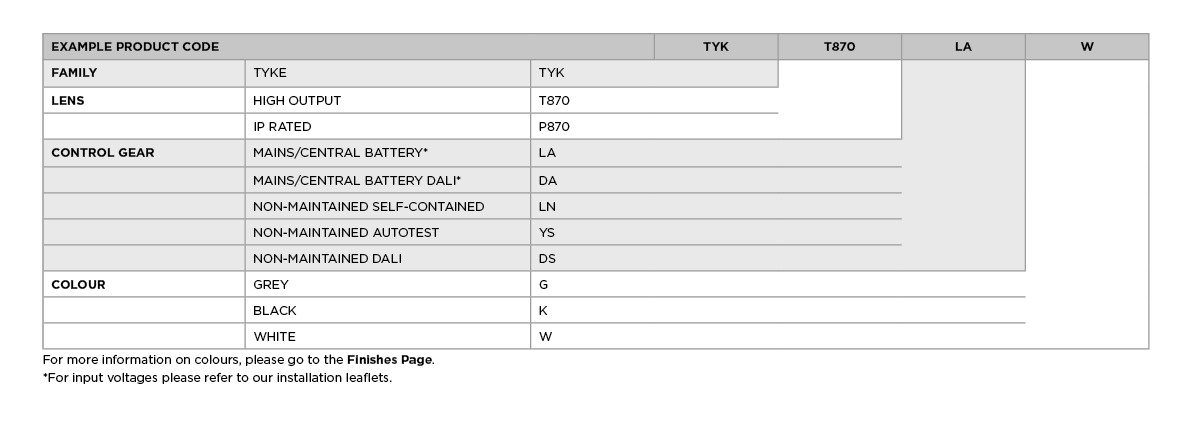

Part Numbers

Click image to expand

Part Numbers | TYKT 870 – HIGH OUTPUT

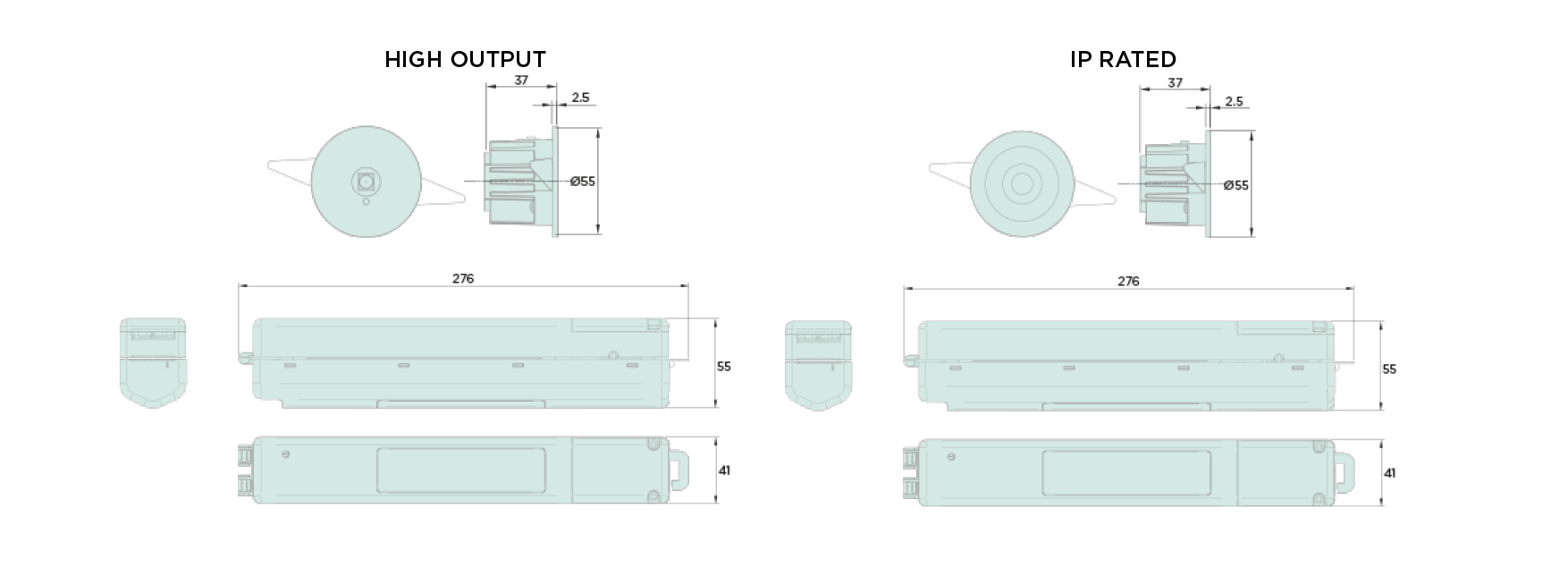

Dimensions

Click image to expand

Dimensions

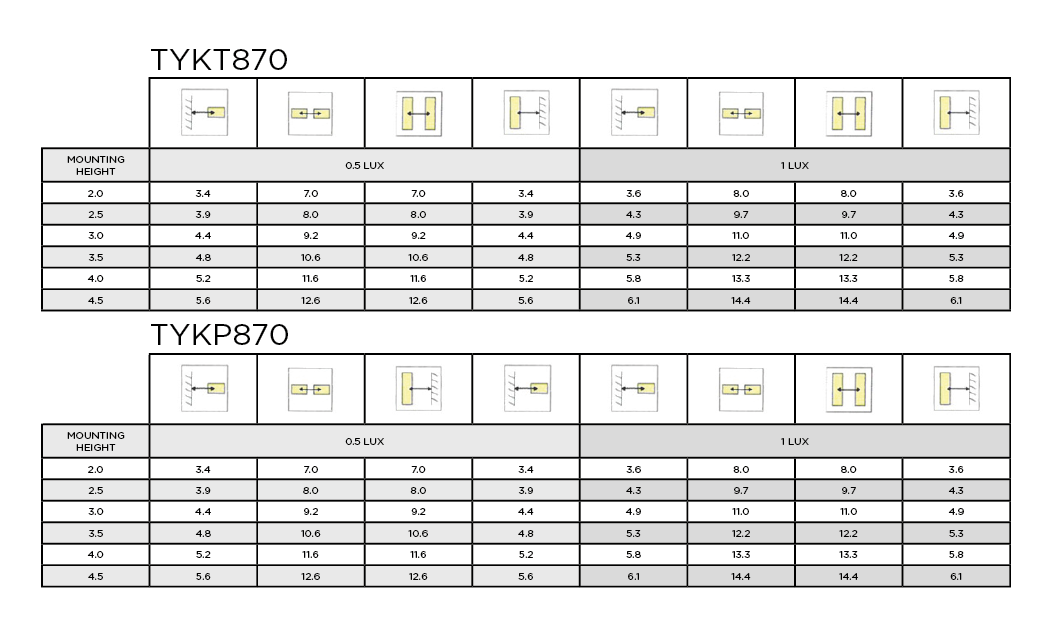

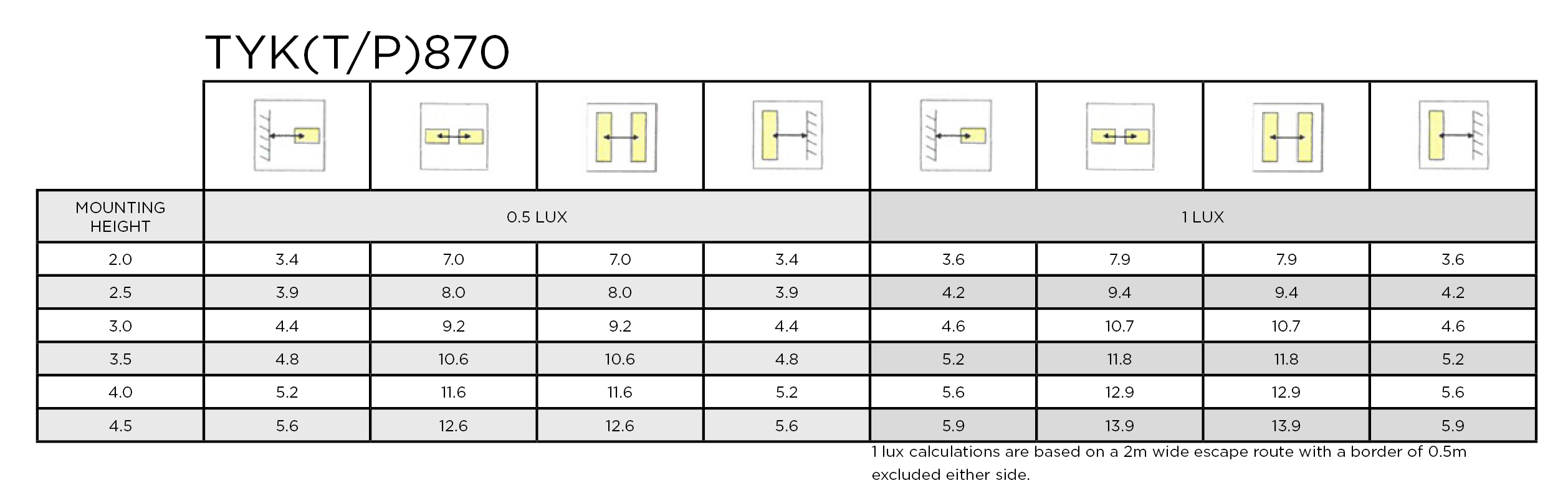

Spacing Tables

Click image to expand

Spacing Table

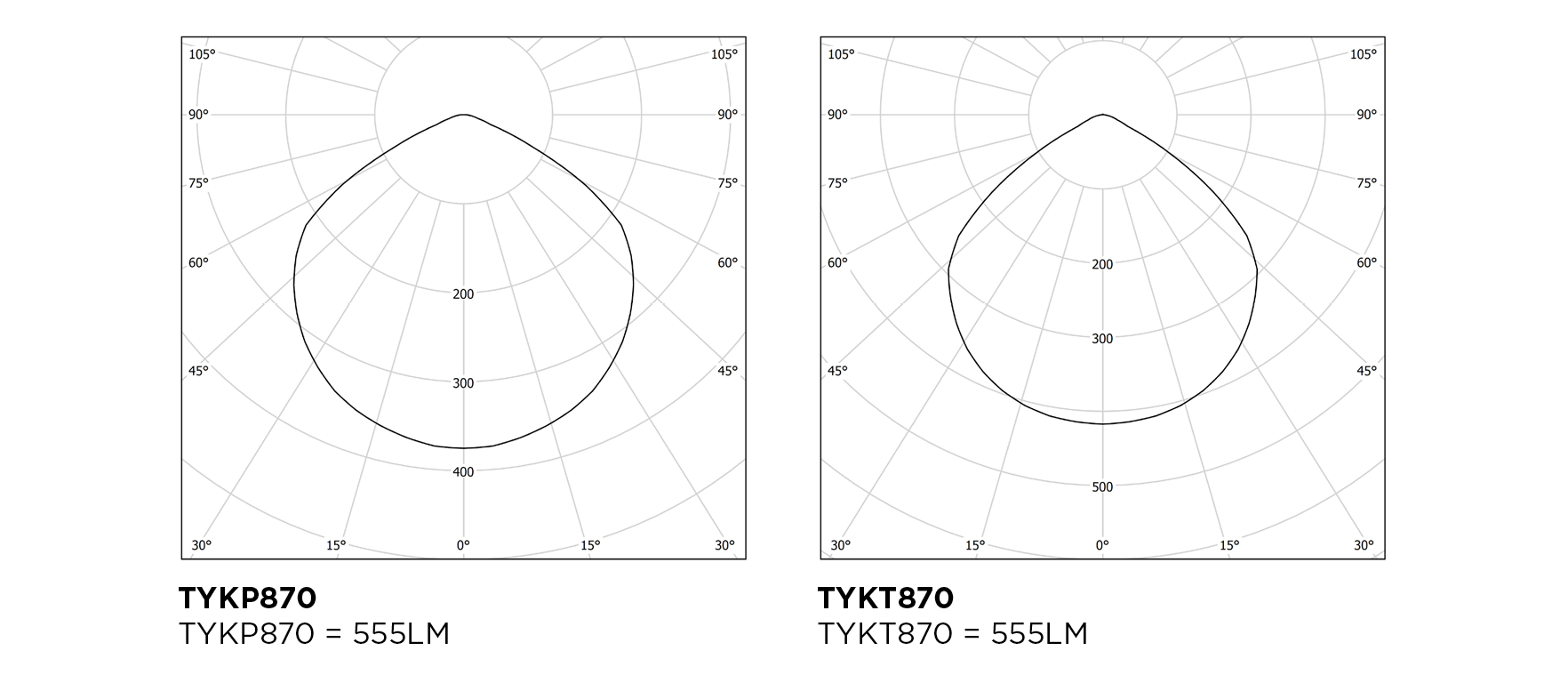

Polar Curves

Click image to expand

Polar Curve

Sustainability

Find out about our commitment to the Environment

Click Here

Downloads

  • Datasheet

    TYK_870 Datasheet
    672.09 KB | pdf

    Download
  • Revit Files

    TYK_870 Revit Files
    1.04 MB | zip

    Download
  • Photometric Files

    TYK_870 Photometric Files
    924.00 B | zip

    Download
  • Installation Sheets

    TYK_870 Installation Sheets
    1.99 MB | pdf

    Download
  • ICEL Endorsement

    TYKE ICEL Endorsement Certificate
    195.24 KB | pdf

    Download
  • Kitemark Certificate

    Luminaire Kitemark Certificate
    832.76 KB | pdf

    Download
