SPRT 885 – WIRELESS

The SPRITE shares the same lumen package derivatives as the TYKE880 and TYKT885 ranges.

It comes RAL9016 as standard but benefits from the regular palette of Payne finishes.

The SPRITE880/885 Range is designed for use on our Specto-XT wireless test system.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • SPRT LUMEN OUTPUT
    • 555
  • SPRP LUMEN OUTPUT
    • 555
  • IP VERSION FINISH
    • RAL 7035
  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • IP 20

  • IP 65

  • Weight 0.7kg

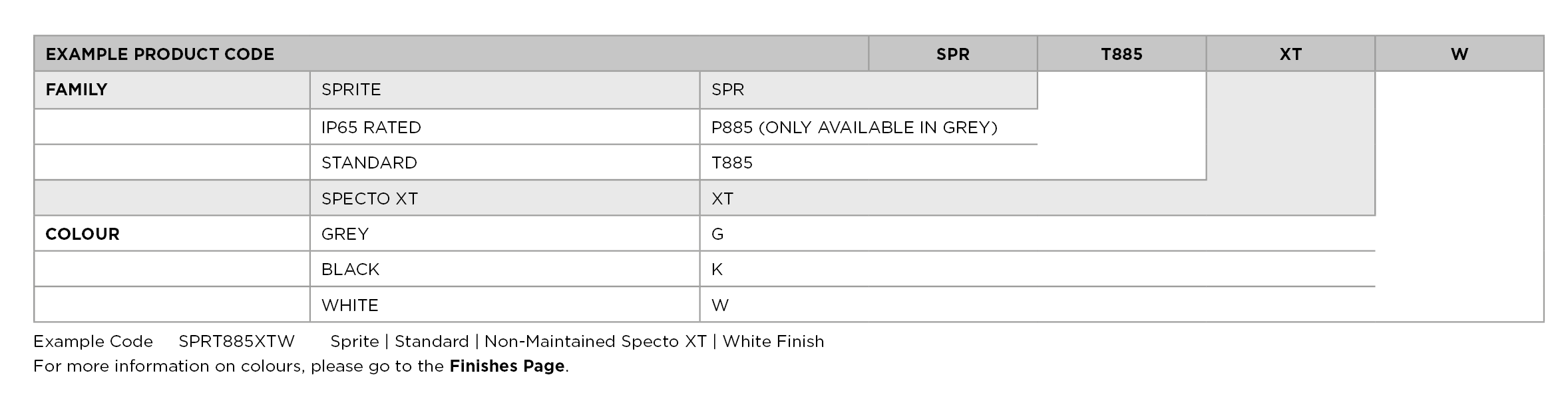

Part Numbers

Click image to expand

Part Numbers | SPRT 885 – WIRELESS

Dimensions

Click image to expand

Dimensions

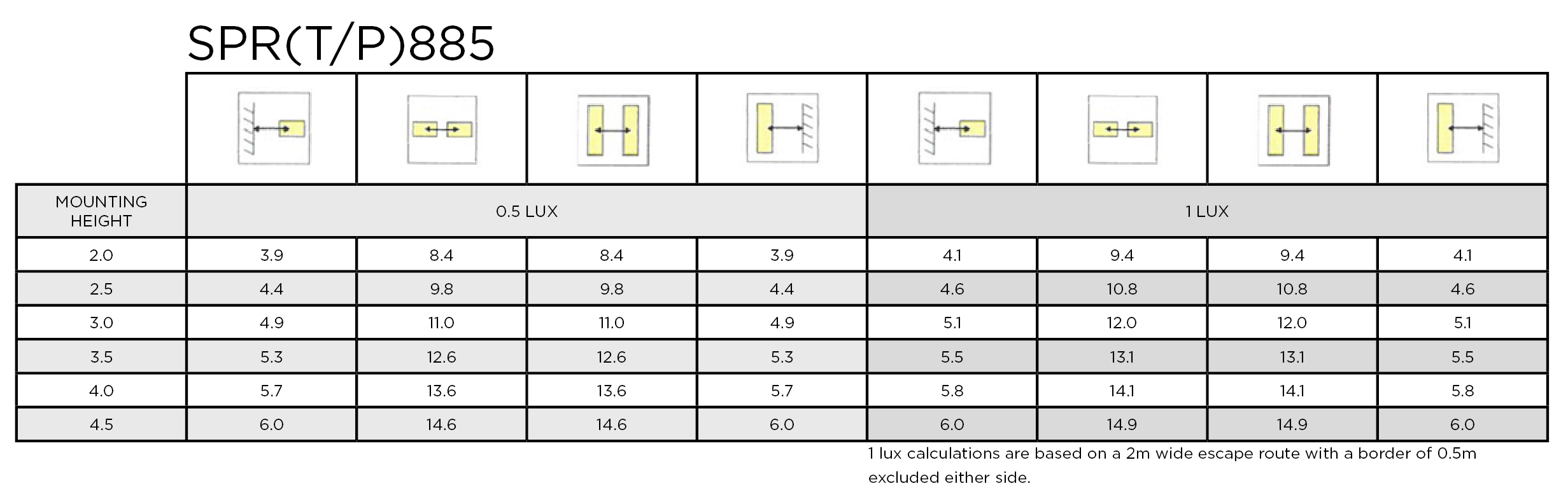

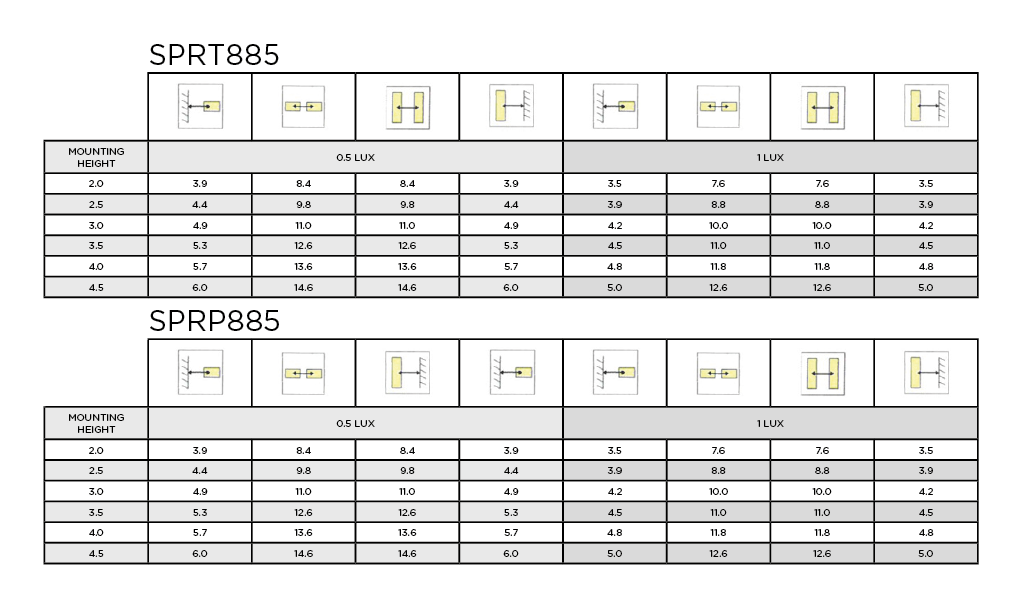

Spacing Tables

Click image to expand

Spacing Table

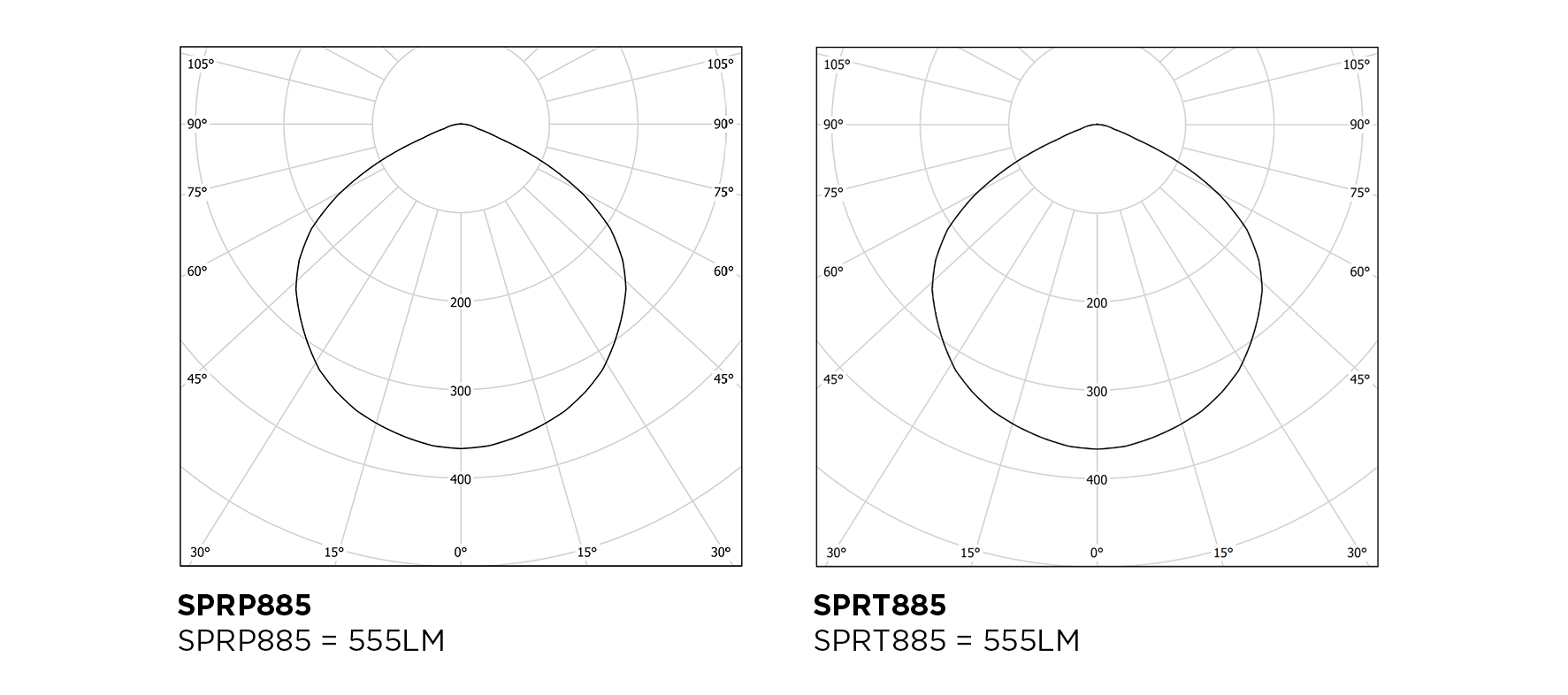

Polar Curves

Click image to expand

Polar Curve

Sustainability

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    SPRT885 Data Sheet
    882.00 KB | pdf

    Download
  • Photometric Files

    SPR_885 Photometric Files
    904.00 B | zip

    Download
  • Installation Sheet

    SPRT885 Installation Sheet
    789.30 KB | pdf

    Download
