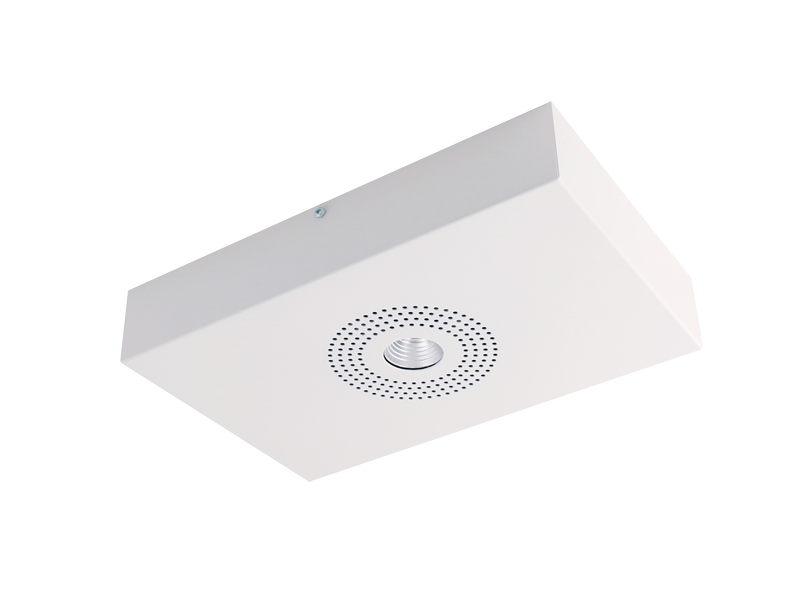

SPRH 870 – HIGH CEILING

The SPRH870 has been specifically designed for use on projects that require high mounted emergency lighting such as Atrium’s. Effectively a surface mounted version of the popular TYKH870 it contains the same lens for this application and produces in excess of 500lms, providing 10.8 Lux at mounting heights up to 8 metres.

Like the SPRT870 it is driven at a higher current than the standard 860 product using a high performance LED chip.

A more compact body is available for use on central battery versions.

The standard finish is RAL9016 however other standard colours are available along with customer specials on request.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • SPRH LUMEN OUTPUT
    • 545
  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Weight 0.7kg

  • CDA

  • BSI Kitemark

  • 001-015

    ICEL Endorsed
    001-015

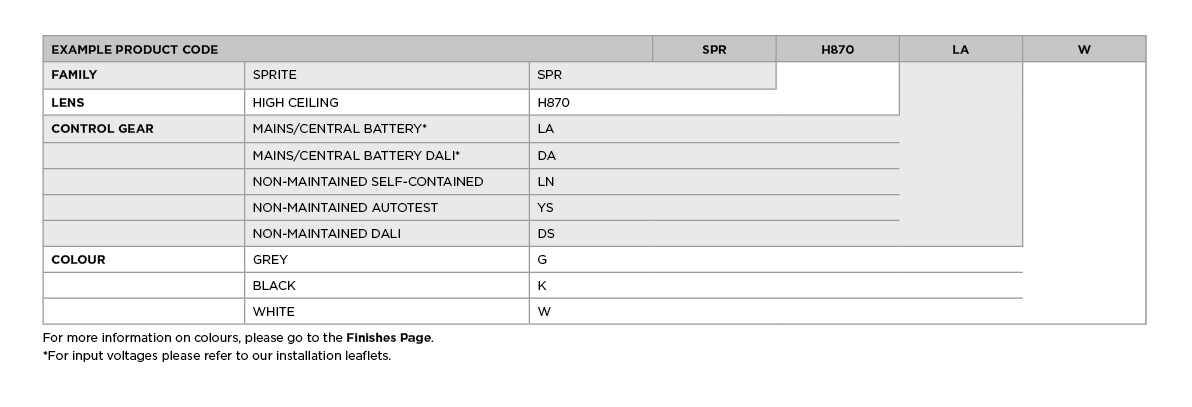

Part Numbers

Click image to expand

Part Numbers | SPRH 870 – HIGH CEILING

Dimensions

Click image to expand

Dimensions

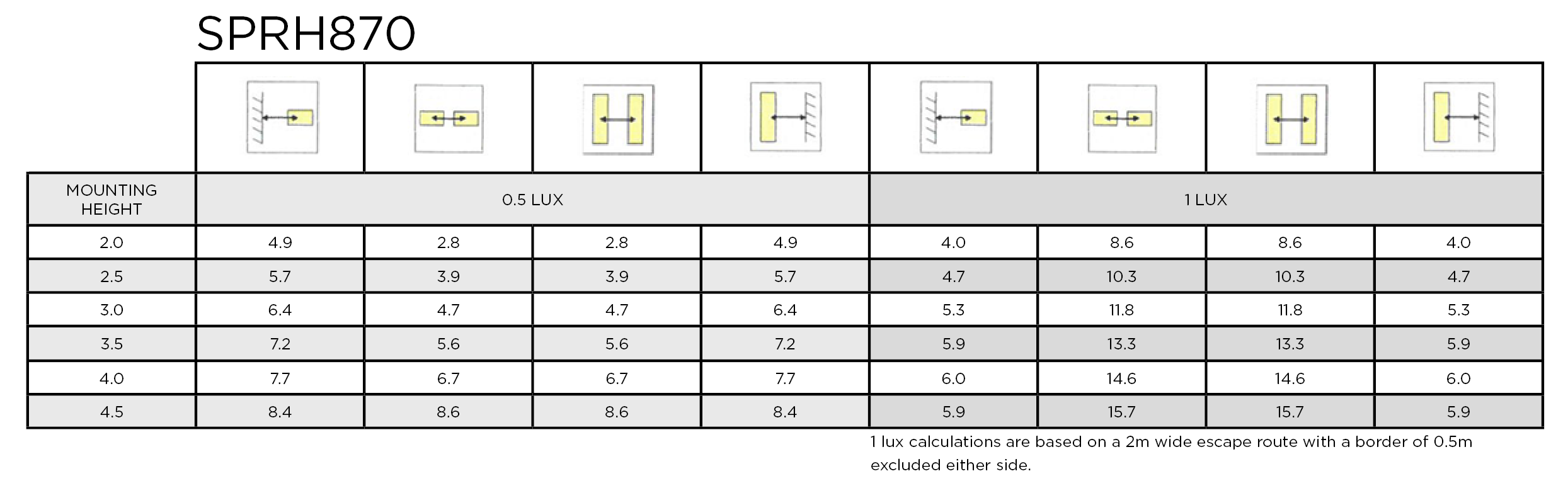

Spacing Tables

Click image to expand

Spacing Table

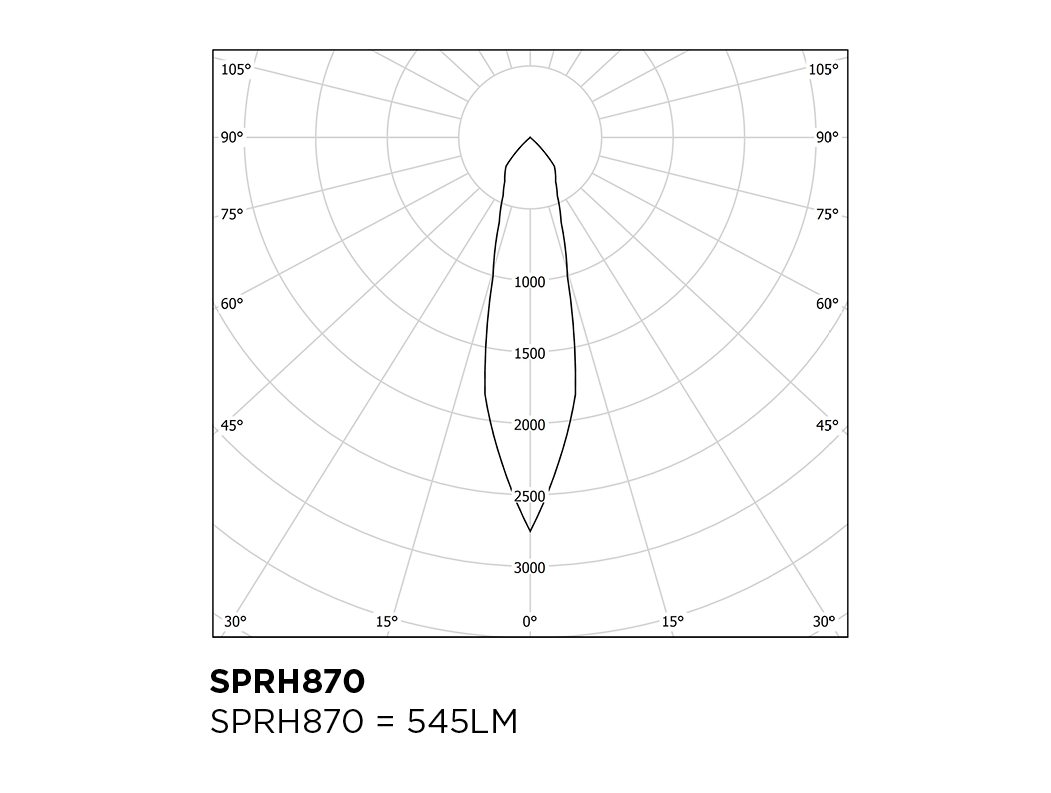

Polar Curves

Click image to expand

Polar Curve
