SPRE 860 – STANDARD

SPRE 860 – STANDARD

The SPRITE shares the same lumen package derivatives as the TYKE860 and TYKT870 ranges.

It comes RAL9016 as standard but benefits from the regular palette of Payne finishes.

  • WATTAGE
    • 2 Watts
  • DRIVE CURRENT
    • 600mA
  • SPRE LUMEN OUTPUT
    • 190
  • SPRA LUMEN OUTPUT
    • 200
  • SPRC LUMEN OUTPUT
    • 175
  • Available Finish

    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Weight 0.7kg

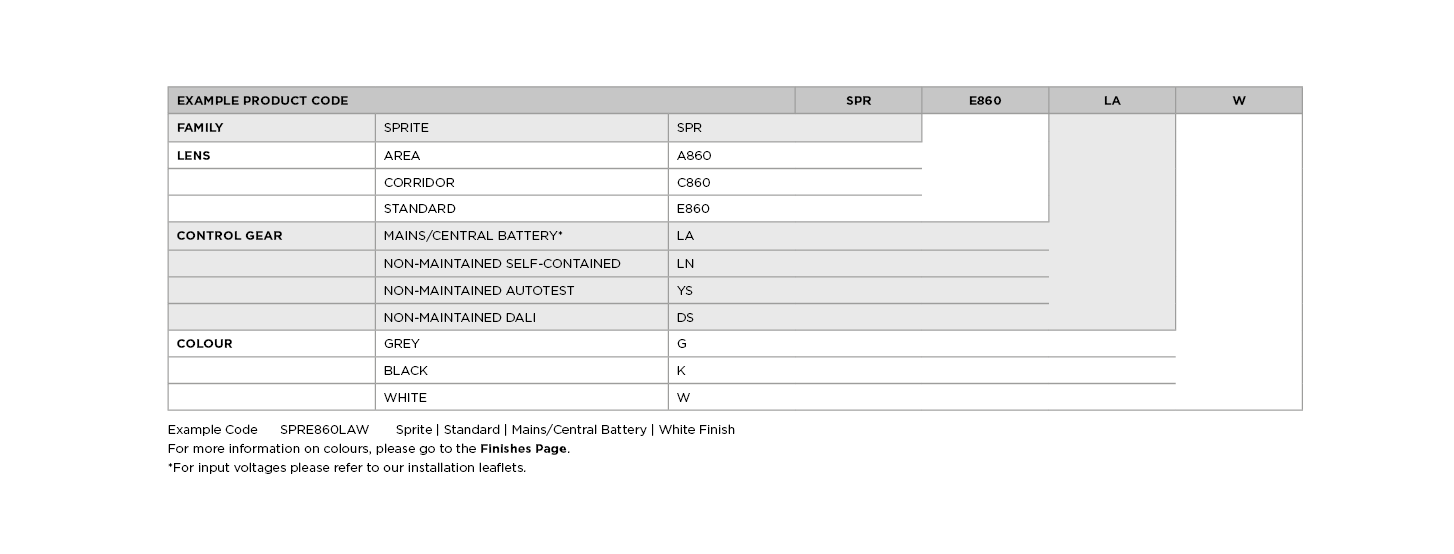

Part Numbers

  • SPRE860LA 230v AC/DC Central Supply
  • SPRE860DA 230v AC/DC Central Supply DALI
  • SPRE860LN 3hr Self Contained Non-Maintained
  • SPRE860YS 3hr Self Contained Self Test
  • SPRE860DS 3hr Self Contained DALI
  • SPRA860LA 230v AC/DC Area: Central Supply
  • SPRA860DA 230v AC/DC Area: Central Supply DALI
  • SPRA860LN 3hr Self Contained Area: Non-Maintained
  • SPRA860YS 3hr Self Contained Area: Self Test
  • SPRA860DS 3hr Self Contained Area: DALI
  • SPRC860LA 230v AC/DC Corridor: Central Supply
  • SPRC860DA 230v AC/DC Corridor: Central Supply DALI
  • SPRC860LN 3hr Self Contained Corridor: Non-Maintained
  • SPRC860YS 3hr Self Contained Corridor: Self Test
  • SPRC860DS 3hr Self Contained Corridor: DALI

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    SPR_860 Data Sheet
    136.53 KB | pdf

    Download

  • Revit Files

    SPR_860 Revit Files
    1.42 MB | zip

    Download

  • Photometric Files

    SPR_860 Photometric Files
    3.01 KB | zip

    Download

  • Installation Sheet

    SPR_860 Installation Sheet
    258.94 KB | pdf

    Download
