TYKE 860

An increase in the driving current along with the improvements in the electronics and batteries selected mean the TYKE860 now provides a more robust emergency package with an increased lumen output of 200lms and an extended battery life.

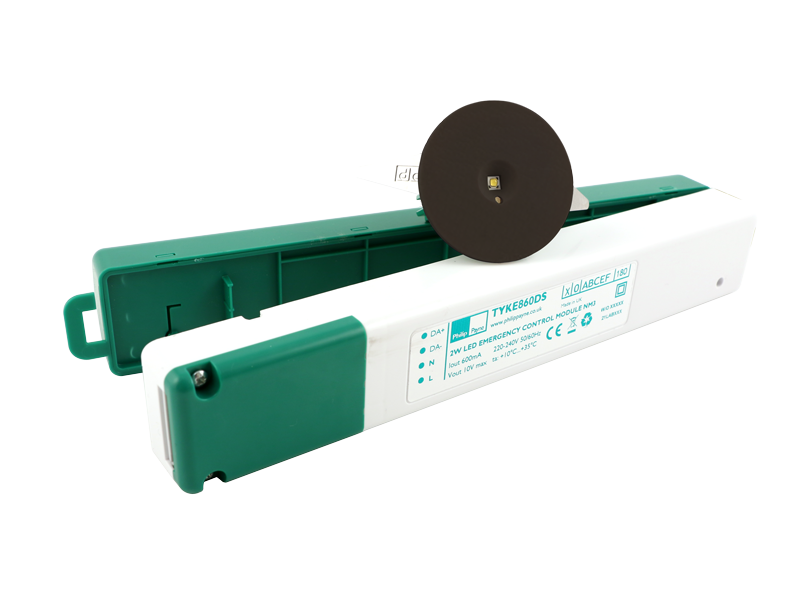

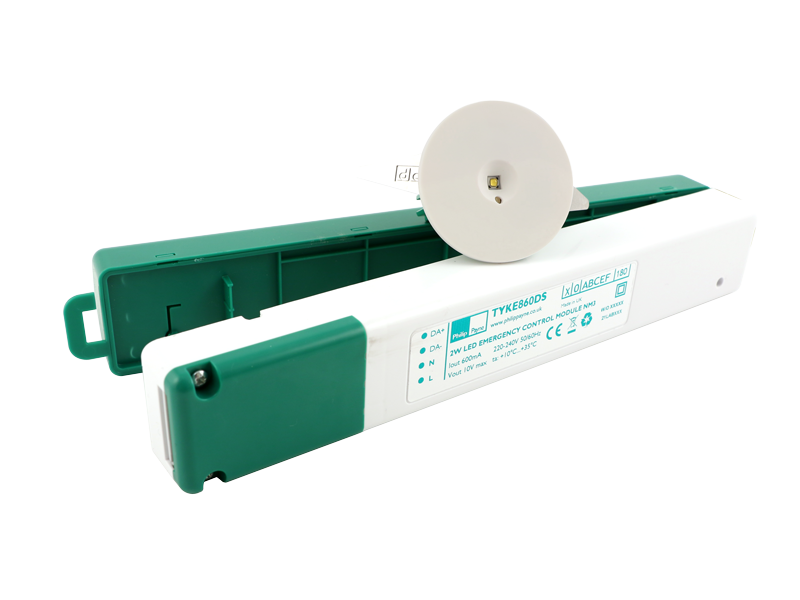

Supplied as a single assembly, installation is simple. The TYKE860 fits discretely through a minimal cut-out with the head on a flexible lead. The driver and the batteries are compactly contained within an articulated enclosure.

  • WATTAGE
    • 2 Watts
  • DRIVE CURRENT
    • 600mA
  • TYKE LUMEN OUTPUT
    • 190
  • TYKA LUMEN OUTPUT
    • 200
  • TYKC LUMEN OUTPUT
    • 175
  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • F Mark

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Weight 0.35kg

  • CDA

  • BSI Kitemark

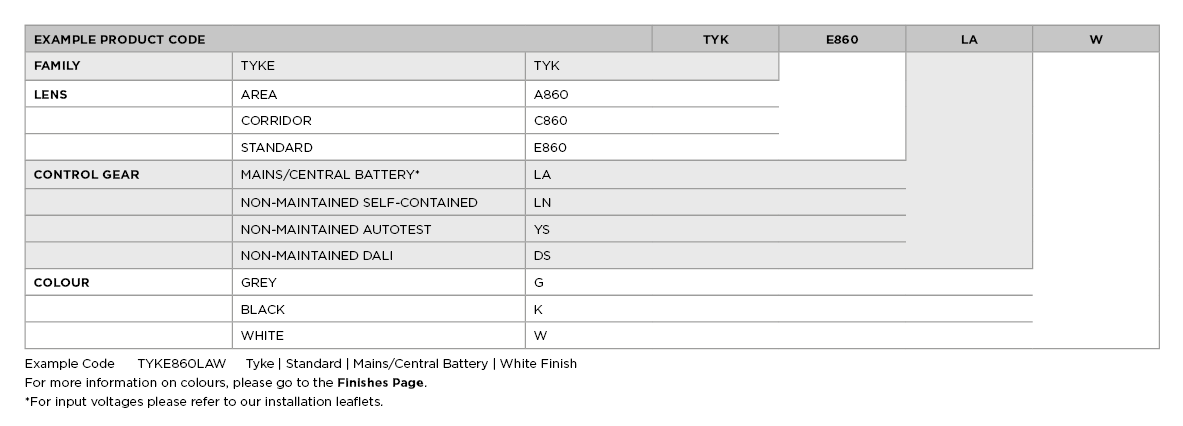

Part Numbers

  • TYKE860LA 230v AC/DC Central Supply
  • TYKE860DA 230v AC/DC Central Supply DALi
  • TYKE860LN 3hr Self Contained Non-Maintained
  • TYKE860YS 3hr Self Contained Self Test
  • TYKE860DS 3hr Self Contained DALi
  • TYKA860LA 230v AC/DC Area: Central Supply
  • TYKA860DA 230v AC/DC Area: Central Supply DALi
  • TYKA860LN 3hr Self Contained Area: Non-Maintained
  • TYKA860YS 3hr Self Contained Area: Self Test
  • TYKA860DS 3hr Self Contained Area: DALi
  • TYKC860LA 230v AC/DC Corridor: Central Supply
  • TYKC860DA 230v AC/DC Corridor: Central Supply DALi
  • TYKC860LN 3hr Self Contained Corridor: Non-Maintained
  • TYKC860YS 3hr Self Contained Corridor: Self Test
  • TYKC860DS 3hr Self Contained Corridor: DALi

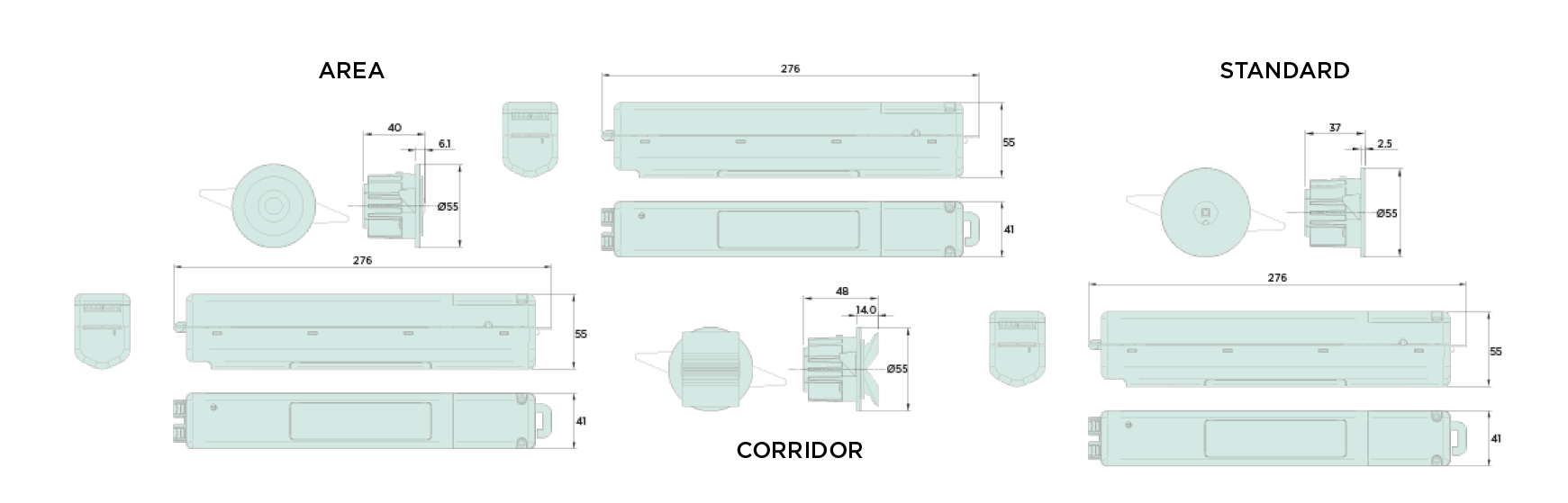

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    TYK_860 Data Sheet
    245.43 KB | pdf

    Download
  • Revit Files

    TYK_860 Revit Files
    1.64 MB | zip

    Download
  • Photometric Files

    TYK_860 Photometric Files
    3.02 KB | zip

    Download
  • Installation Sheets

    TYK_860 Installation Sheets
    816.22 KB | pdf

    Download
