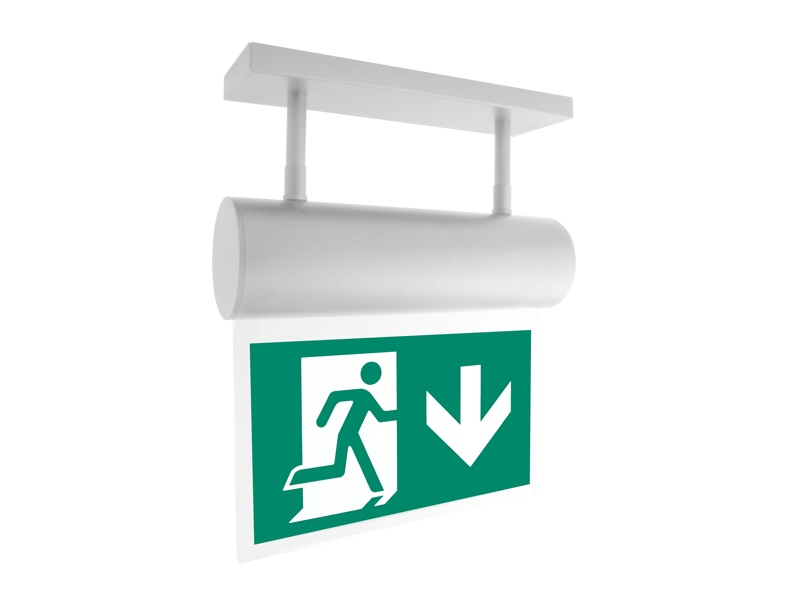

Mini CF

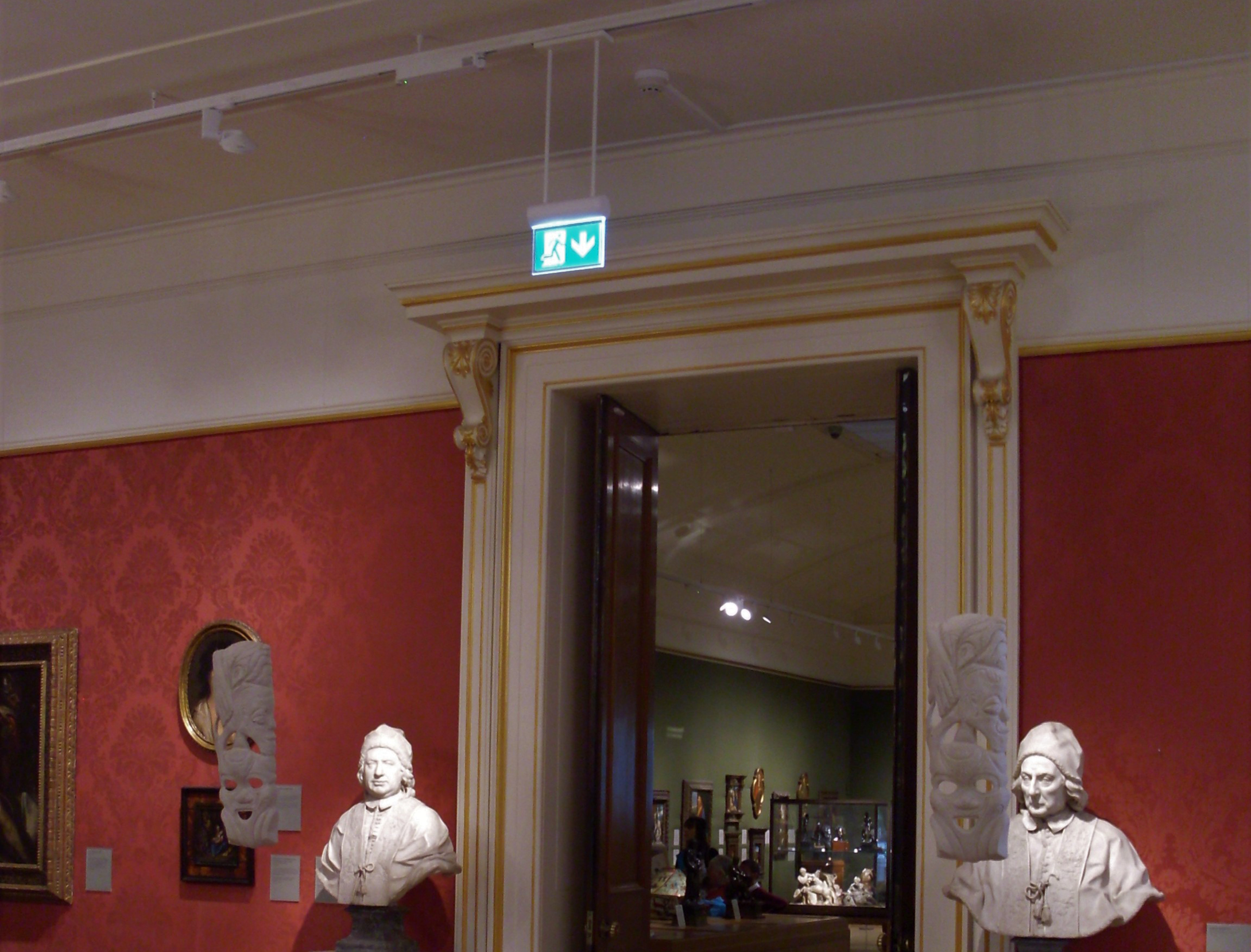

The Mini CF has been much utilised by designers where high ceiling heights or installation difficulties pose problems. The product comes with a standard 500mm rod suspension kit which can be cut on site to suit exact requirements.

Extended or custom lengths are available to factory order if required.

The Mini CF is normally used in Satin Chrome or Bronze finishes but can be supplied in the normal range of Philip Payne finishes.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALI
    • 3hr Specto-XT
  • Legends Please contact the sales office for other legend formats
  • Available Finish

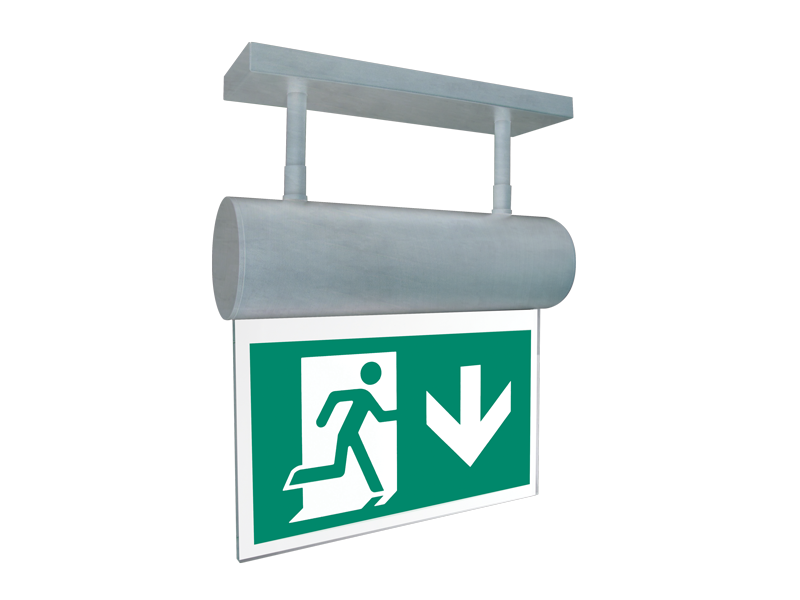

    • Satin Chrome

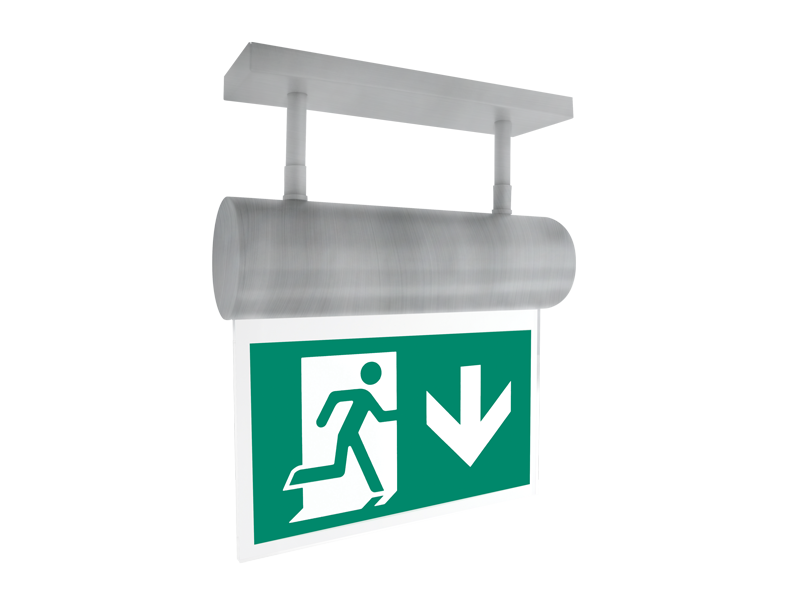

    • Polished Chrome

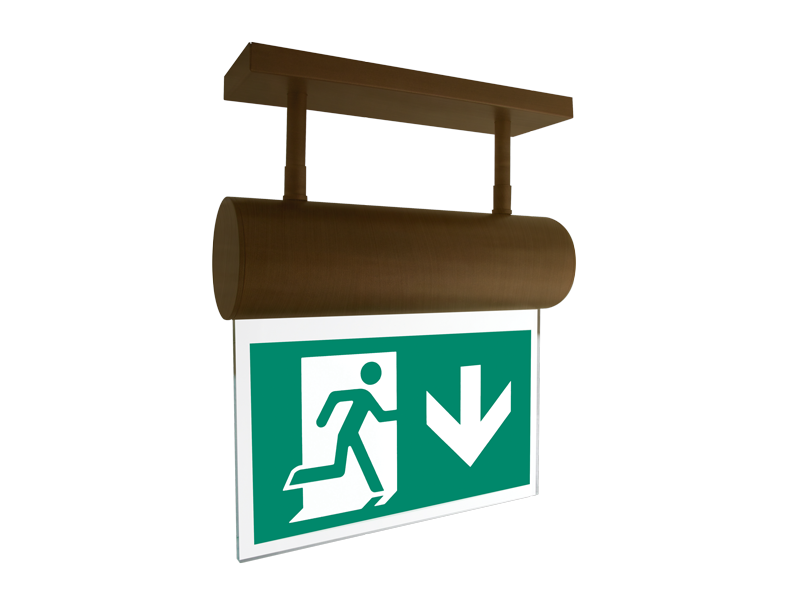

    • Polished Brass

    • BMA

    • RAL 9010

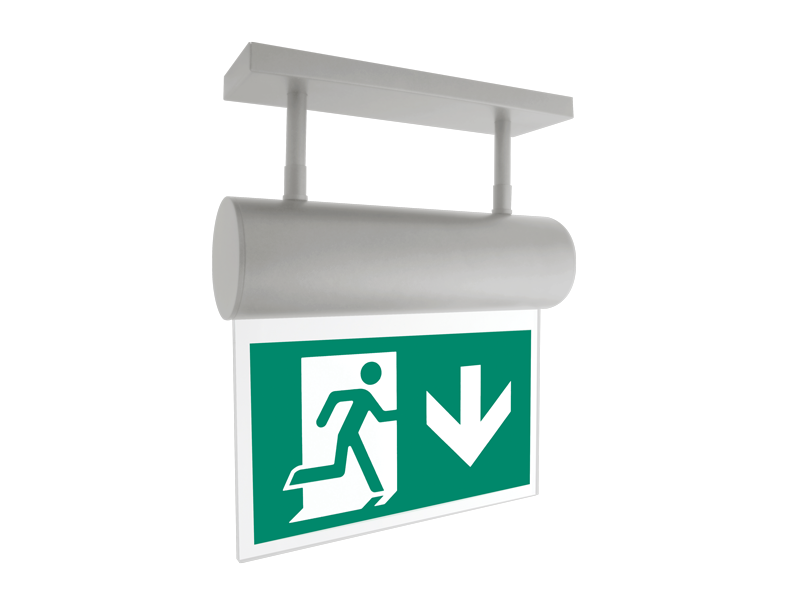

    • RAL 9006

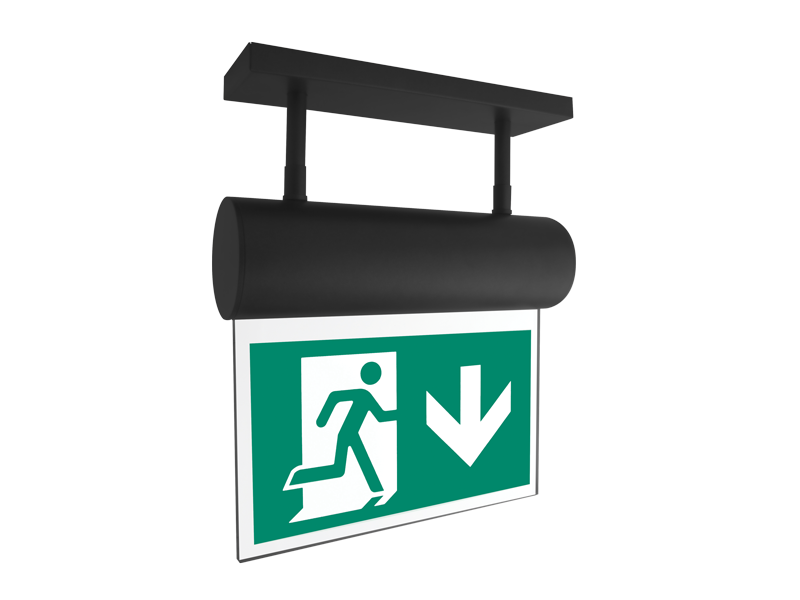

    • RAL 9005

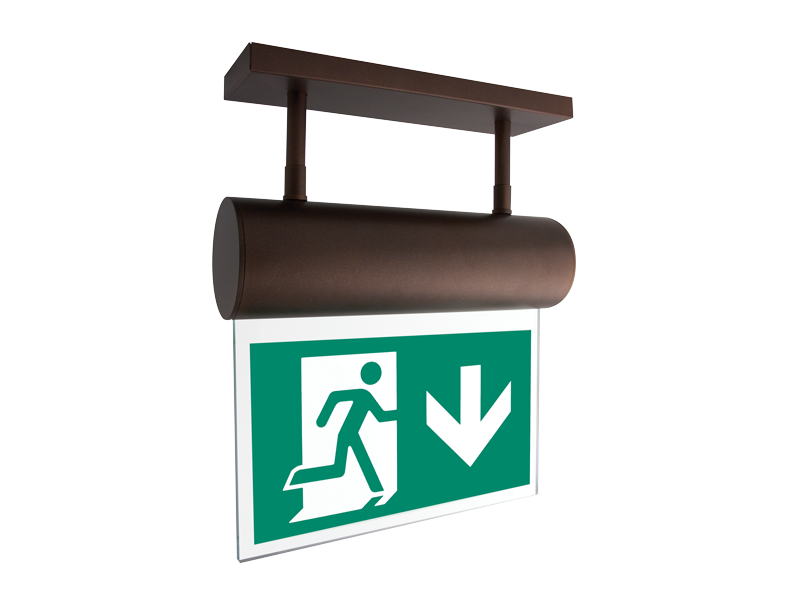

    • Penny Bronze

Specification

  • Conformité Européene

  • UKCA

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance 26M

  • Weight 1.5kg

  • Double Sided

  • Impact Rating 7

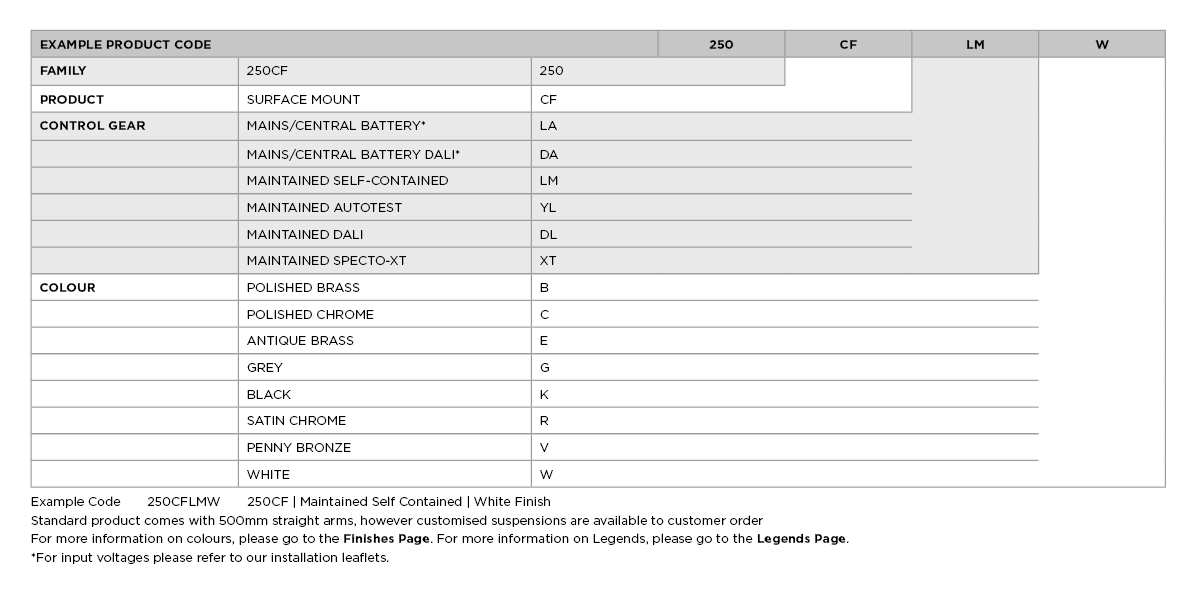

Part Numbers

  • 250CFLA 230v AC/DC Central Supply
  • 250CFDA 230v AC/DC Central Supply DALI
  • 250CFLM 3hr Self Contained Maintained/ Non-Maintained
  • 250CFYL 3hr Self Contained Self Test
  • 250CFDL 3hr Self Contained DALI
  • 250CFXT 3hr Self Contained Specto-XT

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    250CF Data Sheet
    147.59 KB | pdf

    Download
  • Legend Sheet

    Mini CF Legend Sheet
    191.75 KB | pdf

    Download
  • Revit Files

    Mini CF Revit Files
    757.49 KB | zip

    Download
