250MCSH

The 250MCSH Mini Cylinder can be wall mounted with self-contained or central battery backup for the LED light-source.

The standard wall mounted product comes with contemporary minimal arm extensions for surface mounting. Picture light arms are available as a factory fitted extra option to create a more classical look.

In addition to standard satin chrome a full range of Payne finishes are available with polished Brass providing an authentic heritage appearance.

Voltage
- 230v
IP
- 20
Weight
- 1.5kg
Gear Options
- 230v Central Supply
- 3hr Non-Maintained
- 3hr Maintained
- 3hr Self Test
- 3hr DALI
- 3hr Specto-XT
Legends Please contact the sales office for other legend formats
Available Finish

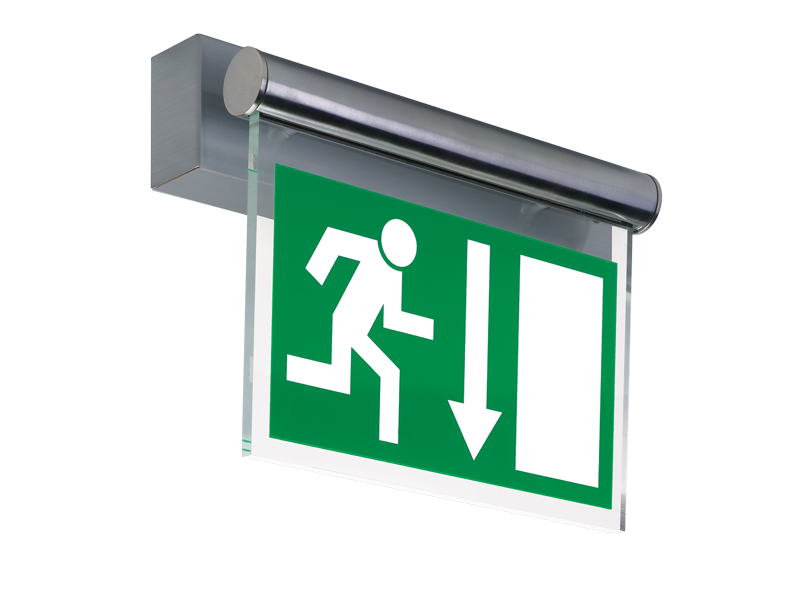

- Satin Chrome

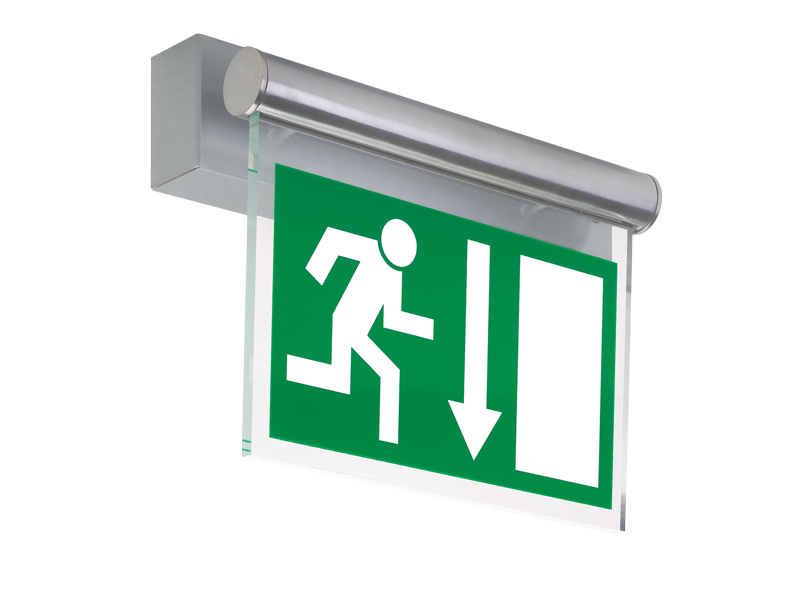

- Polished Chrome

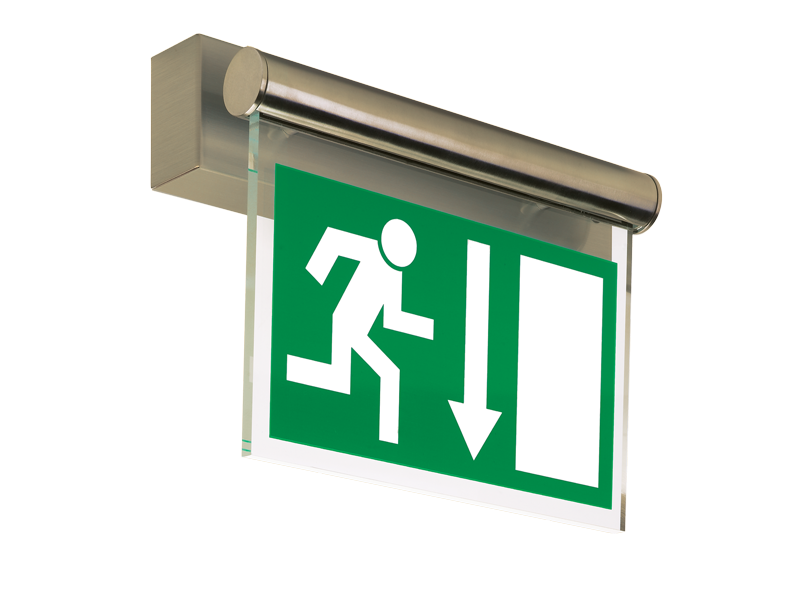

- Polished Brass

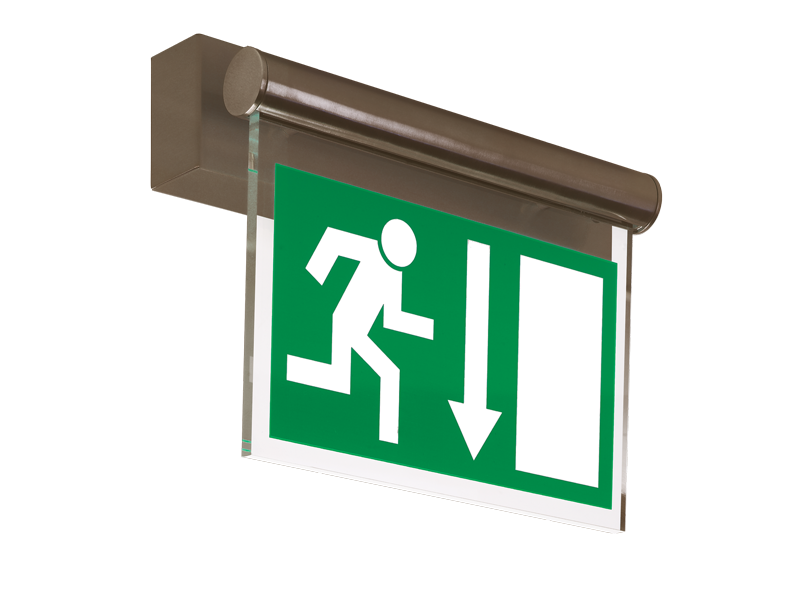

- Antique Brass

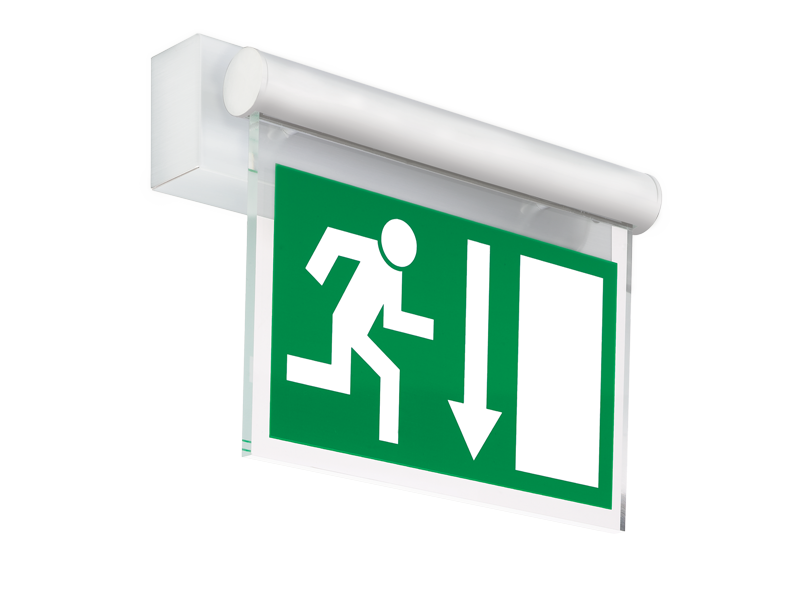

- RAL 9010

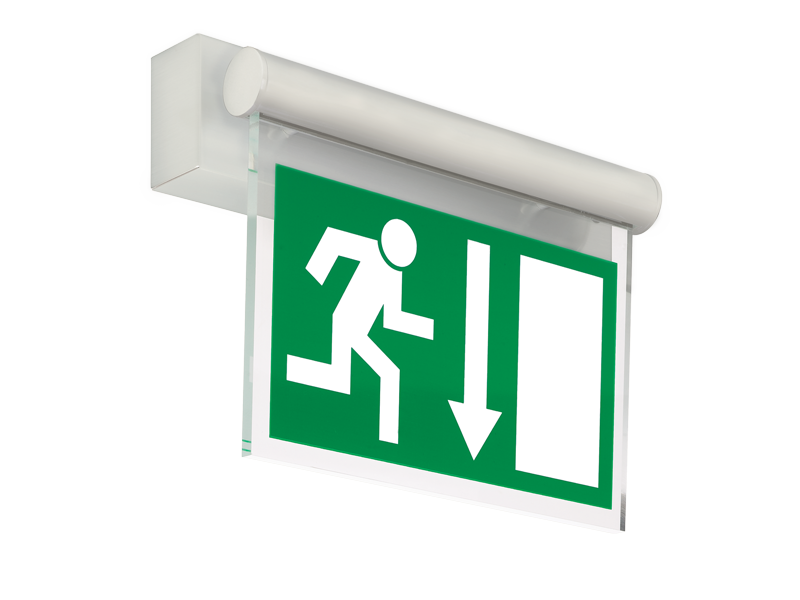

- RAL 9006

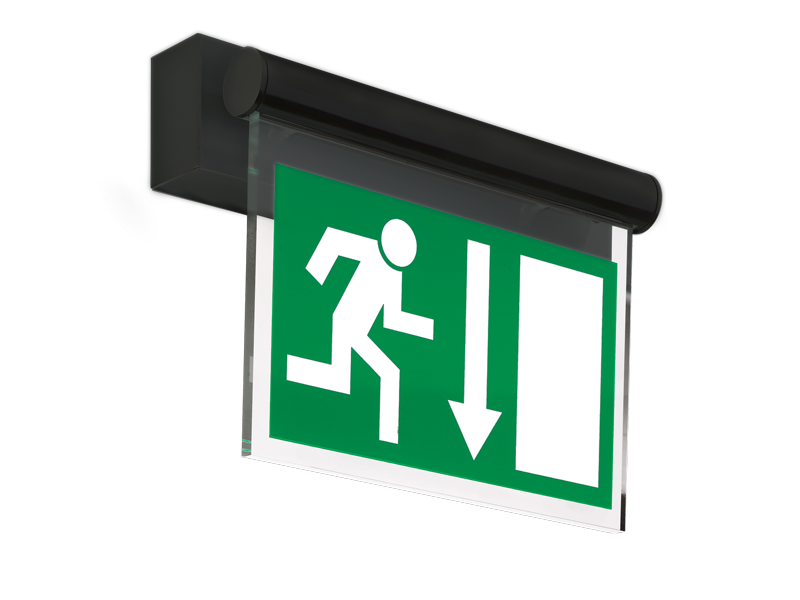

- RAL 9005

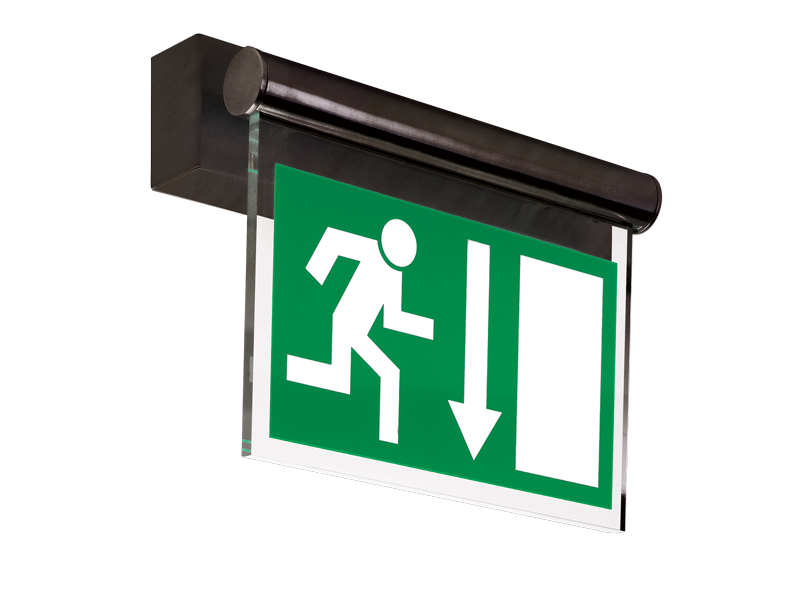

- Penny Bronze

Specification

Conformité Européene
UKCA
Maintained
Non Maintained
LED
Self Test
IP 20
DALi
Viewing Distance 26M
Weight 1.5kg
Double Sided
CDA
BSI Kitemark
Impact Rating 7
001-002
ICEL Endorsed
001-002

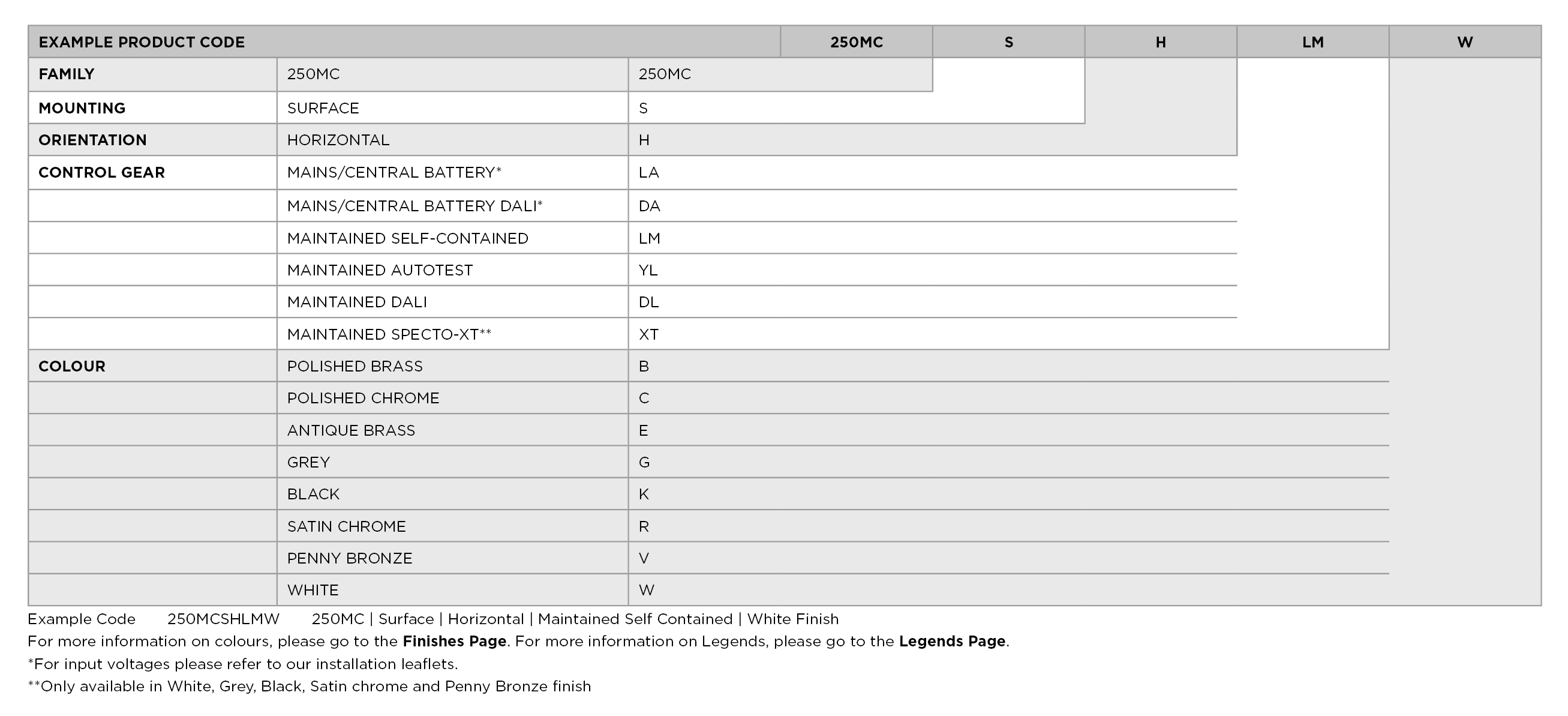

Part Numbers

250MCSHLA 230v AC/DC Central Supply
250MCSHLE 230v AC Central Supply (UAE only)
250MCSHDA 230v AC/DC Central Supply DALI
250MCSHLM 3hr Self Contained Maintained
250MCSHYL 3hr Self Contained Self Test
250MCSHDL 3hr Self Contained DALI
250MCSHXT 3hr Self Contained Specto-XT

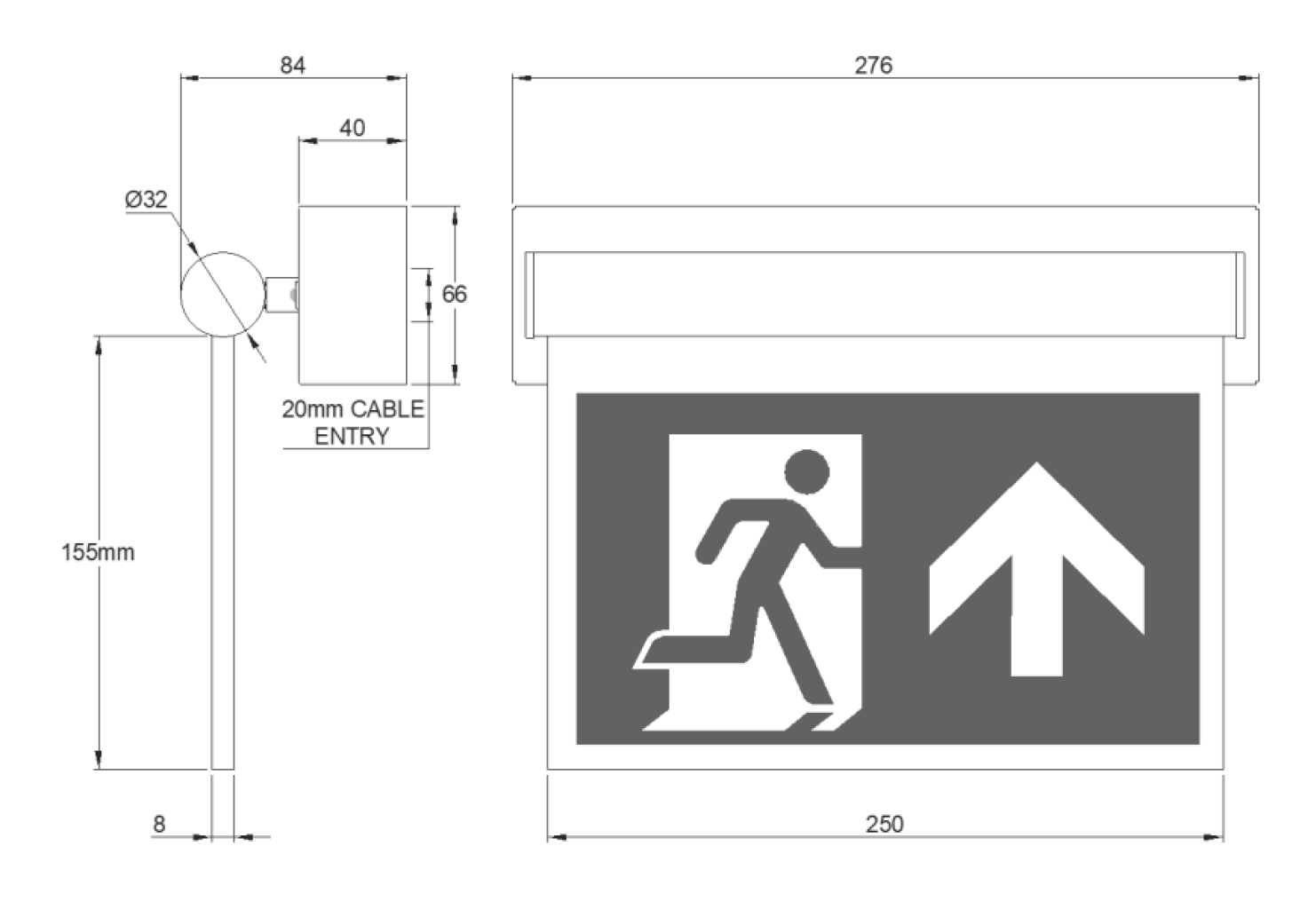

Dimensions
