The 250MCSV Mini Cylinder can be ceiling mounted with self-contained or central battery backup for the LED light-source.

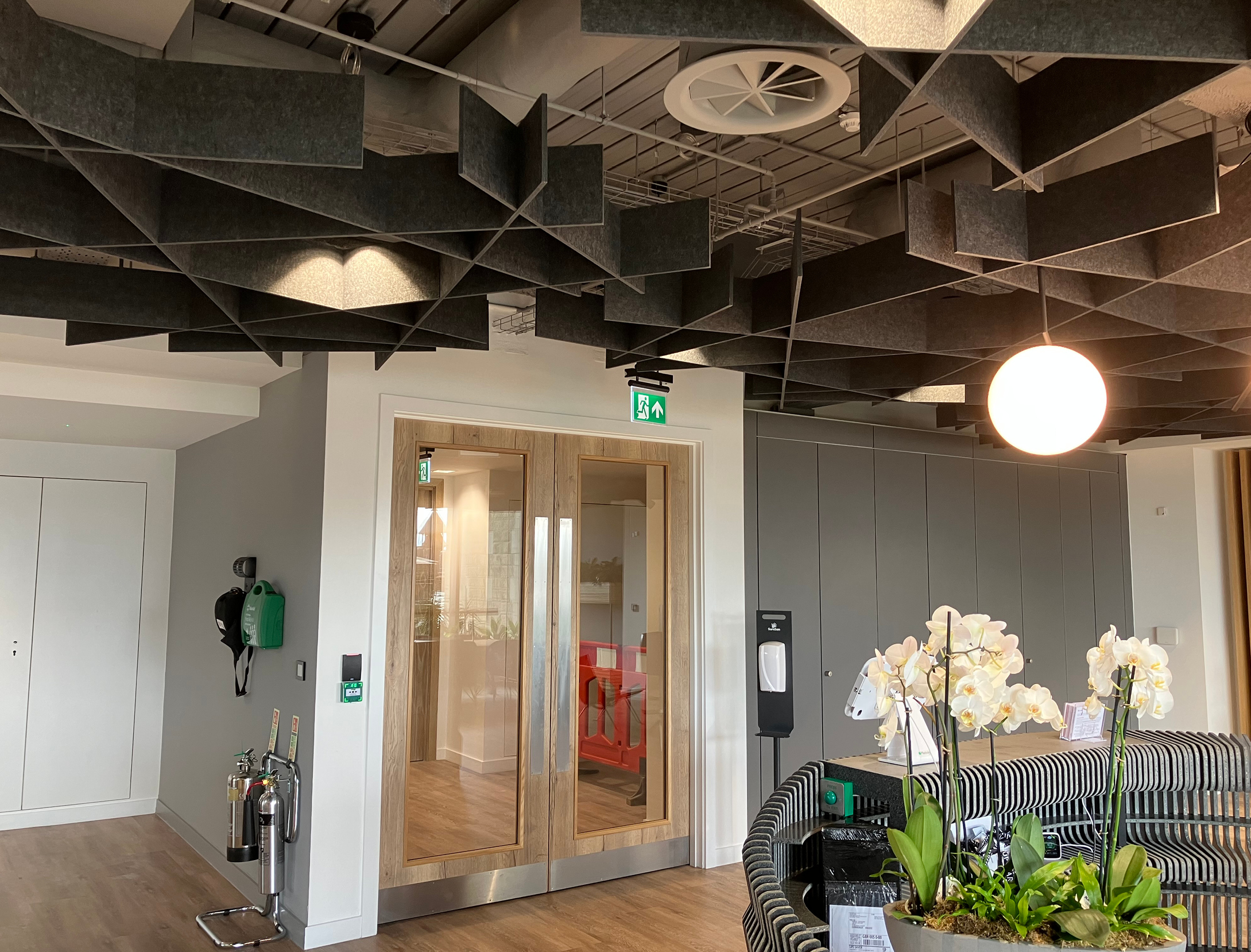

The Ceiling mounted product has a short drop designed for conventional ceilings although factory adaptations are available to extend these to client requirements. In ornate high ceiling environments with the correct finish applied, this allows what becomes an unobtrusive item to be suspended into view to permit safe egress in an emergency situation. With the addition of a rotated graphic the standard ceiling product can be turned through 90° to create a flag mount sign. This is particularly useful in high ceiling corridors or concourses where ceiling mounting can be challenging and where the evacuation plan can be complicated.

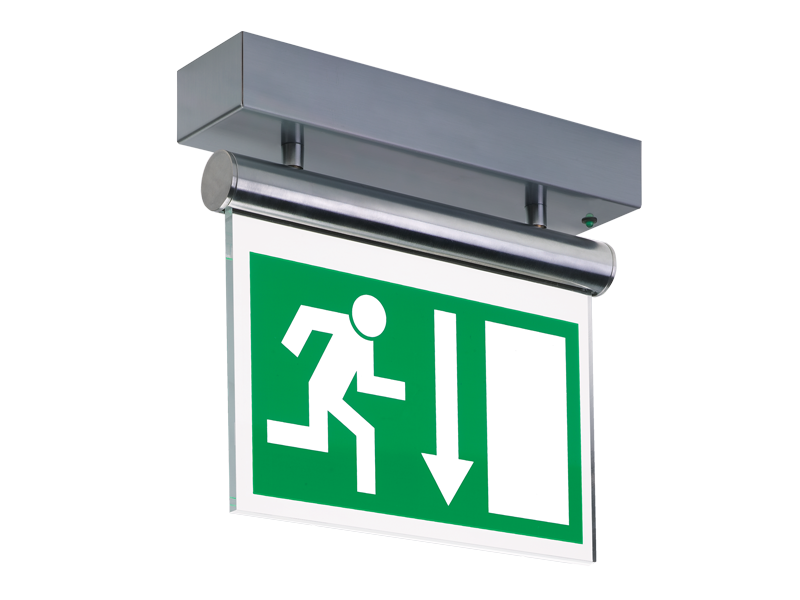

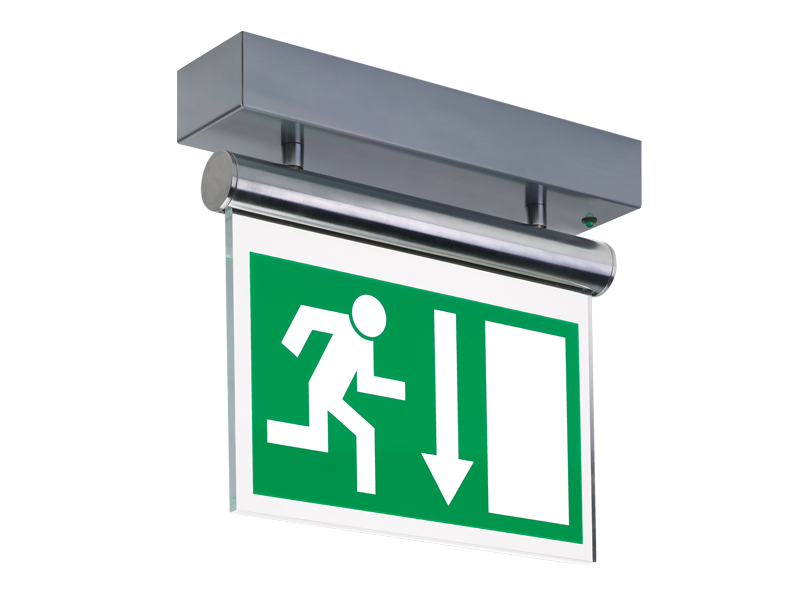

Satin Chrome

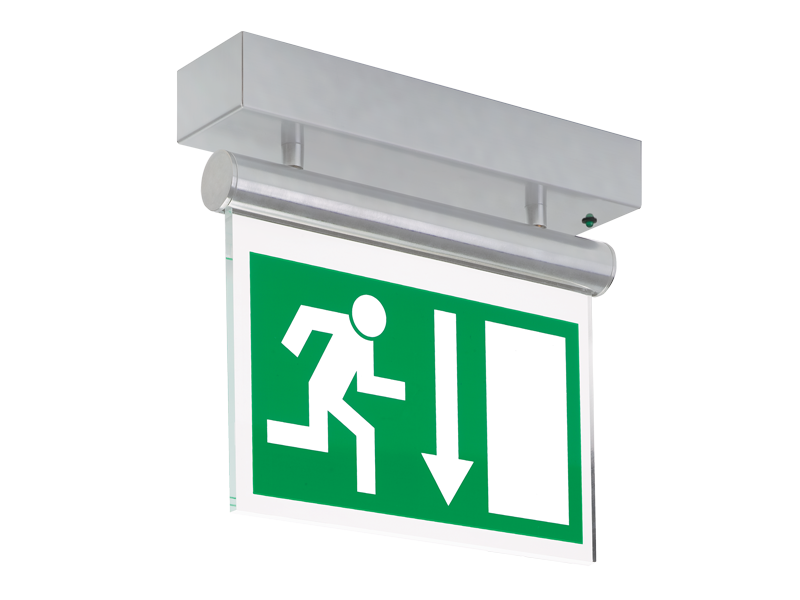

Polished Chrome
Polished Brass

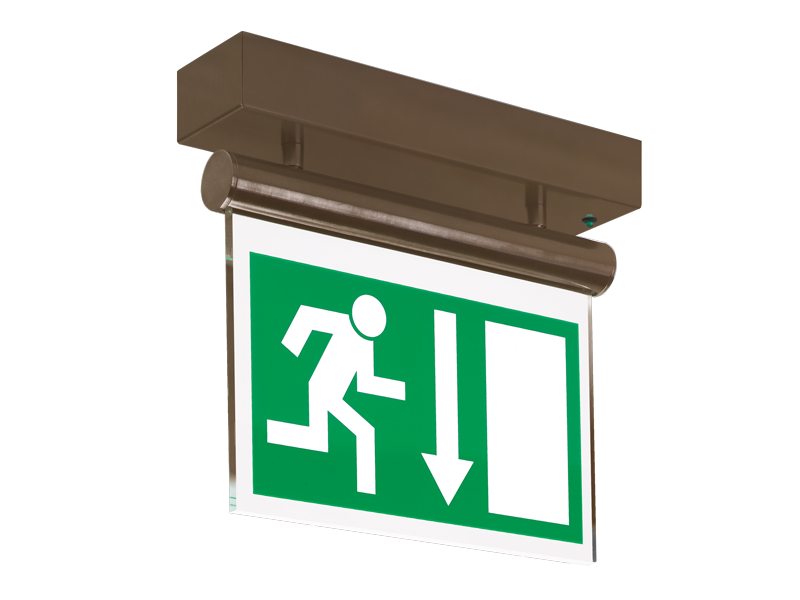

Antique Brass
RAL 9010

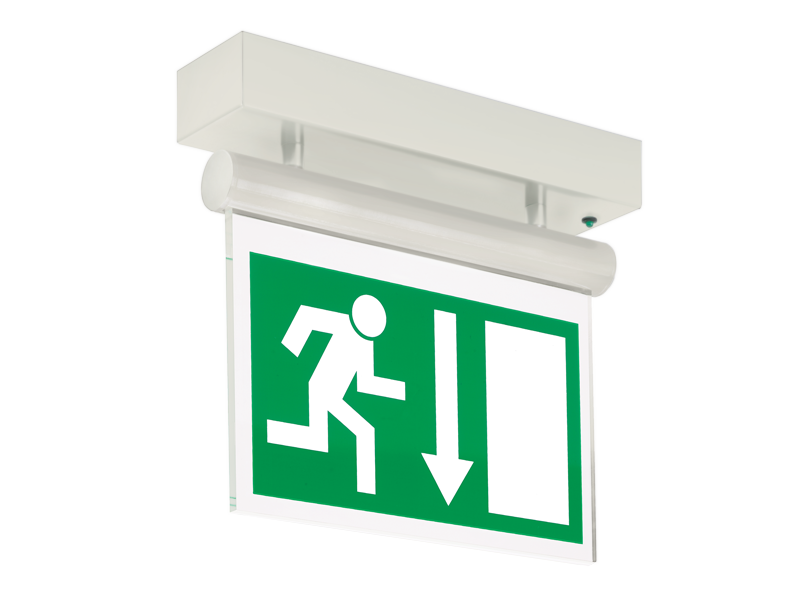

RAL 9006

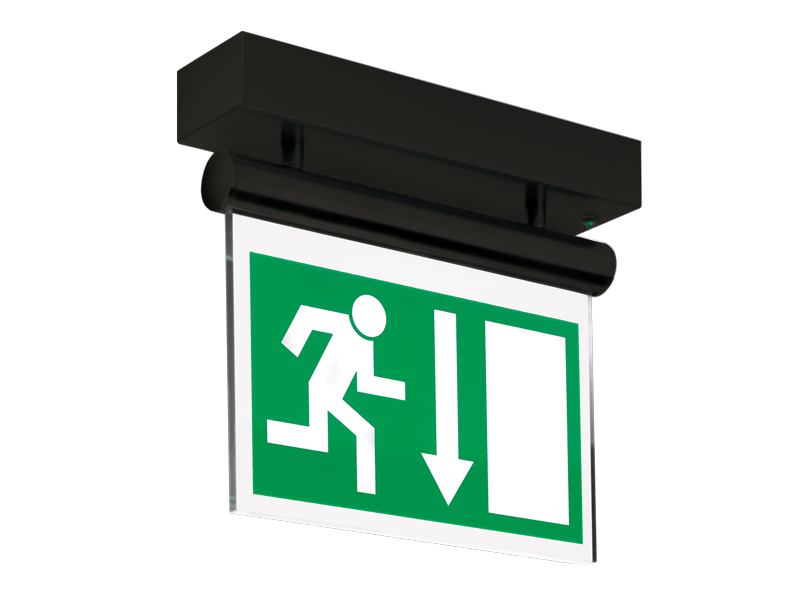

RAL 9005

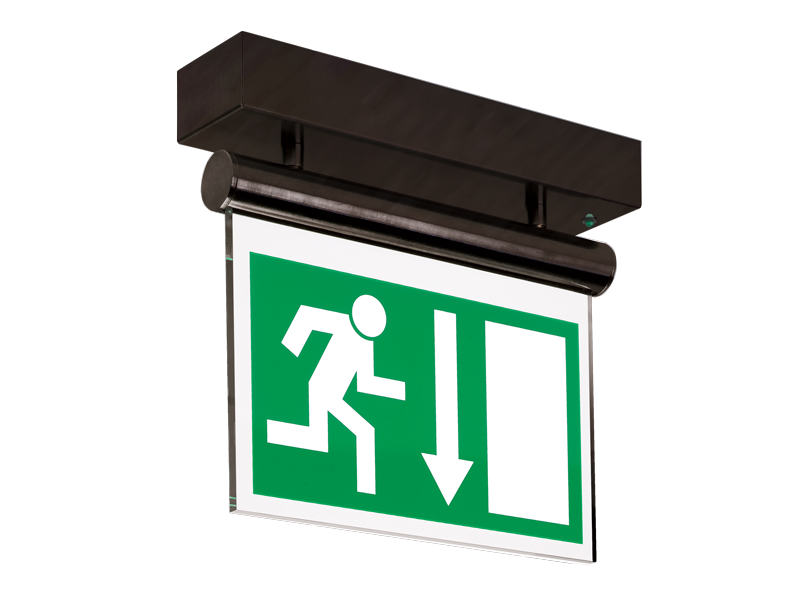

Penny Bronze
Conformité Européene
UKCA
Maintained
Non Maintained
LED
Self Test
IP 20
DALi
Viewing Distance 26M
Weight 1.5kg
Double Sided
CDA
BSI Kitemark
Impact Rating 7
ICEL Endorsed
001-002
Click image to expand
Find out about our commitment to the Environment
Click Here250MCSV Data Sheet
218.32 KB | pdf
250MCSV Legend Sheet
193.77 KB | pdf
250MCSV Revit Files
2.07 MB | zip
250MCSV Installation Sheets
1.71 MB | pdf
Mini Cylinder ICEL Endorsement Certificate
194.01 KB | pdf
Luminaire Kitemark Certificate
836.60 KB | pdf
