SPT 870

Available Finish

The SPTE is the latest addition to the sprite family specifically designed for use on track systems.

The adaptors are available for use with Global Pro (XTS) and Old Nokia (XTS) track to provide basic, DALI or Specto-XT (wireless) non maintained emergency backup in a variety of retail and display applications, other track adapters are available on request.

Like other members of the Sprite family, it comes with a choice of lumen packages to suit a range of mounting heights and standard compliance.

The finish is RAL 9016 white / RAL9005 black however other standard colours and customer specials are available on request.

Product Details

  • 20
  • 1.5kg
  • NiMH

Click image to expand

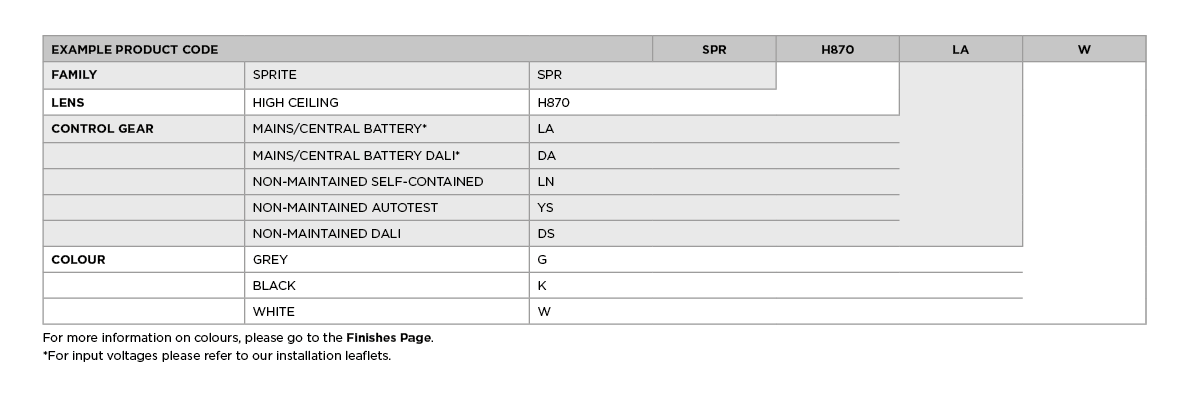

Part Numbers | SPT 870

Click image to expand

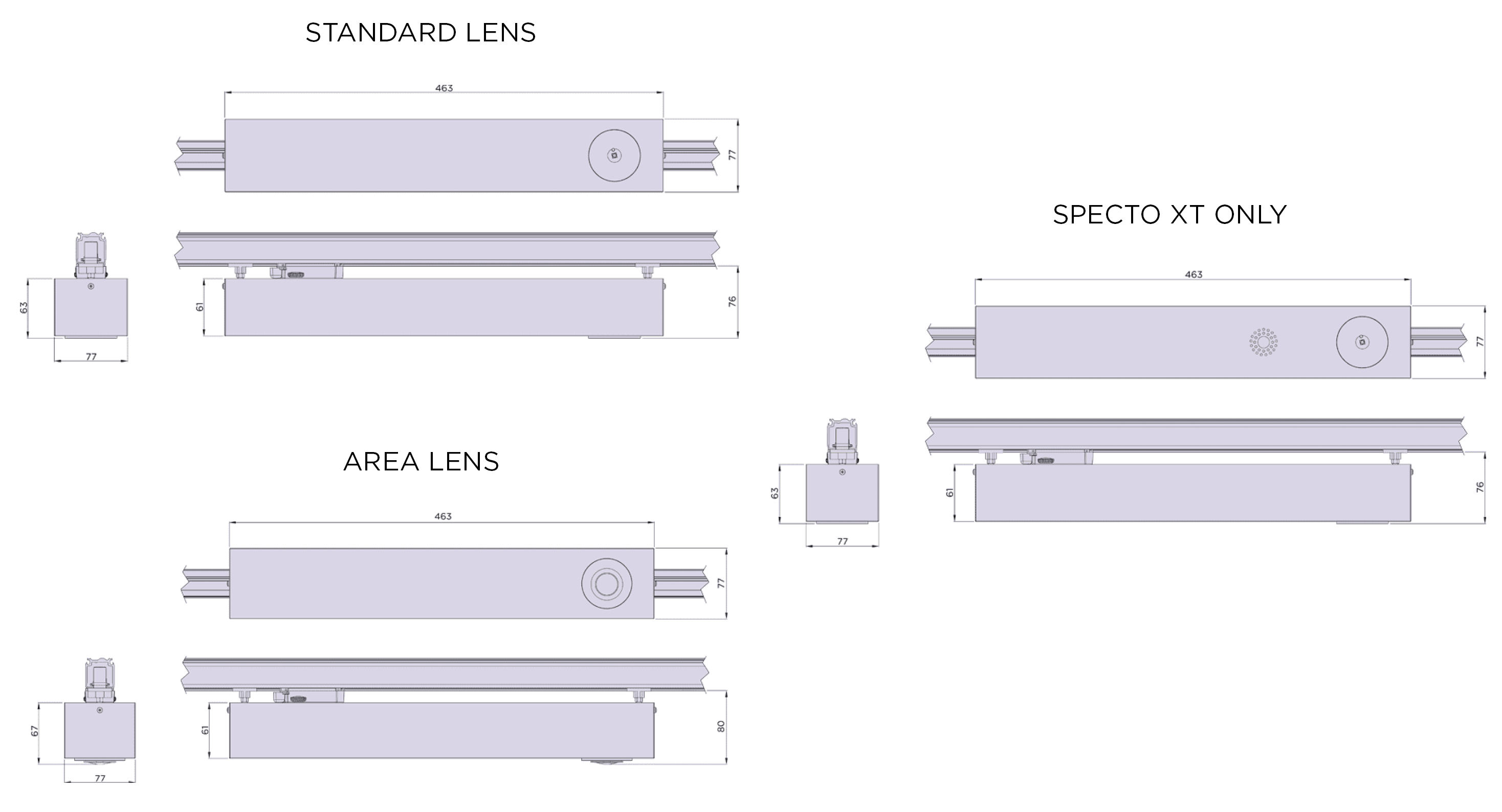

Dimensions

Click image to expand

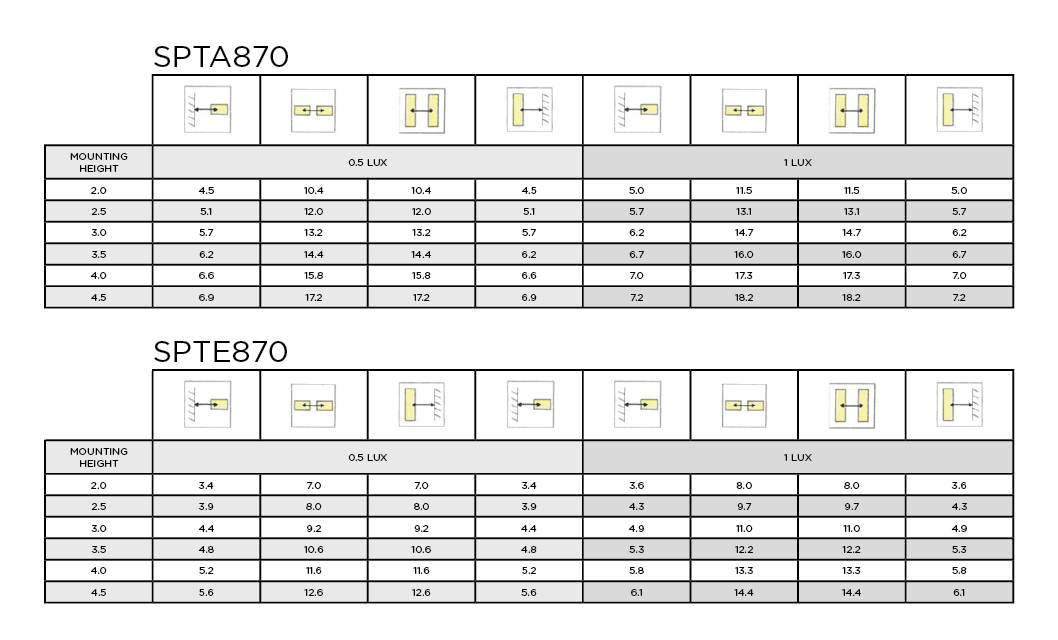

Spacing Table

Click image to expand

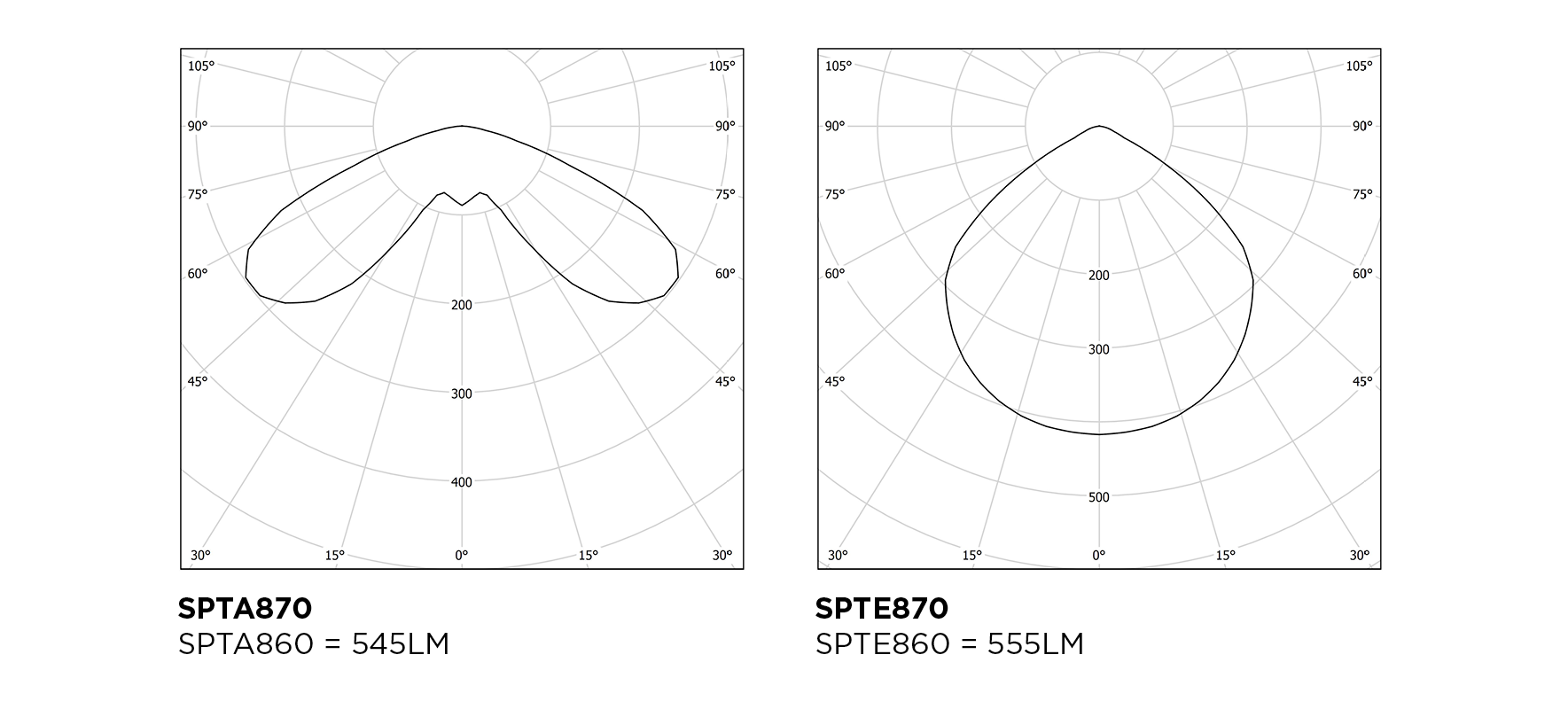

Polar Curve

Legends

Please contact the sales office for other legend formats

Wireless

Specto-XT is a revolutionary wireless emergency lighting control system that allows users to monitor data and complete operational information for all Specto-XT emergency luminaires.

Specto-XT emergency luminaires are self-test by default and have the ability to wirelessly connect to the Specto-XT website via a central Gateway.

Information is displayed on the Specto-XT website which can be accessed from anywhere using a computer, laptop, tablet or smart-phone.

The clear graphical user interface provides an overview of the whole site, through to the performance and operation of an individual luminaire.

Find out more

Product Downloads

Sustainability

Find out about our commitment to the Environment

Click Here
