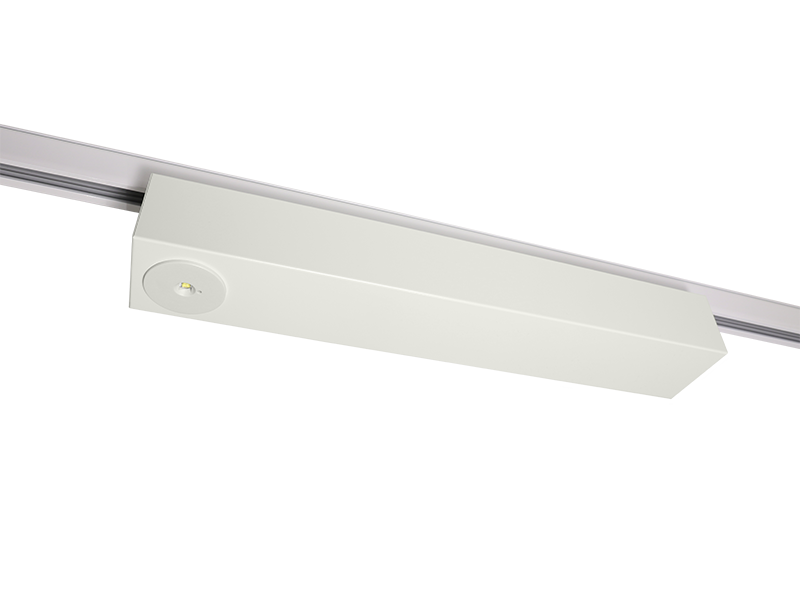

SPRITE 860 – TRACK

The SPTE is the latest addition to the sprite family specifically designed for use on track systems.

It is available for use with various Track Adaptors to provide basic, DALI or Specto-XT (wireless) non maintained emergency backup in a variety of  retail and display applications.

Like other members of the Sprite family, it comes with a choice of lumen packages to suit a range of mounting heights and standard compliance.

The standard finish is RAL 9016 white / RAL9005 black however other standard colours and customer specials are available on request.

  • WATTAGE
    • 2 Watts
  • DRIVE CURRENT
    • 600mA
  • SPTE LUMEN OUTPUT
    • 190
  • SPTA860 LUMEN OUTPUT
    • 200
  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • Non Maintained

  • LED

  • IP 20

  • DALi

  • Weight 1.5kg

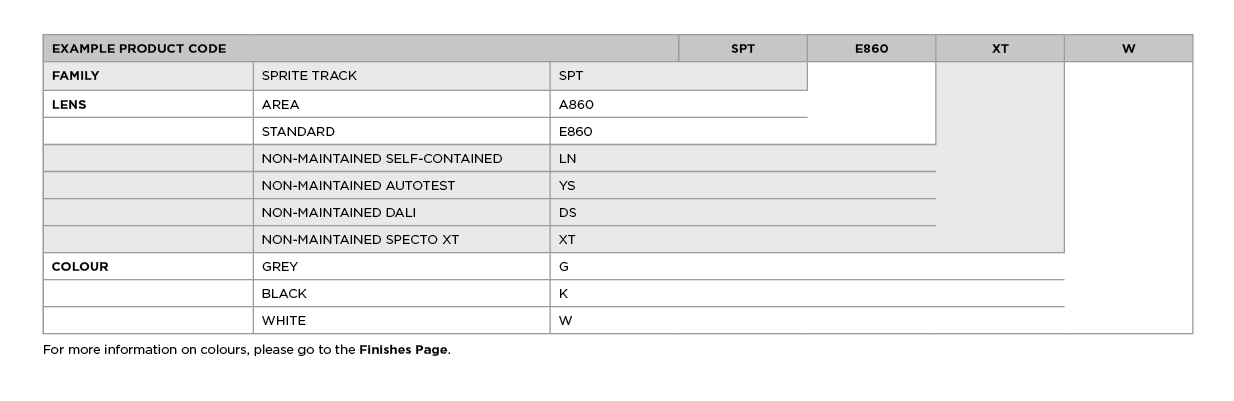

Part Numbers

  • SPTE860LN 3hr Self Contained Non-Maintained
  • SPTE860DS 3hr Self Contained DALI
  • SPTE860XT 3hr Self Contained Specto-XT
  • SPTA860LN 3hr Self Contained Area: Non-Maintained
  • SPTA860DS 3hr Self Contained Area: DALI
  • SPTA860XT 3hr Self Contained Area: Specto-XT

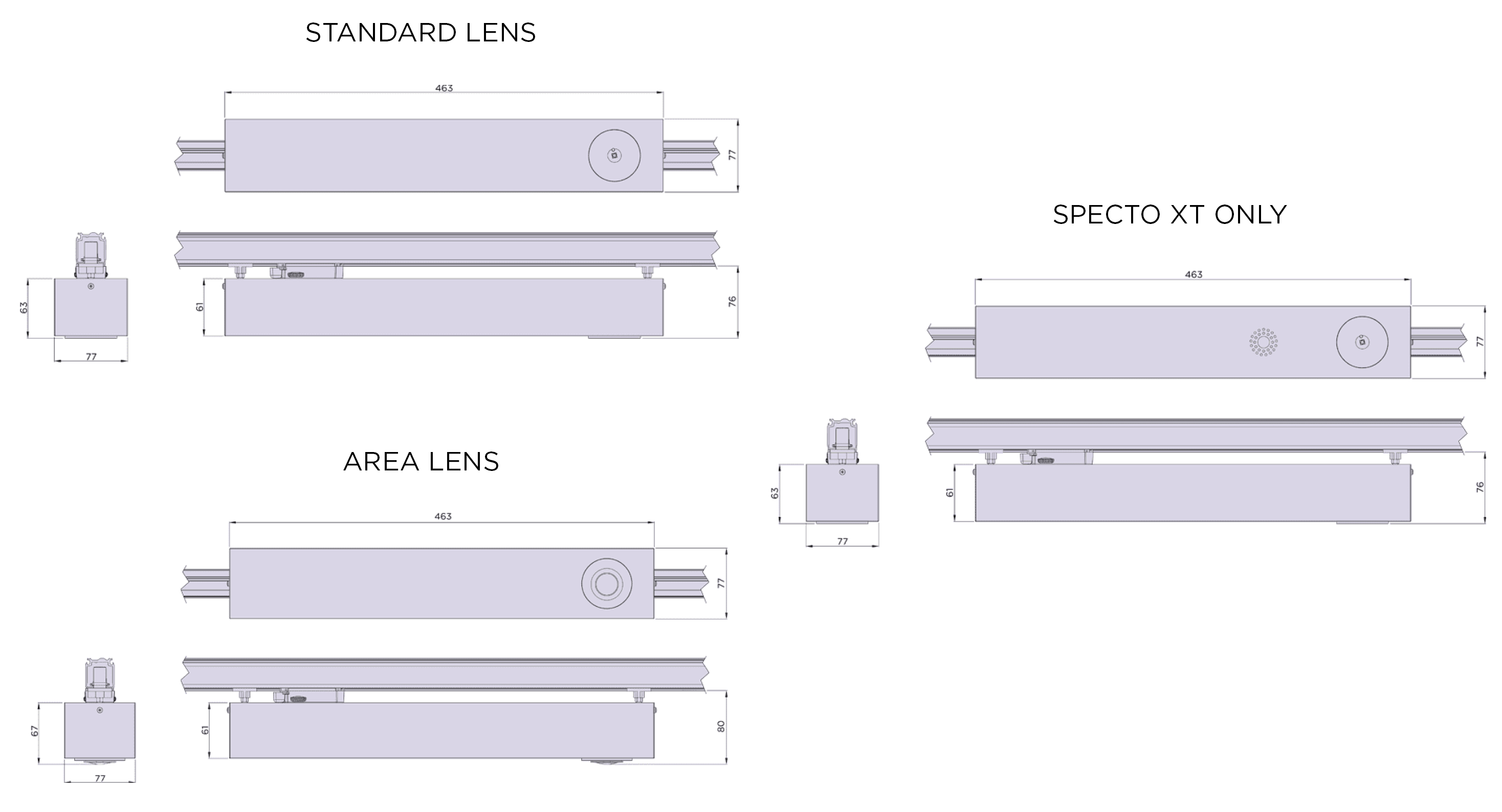

Dimensions

Click image to expand

Dimensions Dimensions Dimensions Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    SPT_860 Datasheet
    286.69 KB | pdf

    Download
  • Revit Files

    SPT_860 Revit Files
    894.76 KB | zip

    Download
  • Photometric Files

    SPT_860 Photometric Files
    906.00 B | zip

    Download
  • Installation Sheet

    SPT_860/870 Installation Sheet
    602.78 KB | pdf

    Download
