SPRT 870

The SPRITE shares the same lumen package derivatives as the TYKE860 and TYKT870 ranges.

An IP rated version incorporating a Polycarbonate enclosure with sealed heads is available for areas where ingress of moisture or particles is an issue.

It comes RAL9016 as standard but benefits from the regular palette of Payne finishes.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • SPRT LUMEN OUTPUT
    • 555
  • SPRP LUMEN OUTPUT
    • 555
  • IP VERSION FINISH
    • RAL 7035
  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • F Mark

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • IP 65

  • DALi

  • Weight 0.35kg

  • CDA

  • BSI Kitemark

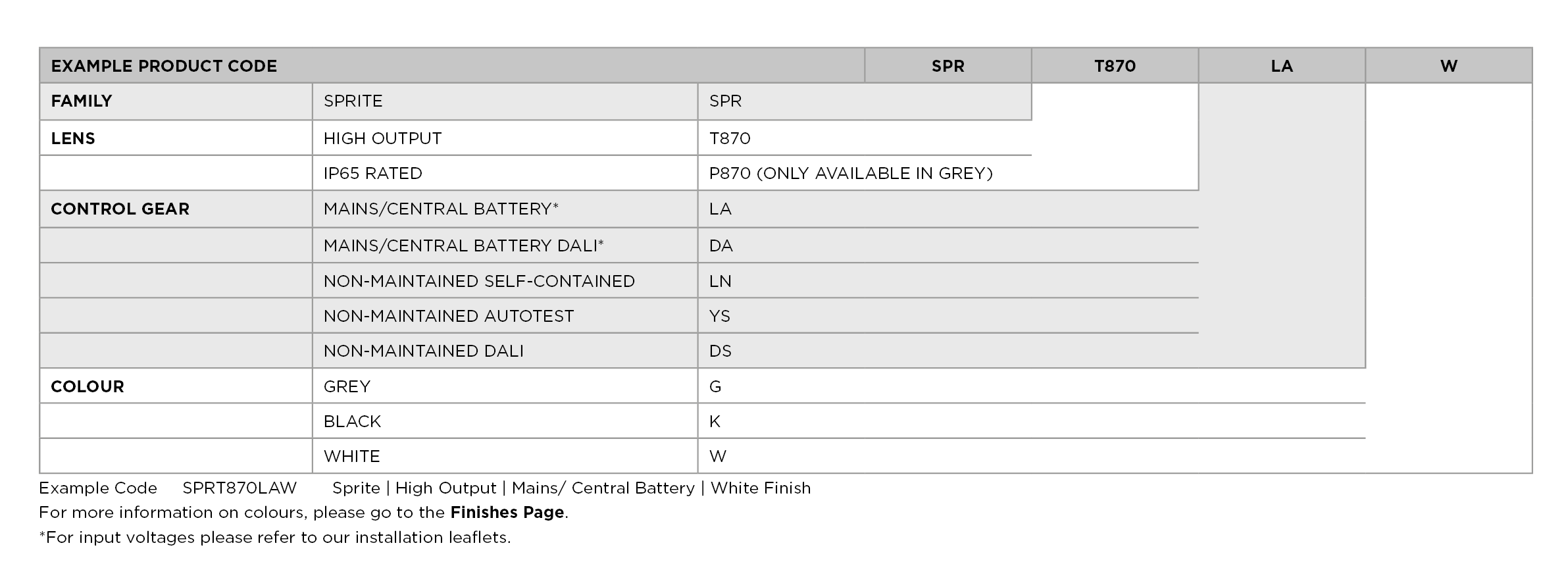

Part Numbers

  • SPRT870LA 230v AC/DC Central Supply
  • SPRT870DA 230v AC/DC Central Supply DALi
  • SPRT870LN 3hr Self Contained Non-Maintained
  • SPRT870YS 3hr Self Contained Self Test
  • SPRT870DS 3hr Self Contained DALi
  • SPRP870LA 230v AC/DC IP Rated: Central Supply
  • SPRP870DA 230v AC/DC IP Rated: Central Supply DALi
  • SPRP870LN 3hr Self Contained IP Rated: Non-Maintained
  • SPRP870YS 3hr Self Contained IP Rated: Self Test
  • SPRP870DS 3hr Self Contained IP Rated: DALi

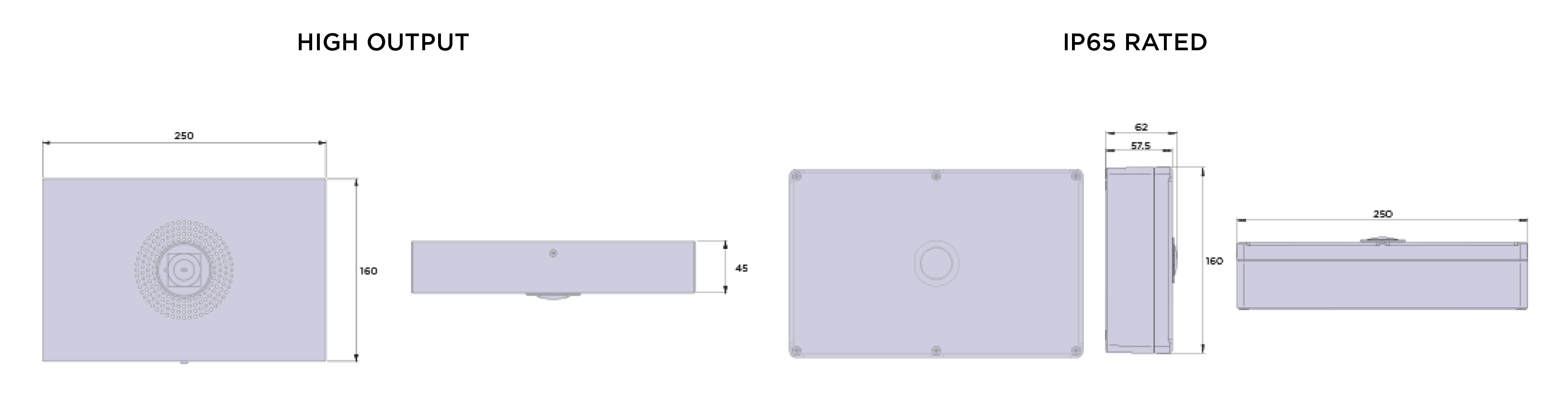

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    SPR_870 Data Sheet
    219.55 KB | pdf

    Download
  • Revit Files

    SPR_870 Revit Files
    900.16 KB | zip

    Download
  • Photometric Files

    SPR_870 Photometric Files
    921.00 B | zip

    Download
  • Installation Sheets

    SPR_870 Installation Sheets
    830.28 KB | pdf

    Download
