250SM

The visibility of any sign is crucial for it to be effective.

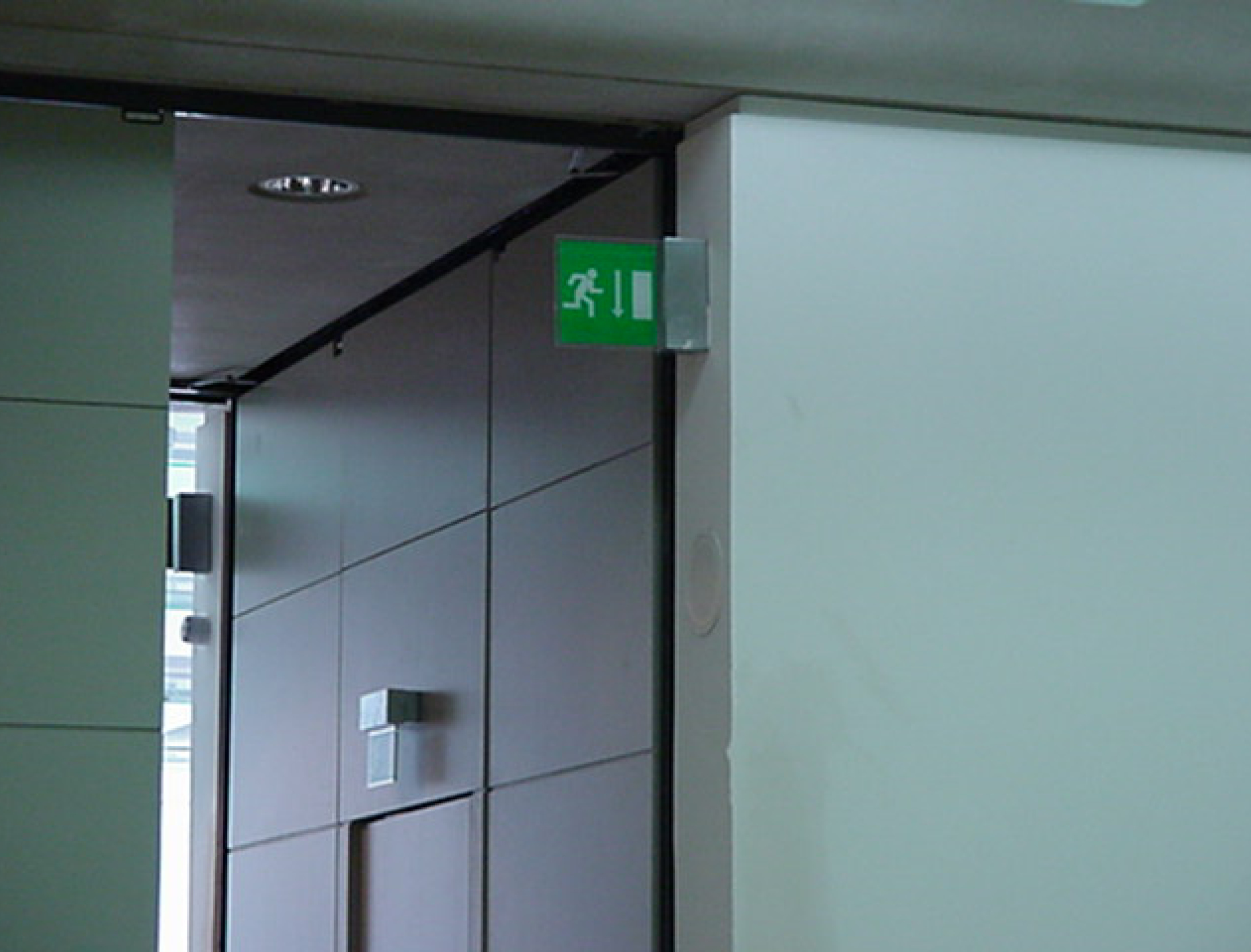

Although explicit in most local standards this can present a real problem to designers to ensure a safety sign is clearly within peoples normal viewing range. The side option provides a direct fix to the vertical plane particularly useful in Atriums and other high ceiling applications.

Voltage
- 230v
IP
- 20
Weight
- 1.5kg
Gear Options
- 230v Central Supply
- 3hr Non-Maintained
- 3hr Maintained
- 3hr Self Test
- 3hr DALI
- 3hr Specto-XT
Legends Please contact the sales office for other legend formats
Available Finish

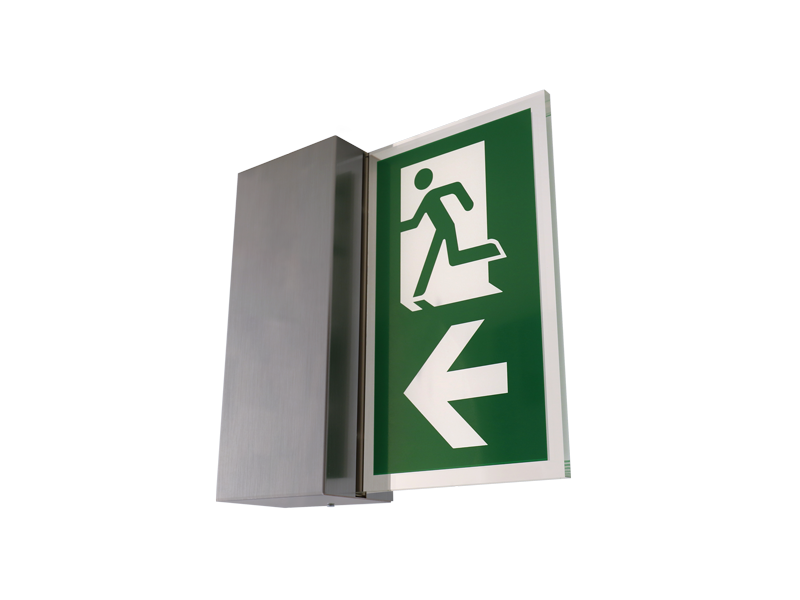

- Satin Chrome

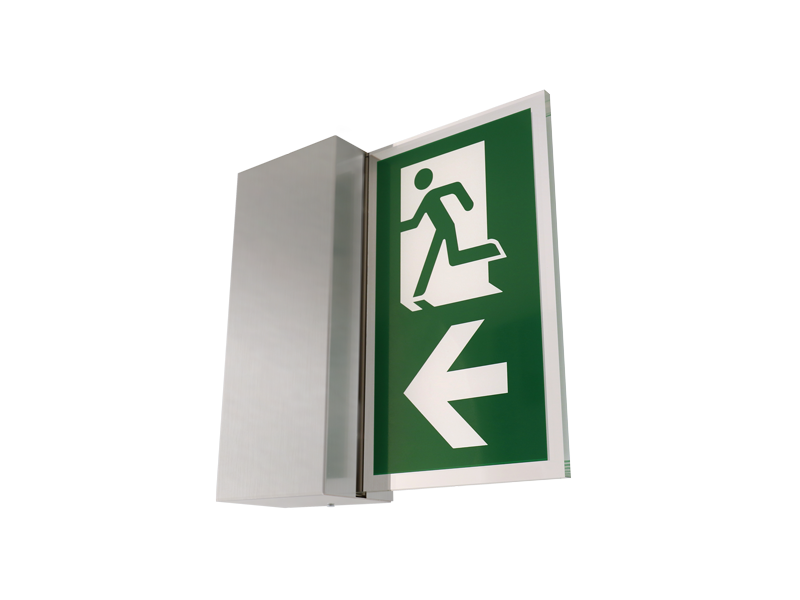

- Polished Chrome

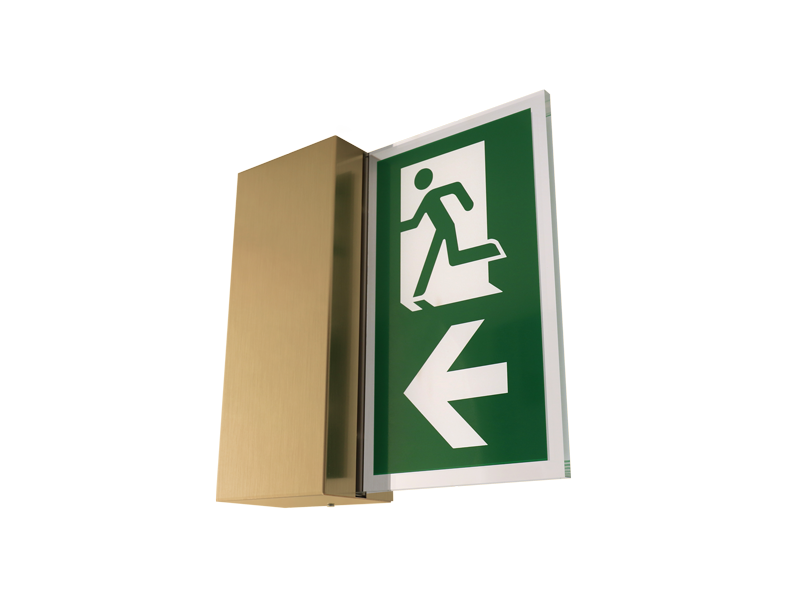

- Polished Brass
- BMA

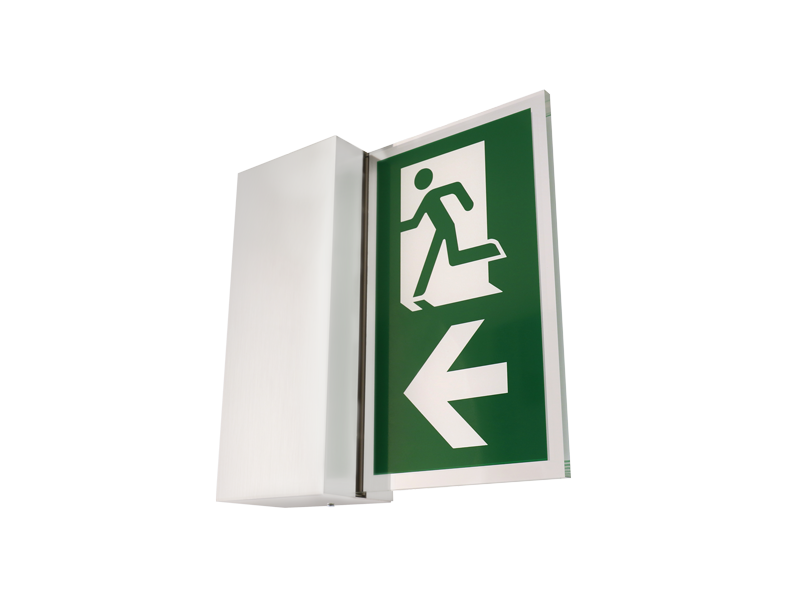

- RAL 9010

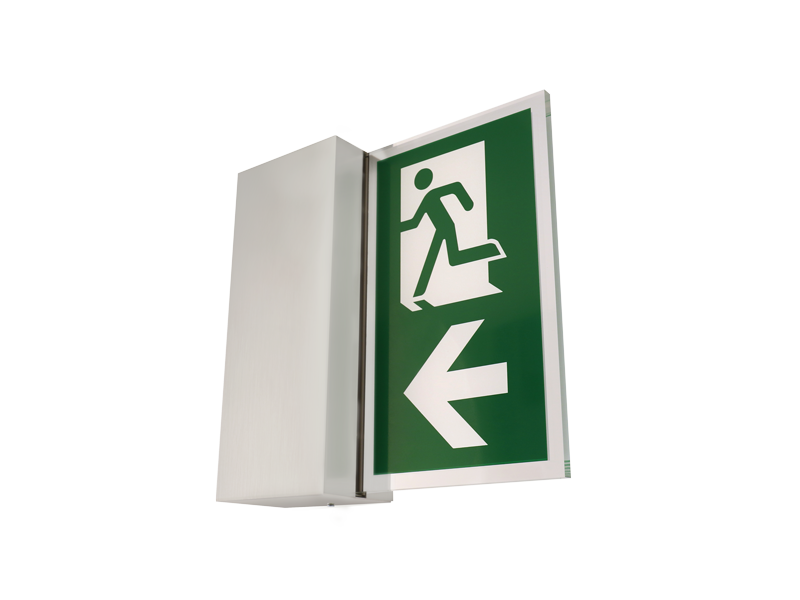

- RAL 9006

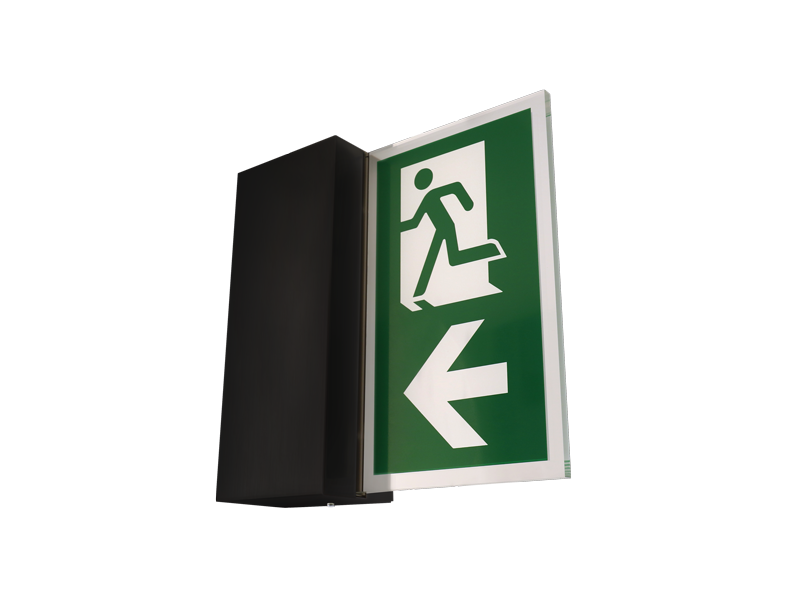

- RAL 9005

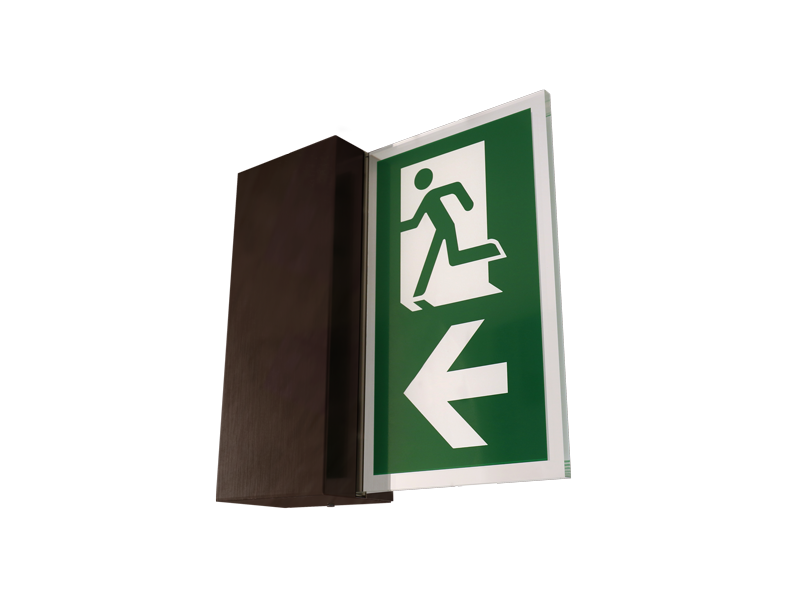

- Penny Bronze

Specification

Conformité Européene
UKCA
Maintained
Non Maintained
LED
Self Test
IP 20
DALi
Viewing Distance 26M
Weight 1.5kg
CDA
BSI Kitemark
Impact Rating 7
001-009
ICEL Endorsed
001-009

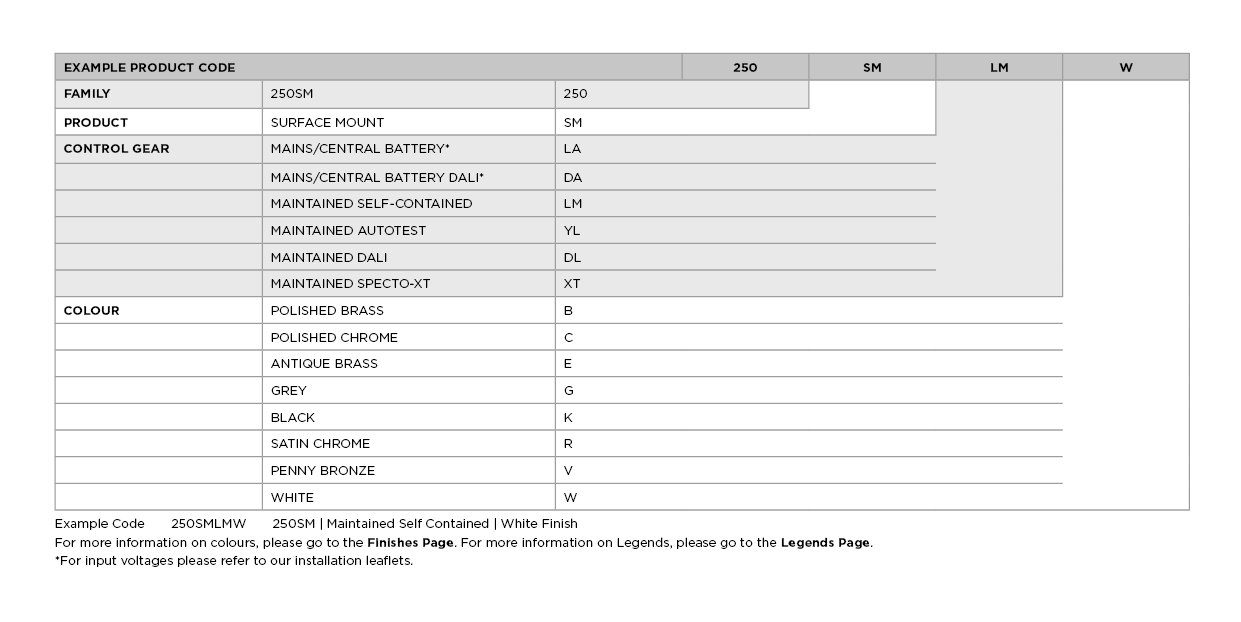

Part Numbers

250SMLA 230v AC/DC Central Supply
250SMLE 230v AC Central Supply (UAE only)
250SMDA 230v AC/DC Central Supply DALI
250SMLM 3hr Self Contained Maintained/ Non-Maintained
250SMYL 3hr Self Contained Self Test
250SMDL 3hr Self Contained DALI
250SMXT 3hr Self Contained Specto-XT

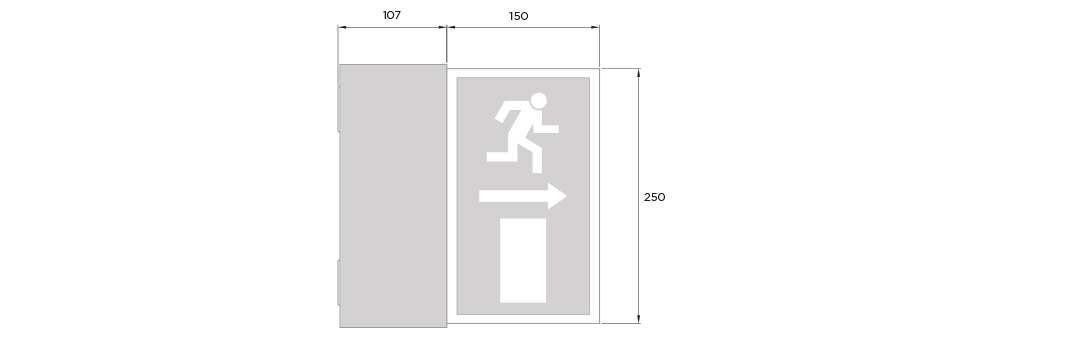

Dimensions
