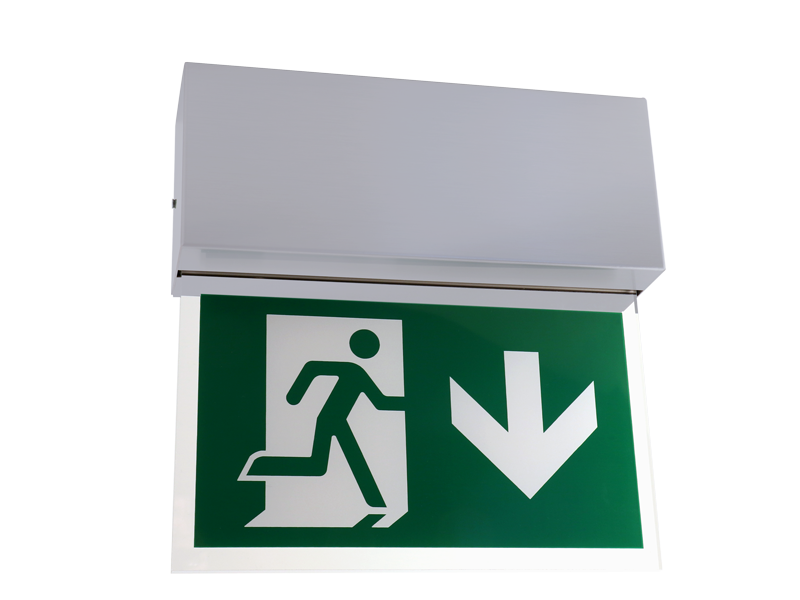

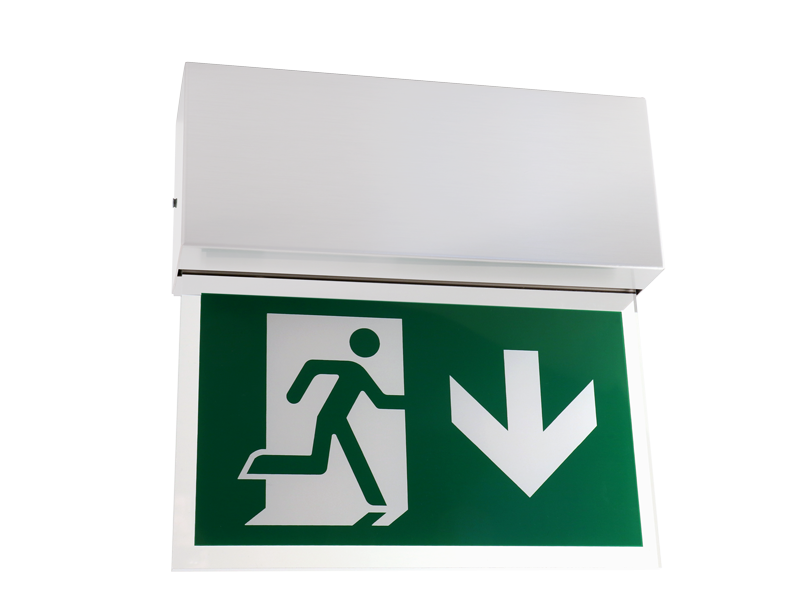

250CM

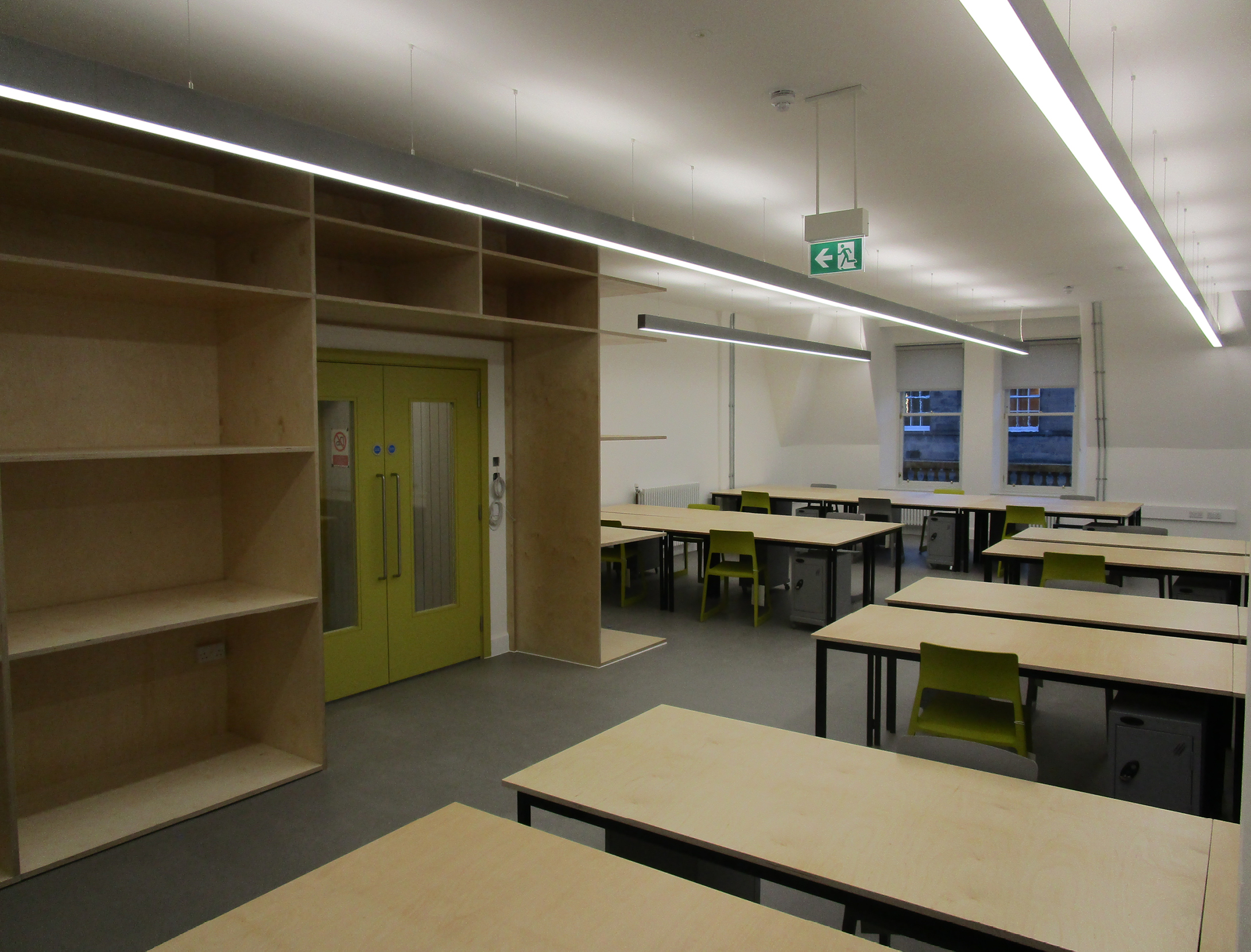

The 250CM can be fixed directly to the ceiling or suspended using a versatile rod suspension kit.

Payne have always favoured rods over the more commonly used chain suspension method as this provides superior rigidity and appearance. All rod kits are colour coordinated with the CM covers which are available in all Payne finishes. The standard rod kit comes with 12.5mm rods through which mains cables are fed directly into the sign. Batteries if not centrally located are housed inside the CM enclosure.

Voltage
- 230v
IP
- 20
Weight
- 1.5kg
Gear Options
- 230v Central Supply
- 3hr Non-Maintained
- 3hr Maintained
- 3hr Self Test
- 3hr DALI
- 3hr Specto-XT
Legends Please contact the sales office for other legend formats
Available Finish

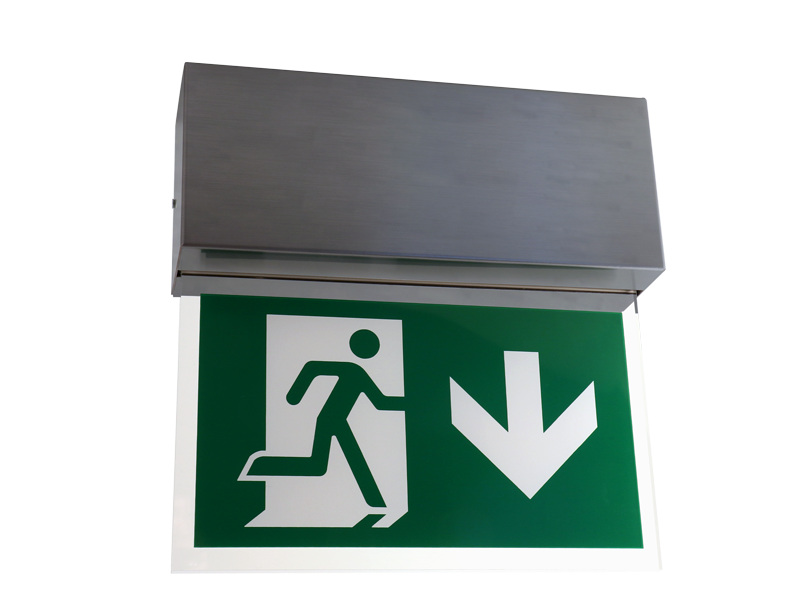

- Satin Chrome

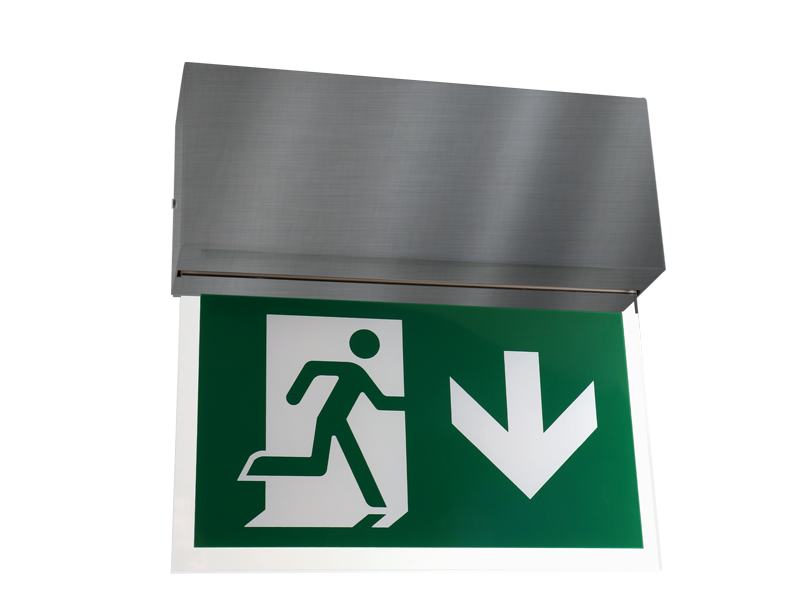

- Polished Chrome

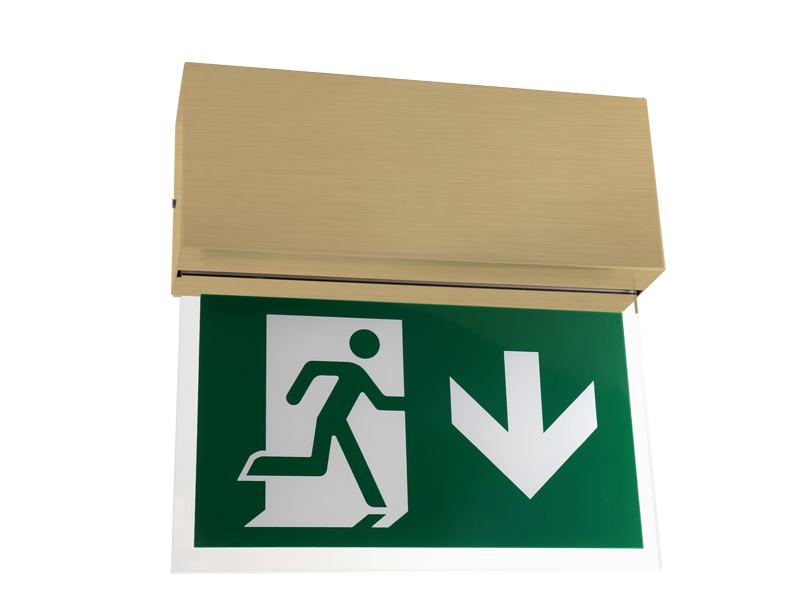

- Polished Brass

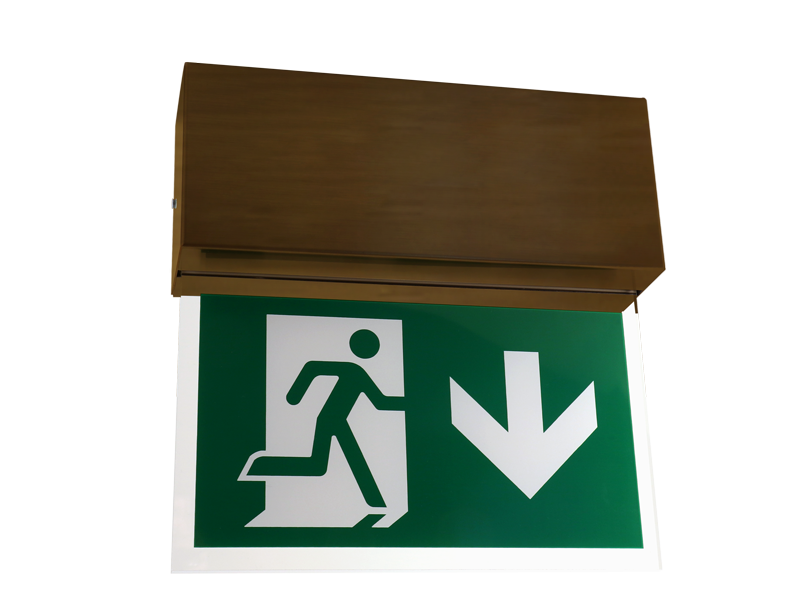

- BMA
- RAL 9010
- RAL 9006

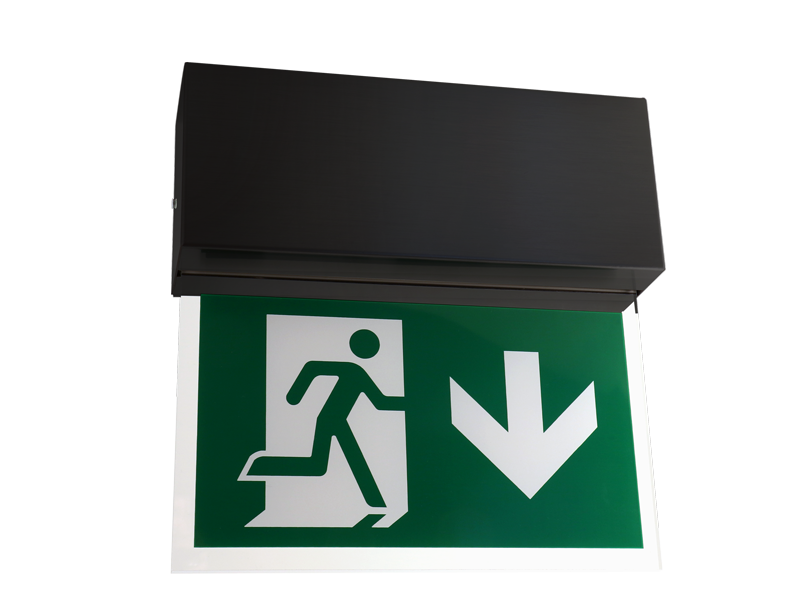

- RAL 9005

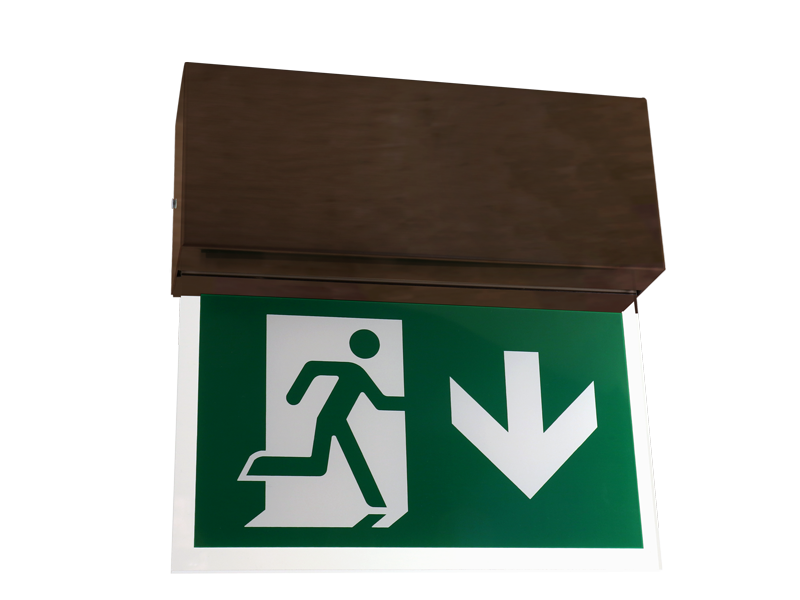

- Penny Bronze

Specification

Conformité Européene
UKCA
Maintained
Non Maintained
LED
Self Test
IP 20
DALi
Viewing Distance 26M
Weight 1.5kg
CDA
BSI Kitemark
Impact Rating 7
001-009
ICEL Endorsed
001-009

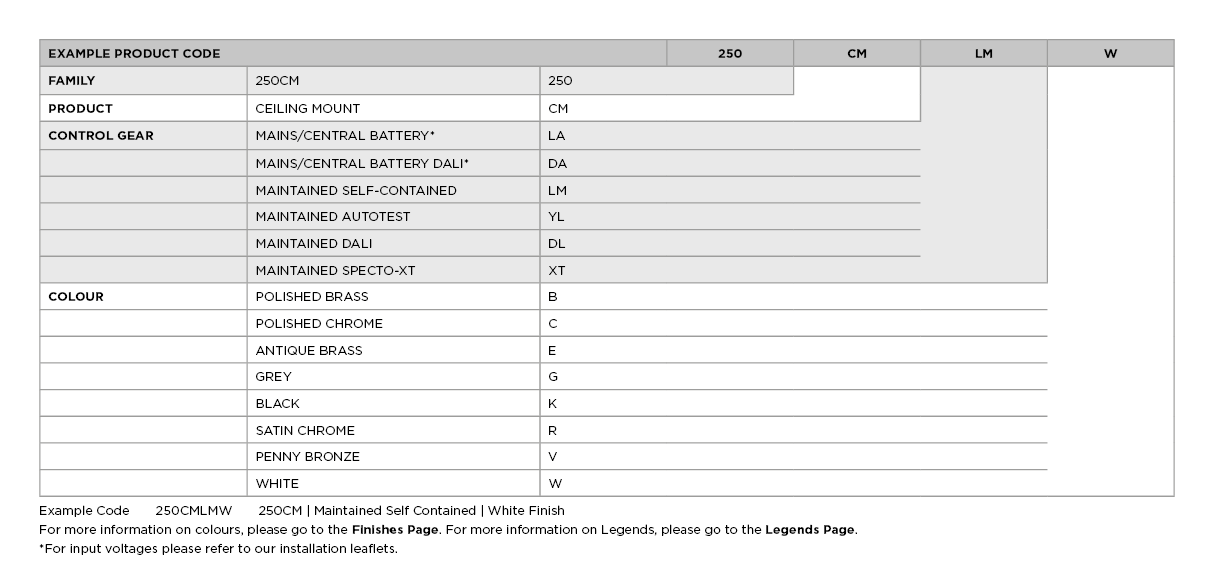

Part Numbers

250CMLA 230v AC/DC Central Supply
250CMLE 230v AC Central Supply (UAE only)
250CMDA 230v AC/DC Central Supply DALI
250CMLM 3hr Self Contained Maintained/ Non-Maintained
250CMYL 3hr Self Contained Self Test
250CMDL 3hr Self Contained DALI
250CMXT 3hr Self Contained Specto-XT
250RSK Rod Suspension Kit Comprising 1 pair of 500mm rods (can be cut to size on site plus ceiling fixing plate & cover)

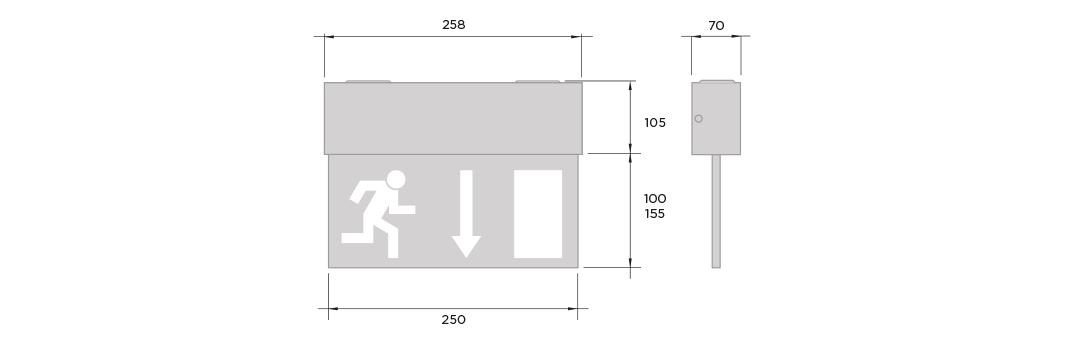

Dimensions
