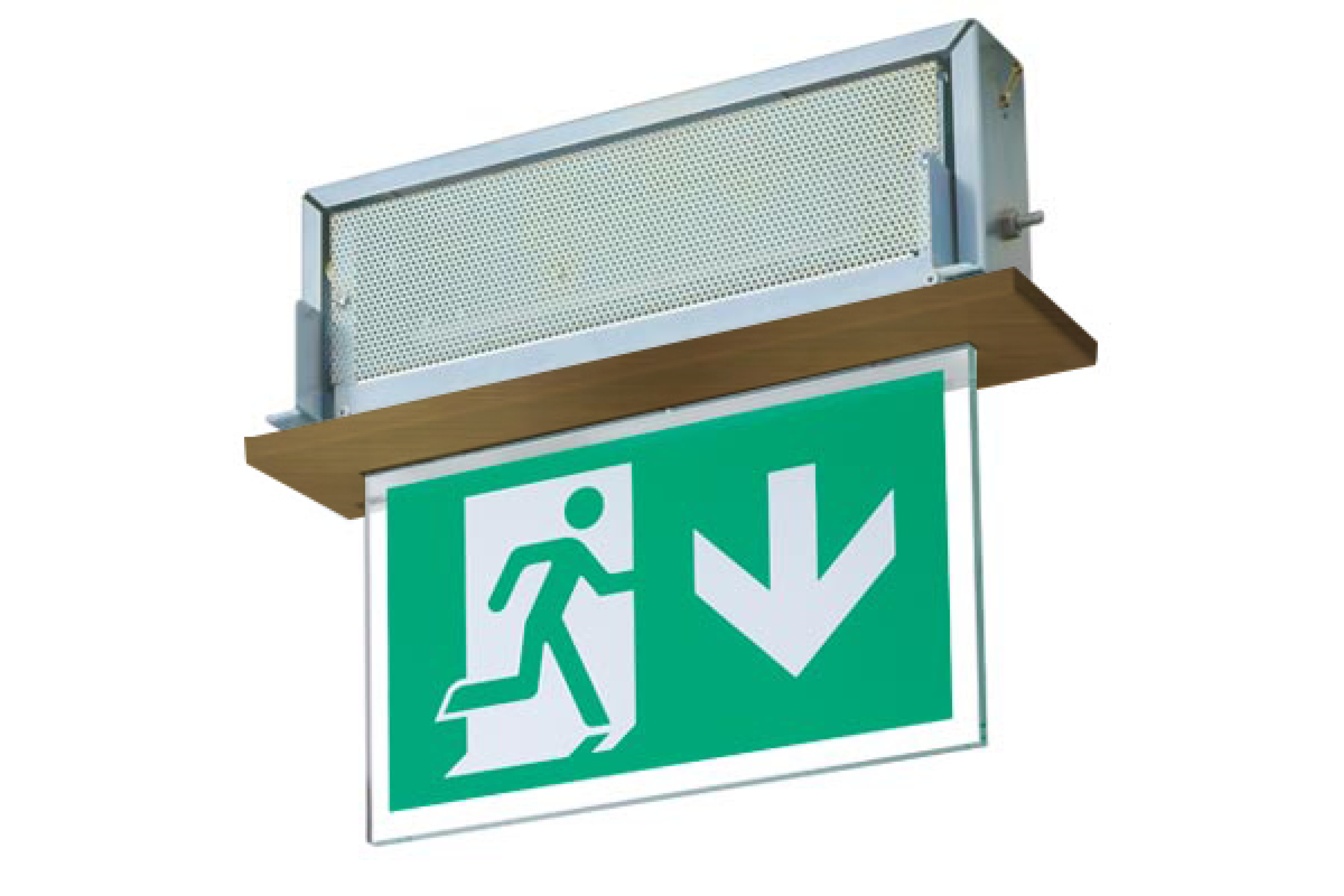

250FC

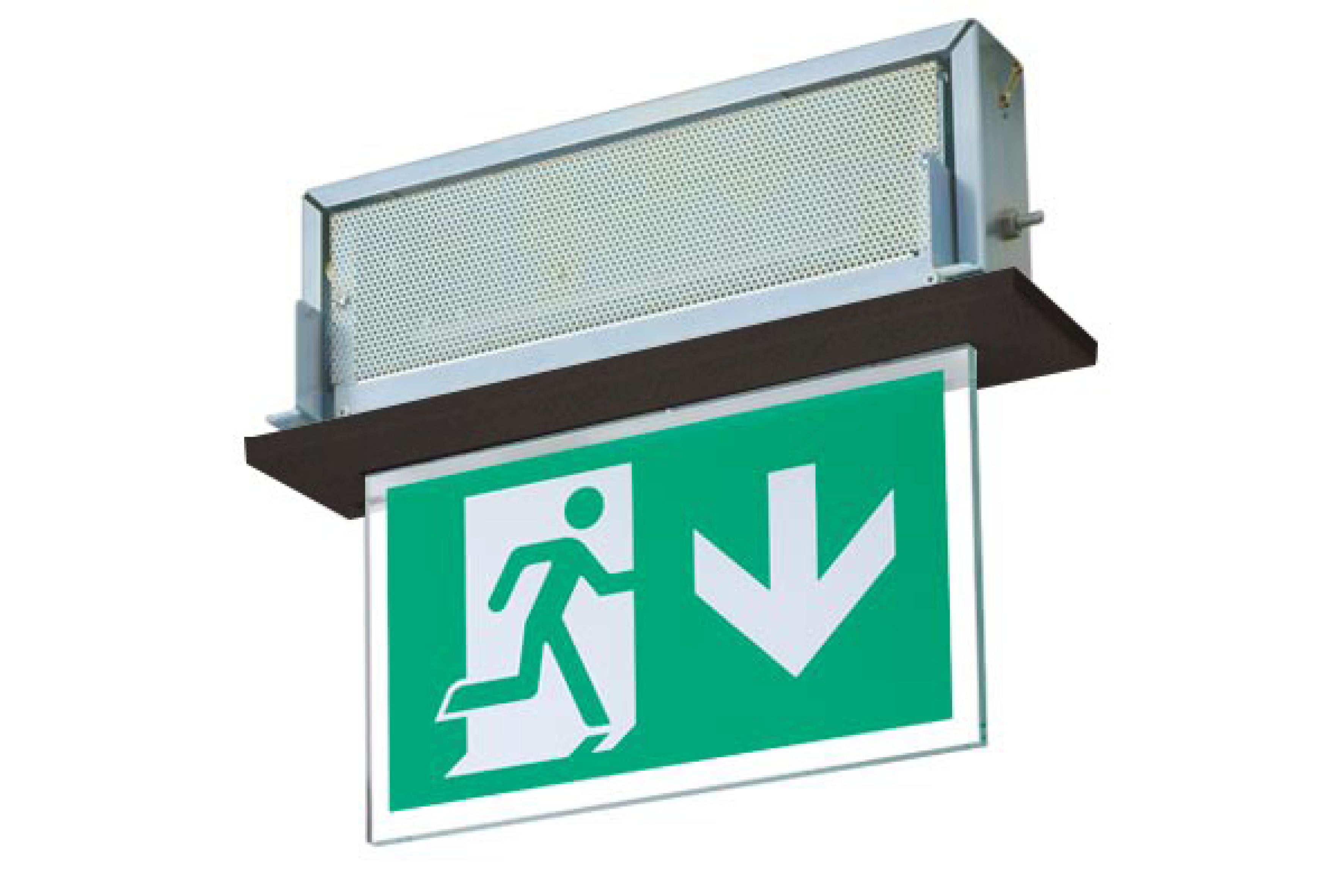

The original Philip Payne FC was one of, if not the first slot or ‘blade’ fitting to be made.

Plagiarism is the highest form of flattery with many variations on this theme reaching the market since its launch. The original has been re-dimensioned and re engineered many times. However, the essential design of fixed void bracketry and a demountable gear section remains unchanged, making installation and maintenance as simple as ever. As with all Philip Payne products the FC is LED with options for self contained or central battery and controls for monitored systems. Trim-plates are available in all the Payne finishes.

Voltage
- 230v
IP
- 20
Weight
- 1.5kg
Gear Options
- 230v Central Supply
- 3hr Non-Maintained
- 3hr Maintained
- 3hr Self Test
- 3hr DALI
- 3hr Specto-XT
Legends

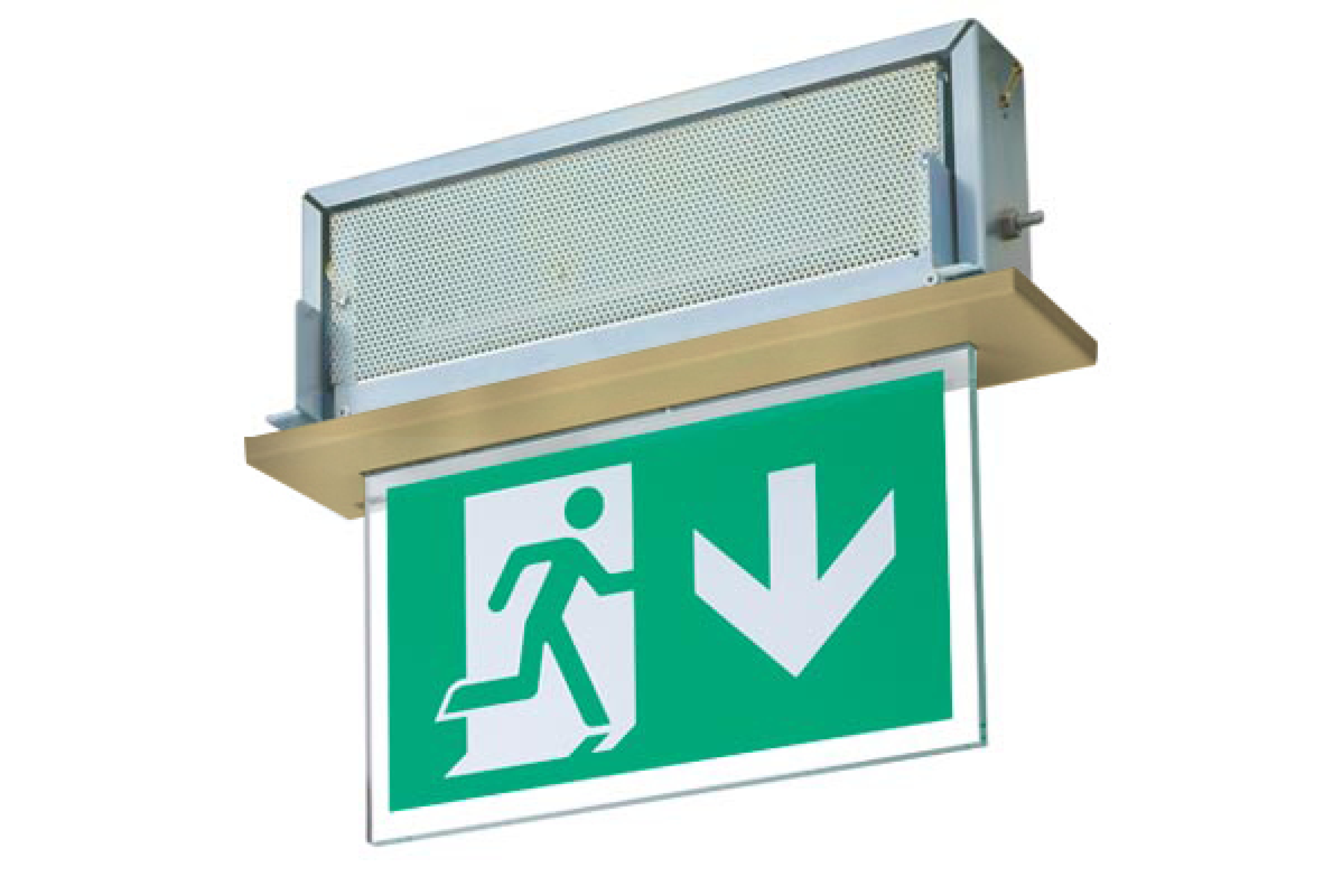

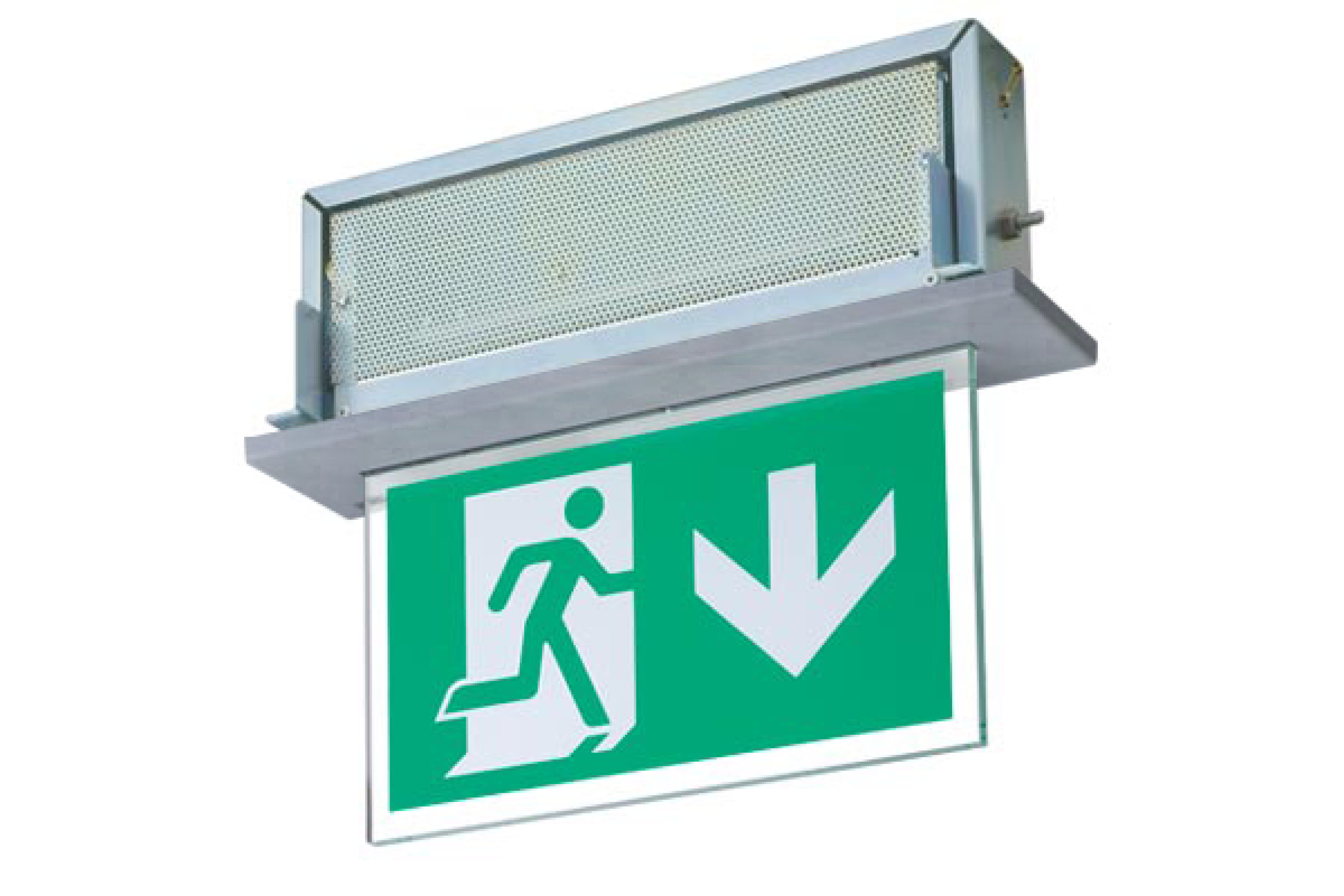

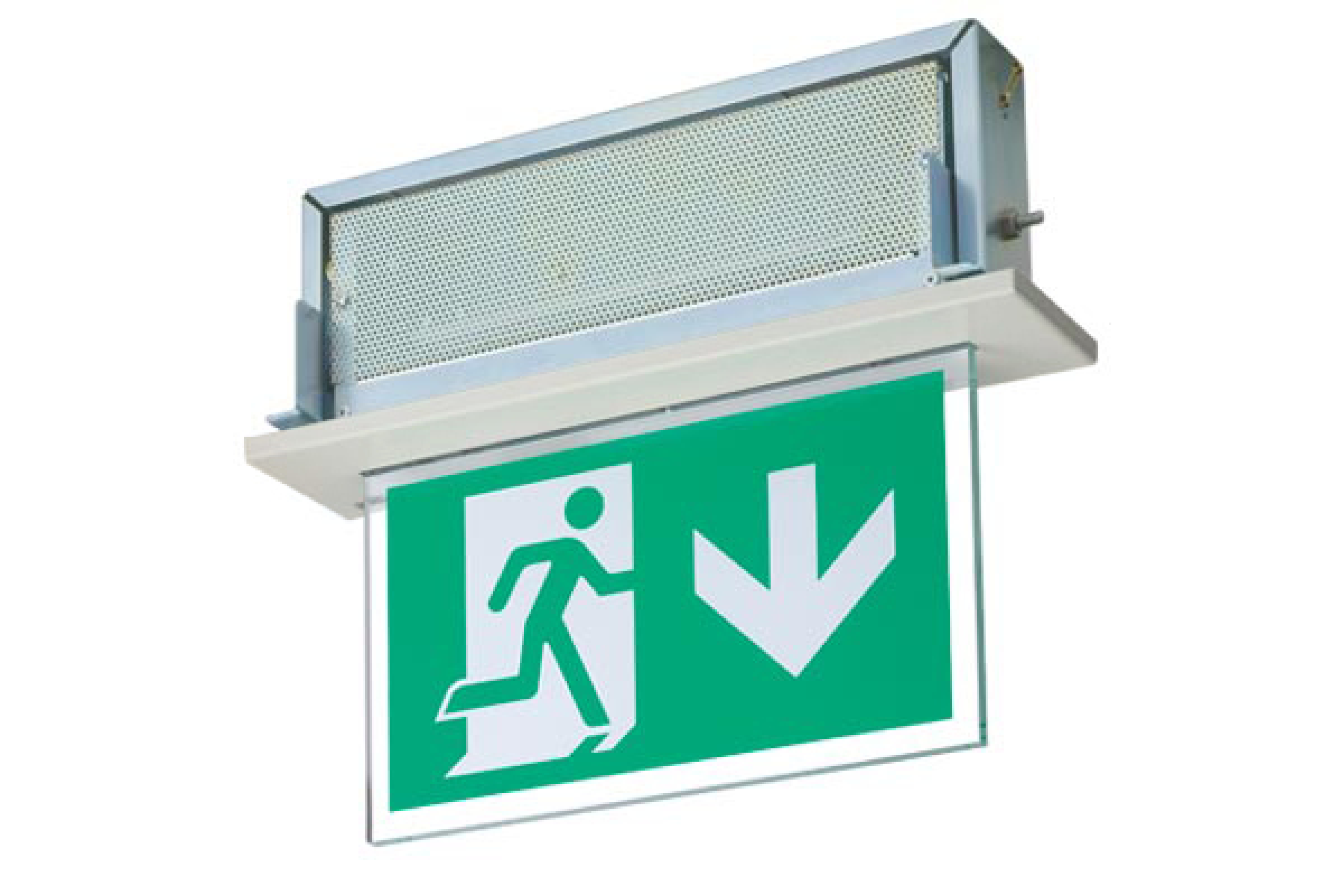

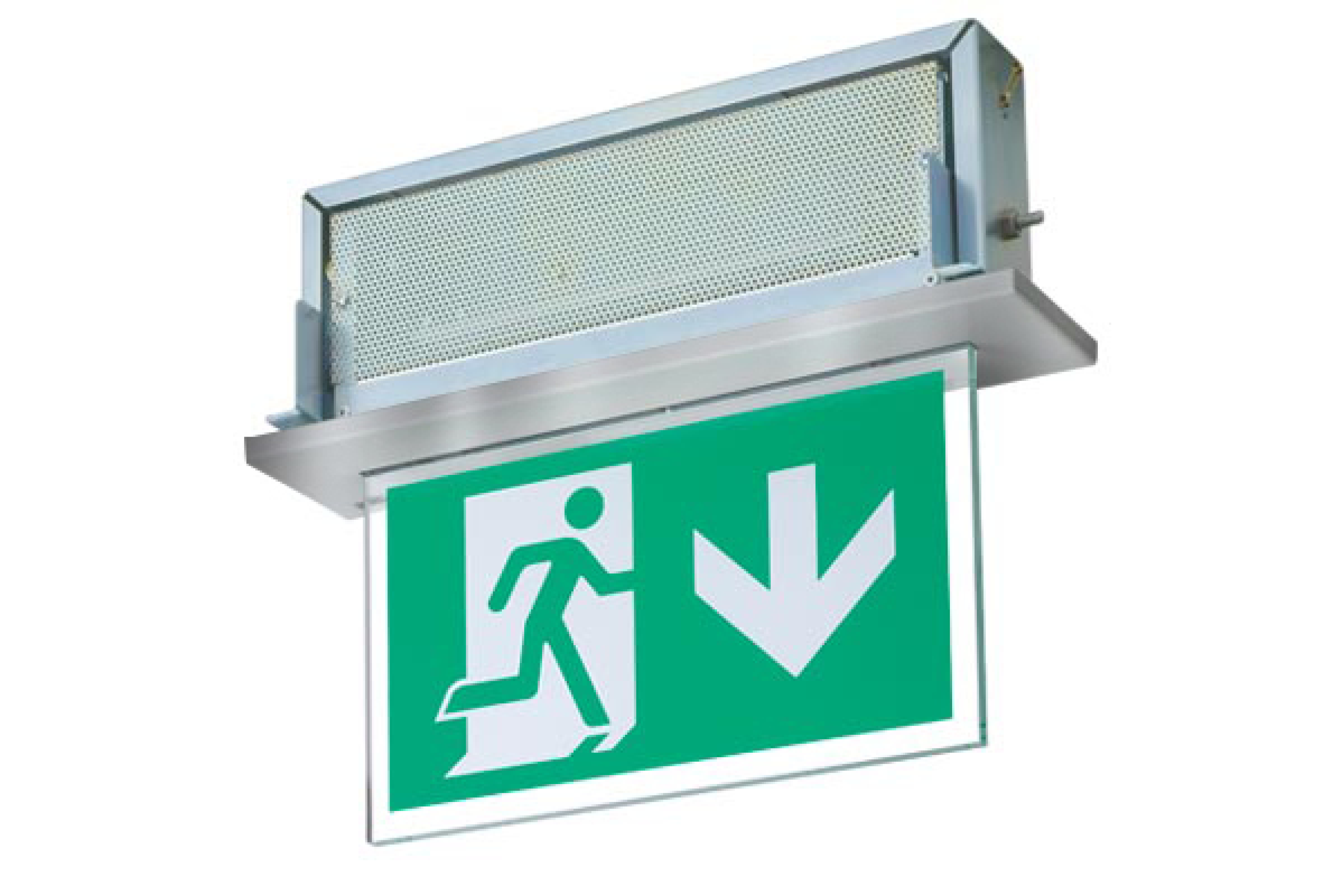

Available Finish
- Satin Chrome
- Polished Chrome
- Polished Brass
- BMA
- RAL 9010
- RAL 9006
- RAL 9005
- Penny Bronze

Specification

Conformité Européene
Maintained
Non Maintained
LED
Self Test
IP 20
DALi
Viewing Distance 20M/30M
Weight 1.5kg
CDA
BSI Kitemark
001-009
ICEL Endorsed
001-009

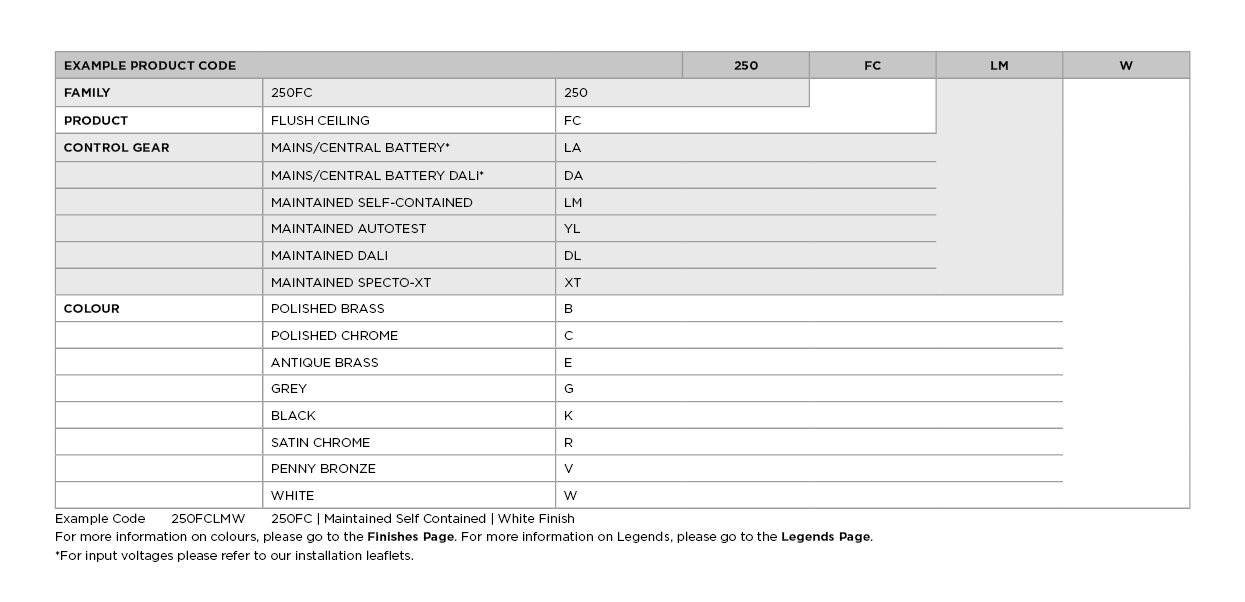

Part Numbers

250FCLA 230v AC/DC Central Supply
250FCLE 230v AC Central Supply (UAE only)
250FCDA 230v AC/DC Central Supply DALI
250FCLM 3hr Self Contained Maintained/ Non-Maintained
250FCYL 3hr Self Contained Self Test
250FCDL 3hr Self Contained DALI
250FCXT 3hr Self Contained Specto-XT

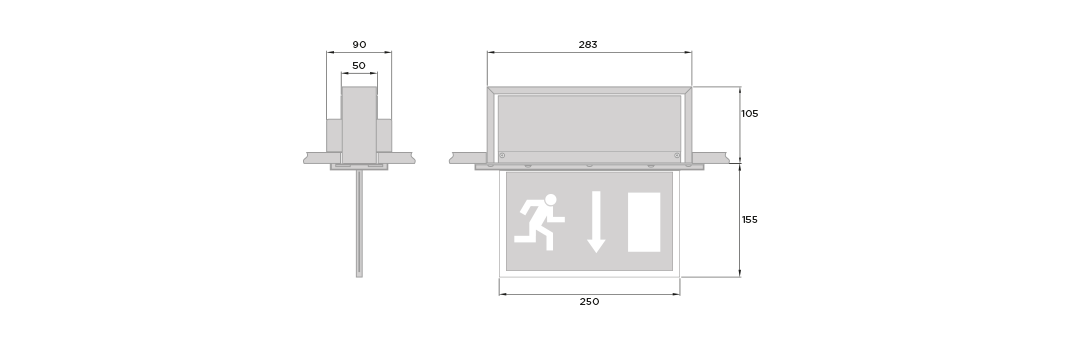

Dimensions

Click image to expand

Environment

Find out about our commitment to the Environment

Click Here

Downloads

Data Sheet

250FC Data Sheet
380.57 KB | pdf
Download
Legend Sheet

250FC Legend Sheet
312.15 KB | pdf
Download
Revit Files

250FC Revit Files
1.50 MB | zip
Download
Installation Sheet

250FC-300FC Installation Sheet
928.23 KB | pdf
Download
ICEL Endorsement

Architectural ICEL Endorsement Certificate
202.15 KB | pdf
Download
