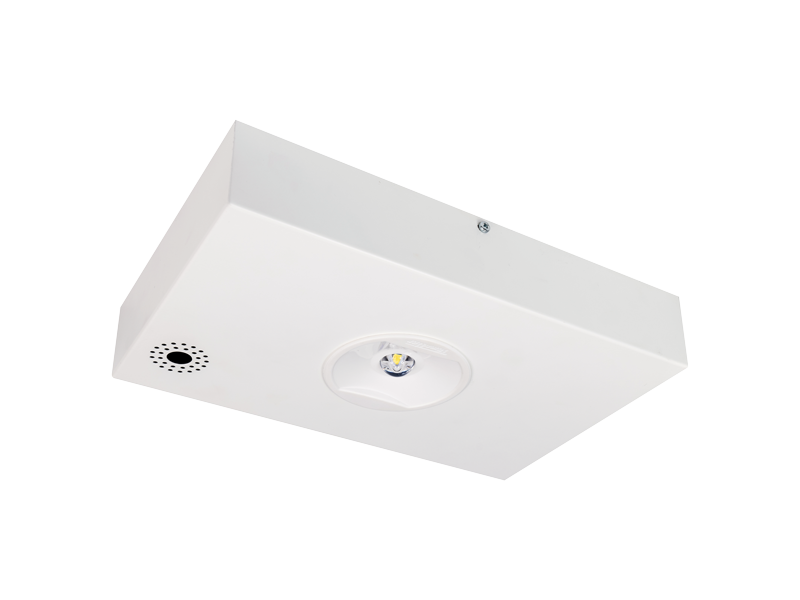

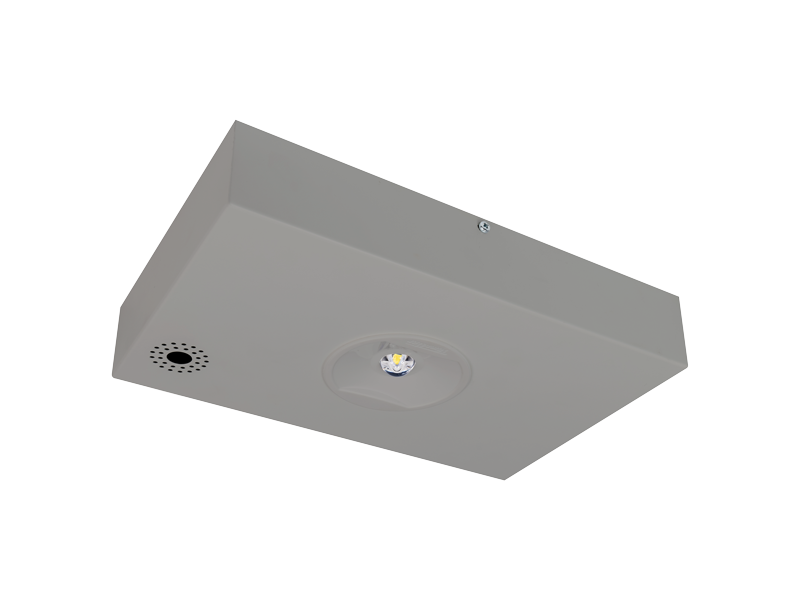

CELO SURFACE

CELO SURFACE

The Celo Surface is compatible with DALI and Specto-XT wireless technology.

LED emergency luminaire for surface mounting with superb optical performance.
Three hour, non-maintained emergency operation.

  • Supply Voltage
    • 230v
  • Area Lumen Output
    • 192
  • Corridor Lumen Output
    • 192
  • Spot Lumen Output
    • 192
  • Available Finish

    • RAL 9016

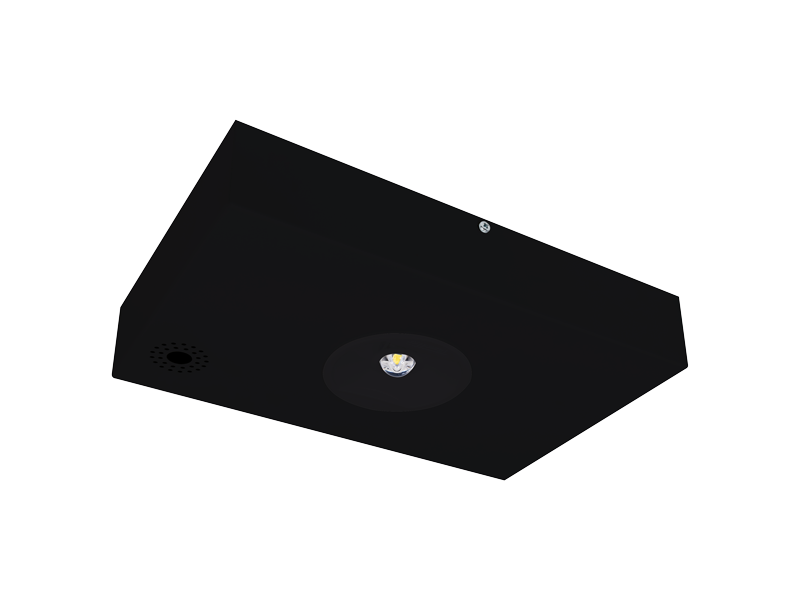

    • RAL 9005

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • IP 40

  • DALi

  • Weight 1.5kg

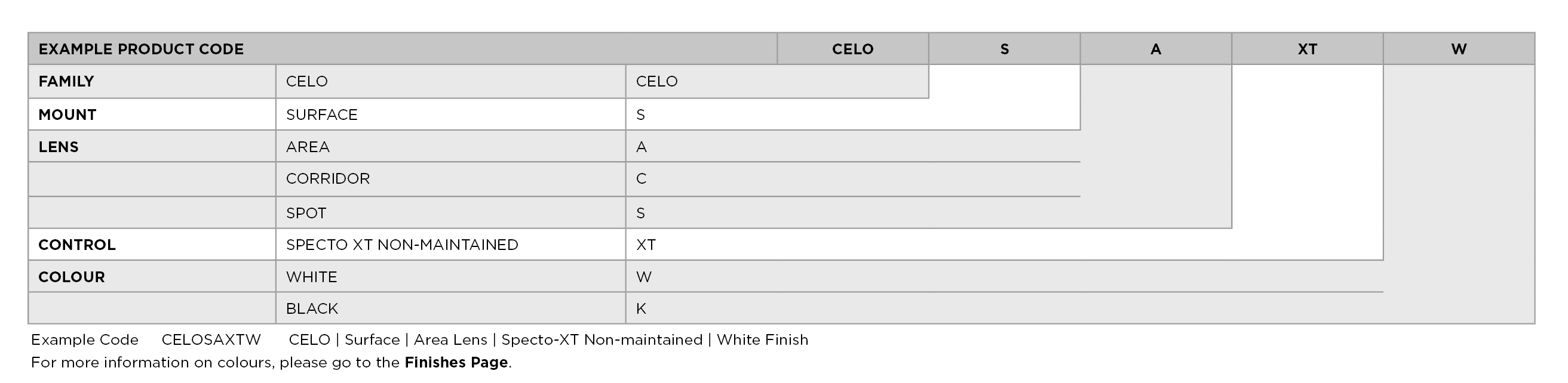

Part Numbers

Click image to expand

Part Numbers | CELO SURFACE

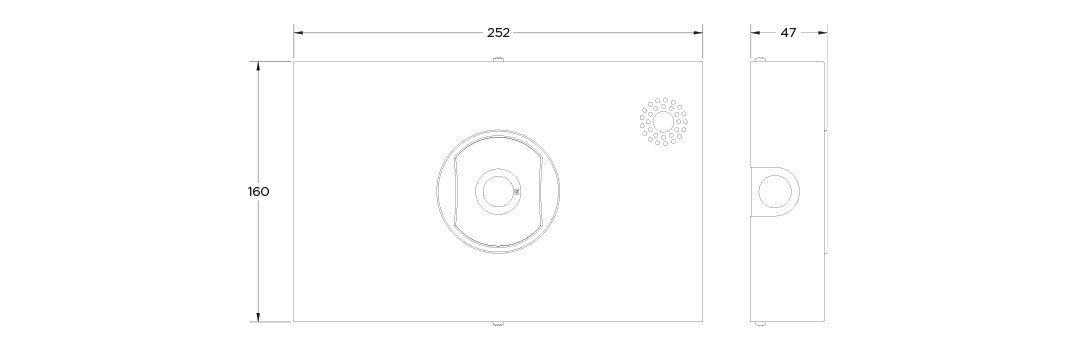

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    CELO Surface Data Sheet
    303.52 KB | pdf

    Download

  • Revit Files

    CELO Surface Revit Files
    2.36 MB | zip

    Download

  • Photometric Files

    CELO Surface Photometric Files
    1.21 KB | zip

    Download

  • Installation Sheet

    CELO Surface Installation Sheet
    831.52 KB | pdf

    Download
