250DW

The 250DW offers clean architectural lines.

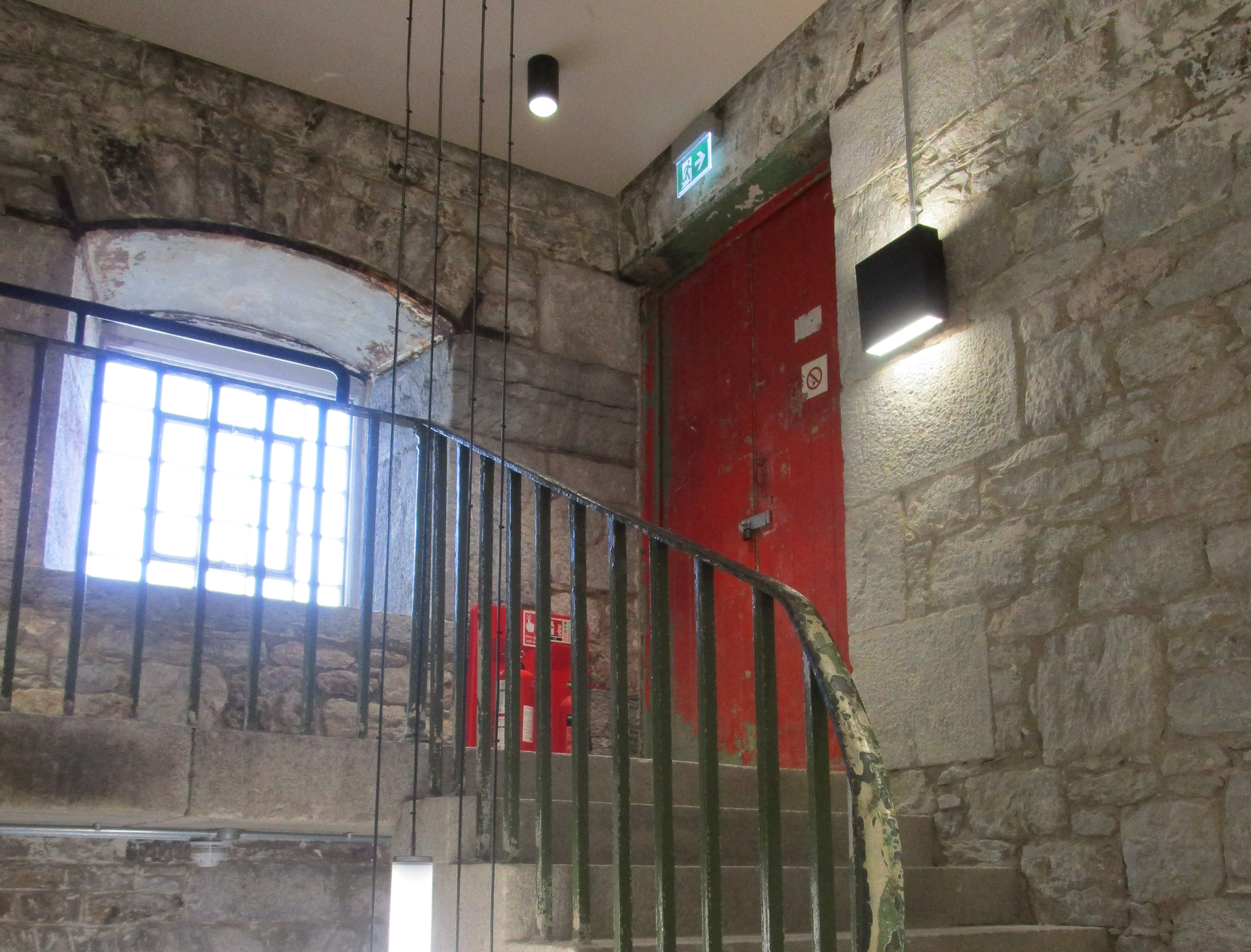

Its versatility ensures the 250DW remains one of Payne’s best sellers. It can be mounted above the door but the slim profile also makes it possible to mount the product to the side of high feature doors whilst remaining compliant with the statutory mounting height. Rear or top cable entry provides options where surface conduit is required although the geometry of the product lends itself to concealed cable entry particularly in stairwell mounting situations.
The wide variety of available finishes has seen the product extensively used in theatre and cinema applications.

Voltage
- 230v
IP
- 20
Weight
- 1.5kg
Gear Options
- 230v Central Supply
- 3hr Non-Maintained
- 3hr Maintained
- 3hr Self Test
- 3hr DALI
- 3hr Specto-XT
Legends Please contact the sales office for other legend formats
Available Finish

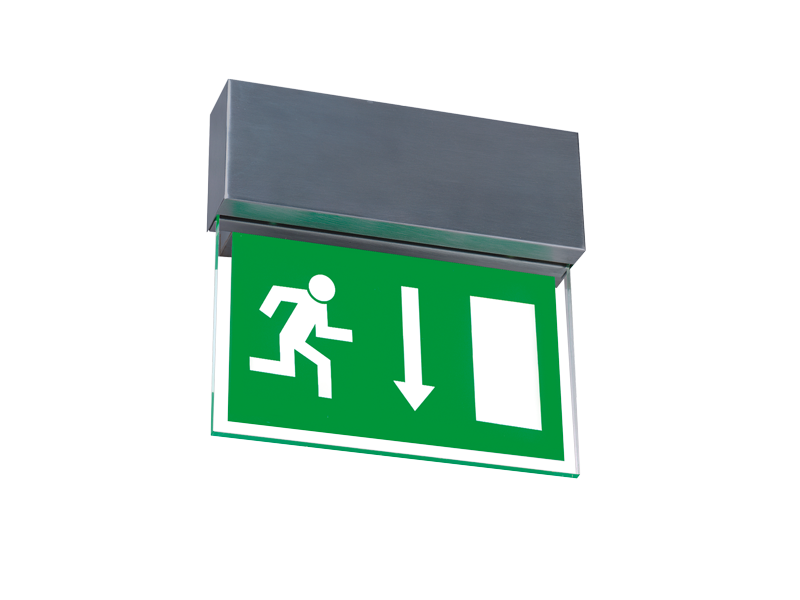

- Satin Chrome

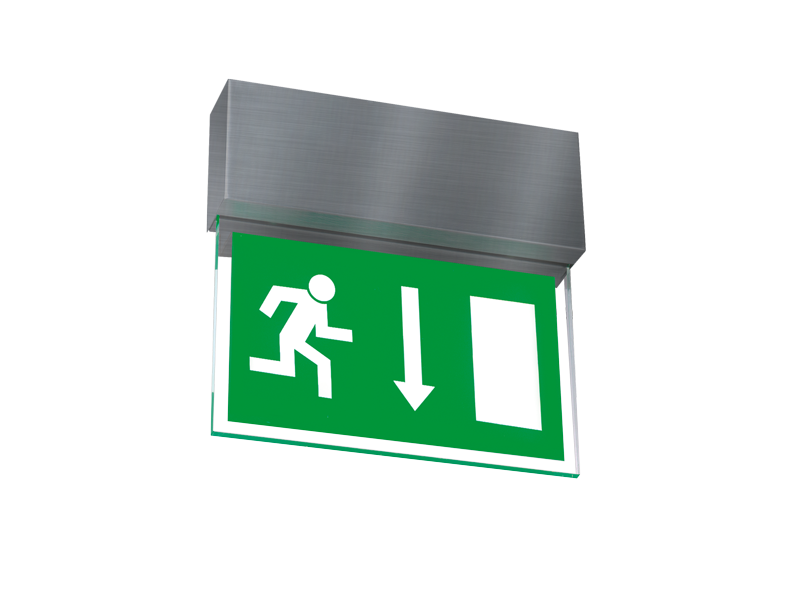

- Polished Chrome

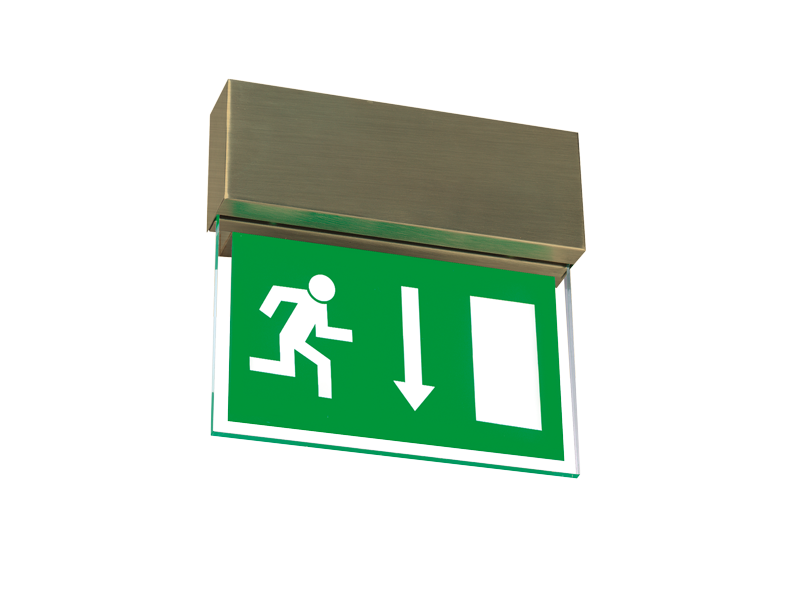

- Polished Brass
- BMA

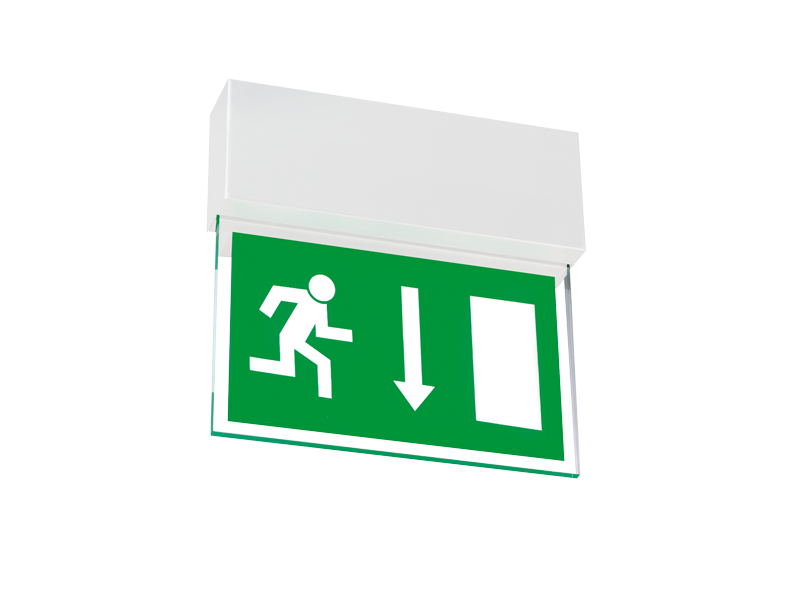

- RAL 9010

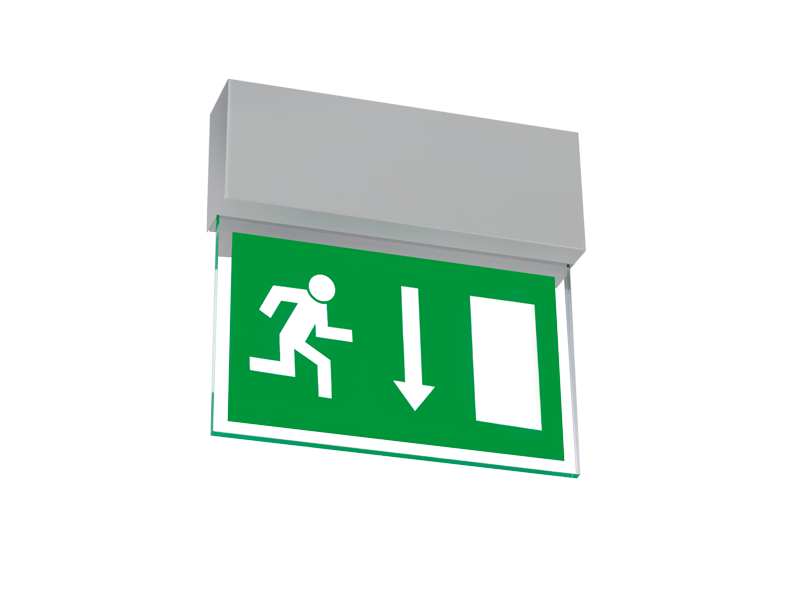

- RAL 9006

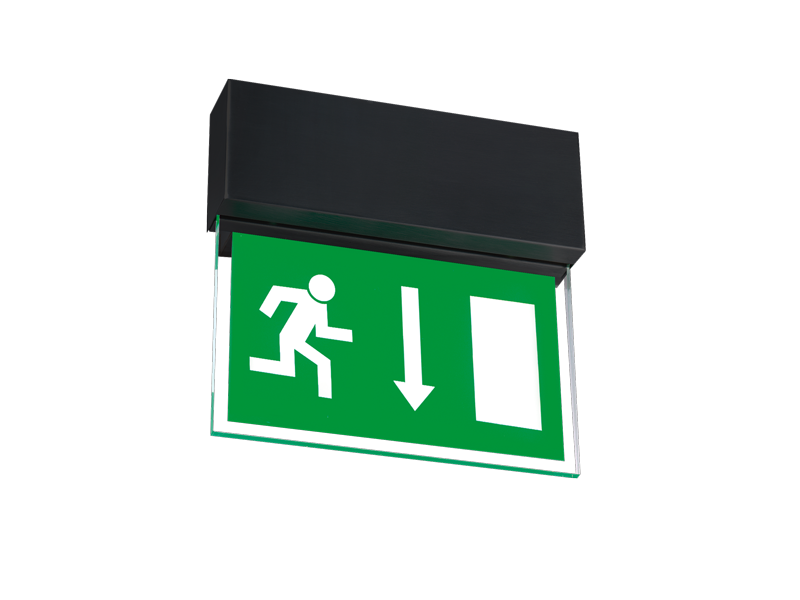

- RAL 9005
- Penny Bronze

Specification

Conformité Européene
UKCA
Maintained
Non Maintained
LED
Self Test
IP 20
DALi
Viewing Distance 26M
Weight 1.5kg
Double Sided
CDA
BSI Kitemark
Impact Rating 7
001-009
ICEL Endorsed
001-009

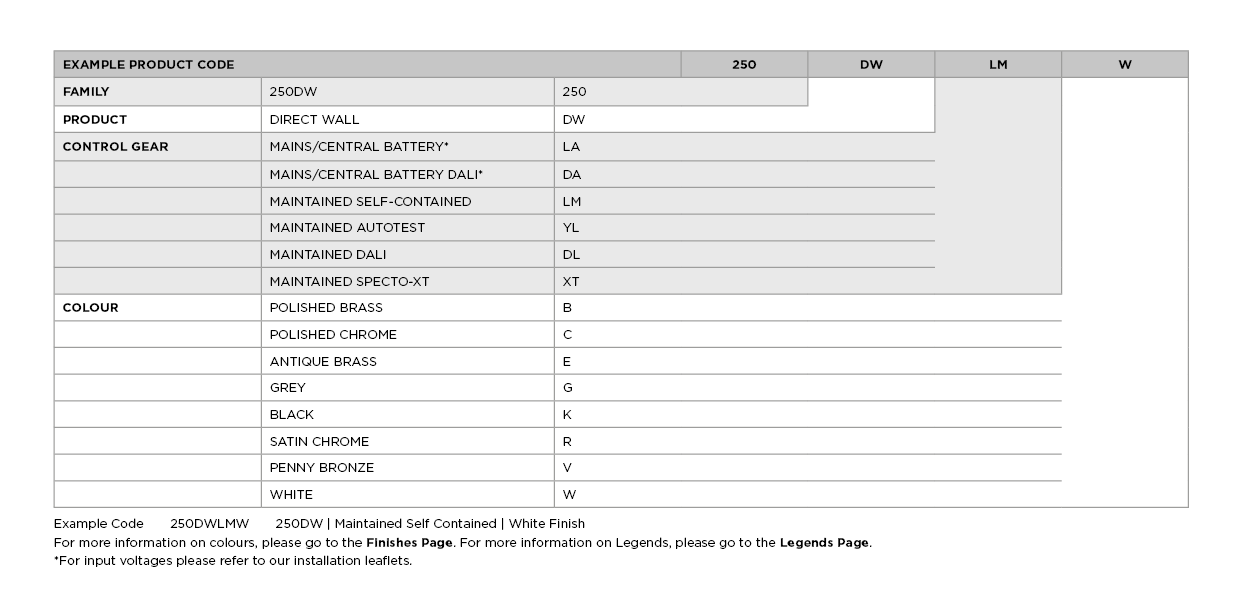

Part Numbers

250DWLA 230v AC/DC Central Supply
250DWLE 230v AC Central Supply (UAE only)
250DWDA 230v AC/DC Central Supply DALI
250DWLM 3hr Self Contained Maintained/ Non-Maintained
250DWYL 3hr Self Contained Self Test
250DWDL 3hr Self Contained DALI
250DWXT 3hr Self Contained Specto-XT

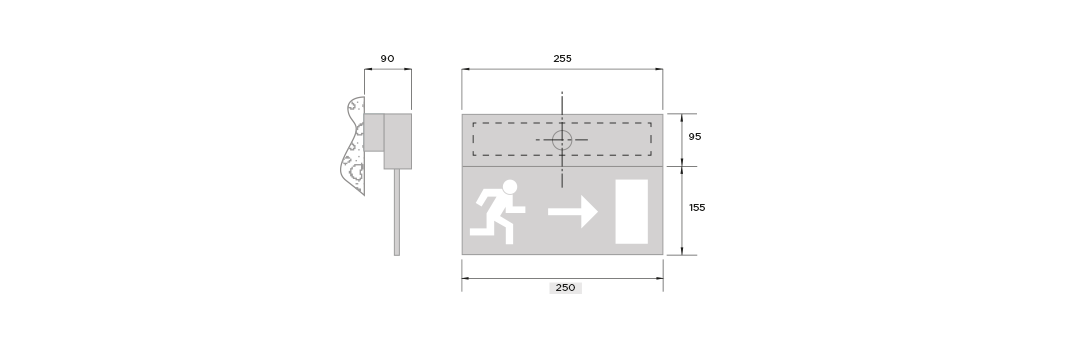

Dimensions
