Author: Philip Payne Admin | Date: 26th Jul 2021

Part 4 – Legend Viewing Distances

BS5266 and BS5499 define the viewing distances for exit signs, these are spilt into two categories;

a. INTERNALLY illuminated exit signs

b. EXTERNALLY illuminated exit signs

The calculation is as follows:

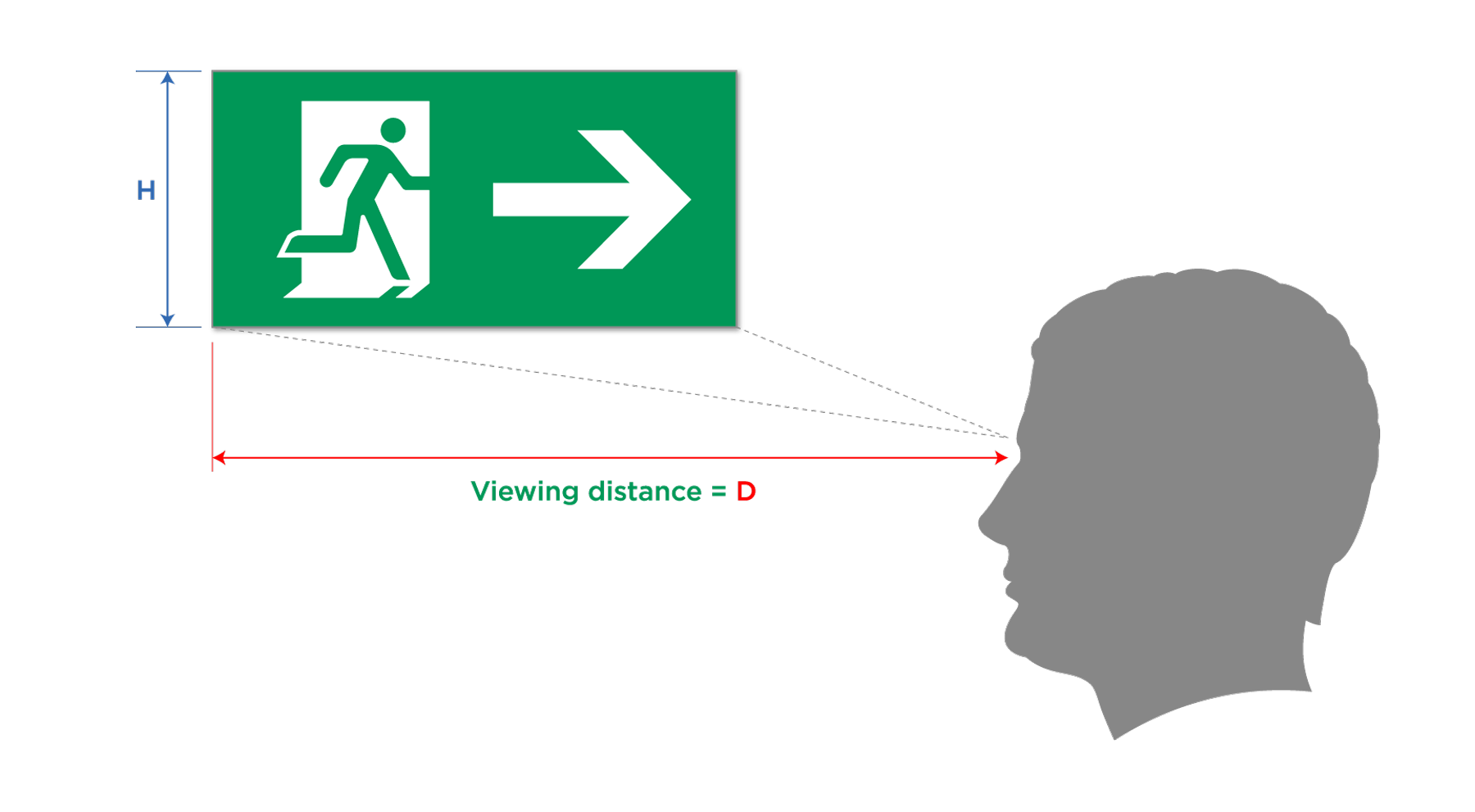

Viewing Distance (D) = The overall height of legend (H) x Factor (F)

NOTE

  • You must remember the legend has a 5mm transparent border.

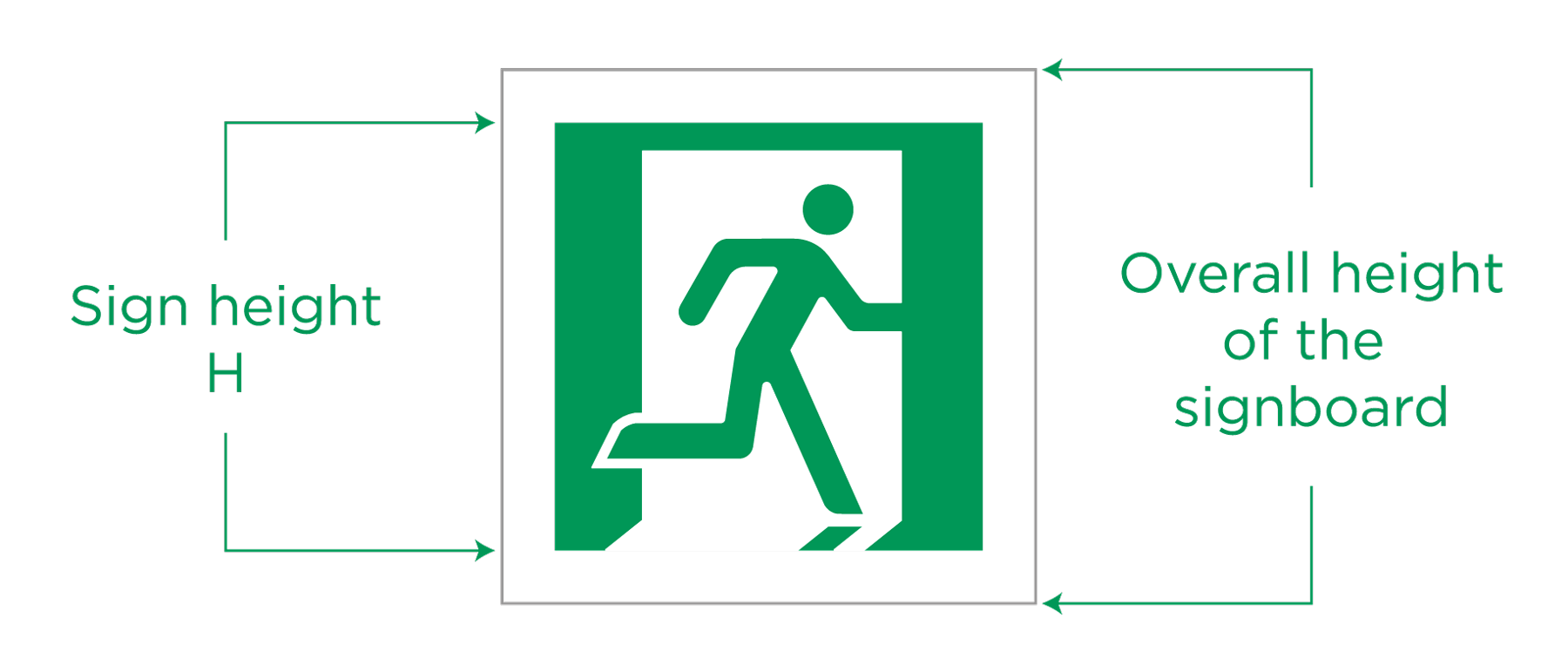

  • The sign height is the printed area/safety colour green only, the below image helps explain this.

Things to consider:

  • Escape route signs should be cleaned and visually inspected at regular intervals

a. INTERNALLY illuminated exit signs

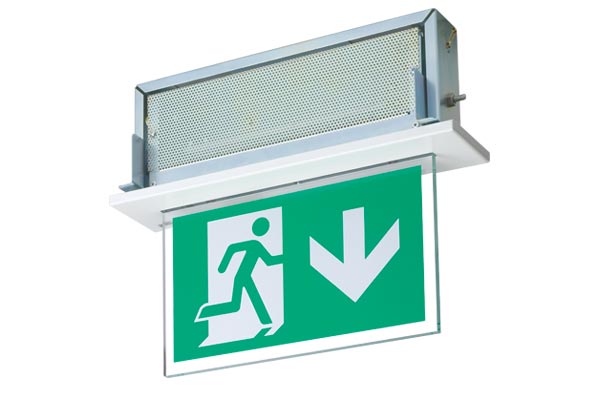

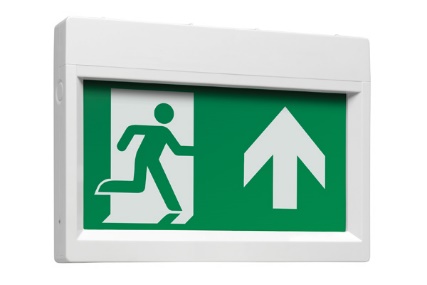

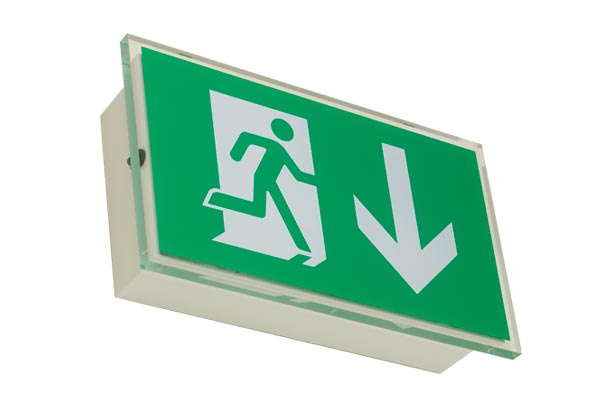

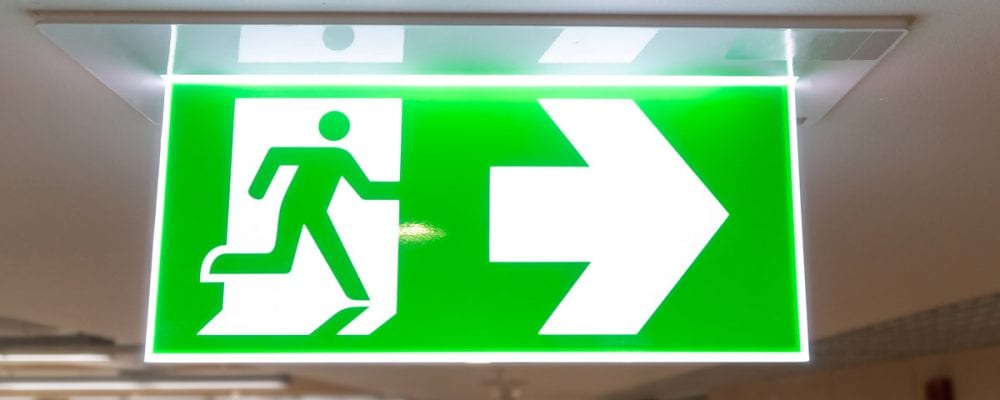

Examples of internally illuminated exit signs:

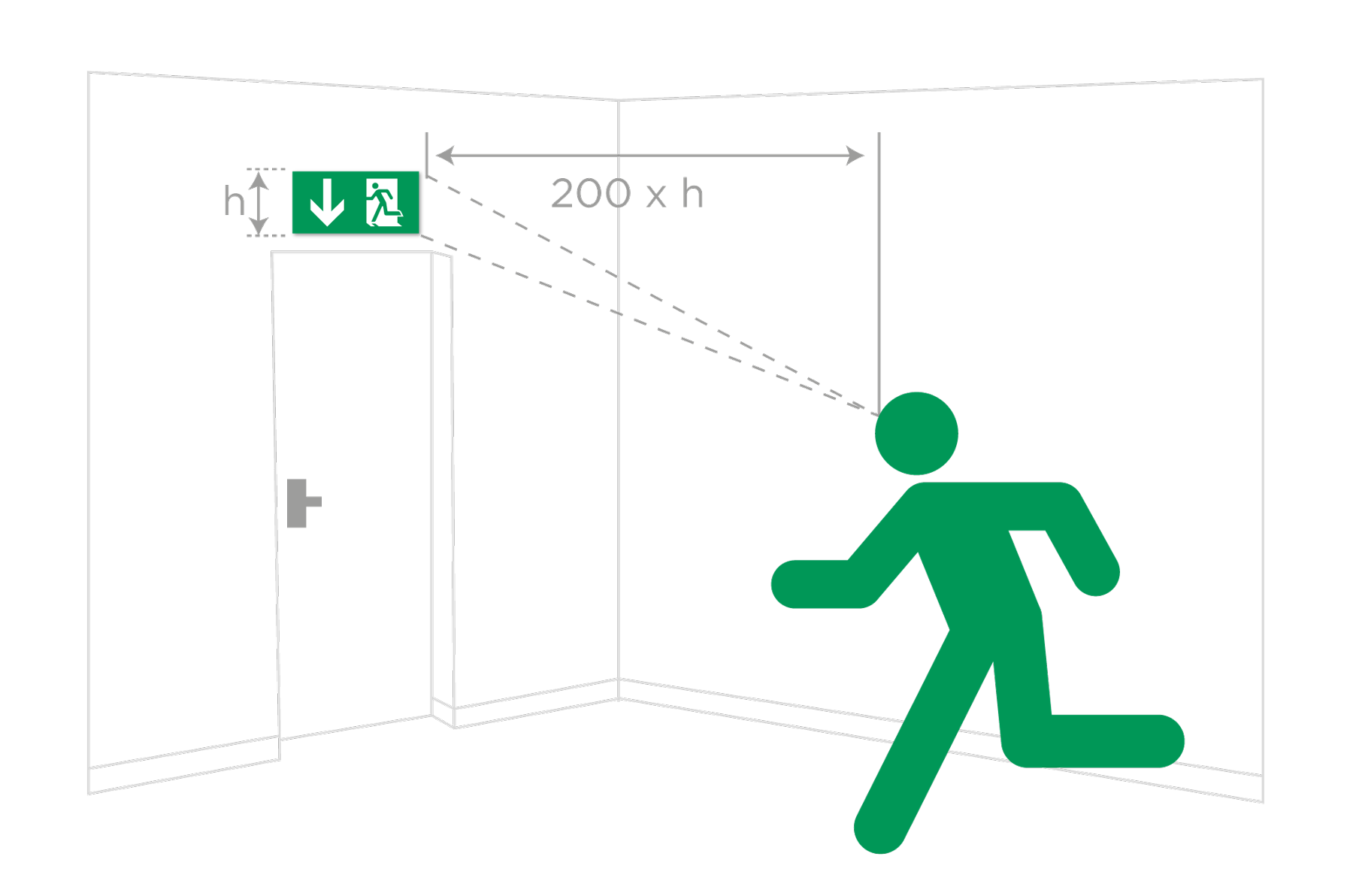

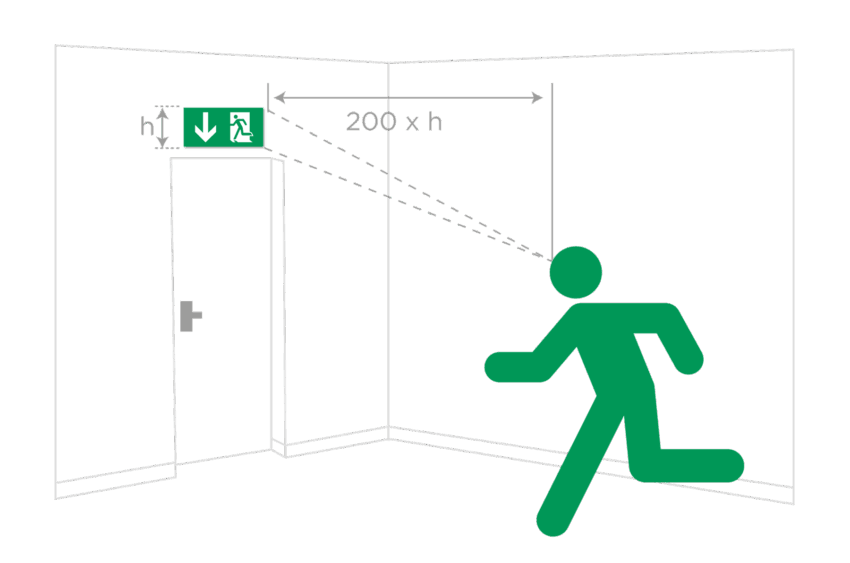

Internally illuminated signs have a multiplying factor (F) of 200.

Example: Legend green height is 135mm

Viewing Distance
= The overall height of legend (H) x Factor (F)
= 135mm x 200
= 27,000mm
= 27M

b. EXTERNALLY illuminated exit signs

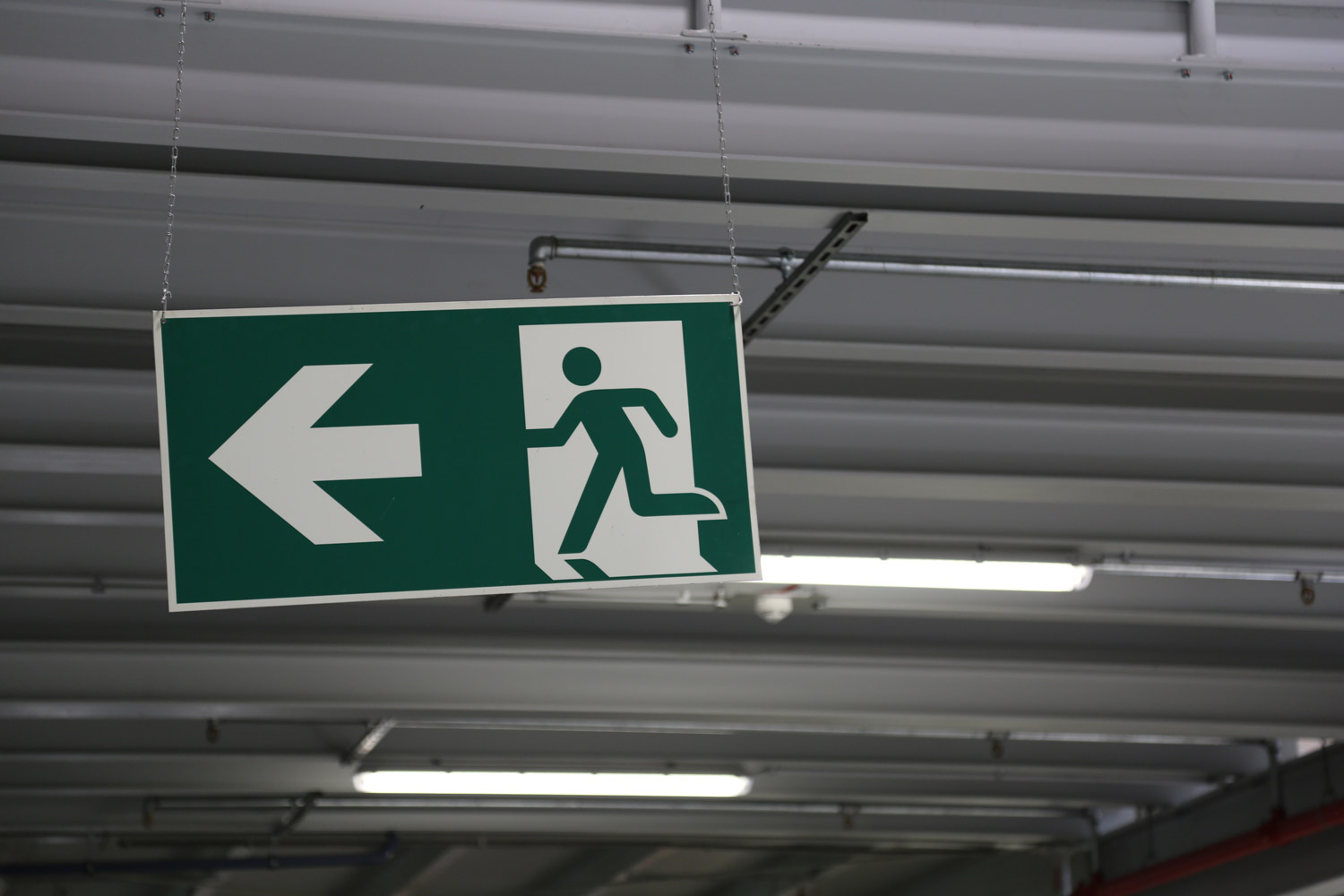

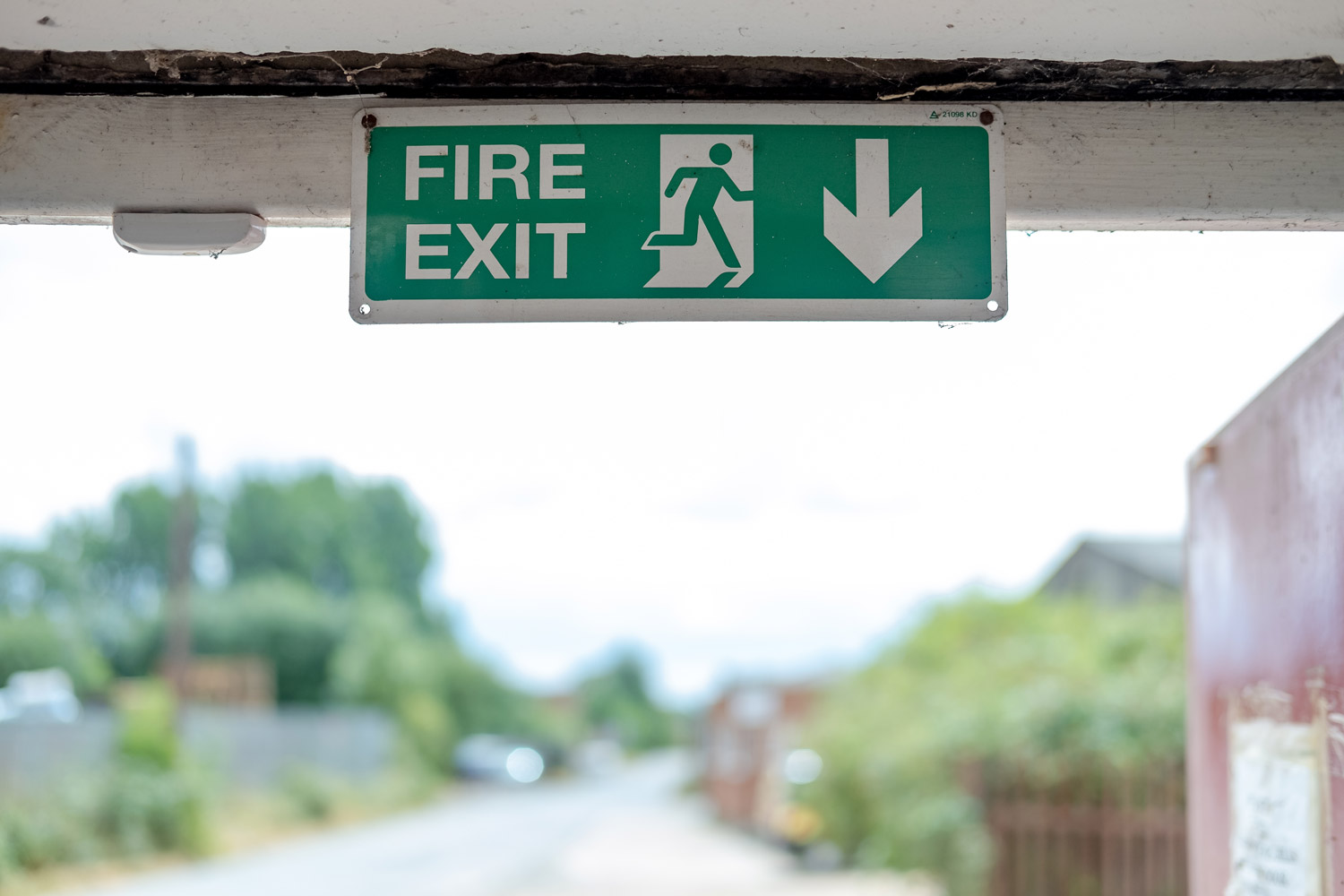

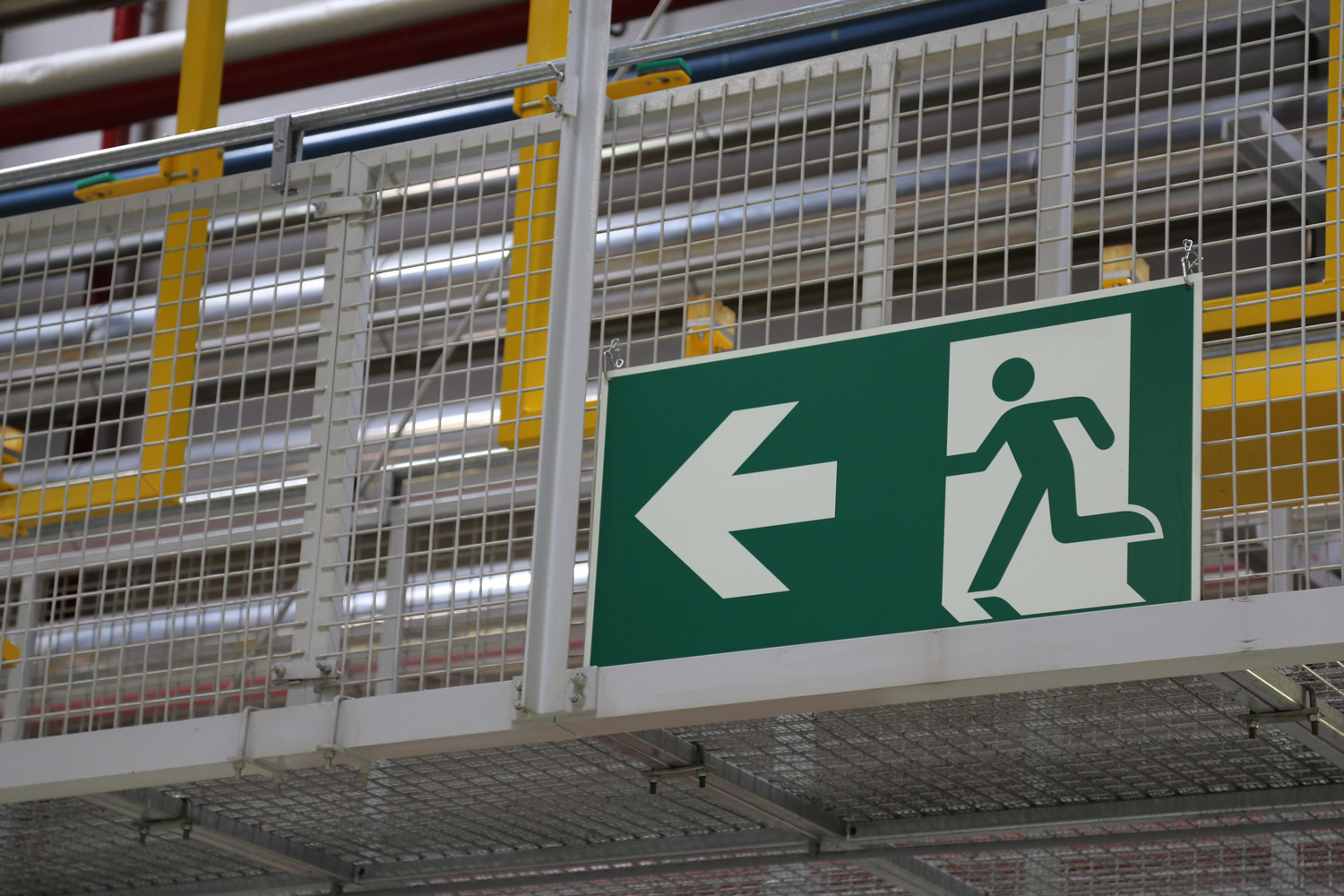

Examples of externally illuminated exit signs:

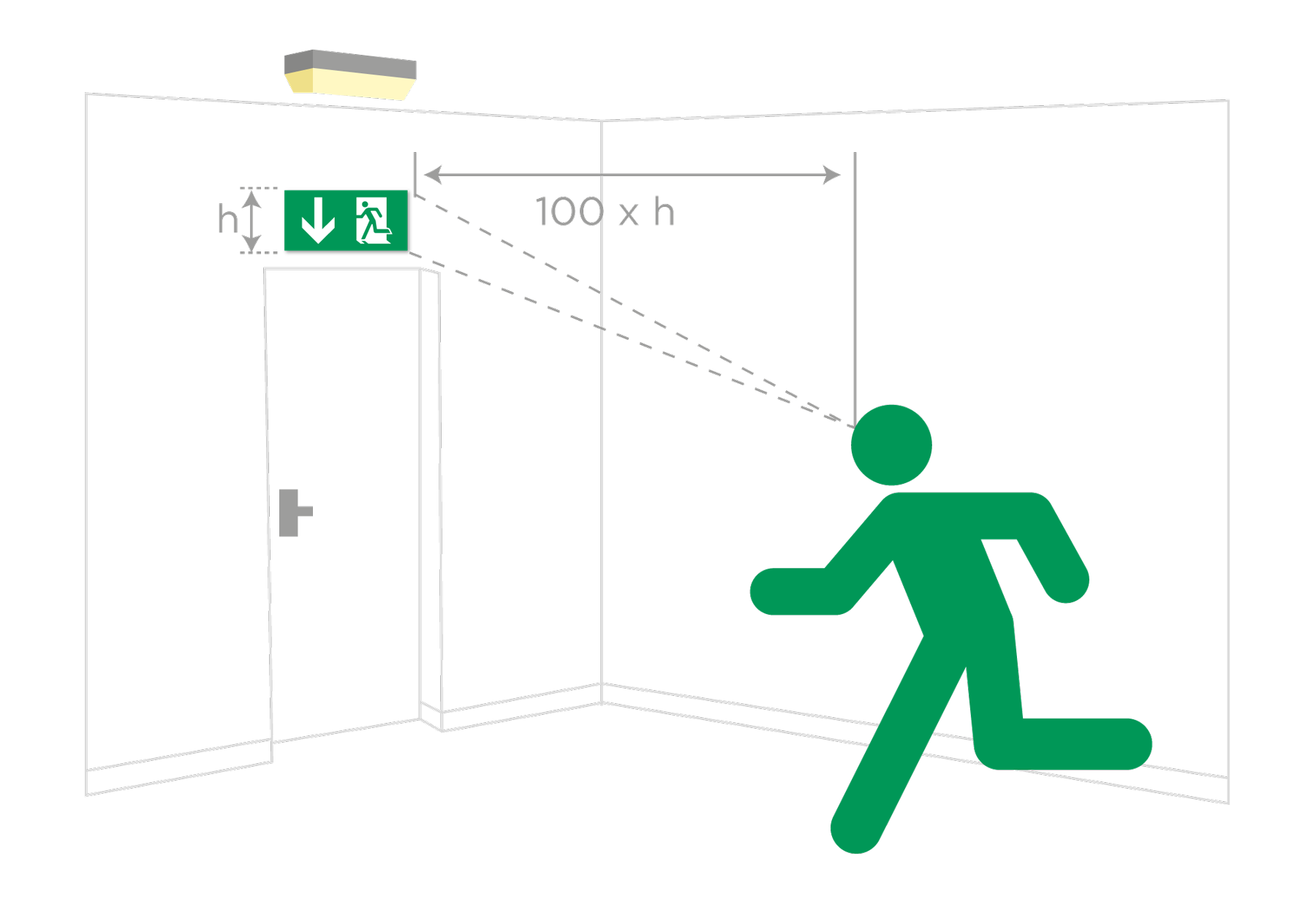

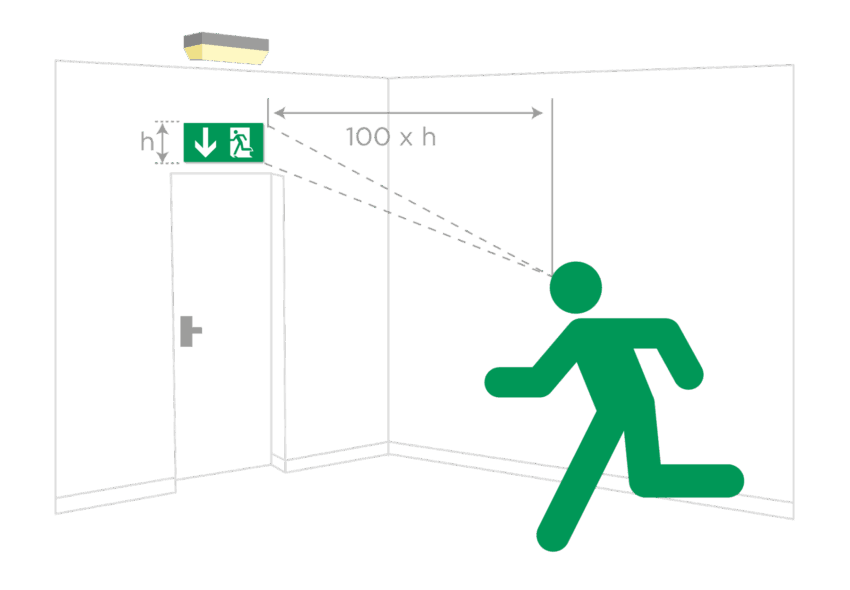

Externally illuminated signs have a multiplying factor (F) of 100.

Example: Legend green height is 135mm

Viewing Distance
= The overall height of legend (H) x Factor (F)
= 135mm x 100
= 13,500mm
= 13.5M
