300FC

300FC

The original FC from Payne, the 300FC was designed for use with an 8w T5 Lamp.

Still favoured by some to provide a bigger viewing target for evacuees, the product is now LED remaining a firm favourite with many clients designing for larger spaces.

  • VOLTAGE
    • 230v
  • IP
    • 20
  • WEIGHT
    • 1.5kg
  • GEAR OPTIONS
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALI
    • 3hr Specto-XT
  • Legends
  • Available Finish

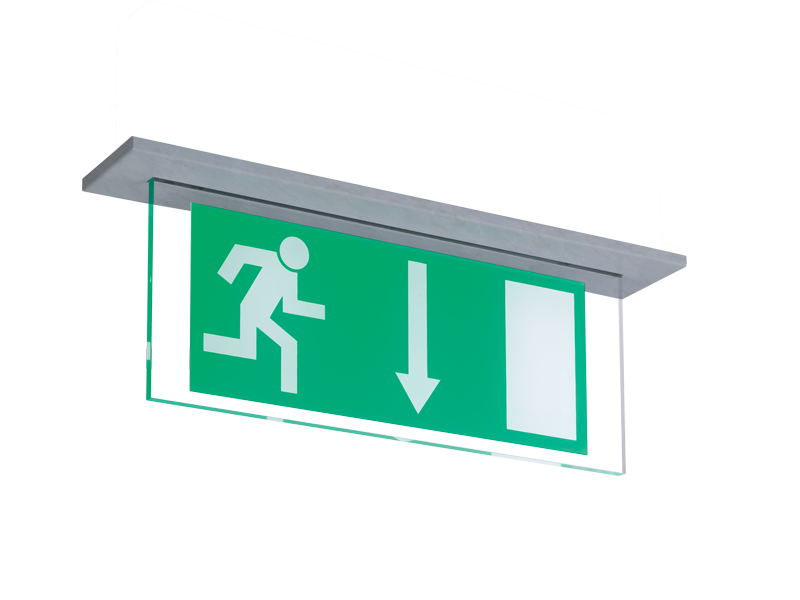

    • Satin Chrome

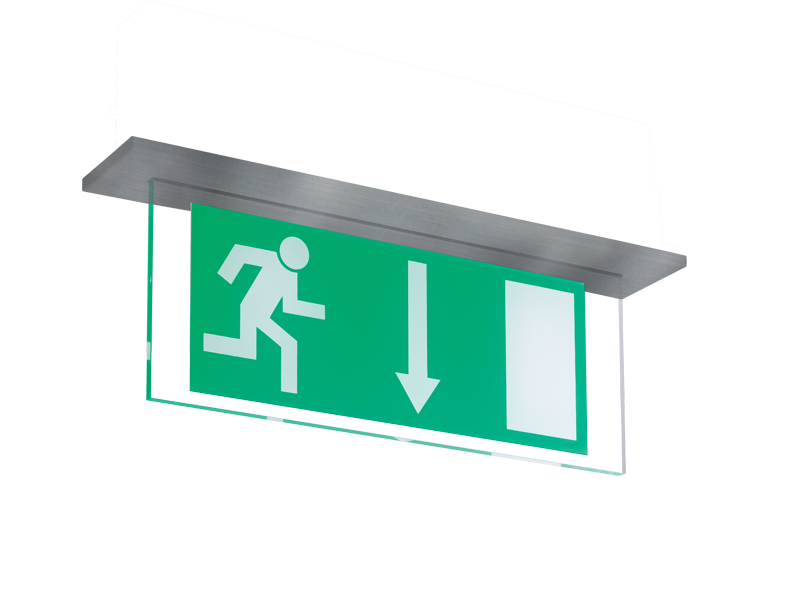

    • Polished Chrome

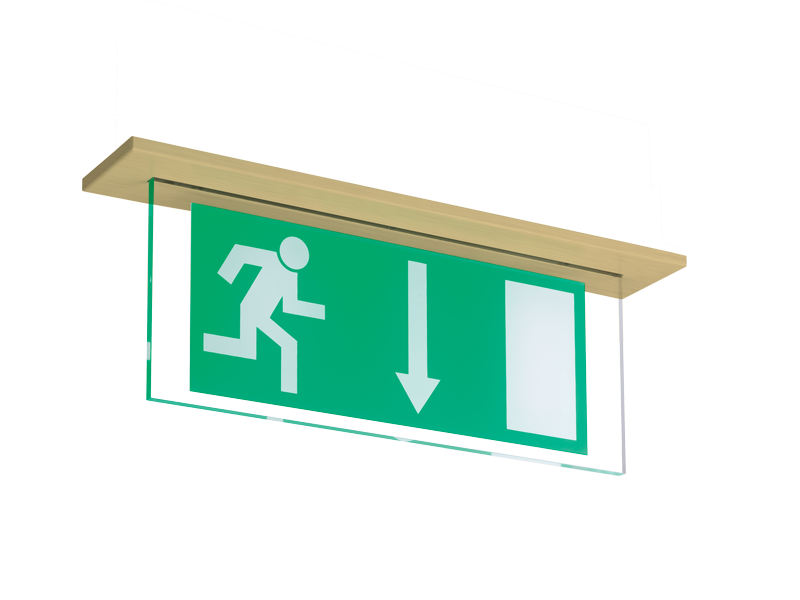

    • Polished Brass

    • BMA

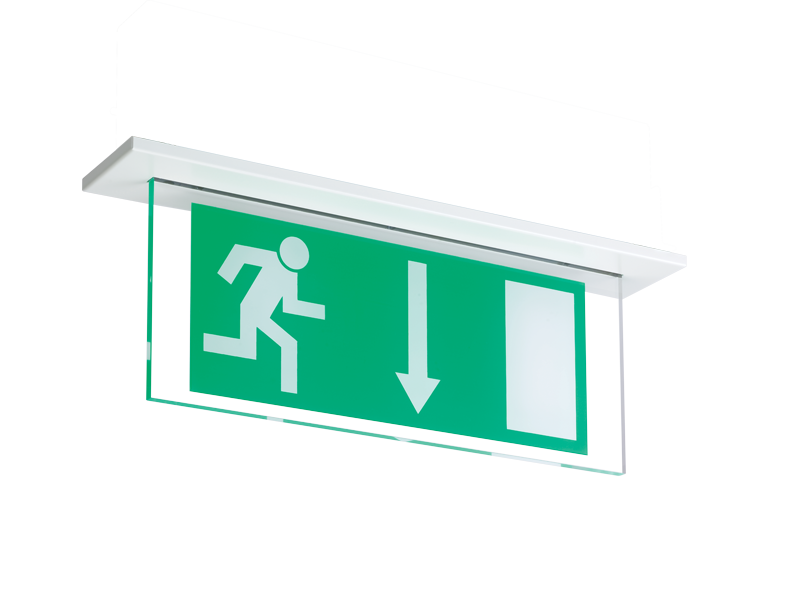

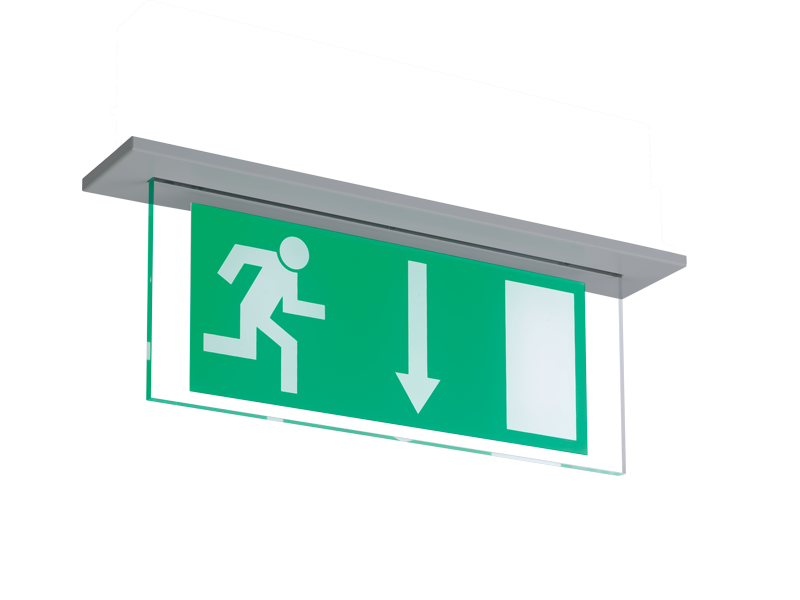

    • RAL 9010

    • RAL 9006

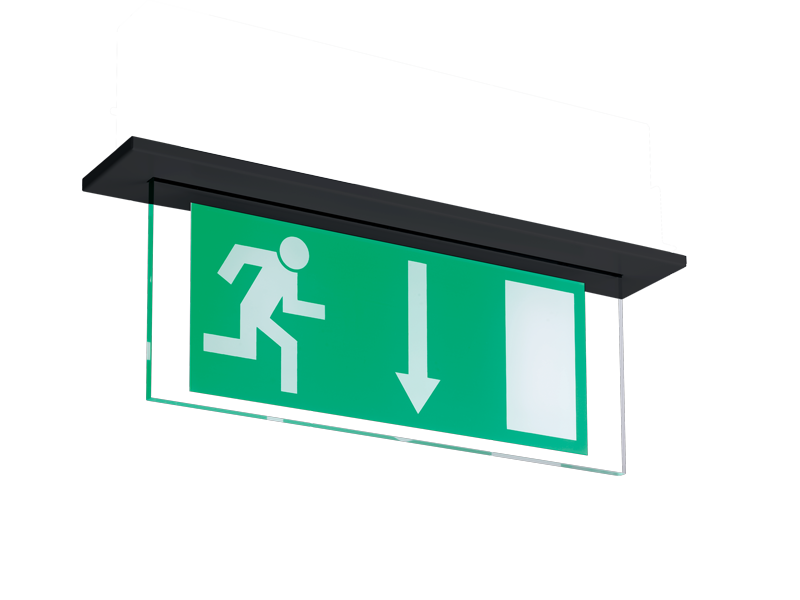

    • RAL 9005

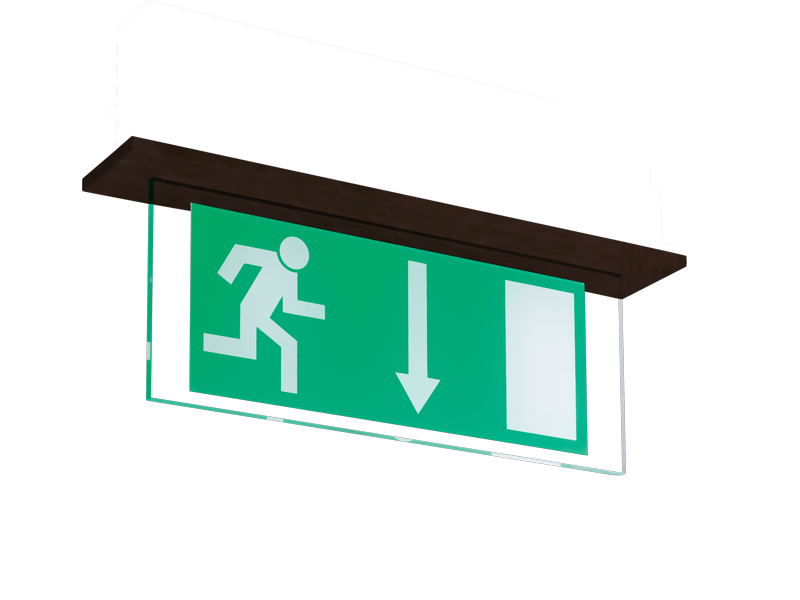

    • Penny Bronze

Specification

  • Conformité Européene

  • UKCA

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance 20M/30M

  • Weight 1.5kg

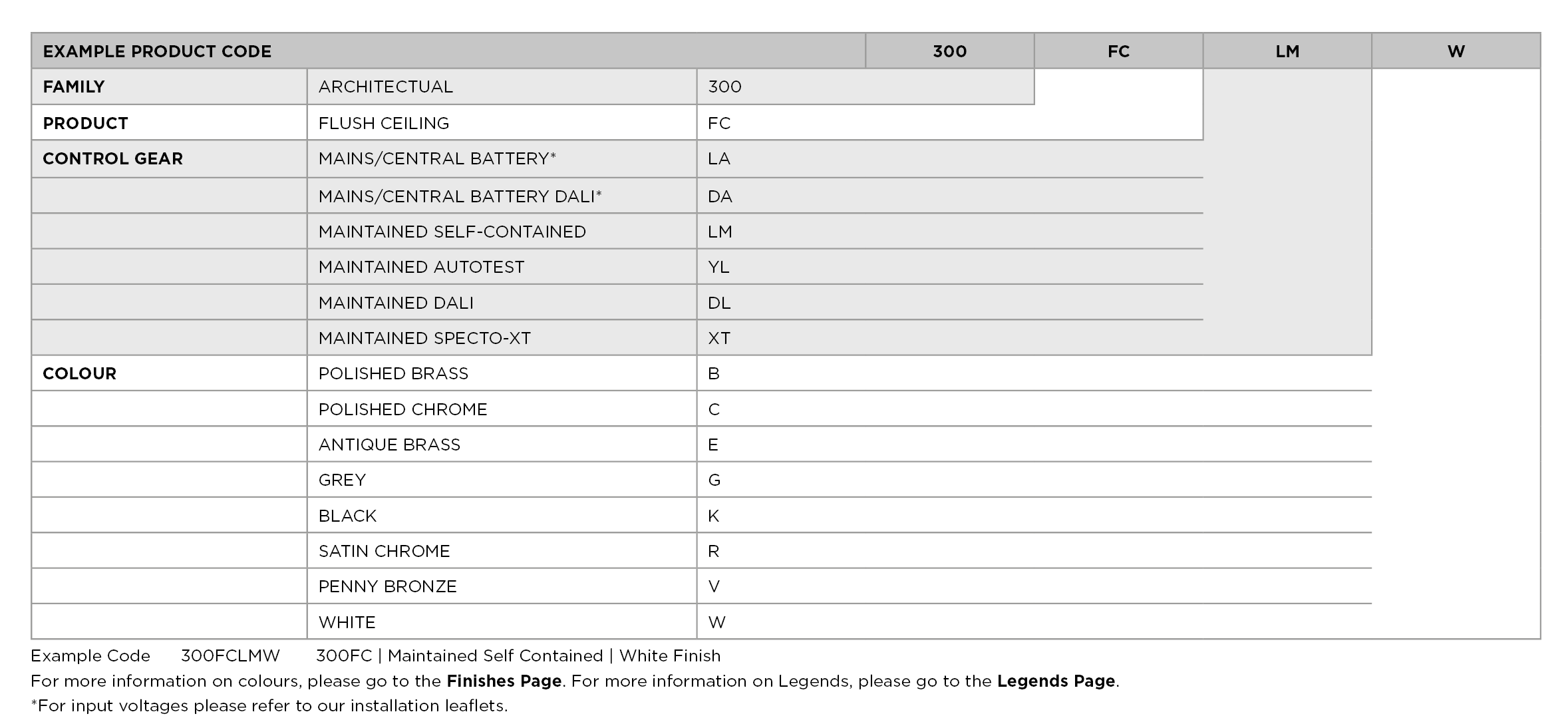

Part Numbers

  • 300FCLA 230v AC/DC Central Supply
  • 300FCDA 230v AC/DC Central Supply DALI
  • 300FCLM 3hr Self Contained Maintained/ Non-Maintained
  • 300FCYL 3hr Self Contained Self Test
  • 300FCDL 3hr Self Contained DALI
  • 300FCXT 3hr Self Contained Specto-XT

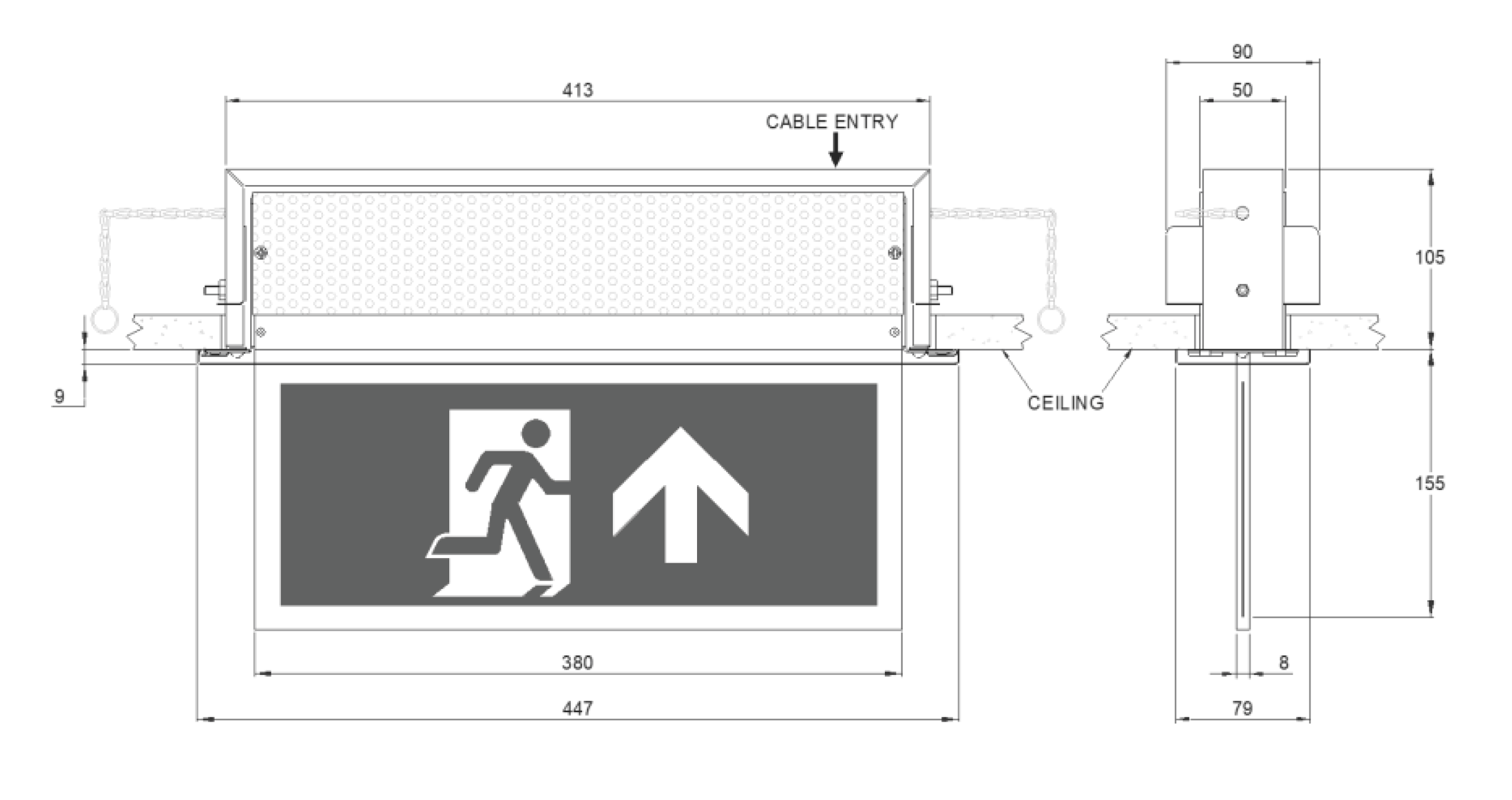

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    300FC Data Sheet
    365.06 KB | pdf

    Download

  • Legend Sheet

    300FC Legend Sheet
    269.84 KB | pdf

    Download

  • Revit Files

    300FC Revit Files
    797.18 KB | zip

    Download

  • Installation Sheet

    250/300FC Installation Sheet
    962.82 KB | pdf

    Download
