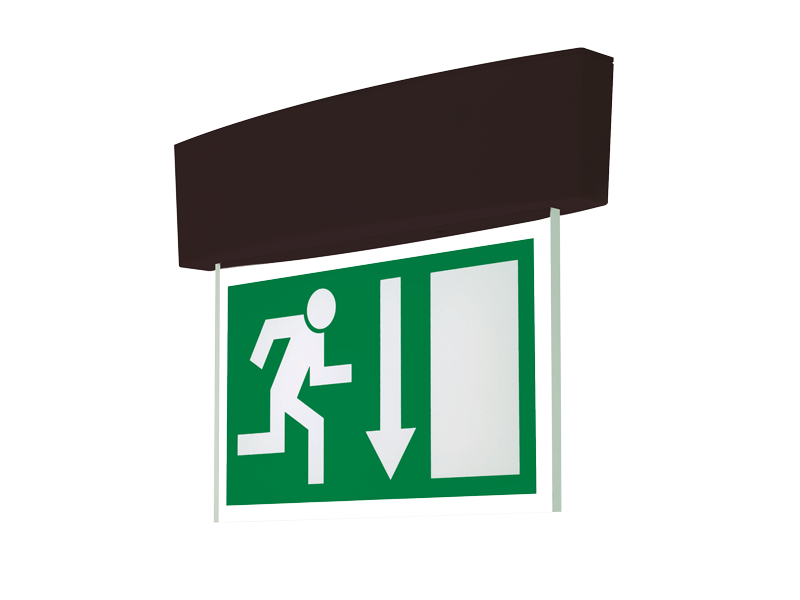

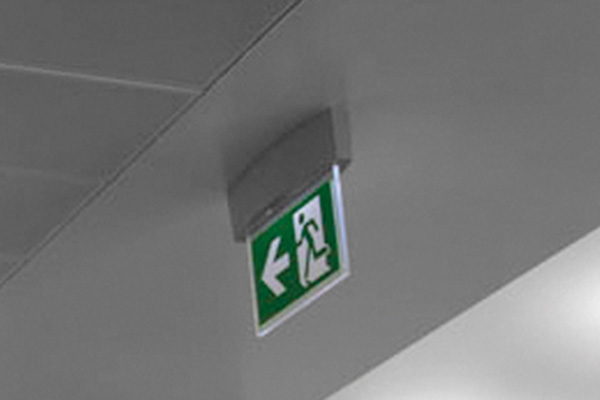

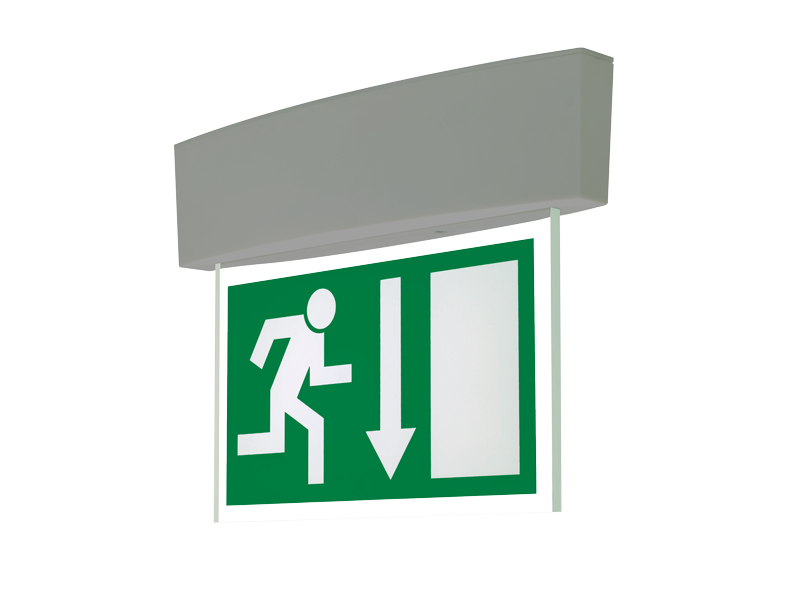

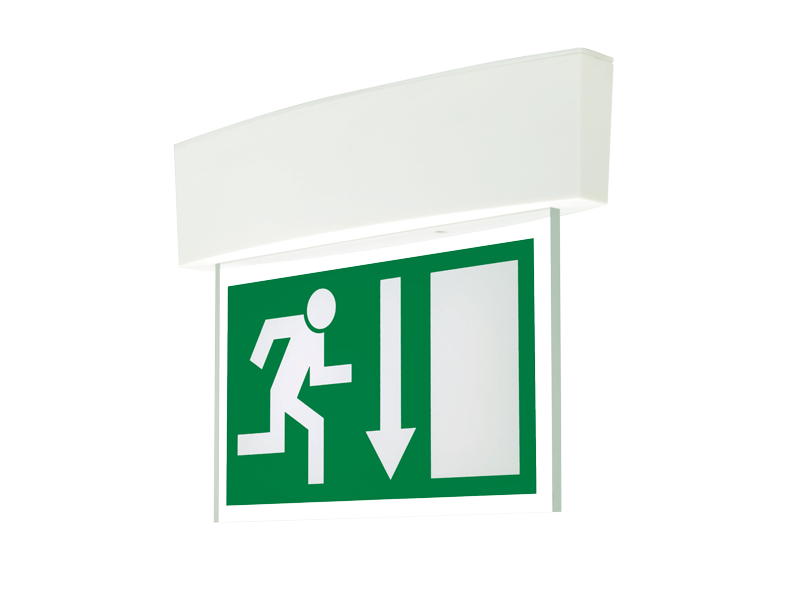

SUPER 7

Super 7 is an injection moulded luminaire combining exciting design lines with installation simplicity.

Utilising rod suspension or a moulded bracket the product can be rear or end fixed to provide the full complement of mounting options. The Super 7 can be supplied in the normal range of paint finishes.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Legends
  • Available Finish
    • RAL 9010

    • RAL 9005

Specification

  • Conformité Européene

  • Maintained

  • LED

  • IP 20

  • DALi

  • Viewing Distance 26M

  • Weight 1.5kg

  • 001-010

    ICEL Endorsed
    001-010

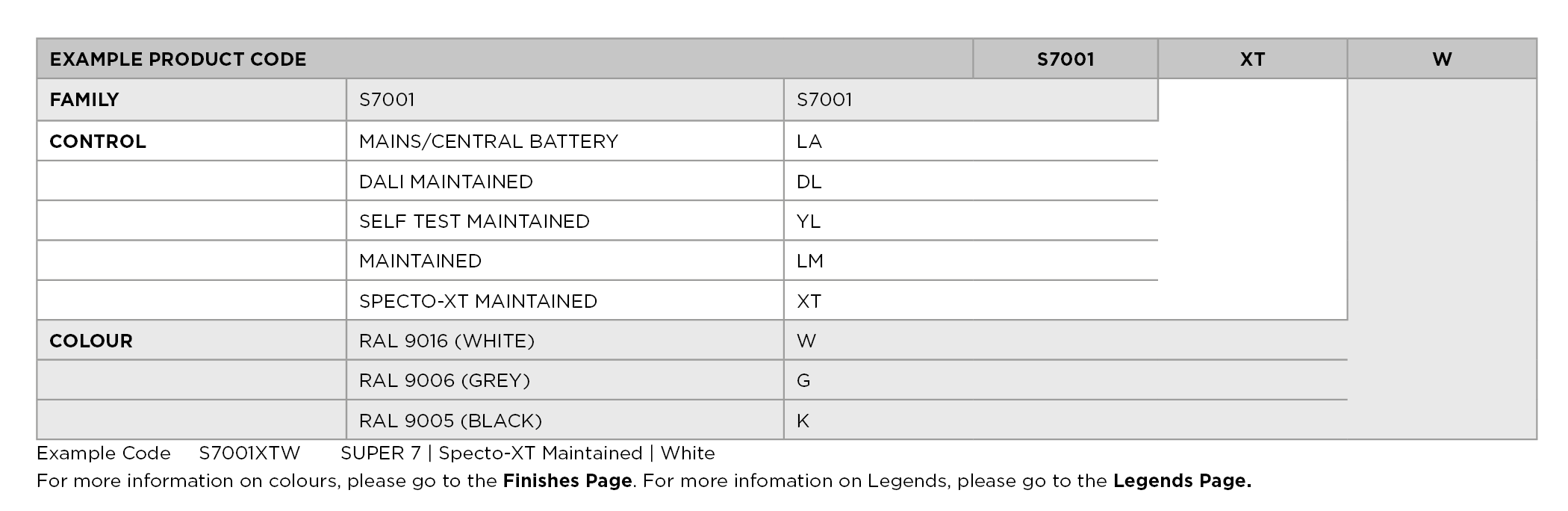

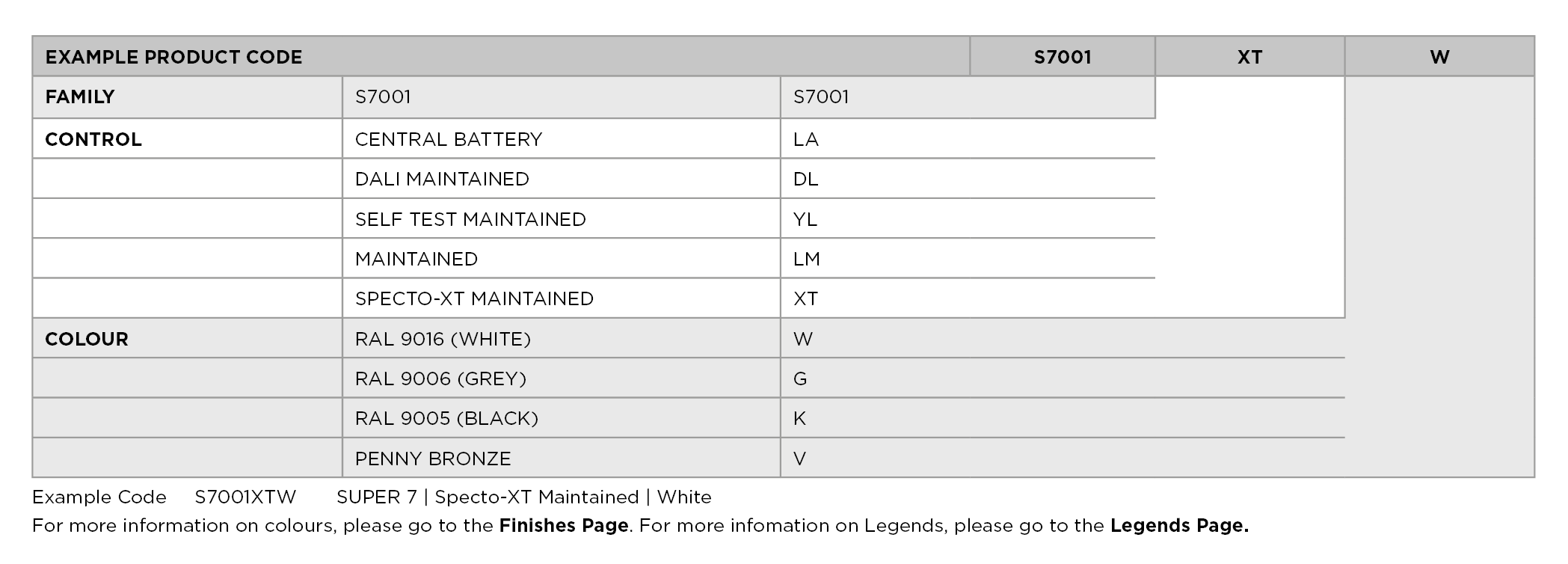

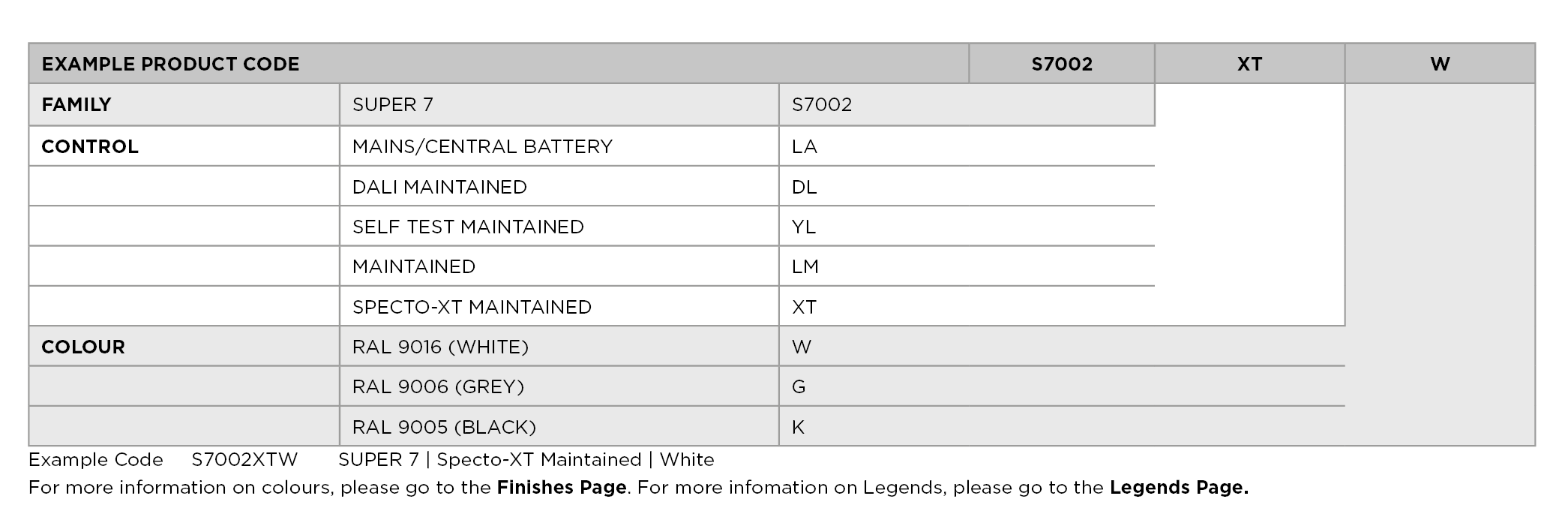

Part Numbers

Click image to expand

Part Numbers | SUPER 7

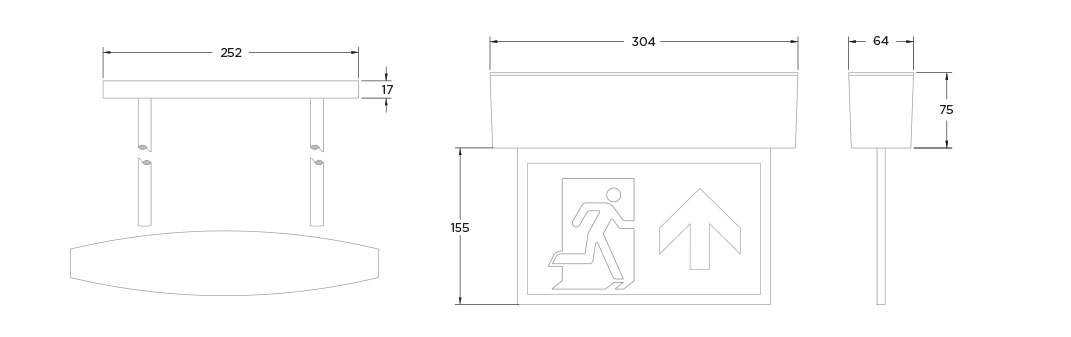

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    Super 7 Data Sheet
    303.78 KB | pdf

    Download
  • Revit Files

    Super 7 Revit Files
    613.29 KB | zip

    Download
  • Installation Sheet

    Super 7 Installation Sheet
    595.29 KB | pdf

    Download
  • ICEL Endorsement

    Super 7 ICEL Endorsement Certificate
    246.23 KB | pdf

    Download
