Specto-XT GATEWAY

MASTER CONTROL AND WEB INTERFACE WITH SPECTO-XT WIRELESS COMMUNICATION

The Specto-XT Gateway provides daily uploads of the system status to the website providing an easy to read visual reference highlighting the following:

  • Lamp status in emergency operation
  • Number of hours that a lamp has operated from the battery
  • Integral battery is connected and charging
  • Result of the last monthly function test and the date of the next scheduled test
  • Result of the last annual duration test and the date of the next scheduled test
  • Emergency lighting testing schedules

This information is transmitted to the world wide web for viewing using tablets, smart phones, laptops and computers.

Controls up to 500 Specto-XT emergency luminaires.



  • SUPPLY VOLTAGE
    • 230v
  • IP RATING
    • 65
  • WEIGHT
    • 1KG
  • Available Finish
    • RAL 9016

Specification

  • Conformité Européene

  • IP 65

  • Weight 1kg

  • CDA

  • BSI Kitemark

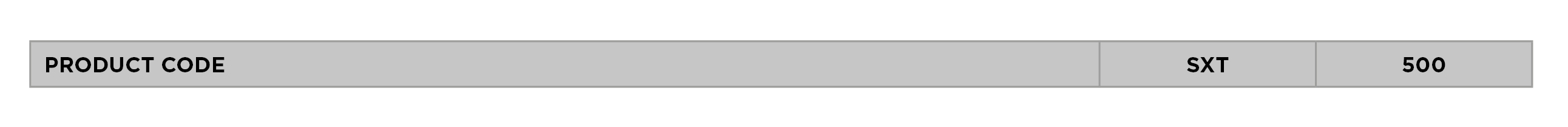

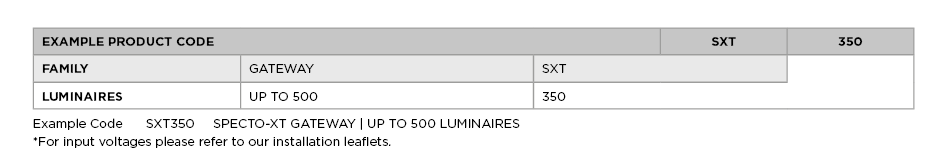

Part Numbers

  • SXT350 SPECTO-XT GATEWAY 500 LUMINAIRES

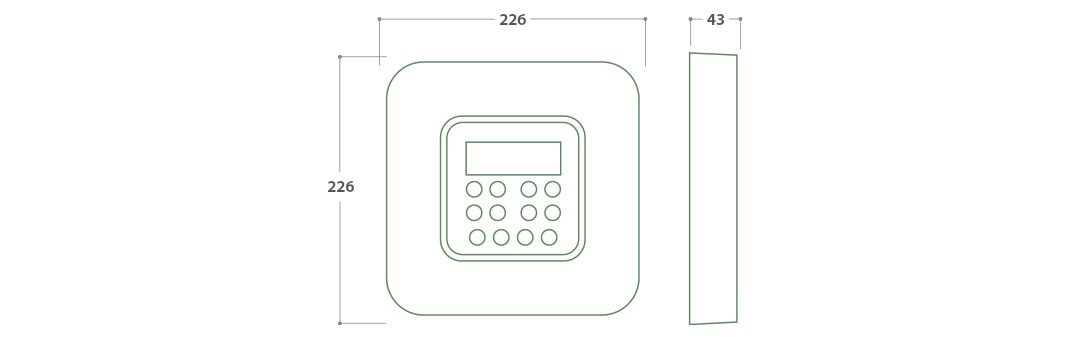

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • GW Data Sheet

    PP Specto-XT GW
    195.47 KB | pdf

    Download
  • GW Installation Sheet

    Specto-XT Gateway Installation Sheet
    658.07 KB | pdf

    Download
