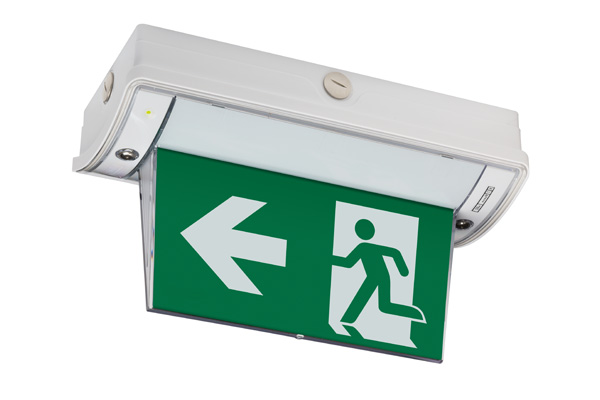

PRO BLADE

The Pro Blade is compatible with DALI and Specto-XT wireless technology.

A robust and functional ceiling mounted exit sign rated IP65 and IK10 making it suitable for a wide variety of applications.
Clear, even illumination with a choice of legends.

Class II three hour, maintained emergency operation.

  • Supply Voltage
    • 230v
  • IP Rating
    • 65
  • Weight
    • 1.45KG
  • Legends
  • Available Finish
    • RAL 9016

Specification

  • Conformité Européene

  • Maintained

  • LED

  • IP 65

  • DALi

  • Viewing Distance 25M

  • Weight 1.45kg

  • Impact Rating 10

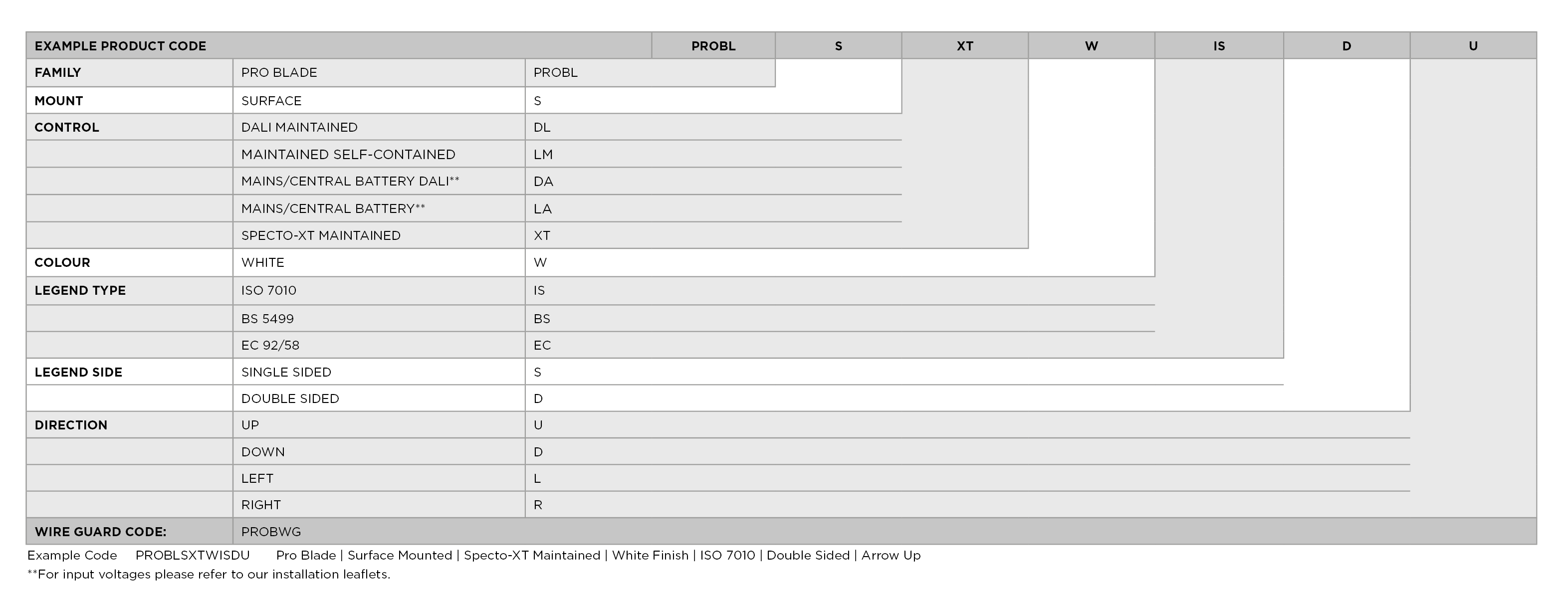

Part Numbers

Click image to expand

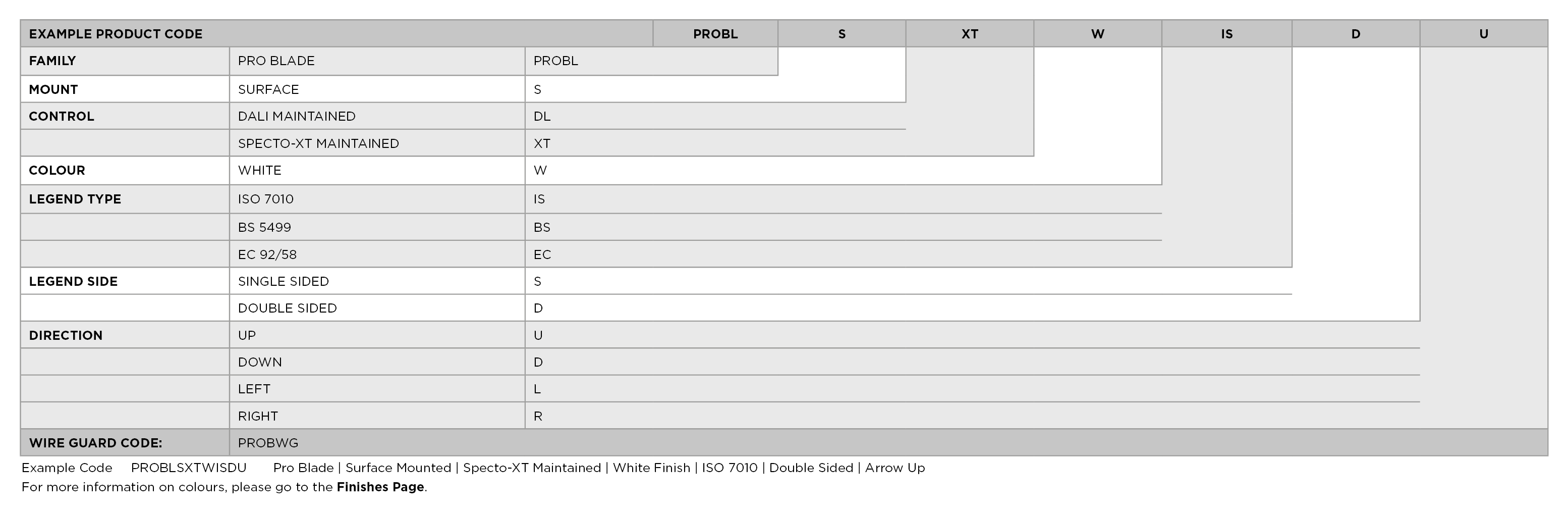

Part Numbers | PRO BLADE

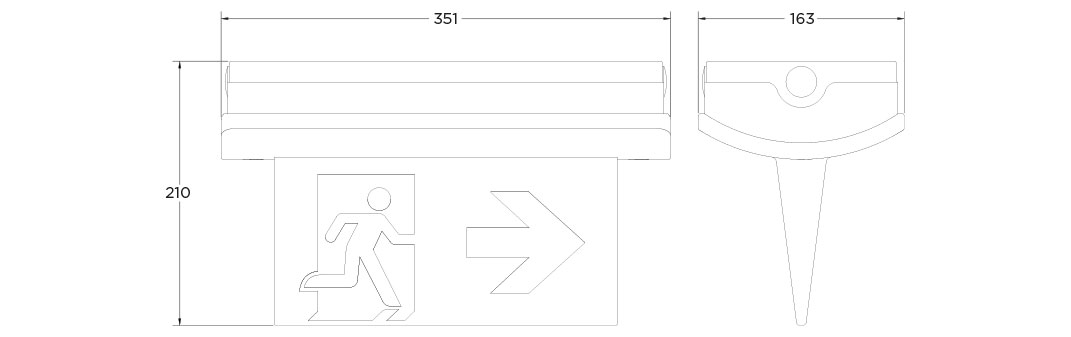

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    PRO Blade Data Sheet
    271.58 KB | pdf

    Download
  • Revit Files

    PRO Blade Revit Files
    744.33 KB | zip

    Download
  • Installation Sheet

    PRO Blade Installation Sheet
    2.20 MB | pdf

    Download
