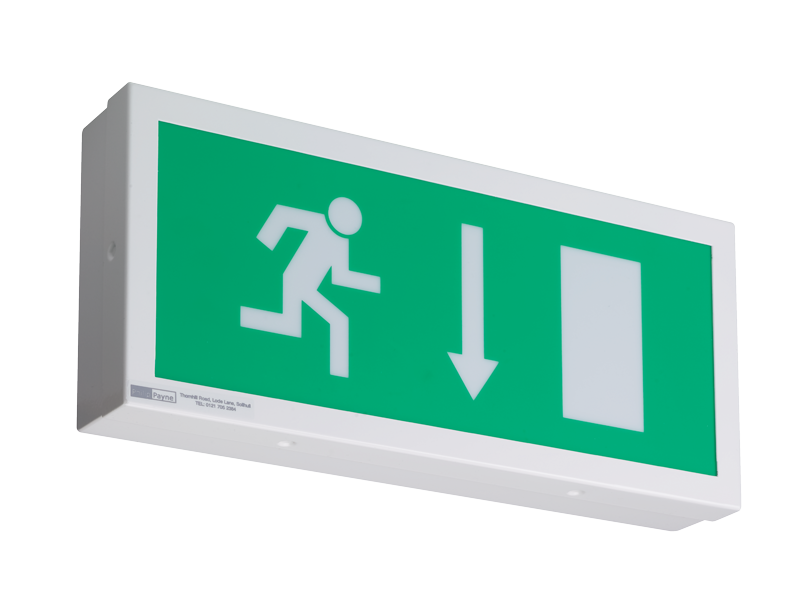

LUL300

Approved products to specification’s stated for railway stations.

Using products from the core 1880 range, this page is dedicated to the luminaires Philip Payne have approved according the specifications stated for design of railway stations.

Meets the following specifications for London Underground usage;

Finish: RAL9016 White.

Du Pont ALESTA AP TGIC-free polyester powder coating: 60-80 microns thick.

Test reports available for:-

BS476-6:1989+A1:2009 Fire propagation index (Index = 0).
BS476: Part 7:1997 Surface spread of flame characteristics (Class = 1).
BS6853: 1999 Annex B.2 Incorporating Amendment No.1 Toxic fume R value. (R = 0.17).
BS6853 D8,4:1999 Incorporating Amendment No.1 Smoke Density.
Glass Legend Panel:

4mm thick Pilkington Float Glass.
Thermally toughened in accordance with BS3193 and BS EN 60598-2-3 sub clause 3.6.5.
Green & white ceramic pictogram fired into the glass.

Product registration certificate available from the downloads tab.

Voltage
- 230v
IP
- 54
Weight
- 1.5kg
Gear Options
- 230v Central Supply
- 3hr Non-Maintained
- 3hr Maintained
Legends Please contact the sales office for other legend formats
Available Finish
- RAL 9016

Specification

Conformité Européene
UKCA
Maintained
Non Maintained
LED
IP 54
Viewing Distance 20M/30M
Weight 1.5kg

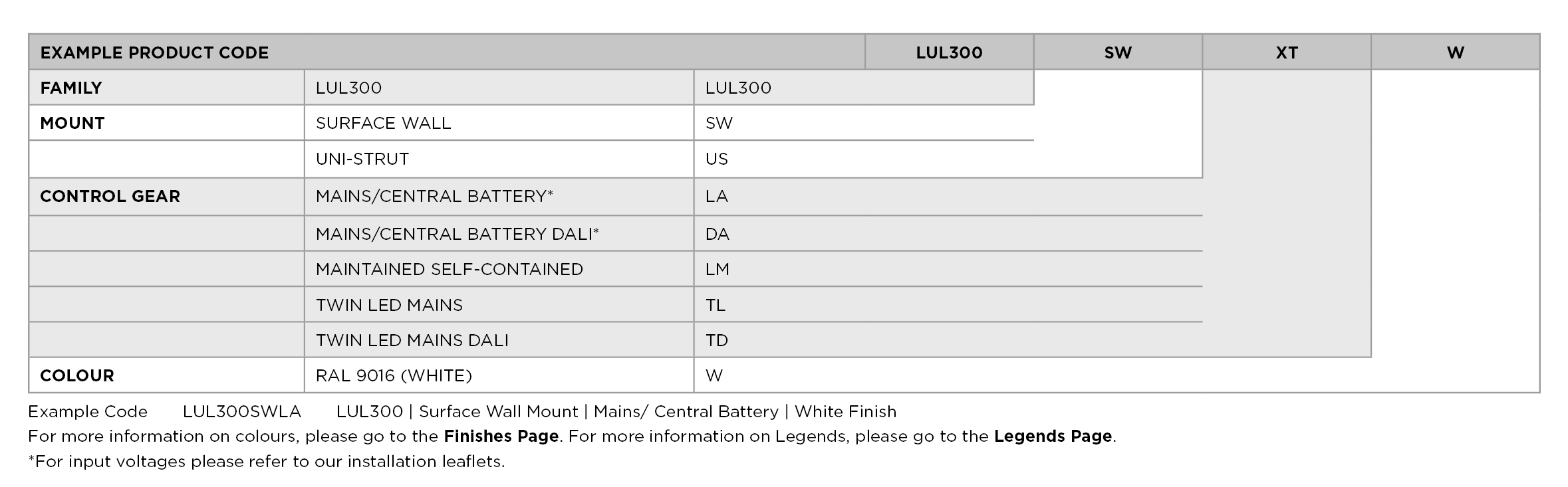

Part Numbers

LUL300SWLA 230V AC/DC Central Supply
LUL300SWLM 3hr Self Contained Maintained
LUL300SWTL 230V AC/DC Central Supply
LUL300USTL 230V AC/DC Central Supply

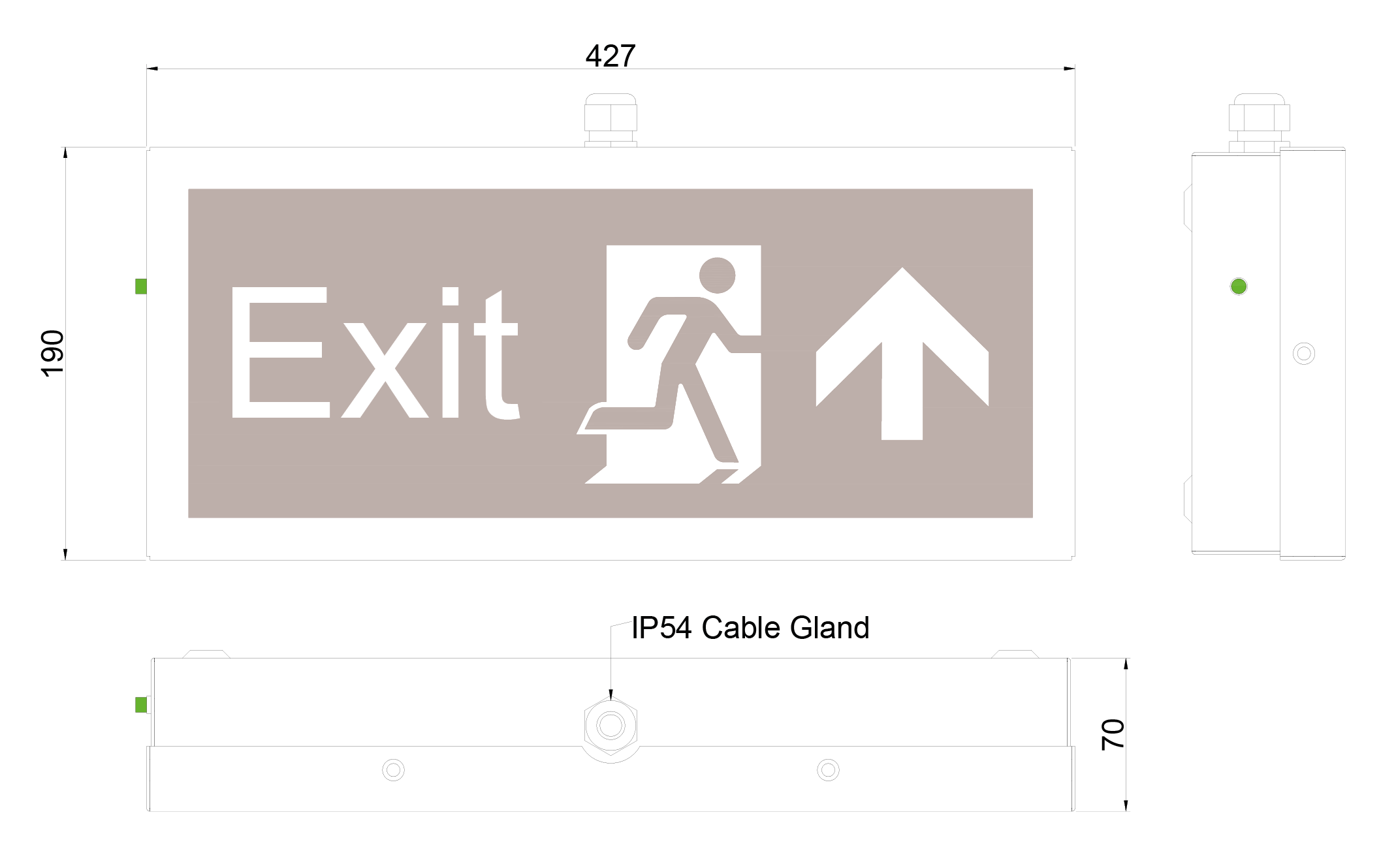

Dimensions

Click image to expand
