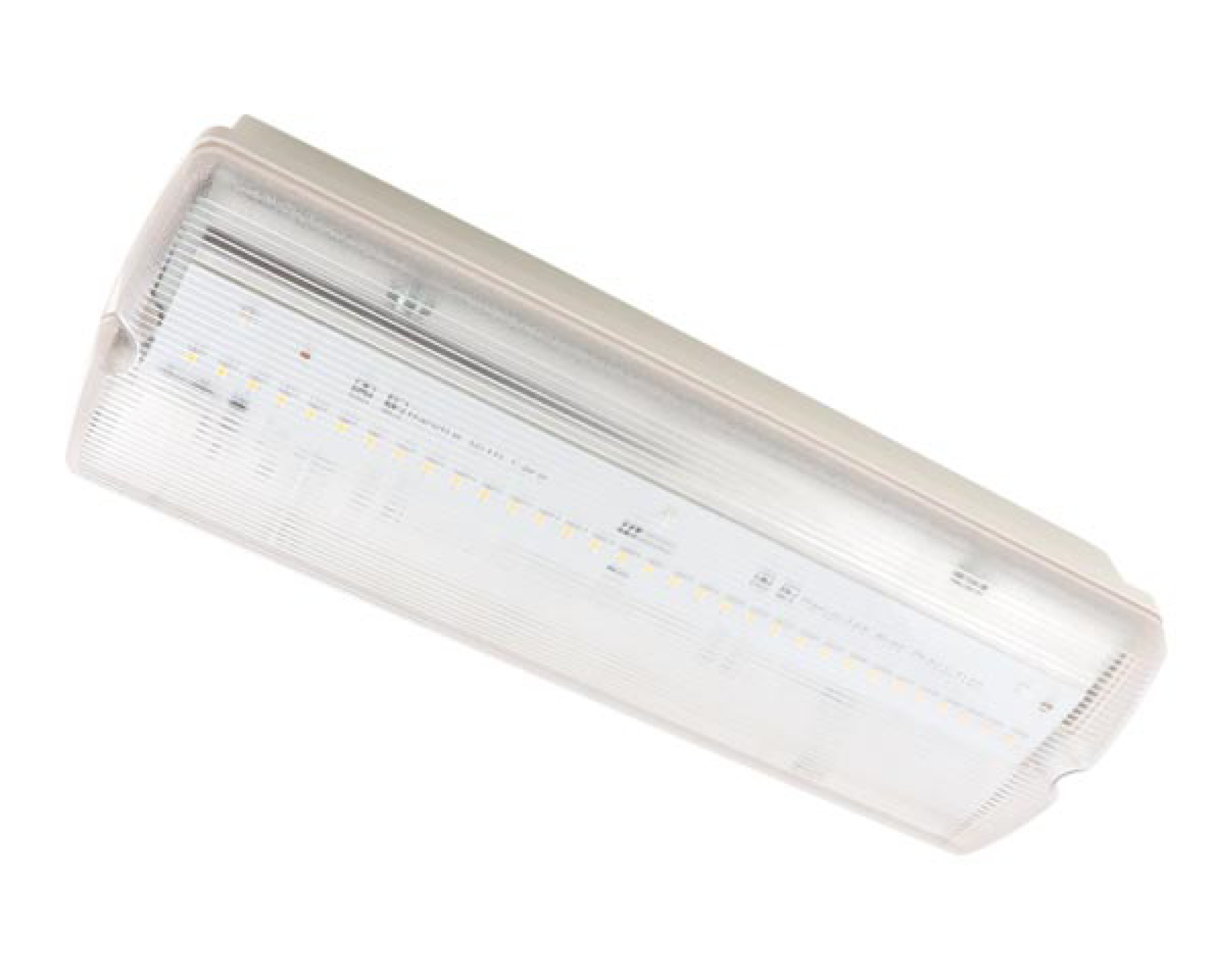

LANTIS BULKHEAD

The Lantis Bulkhead is compatible with DALI and SPECTO-XT wireless technology.

Rated IP65 with polycarbonate body and diffuser.

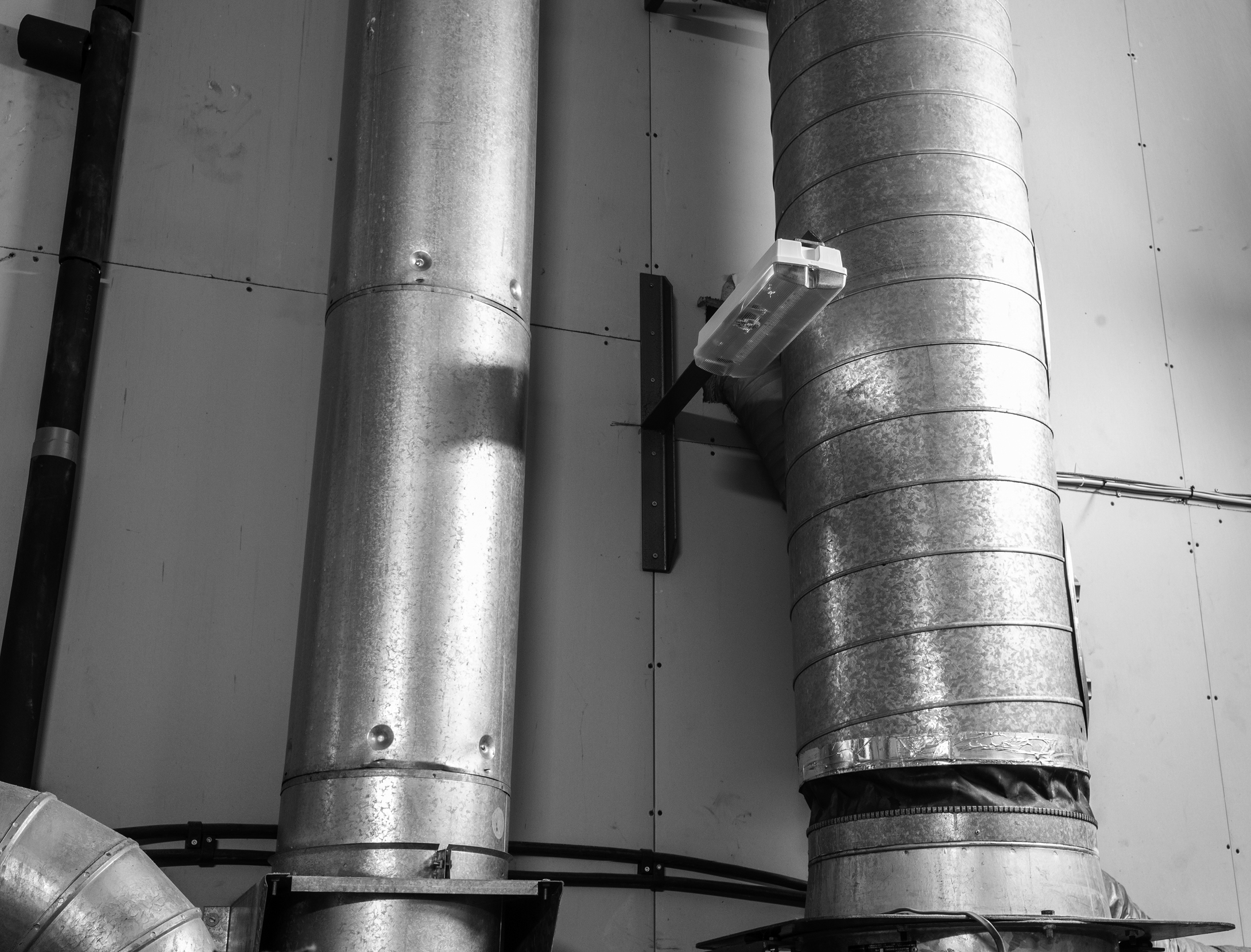

Suitable for a wide range of applications from internal use in plant rooms and other functional areas to external final exit doors.



  • Supply Voltage
    • 230v
  • IP
    • 65
  • WEIGHT
    • 1.5kg
  • LANT110 LUMEN OUTPUT - SELF CONTAINED
    • 545lm
  • LANT300 LUMEN OUTPUT - SELF CONTAINED
    • 950lm
  • LANT350 LUMEN OUTPUT - CENTRAL BATTERY ONLY
    • 1655lm
  • Available Finish
    • RAL 9010

Specification

  • Conformité Européene

  • UKCA

  • Non Maintained

  • LED

  • IP 65

  • DALi

  • Weight 1.5kg

  • Impact Rating 8

  • 001-021

    ICEL Endorsed
    001-021

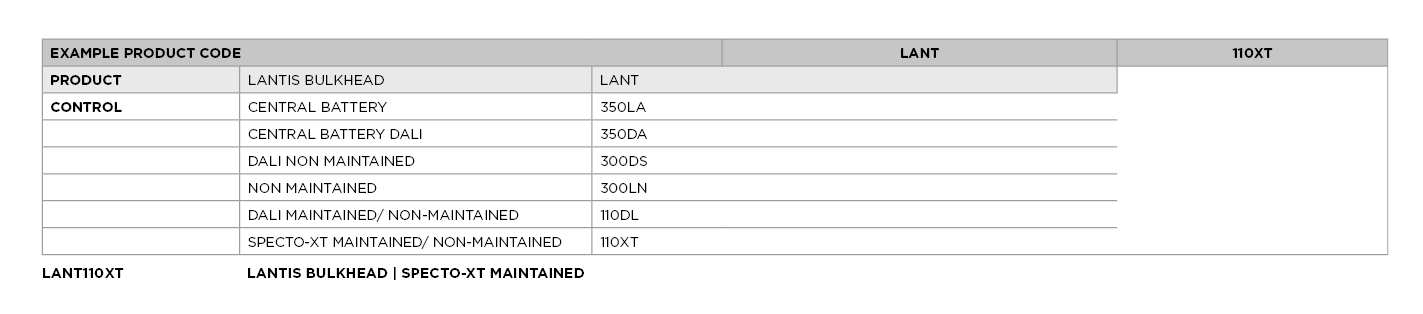

Part Numbers

Click image to expand

Part Numbers | LANTIS BULKHEAD

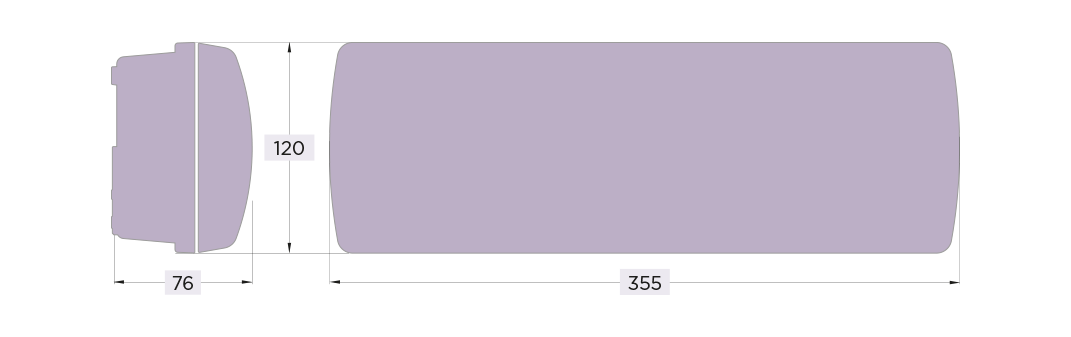

Dimensions

Click image to expand

Dimensions

Spacing Tables

Click image to expand

Spacing Table

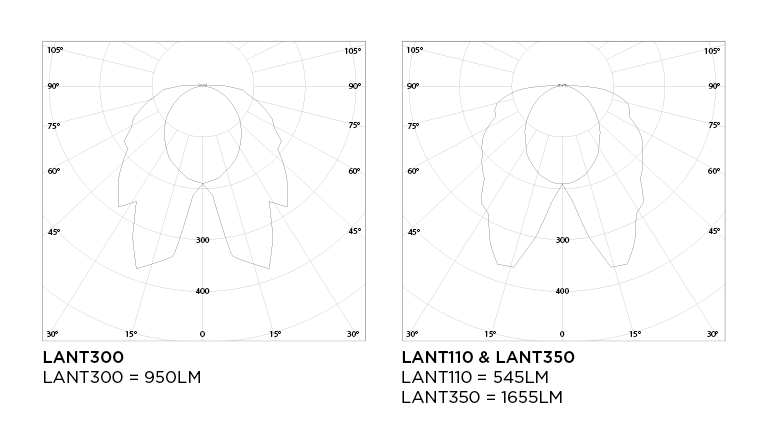

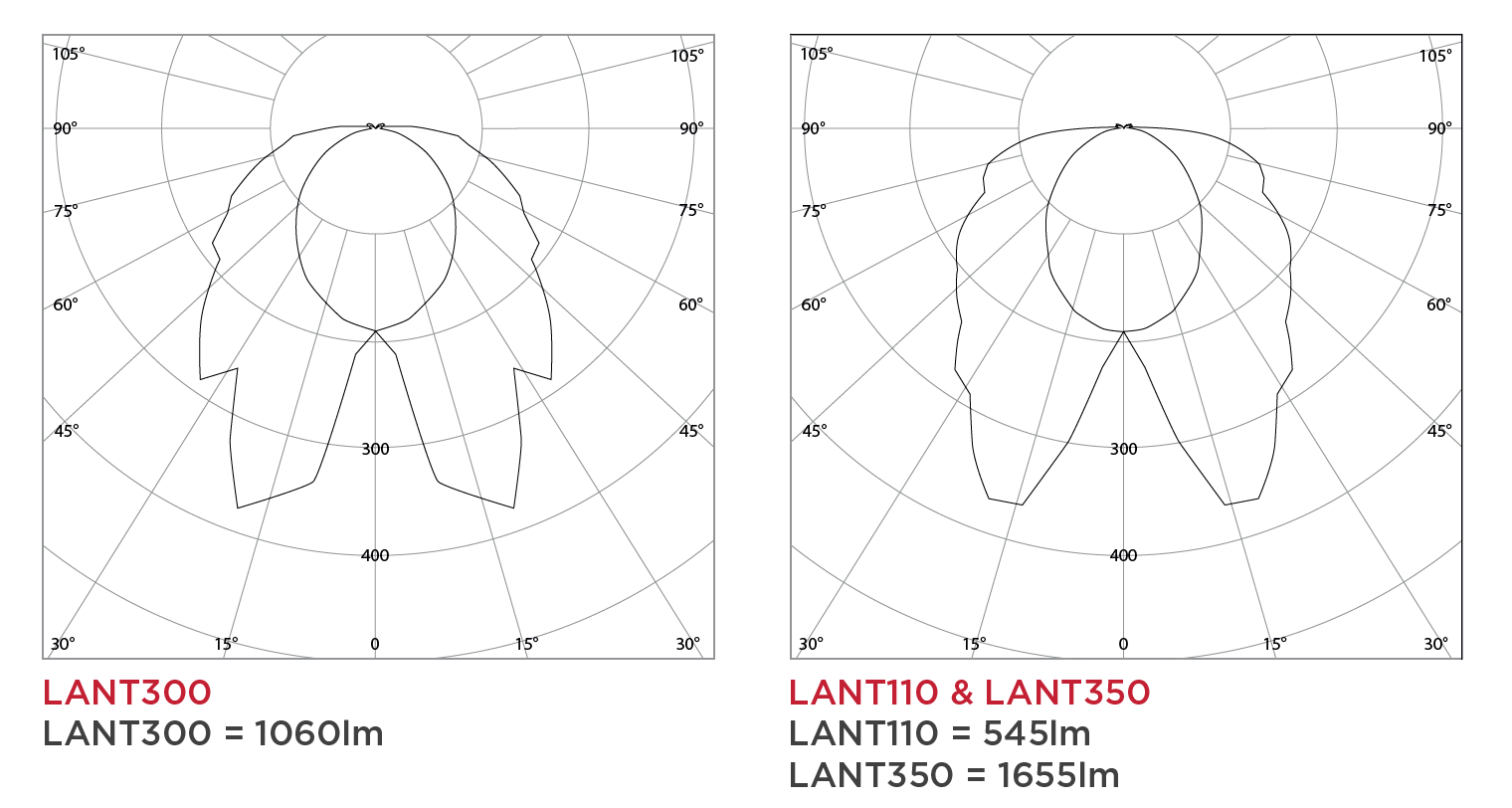

Polar Curves

Click image to expand

Polar Curve

Sustainability

Find out about our commitment to the Environment

Click Here

Downloads

  • Datasheet

    Lantis Bulkhead Datasheet
    2.76 MB | pdf

    Download
  • Revit Files

    Lantis Bulkhead Revit Files
    521.61 KB | zip

    Download
  • Photometric Files

    Lantis Photometric Files
    104.36 KB | zip

    Download
  • Installation Sheet

    Lantis Bulkhead Installation Sheet
    1.80 MB | pdf

    Download
  • ICEL Endorsement

    Lantis Bulkhead ICEL Endorsement Certificate
    193.54 KB | pdf

    Download
