iON Ceiling

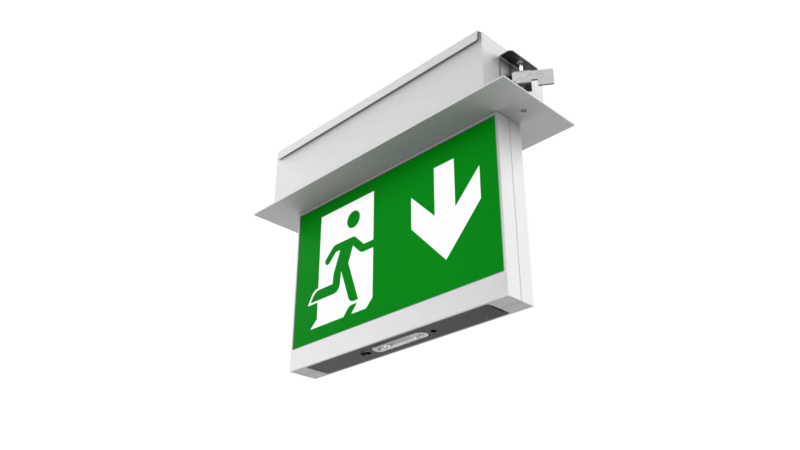

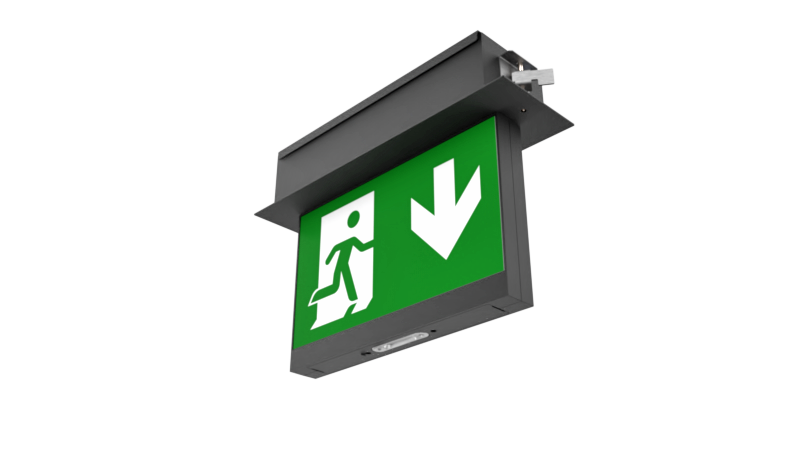

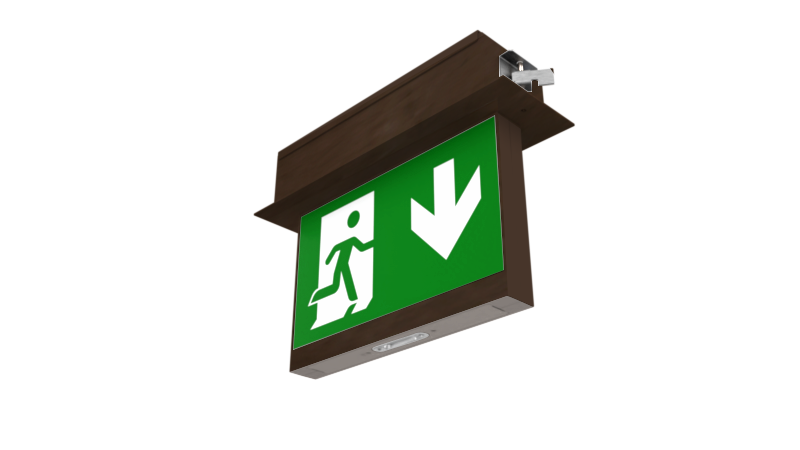

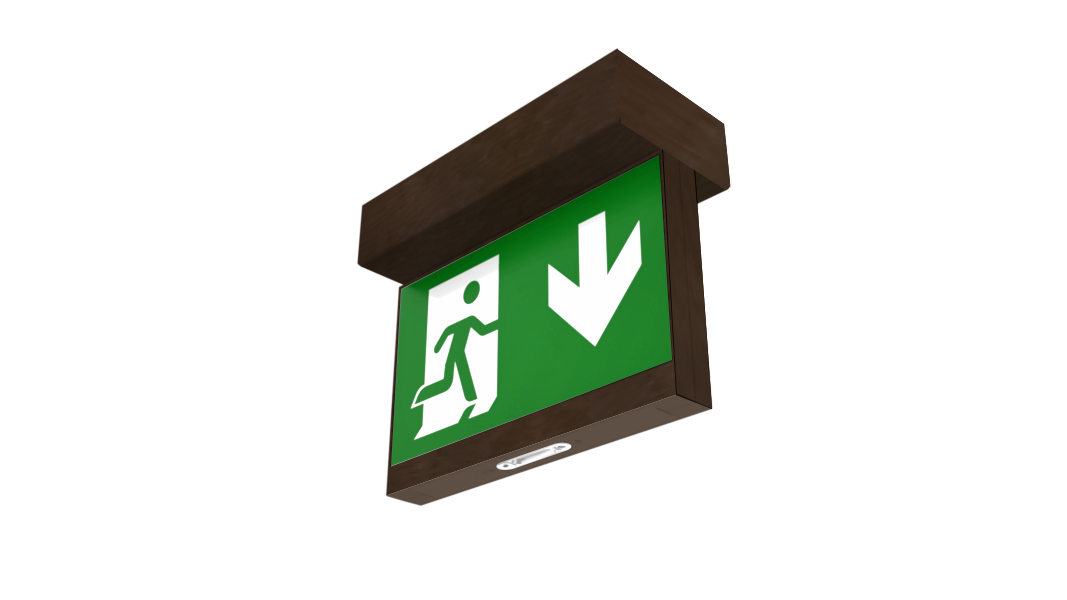

Available Finish

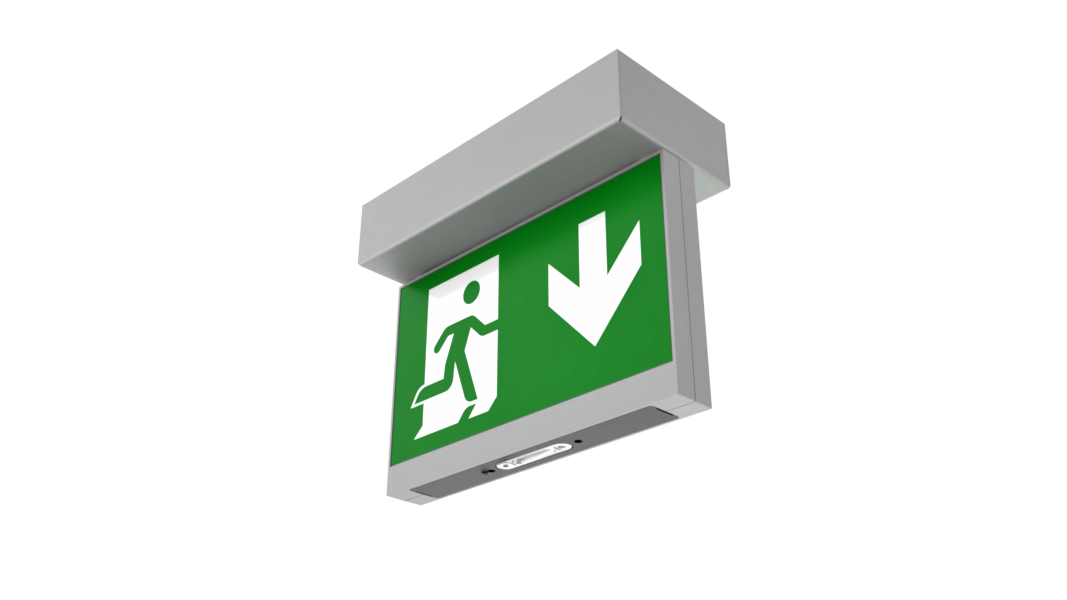

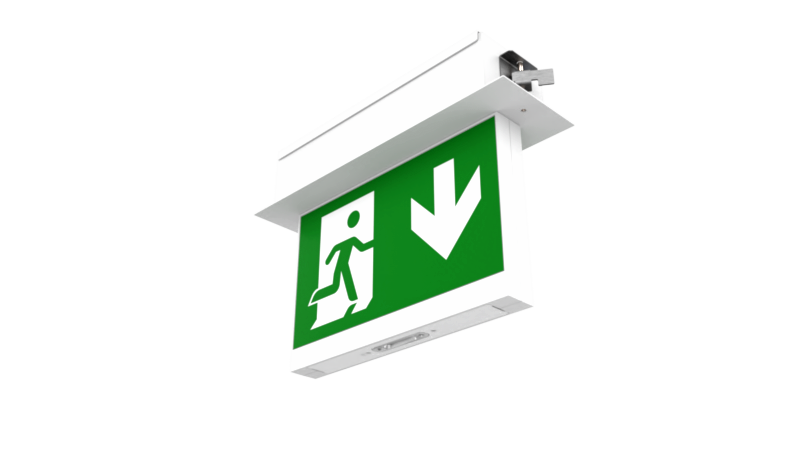

The iON Ceiling luminaire can be recessed or surface mounted depending on building design requirements.

The aluminium cast frame permits simple installation and maintenance with a toolless second fix legend body. The legend body has no visible fixings and sits flush to the ceiling for minimal impact.

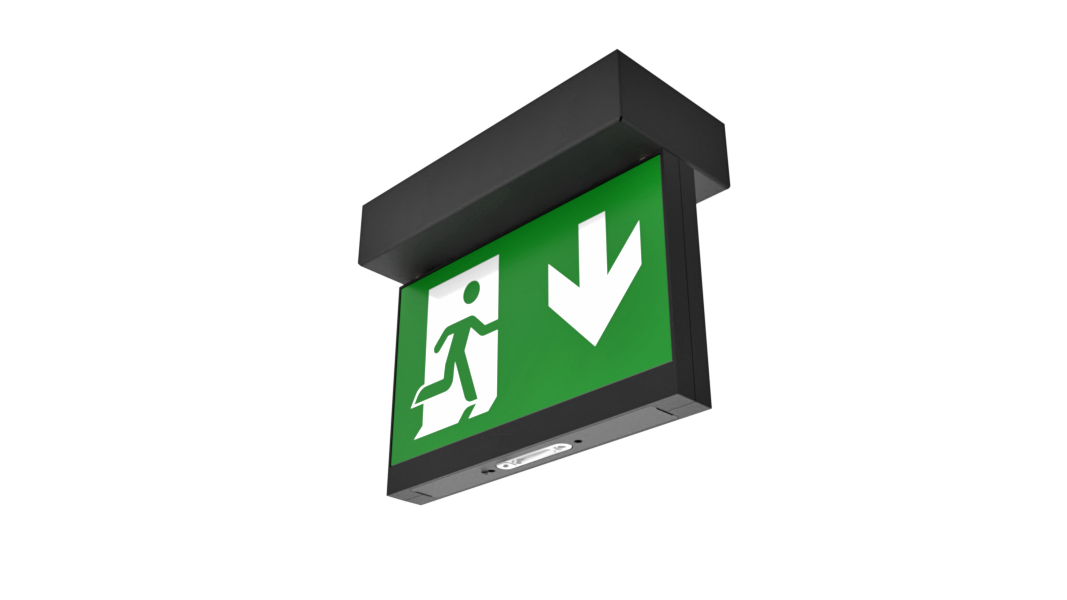

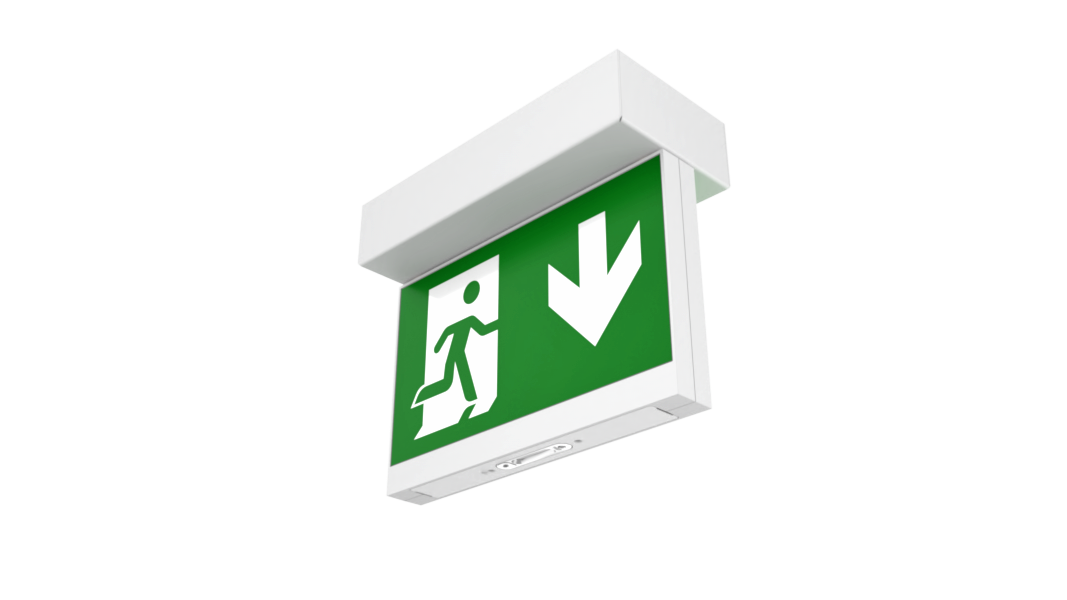

The body is available in white, black or grey to coordinate with frame options and décor.

The LED downlighter supplements emergency schemes or provides extra vertical emergency illuminance required for higher risk/task areas called for in BS5266-10, such as push bars and secured exits.

Product Details

  • 20
  • 26M
  • 1.5Kg
  • LiFePO4

Click image to expand

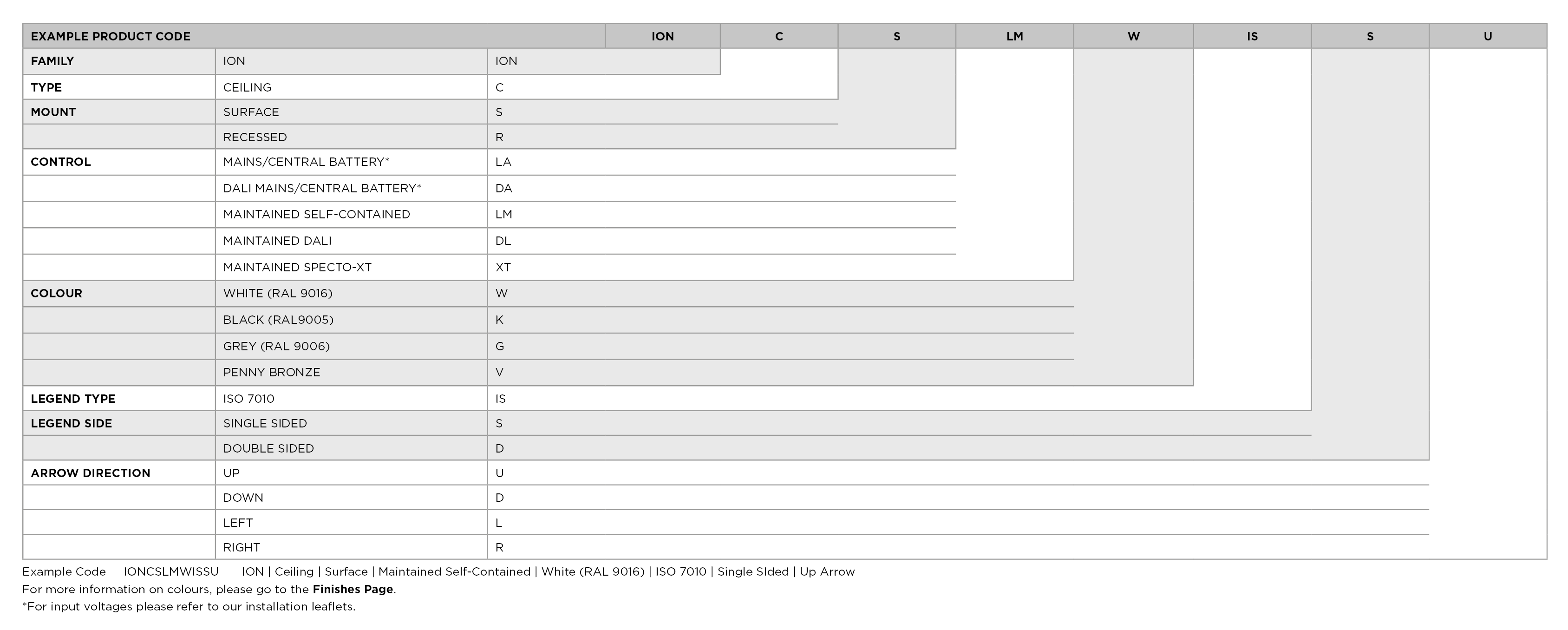

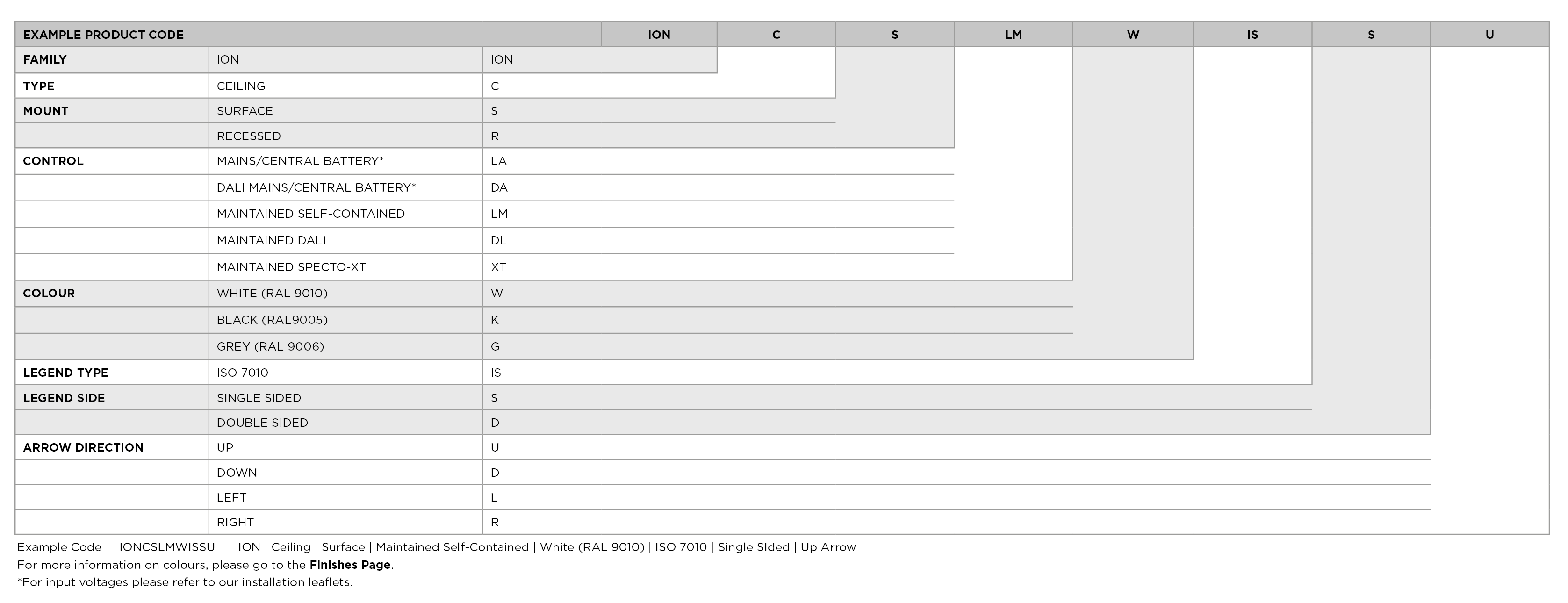

Part Numbers | iON Ceiling

Click image to expand

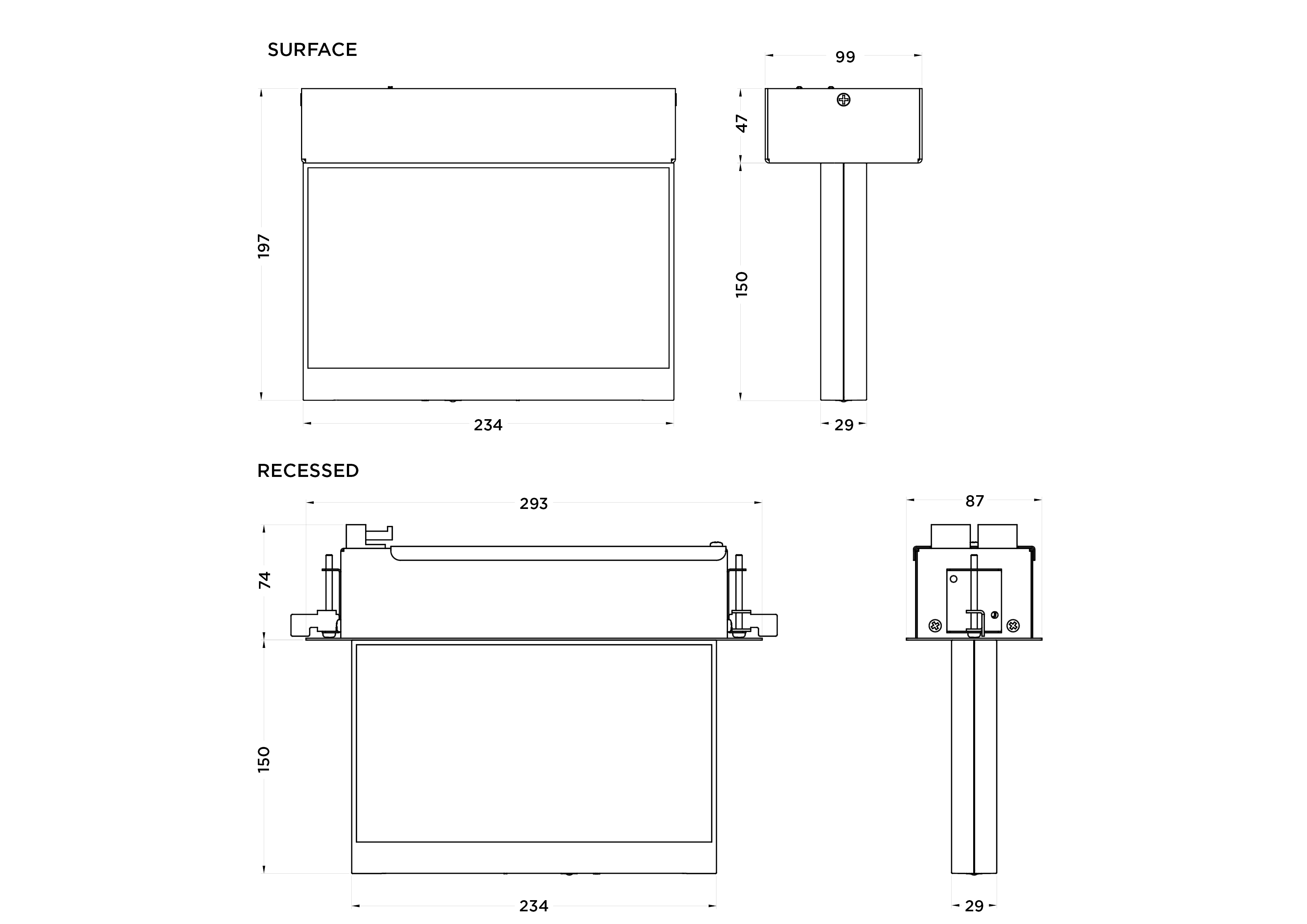

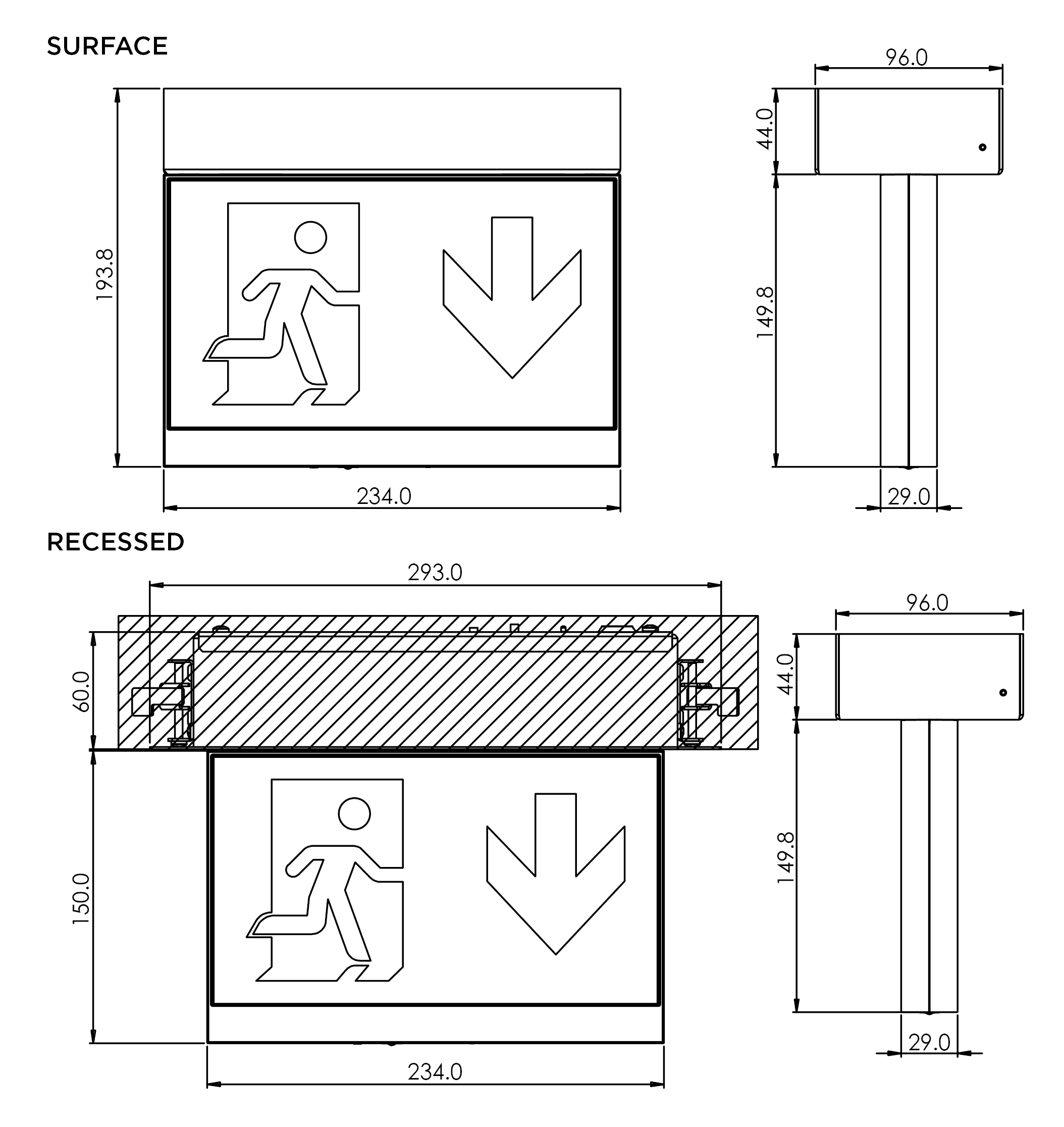

Dimensions

Click image to expand

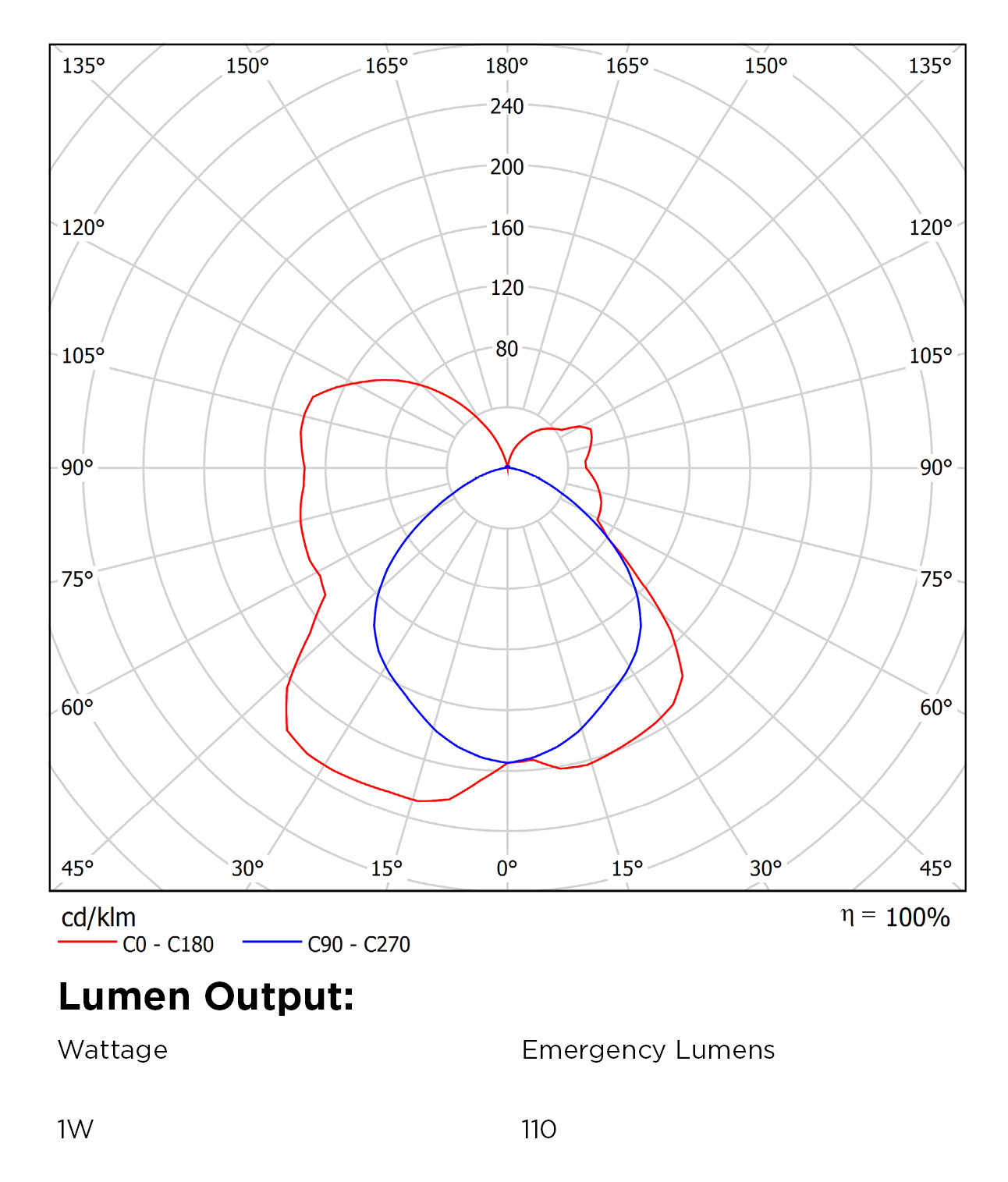

Polar Curve

Legends

Please contact the sales office for other legend formats

Wireless

Specto-XT is a revolutionary wireless emergency lighting control system that allows users to monitor data and complete operational information for all Specto-XT emergency luminaires.

Specto-XT emergency luminaires are self-test by default and have the ability to wirelessly connect to the Specto-XT website via a central Gateway.

Information is displayed on the Specto-XT website which can be accessed from anywhere using a computer, laptop, tablet or smart-phone.

The clear graphical user interface provides an overview of the whole site, through to the performance and operation of an individual luminaire.

Find out more

Product Downloads

Sustainability

Find out about our commitment to the Environment

Click Here
