Extube Surface

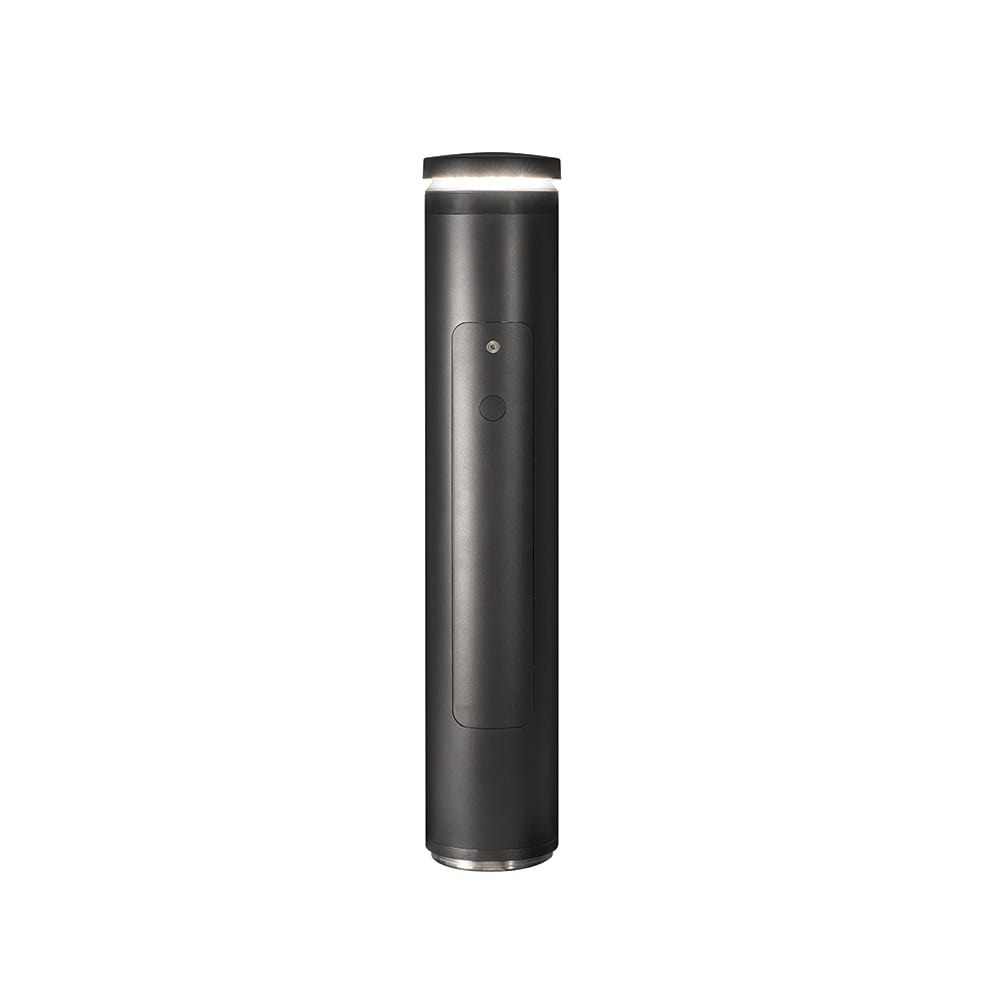

The EX Tube is a high-performance lighting bollard with a contemporary appearance. A choice of pathway or area light distributions are selectable on site and the innovative protection system allows the bollard to pivot up to 10° from vertical in the event of a slight knock from parking vehicles.

The EX Tube is available with integral emergency and wireless Specto-XT Emergency control gear options to light the way to fire assembly points outside a building.

The Specto-XT Emergency testing system automatically tests the status of the luminaire and components in accordance with BS 5266-8:2004 and reports back to the Specto-XT website when installed with a Specto-XT Gateway.

  • Supply Voltage
    • 230v
  • IP
    • 66
  • WEIGHT
    • 9kg

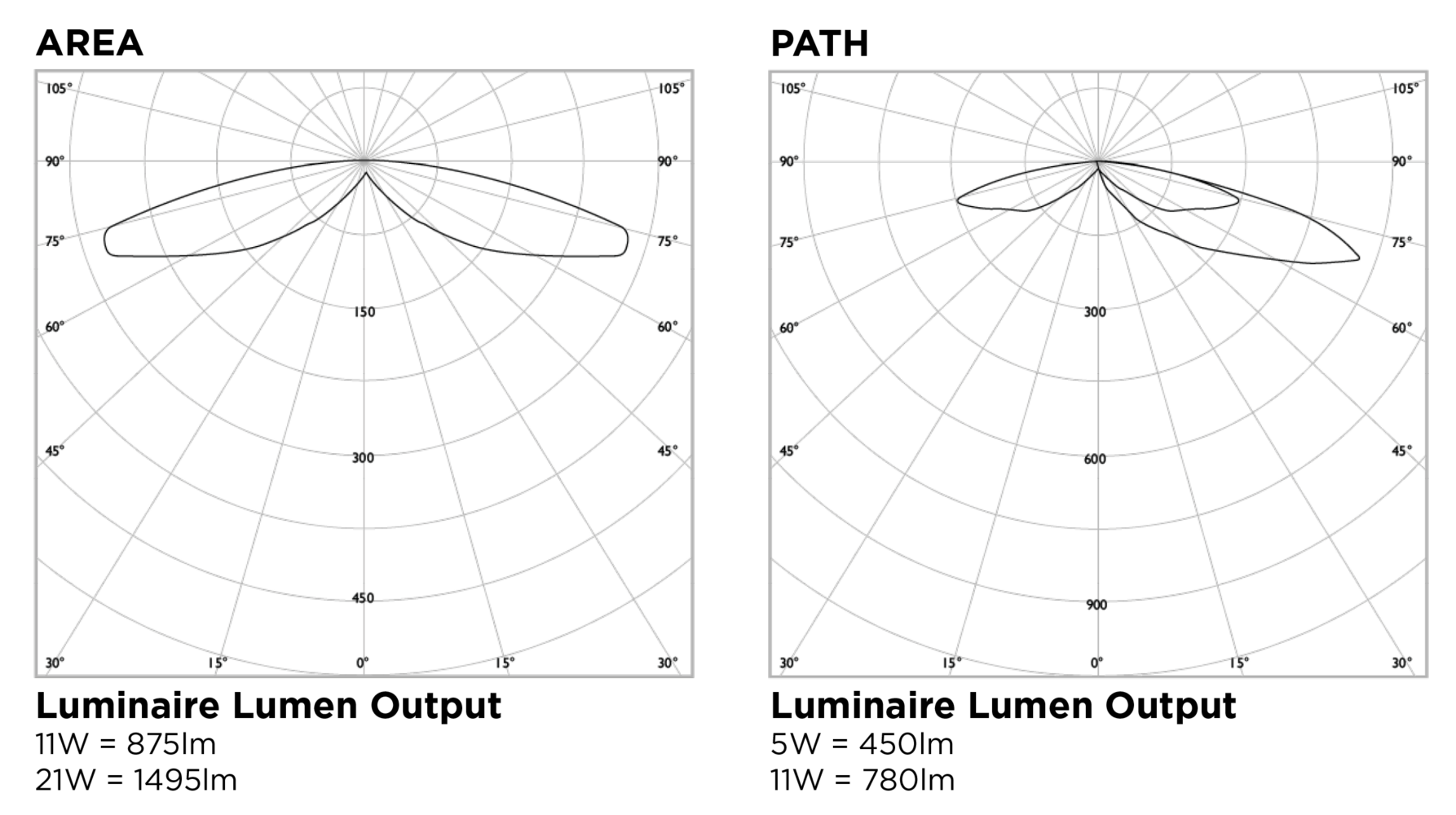

  • LUMEN OUTPUT
    • AREA LENS (11W) - 875 LUMENS
    • PATHWAY LENS (5W) - 450 LUMENS
  • LUMEN OUTPUT
    • AREA LENS (21W) - 1495 LUMENS
    • PATHWAY LENS (11W) - 780 LUMENS
  • RATED LIFE
    • 100K HOURS (L70/B10)
  • Available Finish
    • RAL 9005

Specification

  • Conformité Européene

  • Maintained

  • LED

  • IP 66

  • DALi

  • Weight 9kg

  • Impact Rating 10

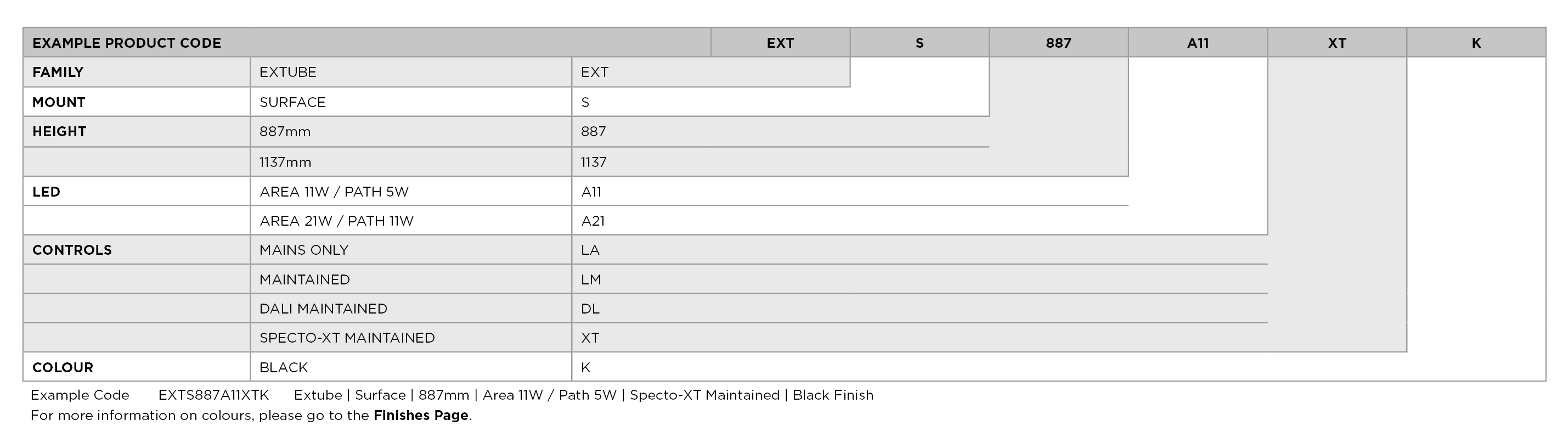

Part Numbers

Click image to expand

Part Numbers | Extube Surface

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    Extube Surface Datasheet
    1.28 MB | pdf

    Download
  • Photometric Files

    Extube Photometric Files
    67.27 KB | zip

    Download
  • Installation Sheet

    Extube Installation Sheet
    6.57 MB | pdf

    Download
