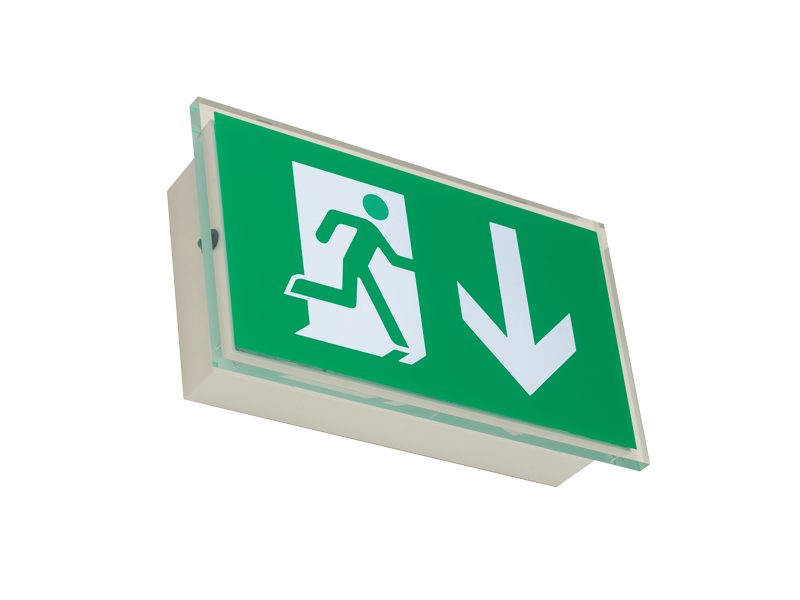

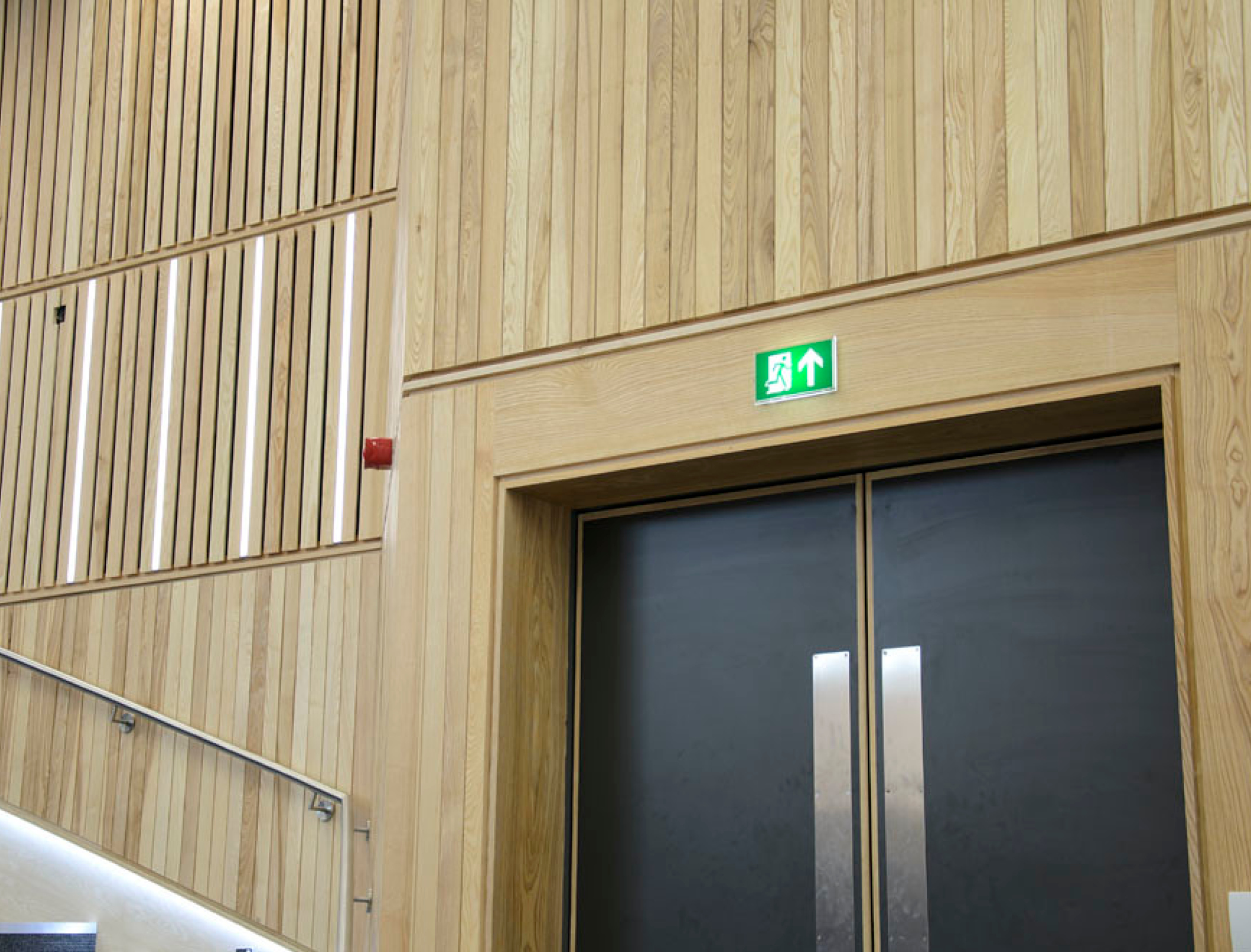

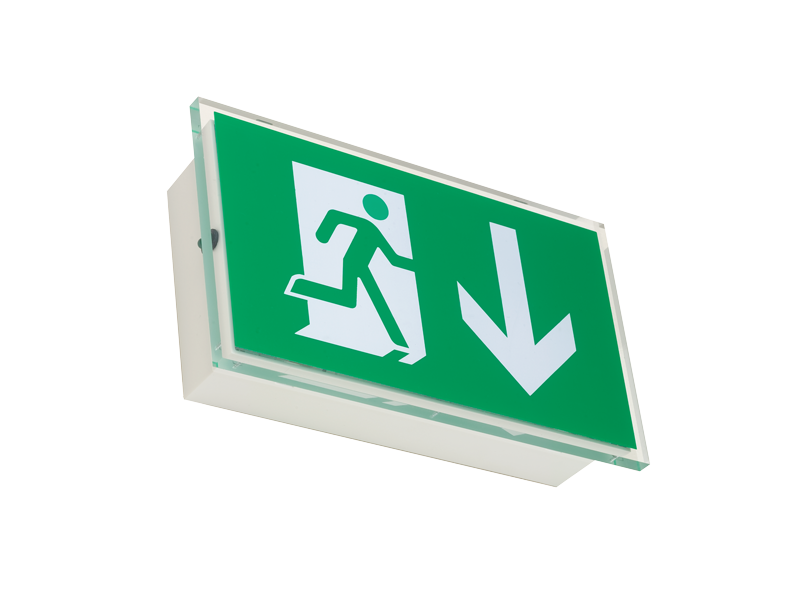

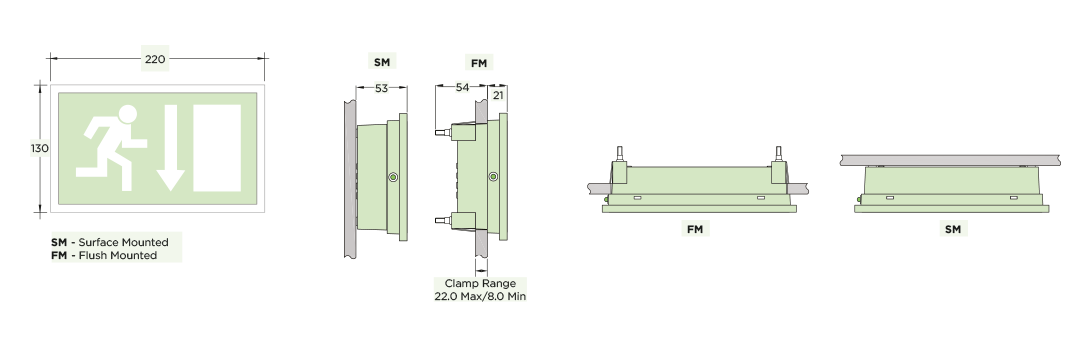

The ARCA exit sign can be recessed or surface mounted depending on building design requirements.

It is supplied complete with 4 recessing brackets that work with most wall types. The injection moulded body permits simple installation / maintenance, the legend fixing moulding results in no visible fixings which creates a floating visual for minimal impact. The ARCA plus incorporates a legend frame to accentuate the “floating effect” in a range of environments. The body is avaliable in white or grey in RAL9006 to coordinate with frame options and décor.

When surface mounted the product has a further option of a single LED downlighter to supplement emergency schemes or provide extra vertical emergency illuminance required for higher risk/task areas called for in BS5266-10 such as push bars and secured exits.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALI
    • 3hr Specto-XT
  • Legends Please contact the sales office for other legend formats
  • Available Finish
    • RAL 9010

    • RAL 9006

    • RAL 9005


  • Conformité Européene

  • UKCA

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance 24M

  • Weight 1.5kg

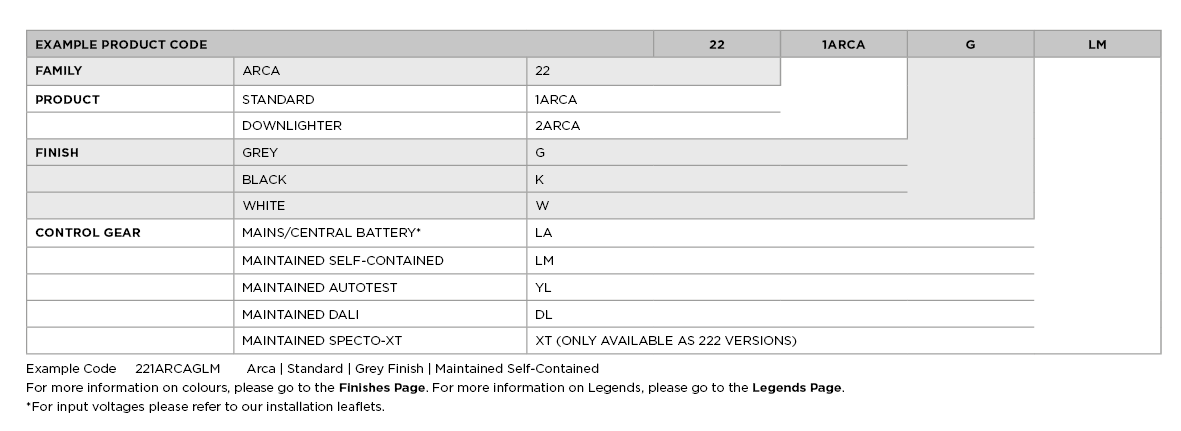

Part Numbers

  • 221ARCA*LA *Body Finish Code - G,K or W Central Supply
  • 221ARCA*LM *Body Finish Code - G,K or W Maintained
  • 221ARCA*YL *Body Finish Code - G,K or W Self Test
  • 221ARCA*DL *Body Finish Code - G,K or W DALI
  • 222ARCA*LA *Body Finish Code - G,K or W Central Supply
  • 222ARCA*LM *Body Finish Code - G,K or W Maintained
  • 222ARCA*YL *Body Finish Code - G,K or W Self Test
  • 222ARCA*DL *Body Finish Code - G,K or W DALI
  • 222ARCA*XT *Body Finish Code - G,K or W Specto-XT


Click image to expand



Find out about our commitment to the Environment

Click Here


  • Data Sheet

    Arca Data Sheet
    146.22 KB | pdf

  • Legend Sheet

    Arca Legend Sheet
    171.26 KB | pdf

  • Revit Files

    Arca Revit Files
    2.60 MB | zip

  • Photometric Files

    Arca Photometric Files
    1.65 KB | zip

  • Installation Sheet

    Arca Installation Sheet
    2.56 MB | pdf

  • TM65

    TM65 PEP – Arca
    3.79 MB | pdf
