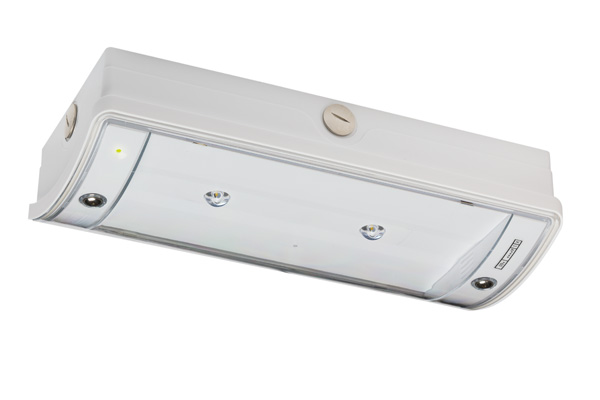

PRO BULKHEAD

The Pro Bulkhead is compatible with DALI and Specto-XT wireless technology.

A robust and functional luminaire rated IP65 and IK10 making it suitable for a wide variety of applications.

Class II three hour, Non-maintained emergency operation.

  • Supply Voltage
    • 230v
  • IP Rating
    • 65
  • Weight
    • 1.45KG
  • LUMEN OUTPUT
    • 215
  • Available Finish
    • RAL 9016

Specification

  • Conformité Européene

  • Non Maintained

  • LED

  • IP 65

  • DALi

  • Weight 1.45kg

  • Impact Rating 10

Part Numbers

Click image to expand

Part Numbers | PRO BULKHEAD

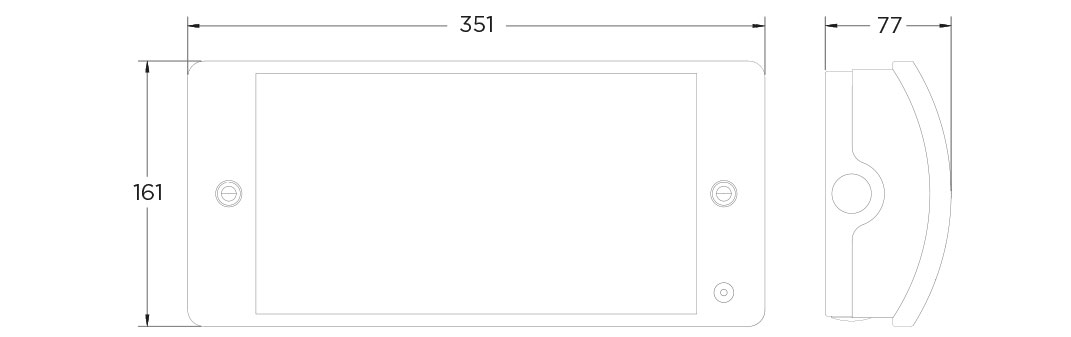

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    PRO Bulkhead Data Sheet
    1.04 MB | pdf

    Download
  • Revit Files

    PRO Bulkhead Revit Files
    1.08 MB | zip

    Download
  • Photometric Files

    PRO Bulkhead Photometric Files
    | zip

    Download
  • Installation Sheet

    PRO Bulkhead Installation Sheet
    1.72 MB | pdf

    Download
