TYKT 885

Introduced for use on the Philip Payne Specto-XT wireless monitoring system, the TYKT885 communicates via adjacent Specto-XT luminaires to a wireless mesh communicating with the Gateway to provide a fully compliant monitored Emergency Lighting testing system with no additional wiring.

TYKT885 has a lumen output of 555lms and fits discretely through a minimal cut-out with the head on a flexible lead an extended battery life.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • TYKT LUMEN OUTPUT
    • 555
  • TYKP LUMEN OUTPUT
    • 555
  • Available Finish

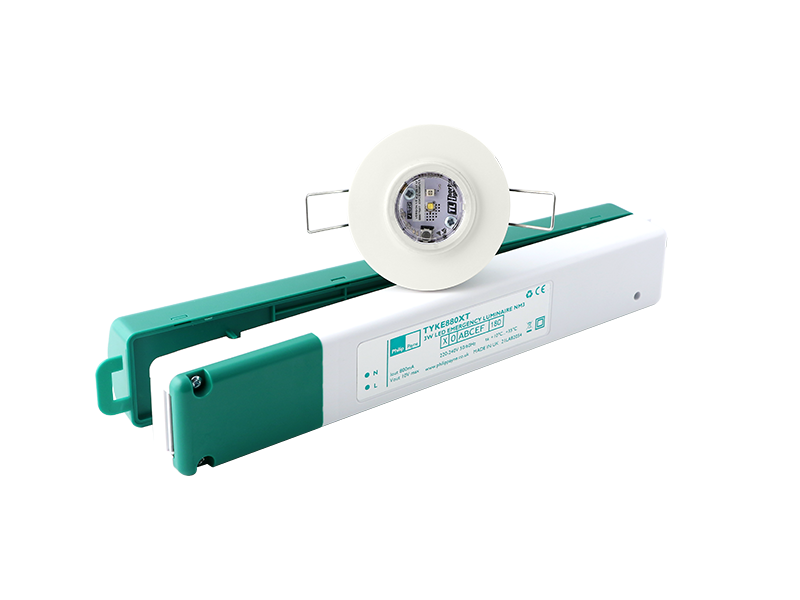

    • RAL 9016

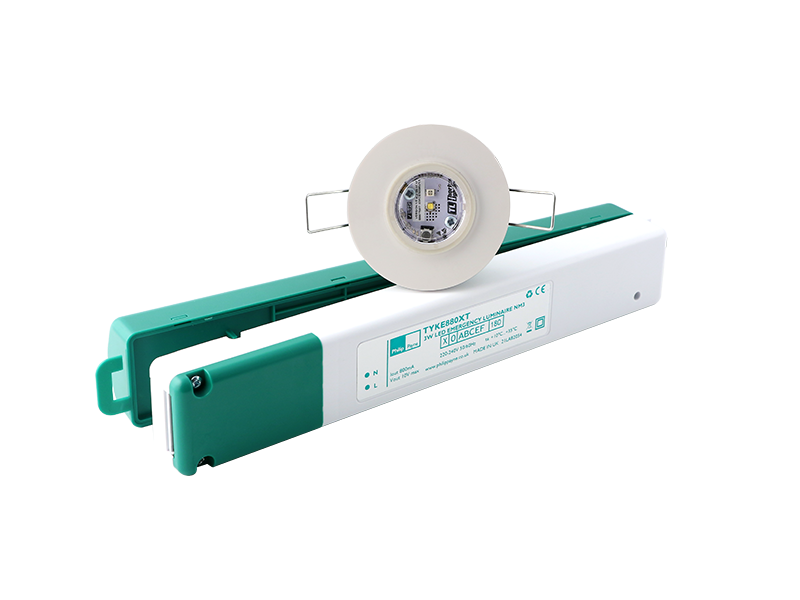

    • RAL 9006

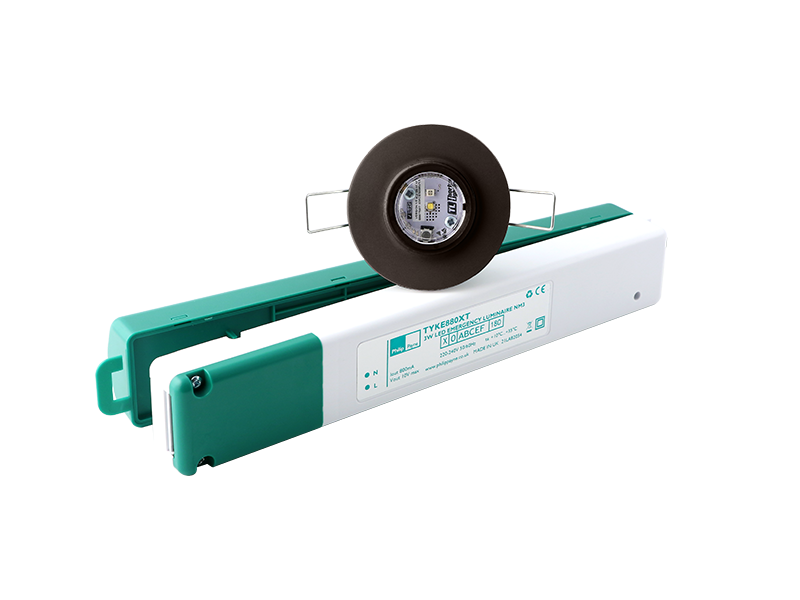

    • RAL 9005

Specification

  • Conformité Européene

  • F Mark

  • Non Maintained

  • LED

  • IP 20

  • IP 65

  • Weight 0.35kg

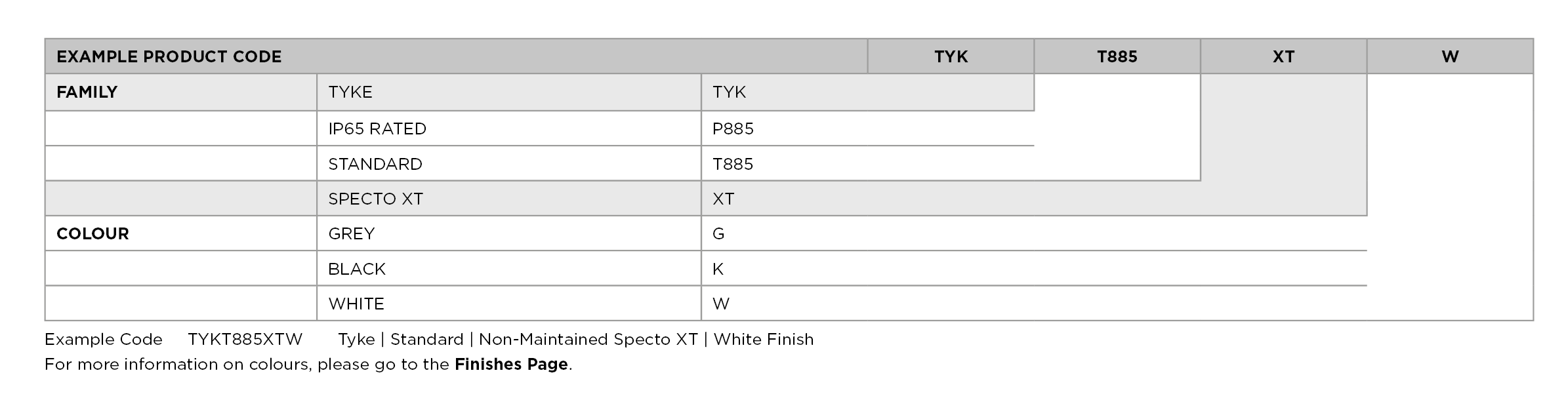

Part Numbers

  • TYKT885XT 3hr Self Contained Specto-XT
  • TYKP885XT 3hr Self Contained IP Rated: Specto-XT

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    TYKT885 Data Sheet
    182.61 KB | pdf

    Download
  • Photometric Files

    TYK_885 Photometric Files
    908.00 B | zip

    Download
  • Installation Sheet

    TYKT885 Installation Sheet
    308.71 KB | pdf

    Download
