SPRT 885

The SPRITE shares the same lumen package derivatives as the TYKE880 and TYKT885 ranges.

It comes RAL9016 as standard but benefits from the regular palette of Payne finishes.

The SPRITE880/885 Range is designed for use on our Specto-XT wireless test system.

  • WATTAGE
    • 4 Watts
  • DRIVE CURRENT
    • 700mA
  • SPRT LUMEN OUTPUT
    • 555
  • SPRP LUMEN OUTPUT
    • 555
  • IP VERSION FINISH
    • RAL 7035
  • Available Finish
    • RAL 9016

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • F Mark

  • Non Maintained

  • LED

  • IP 20

  • IP 65

  • Weight 0.35kg

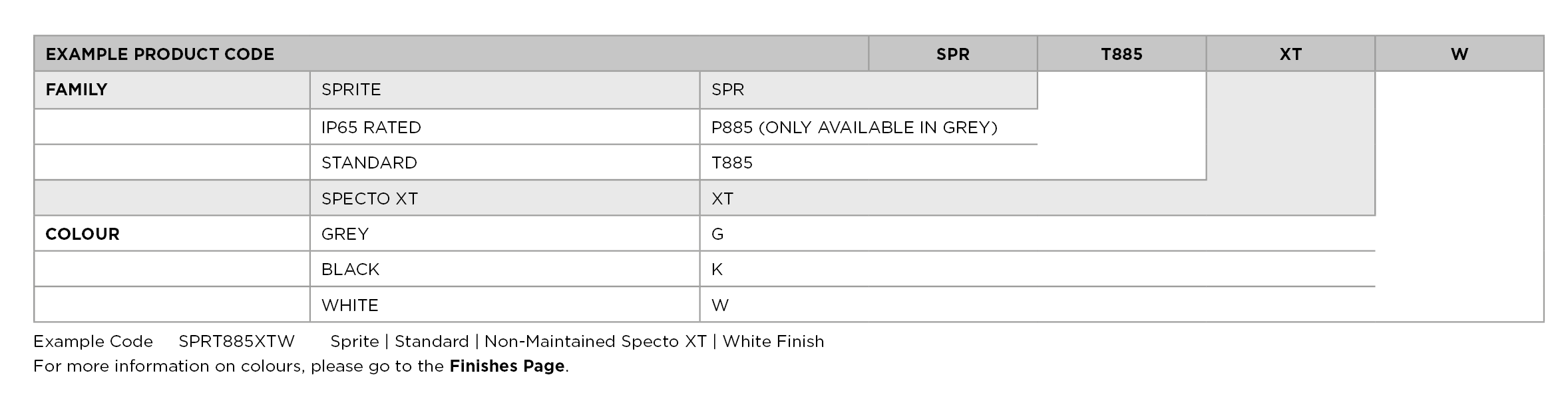

Part Numbers

  • SPRT885XT 3hr Self Contained Specto-XT
  • SPRP885XT 3hr Self Contained IP Rated: Specto-XT

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    SPR_885 Data Sheet
    136.98 KB | pdf

    Download
  • Photometric Files

    SPR_885 Photometric Files
    904.00 B | zip

    Download
  • Installation Sheet

    SPR_885 Installation Sheet
    212.68 KB | pdf

    Download
