MF100

The product is black as standard, but can be powder coated in our factory to
match most exteriors, mullions, brickwork and painted exterior walls.

The range has been extended to provide increased power in emergency applications by the in house design of a multi LED light engine that provides 485 Lumens in mains operation and 190 lumens when the mains fails.

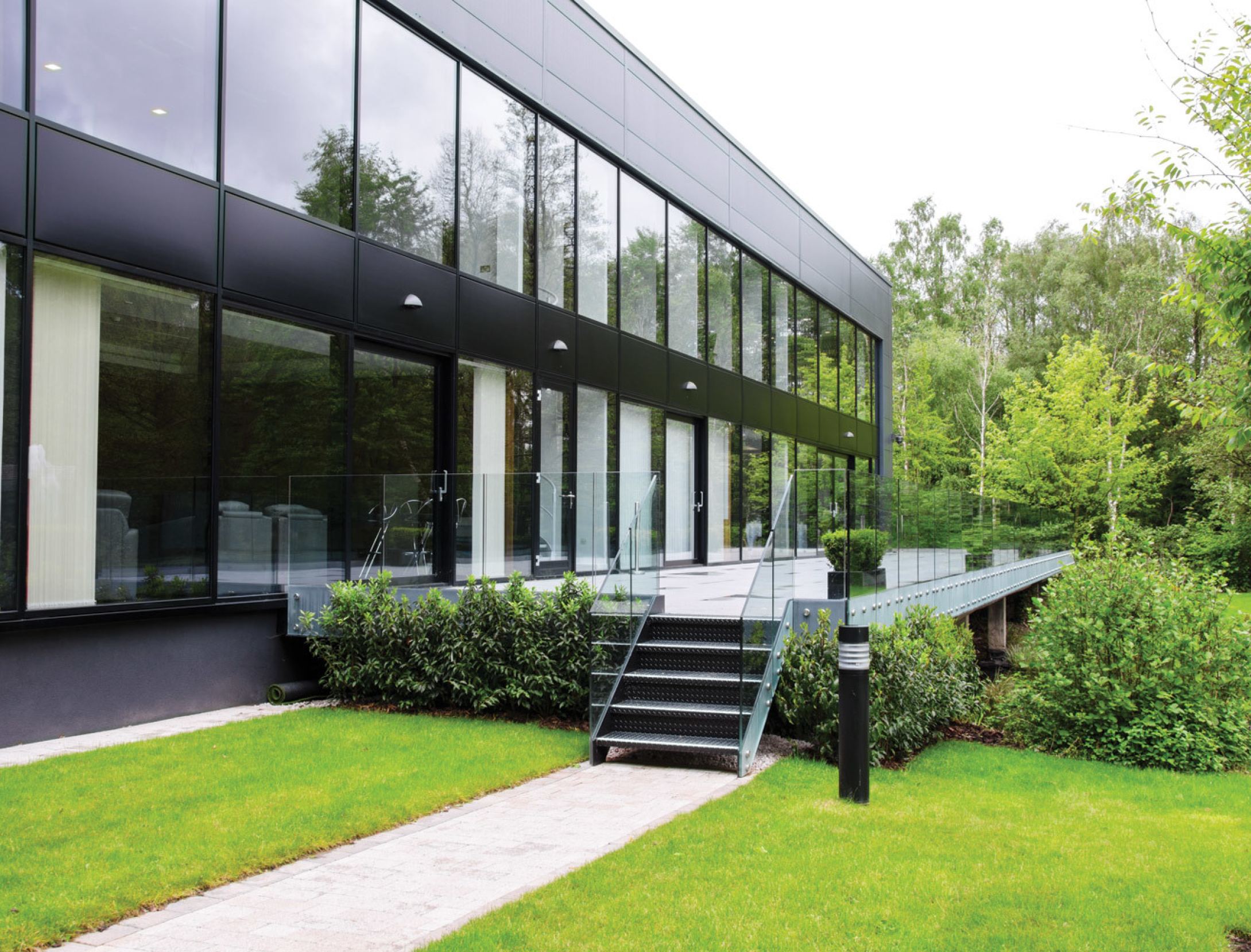

This is ideal for multi occupancy residential schemes where mains lighting is required for security but where in a mains failure some assistance with emergency egress is essential.
The range also contains a high output mains version providing 522 lumens ideal on external applications where weatherproof illumination may be required for security such as cash points.

A die cast conduit mounting kit has been added to the range to overcome surface cabling issues available in black as standard but can be supplied to match colour variations specified in the main body.

  • Supply Voltage
    • 220-240v 50/60Hz
  • 3W Lumen Output Mains
    • 105
  • 3W Lumen Output Emergency
    • 160
  • 6W Lumen Output Mains
    • 485
  • 6W Lumen Output Emergency
    • 190
  • 13W Lumen Output Mains
    • 522
  • Available Finish

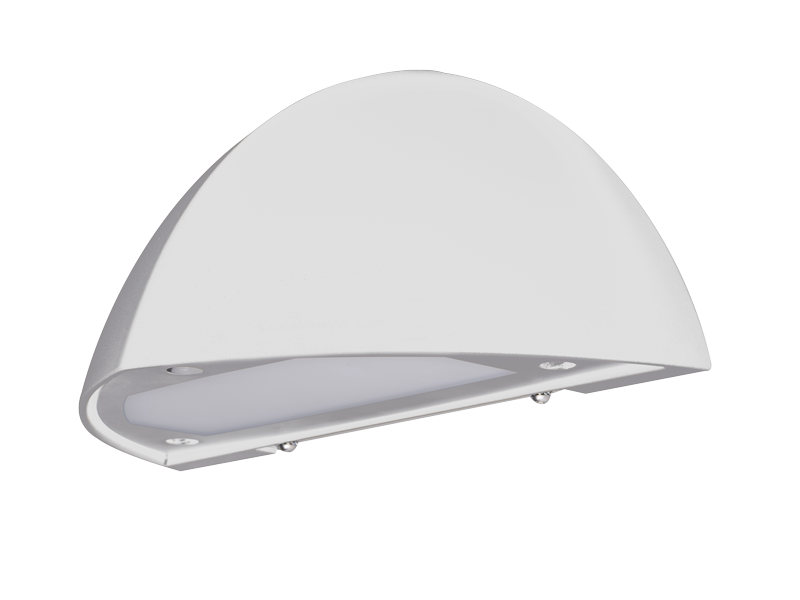

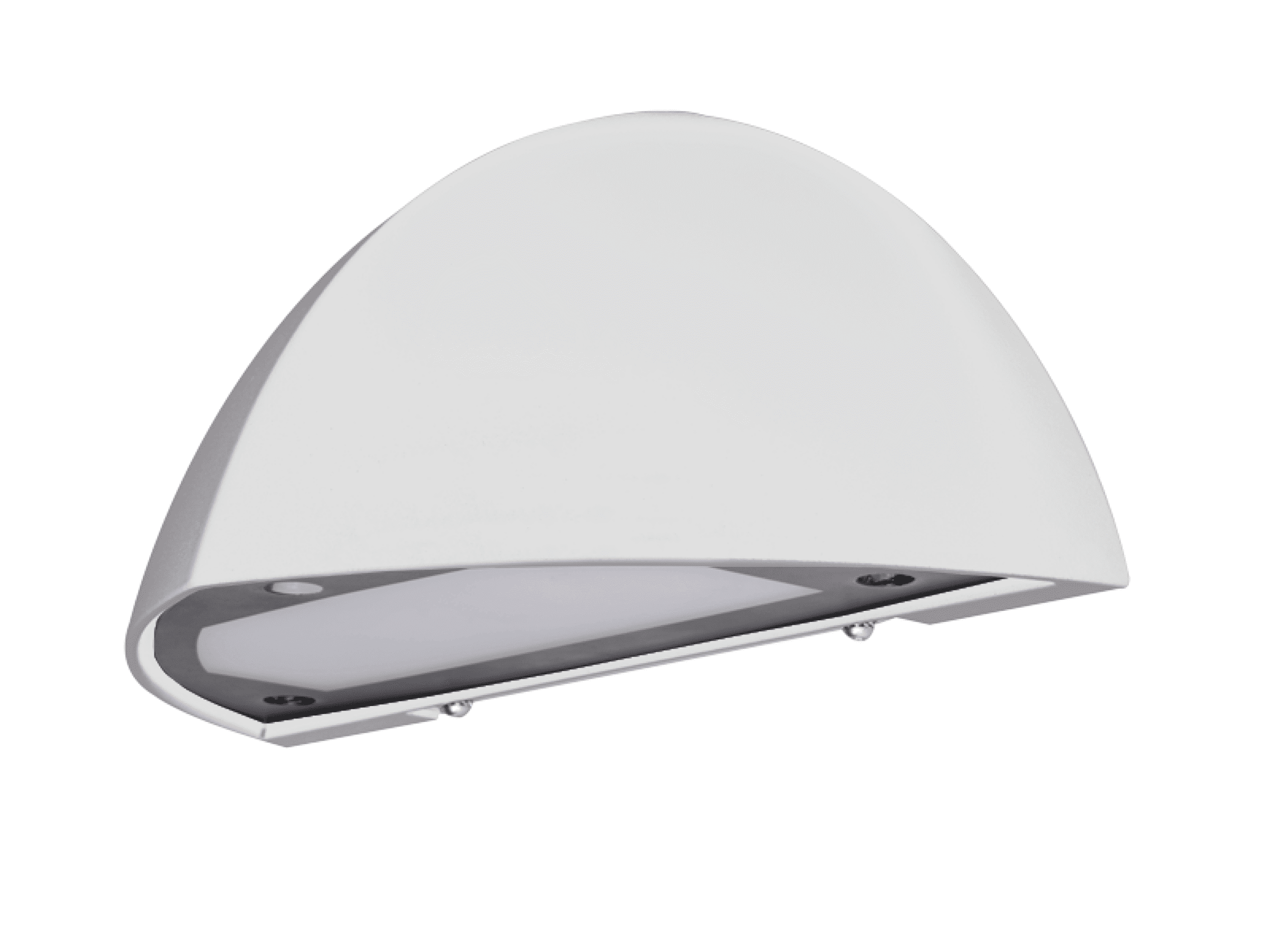

    • RAL 9010

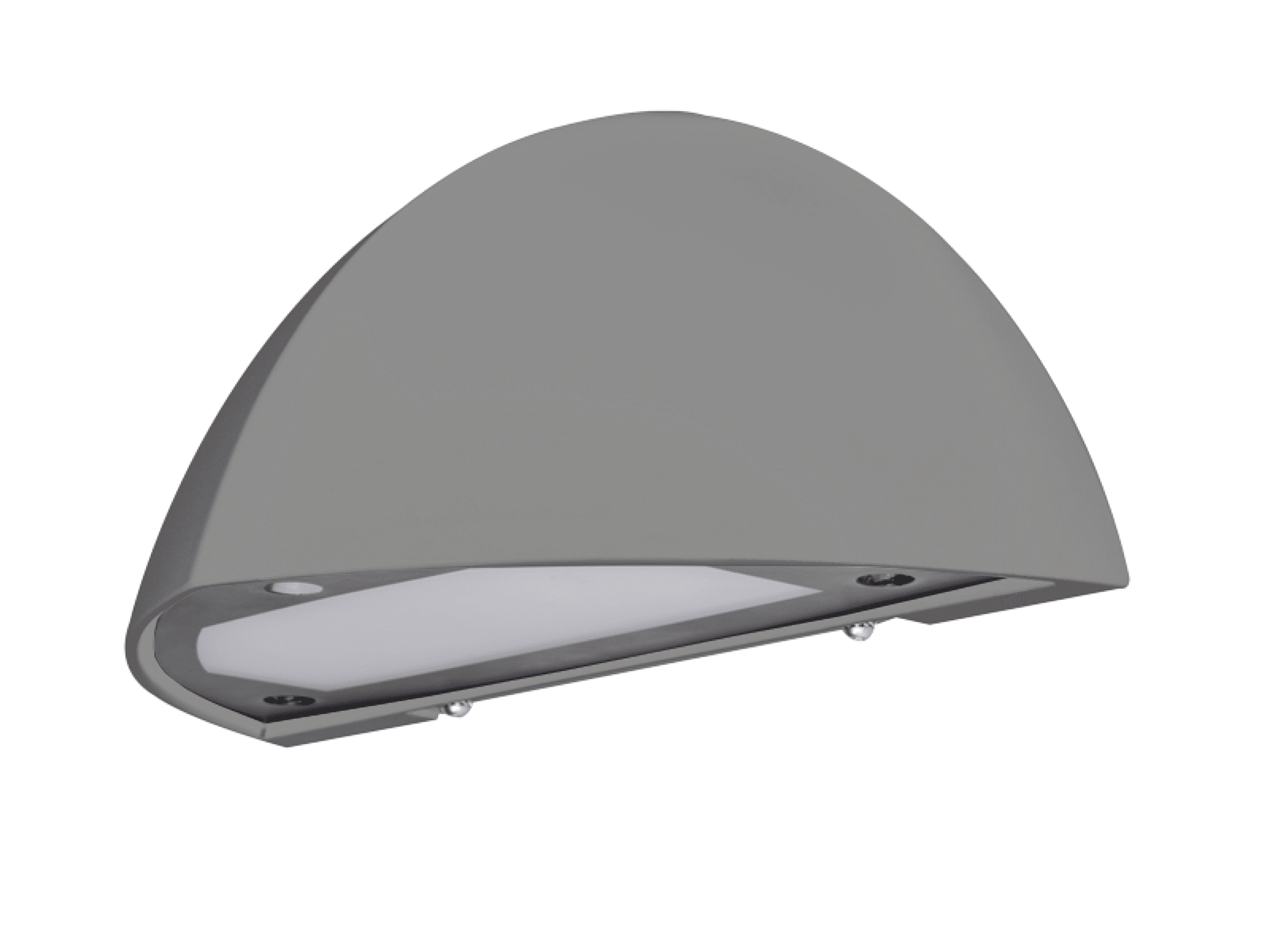

    • RAL 9006

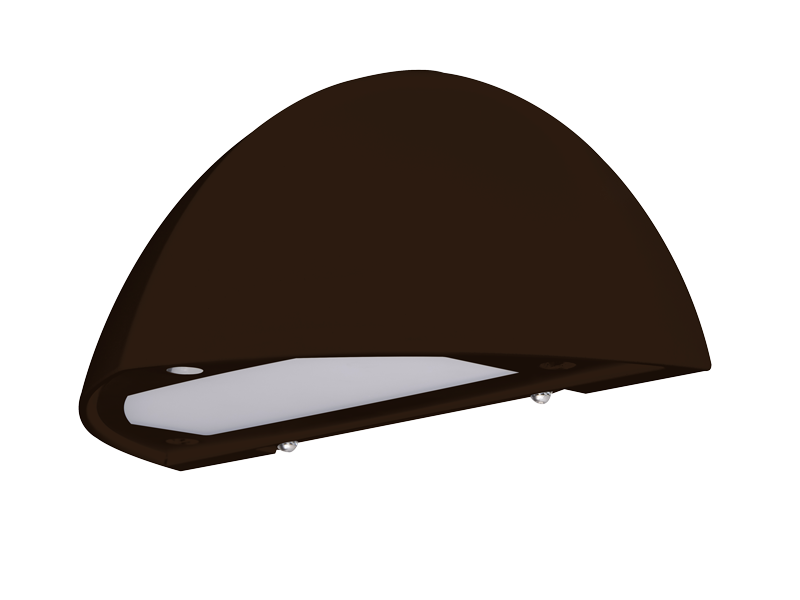

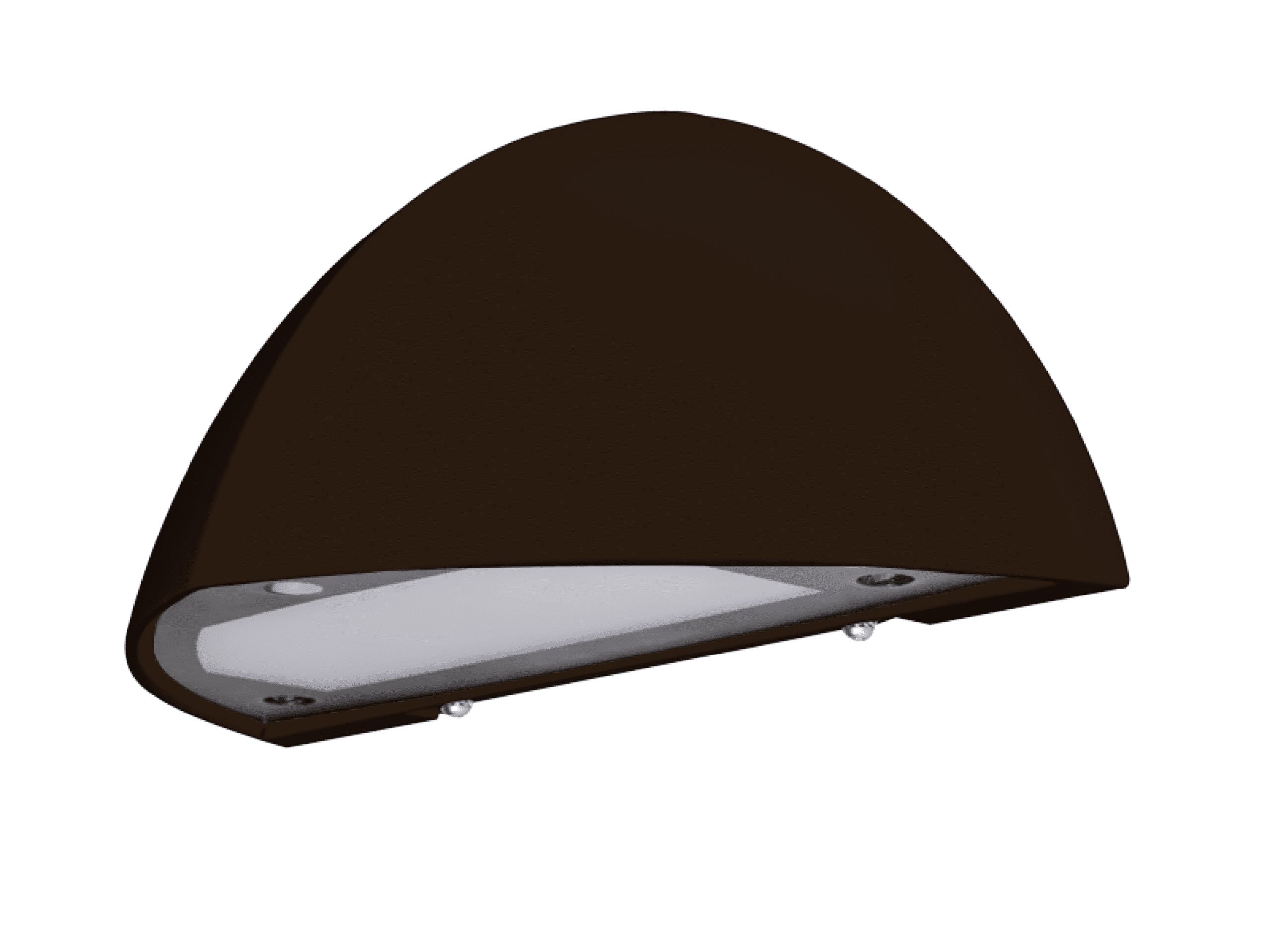

    • Penny Bronze

    • Graphite

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 66

  • DALi

  • Weight 1.5kg

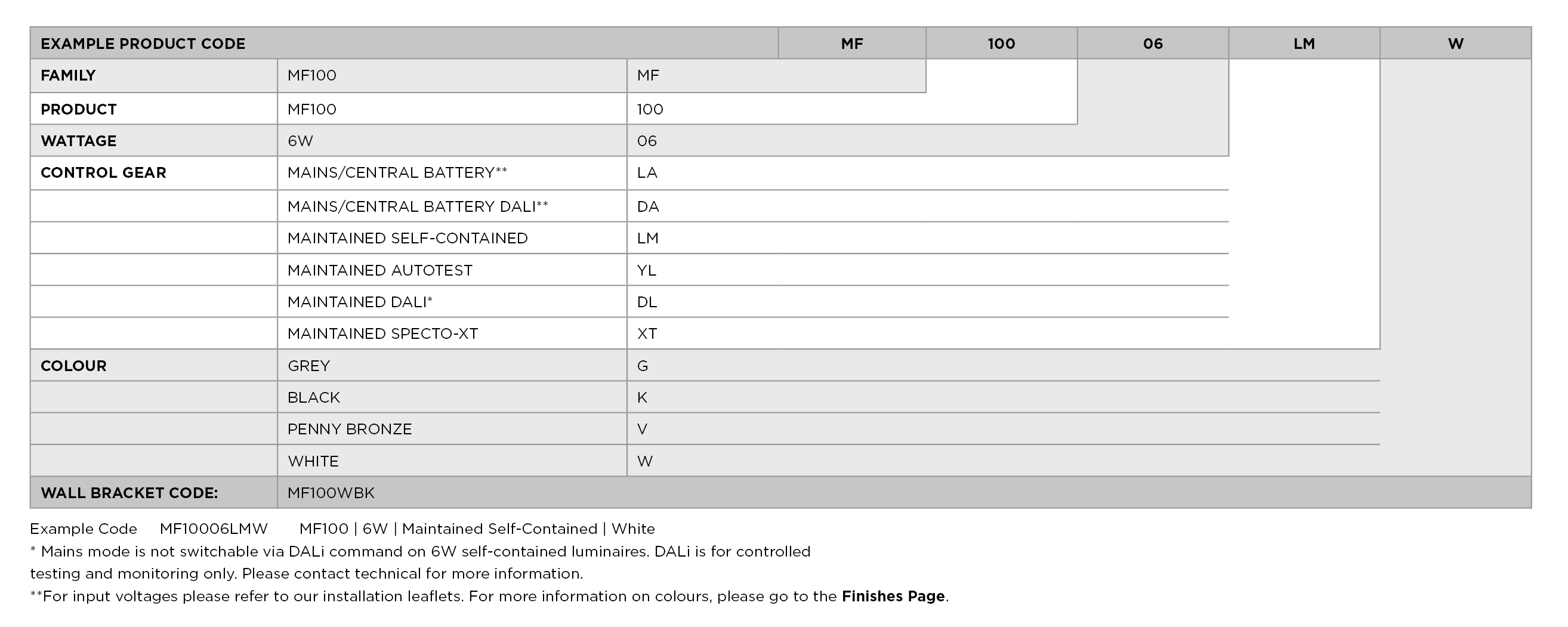

Part Numbers

  • MF100 03LA 230v AC/DC Central Supply
  • MF100 03LN 3hr Self Contained Non-Maintained
  • MF100 03LM 3hr Self Contained Maintained
  • MF100 03YS 3hr Self Contained Non-Maintained:Self Test
  • MF100 03YL 3hr Self Contained Maintained:Self Test
  • MF100 03DS 3hr Self Contained Non-Maintained:DALi
  • MF100 03DL 3hr Self Contained Maintained:DALi
  • MF100 06LA 230v AC/DC Central Supply
  • MF100 06LN 3hr Self Contained Non-Maintained
  • MF100 06LM 3hr Self Contained Maintained
  • MF100 06YS 3hr Self Contained Non-Maintained:Self Test
  • MF100 06YL 3hr Self Contained Maintained:Self Test
  • MF100 06DS 3hr Self Contained Non-Maintained:DALi
  • MF100 06DL 3hr Self Contained Maintained:DALi
  • MF100 13LA 230v AC/DC Central Supply
  • MF100WBK Wall Mounting Kit

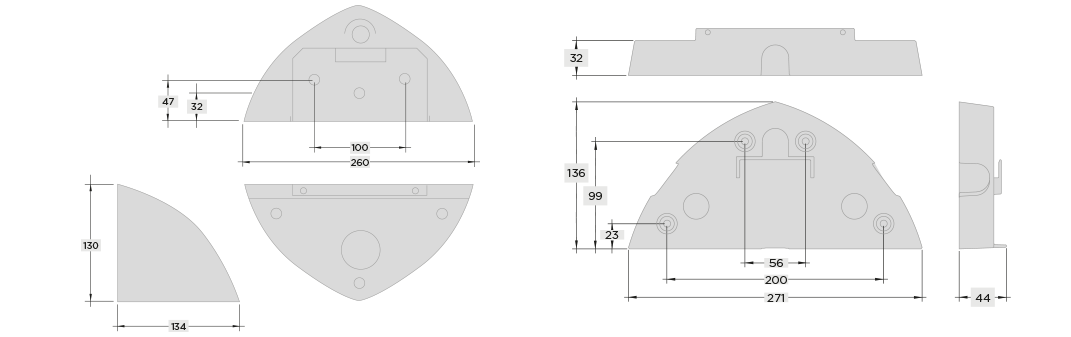

Dimensions
