Arca Plus

The ARCA exit sign can be recessed or surface mounted depending on building design requirements.

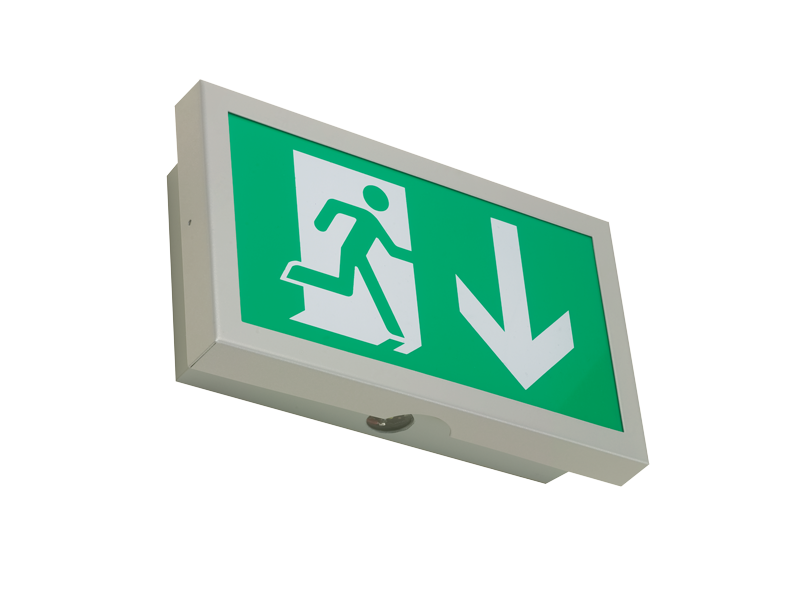

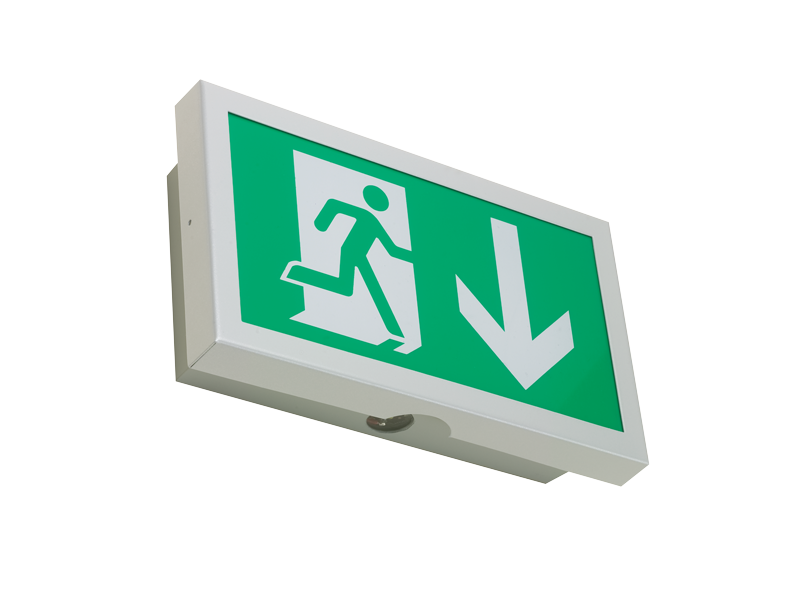

It is supplied complete with 4 recessing brackets that work with most wall types. The injection moulded body permits simple installation / maintenance, the legend fixing moulding results in no visible fixings which creates a floating visual for minimal impact. The ARCA plus incorporates a legend frame to accentuate the “floating effect” in a range of environments. The body is avaliable in white or grey in RAL9006 to coordinate with frame options and décor.

When surface mounted the product has a further option of a single LED downlighter to supplement emergency schemes or provide extra vertical emergency illuminance required for higher risk/task areas called for in BS5266-10 such as push bars and secured exits.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALi
  • Frame Finish Options
    • Satin Chrome
    • Brass
    • Polished Chrome
    • RAL9010
    • RAL9005
    • RAL9006
    • BMA
    • Penny Bronze
  • Legends
  • Available Finish
    • RAL 9010

    • RAL 9006

    • RAL 9005

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance

  • Weight 1.5kg

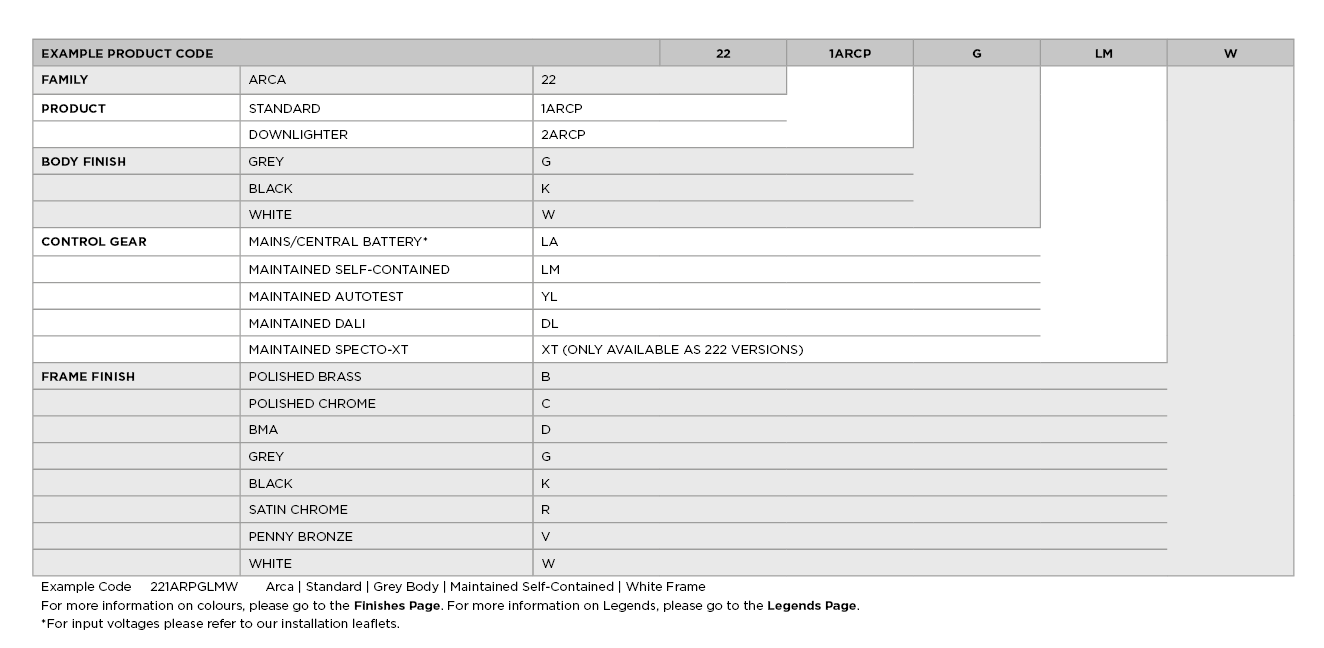

Part Numbers

  • 221ARCP*LA* *Body Finish Code - G,K or W Central Supply - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 221ARCP*LM* *Body Finish Code - G,K or W Maintained - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 221ARCP*YL* *Body Finish Code - G,K or W Self Test - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 221ARCP*DL* *Body Finish Code - G,K or W DALi - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 222ARCP*LA* *Body Finish Code - G,K or W Central Supply - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 222ARCP*LM* *Body Finish Code - G,K or W Maintained - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 222ARCP*YL* *Body Finish Code - G,K or W Self Test - *Frame Finish Code - B,C,D,G,K,R,V or W
  • 222ARCP*DL* *Body Finish Code - G,K or W DALi - *Frame Finish Code - B,C,D,G,K,R,V or W

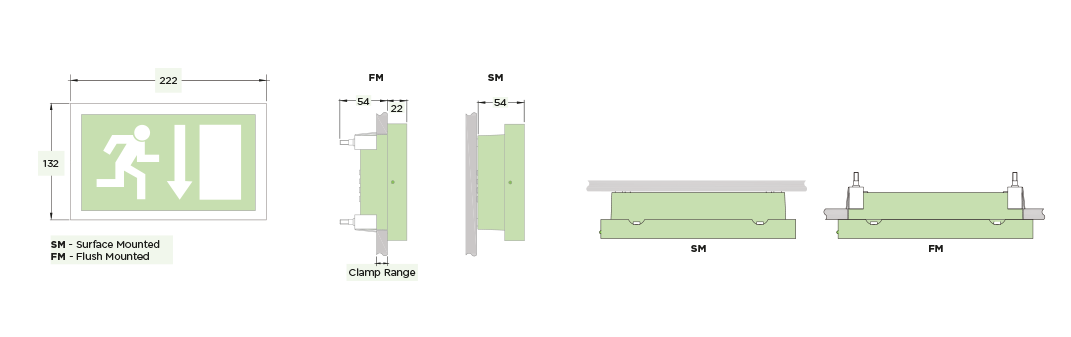

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    Arca Plus Data Sheet
    225.99 KB | pdf

    Download
  • Legend Sheet

    Arca Plus Legend Sheet
    171.26 KB | pdf

    Download
  • Revit Files

    Arca Plus Revit Files
    3.29 MB | zip

    Download
  • Photometric Files

    Arca Plus Photometric Files
    1.16 KB | zip

    Download
  • Installation Sheet

    Arca Plus Installation Sheet
    785.07 KB | pdf

    Download
