300FCY

The electronics and battery are concealed in a flush enclosure to minimise intrusion into the design space.

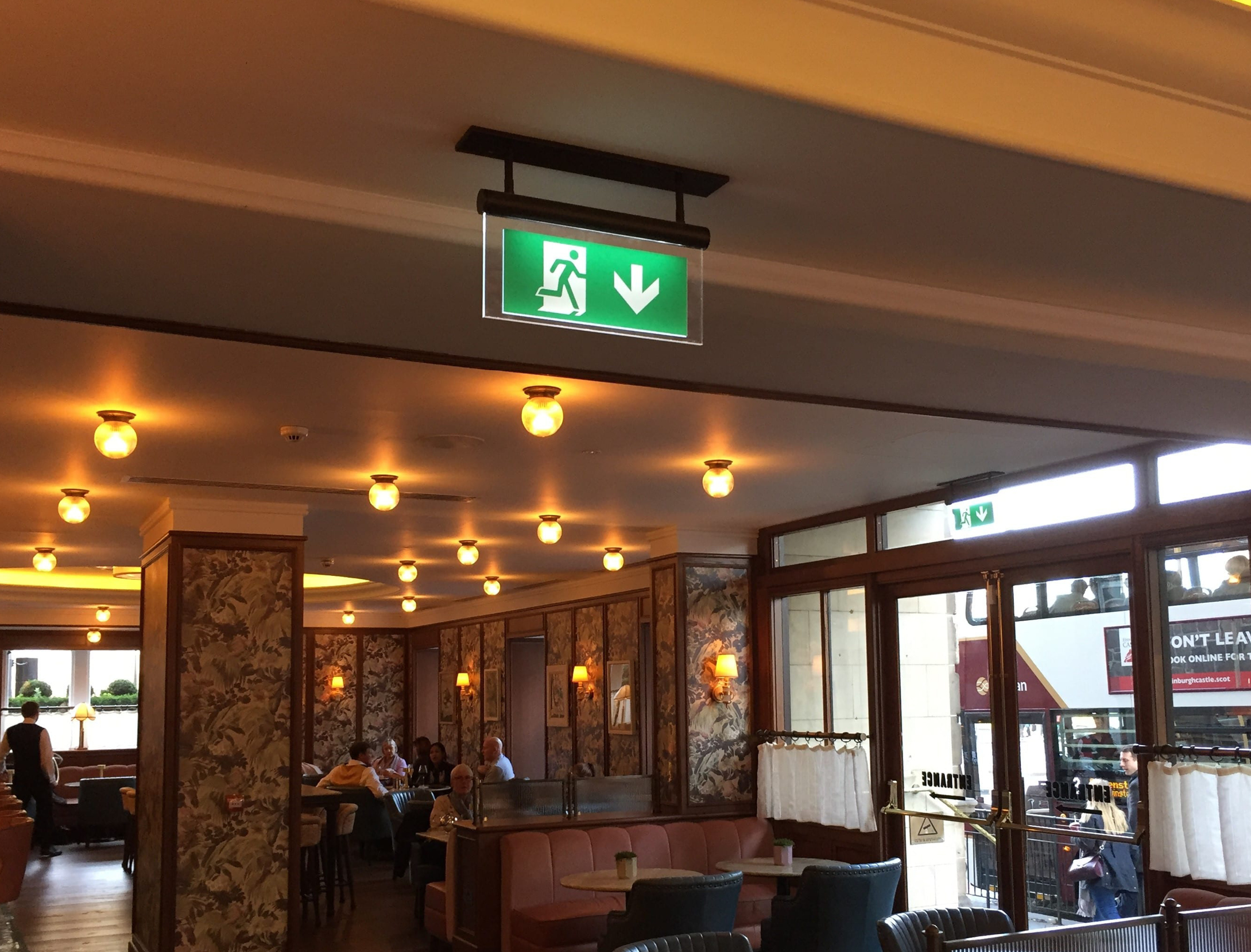

50mm/150mm/500mm are options are provided as standard, but longer vertical drops are available by special order to provide a striking product (as seen right).

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALi
  • Legends

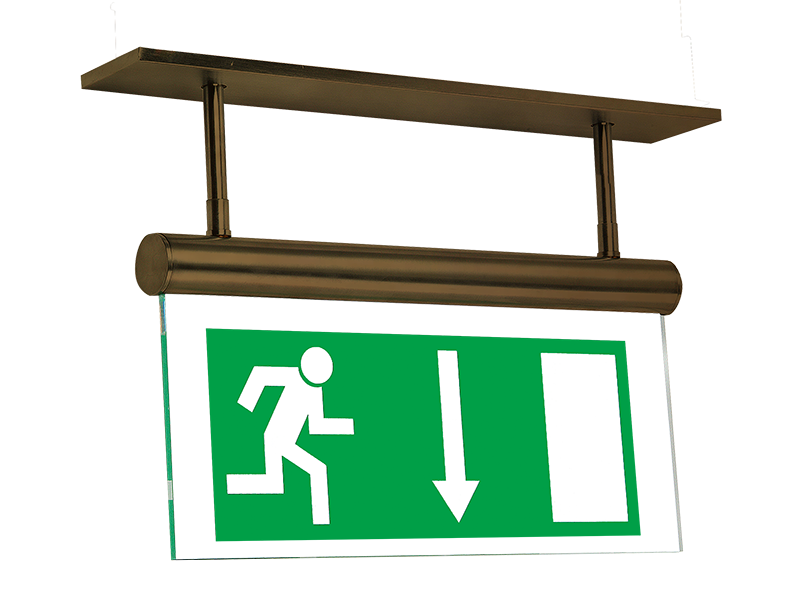

  • Available Finish

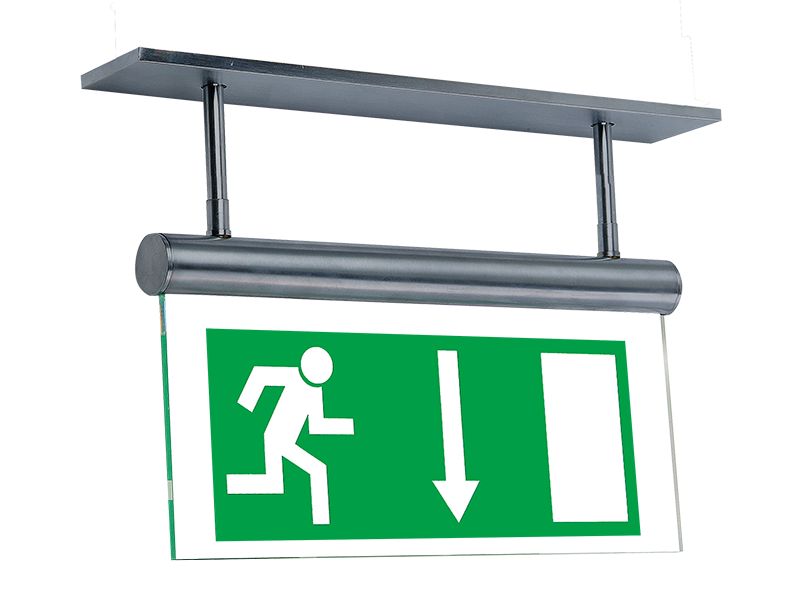

    • Satin Chrome

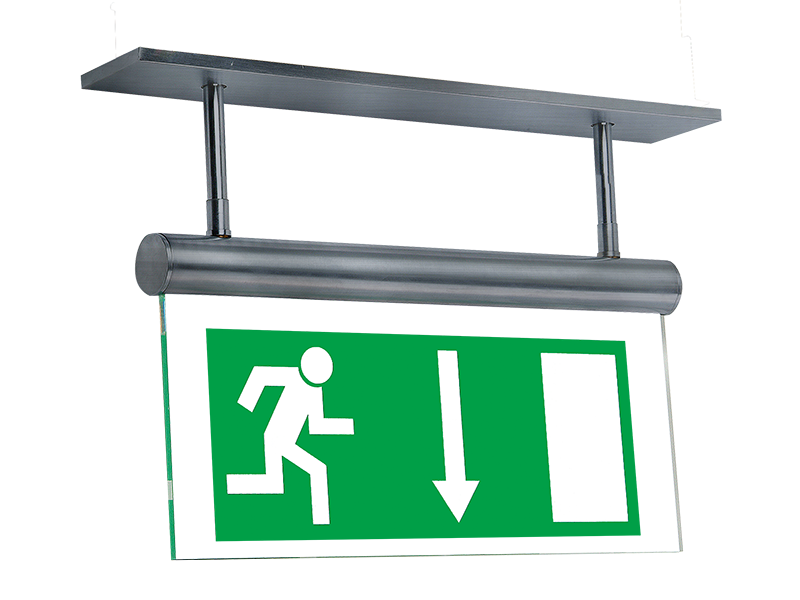

    • Polished Chrome

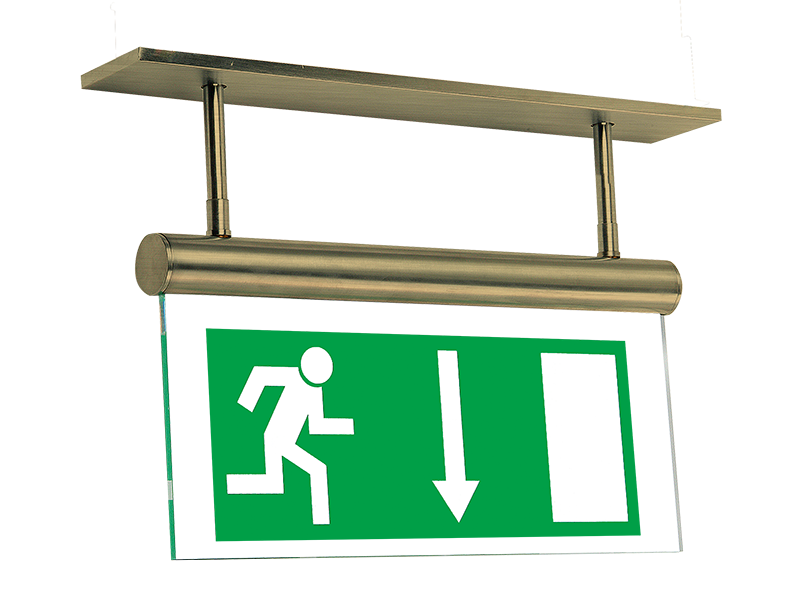

    • Polished Brass

    • BMA

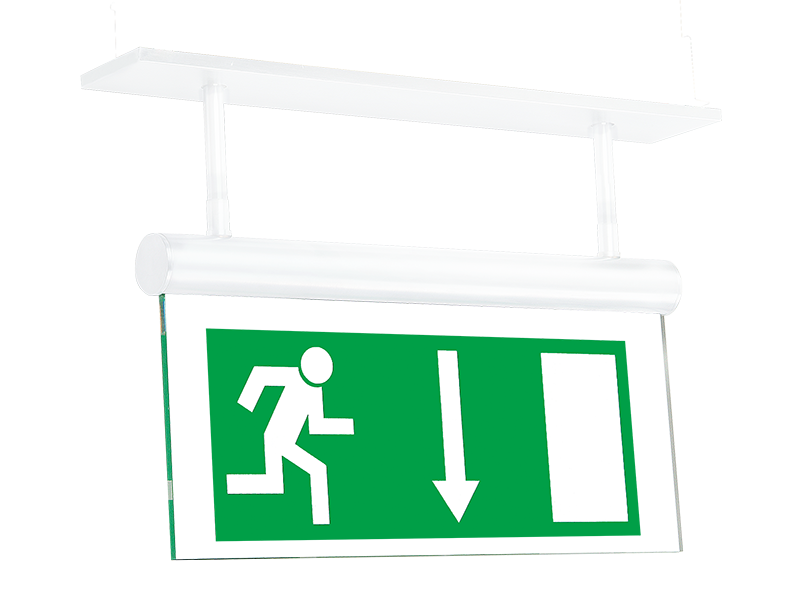

    • RAL 9010

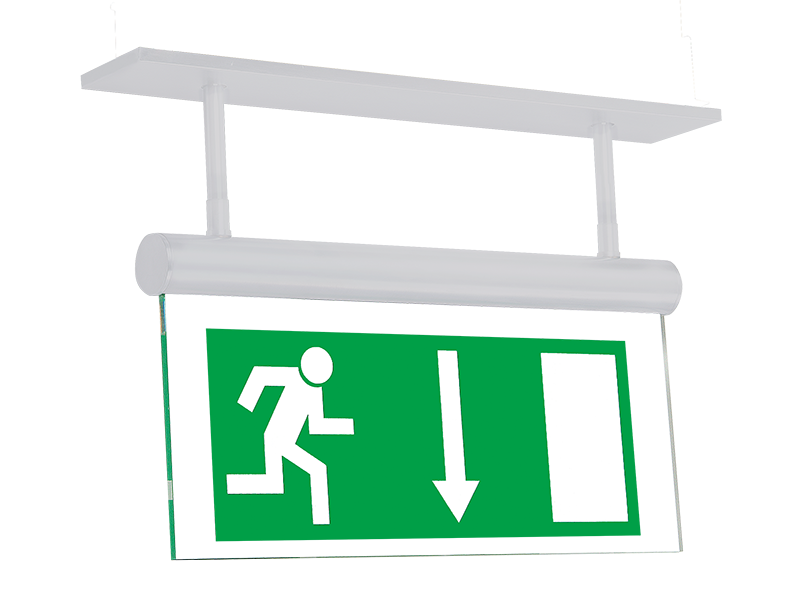

    • RAL 9006

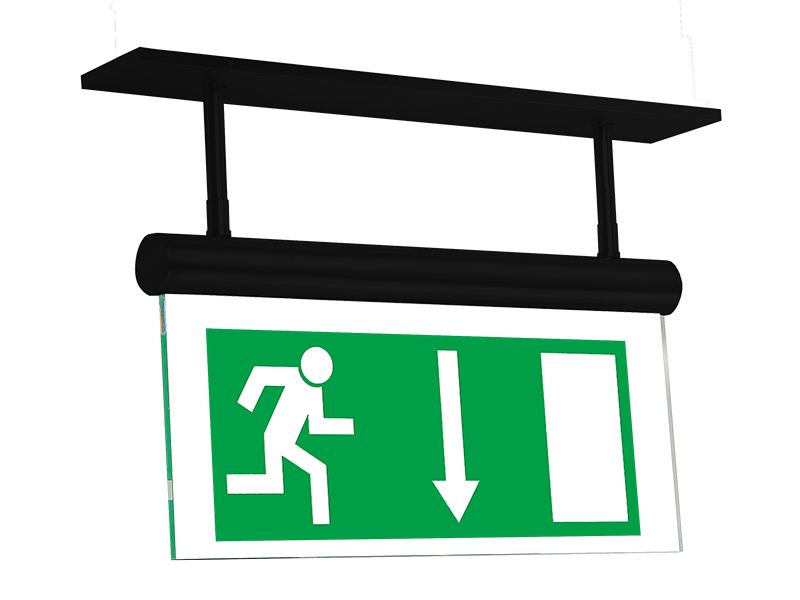

    • RAL 9005

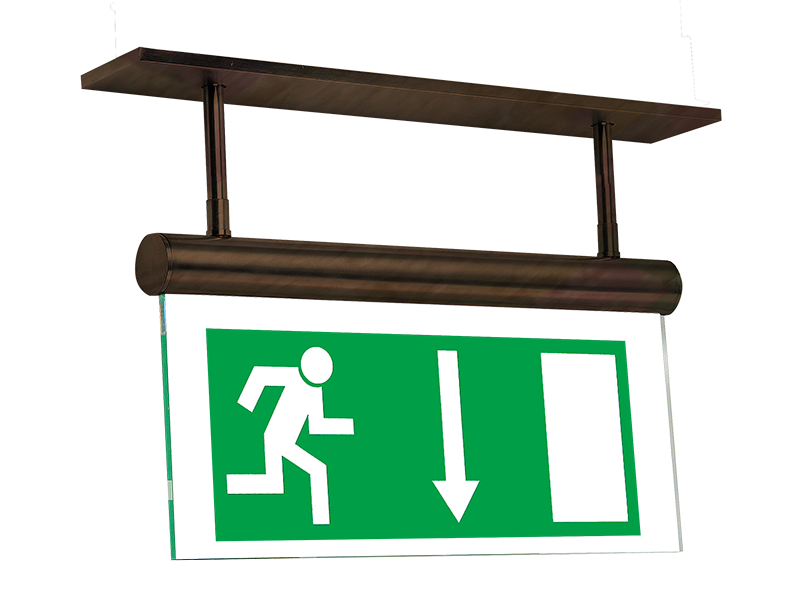

    • Penny Bronze

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance

  • Weight 1.5kg

  • Double Sided

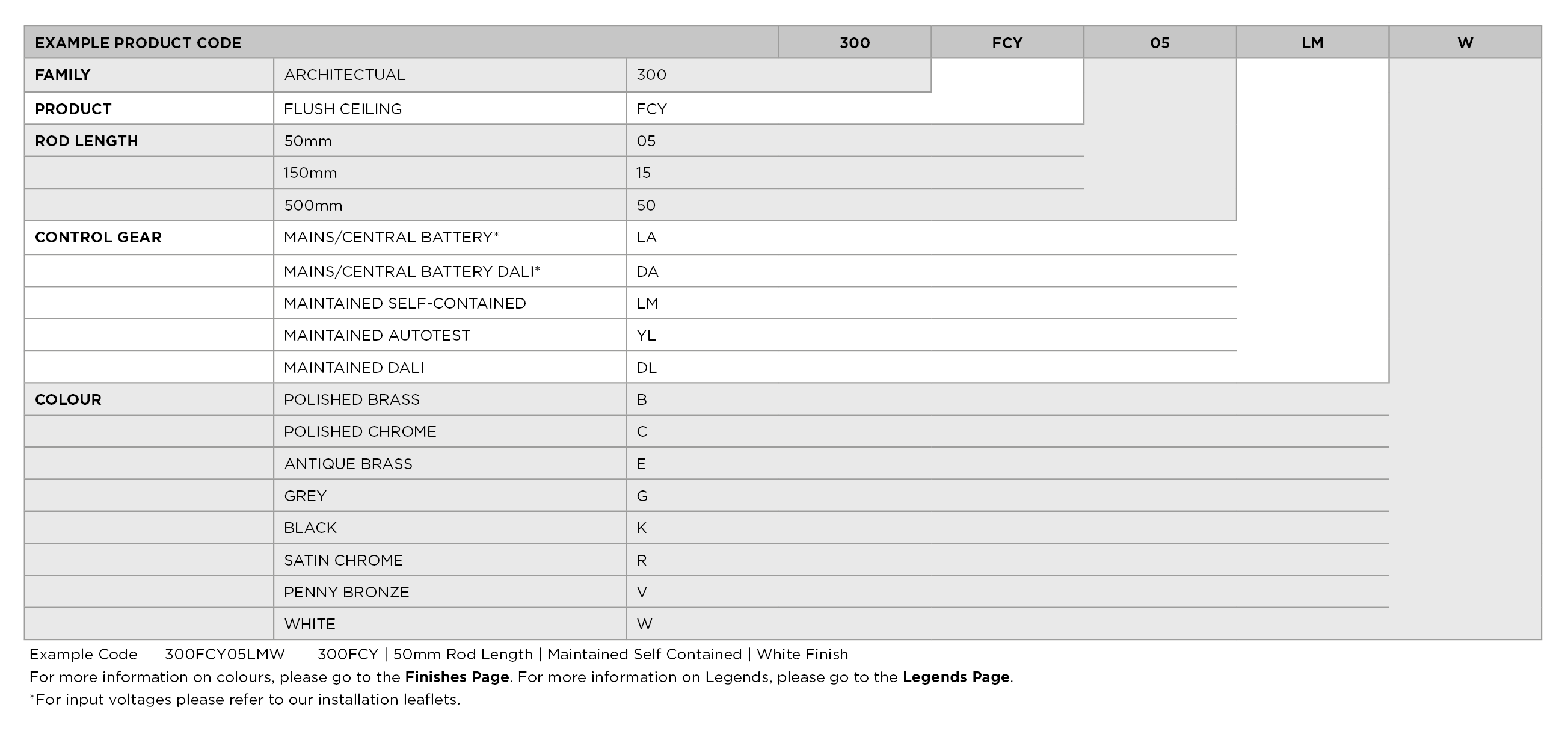

Part Numbers

  • 300FCY**LA 230v AC/DC Central Supply
  • 300FCY**DA 230v AC/DC Central Supply DALi
  • 300FCY**LM 3hr Self Contained Maintained/ Non-Maintained
  • 300FCY**YL 3hr Self Contained Self Test
  • 300FCY**DL 3hr Self Contained DALi

** Add in rod length requirement:
50mm/05 length – e.g. 300FCY05LM
150mm/15 length – e.g. 300FCY15LM
500mm/50 length – e.g. 300FCY50LM

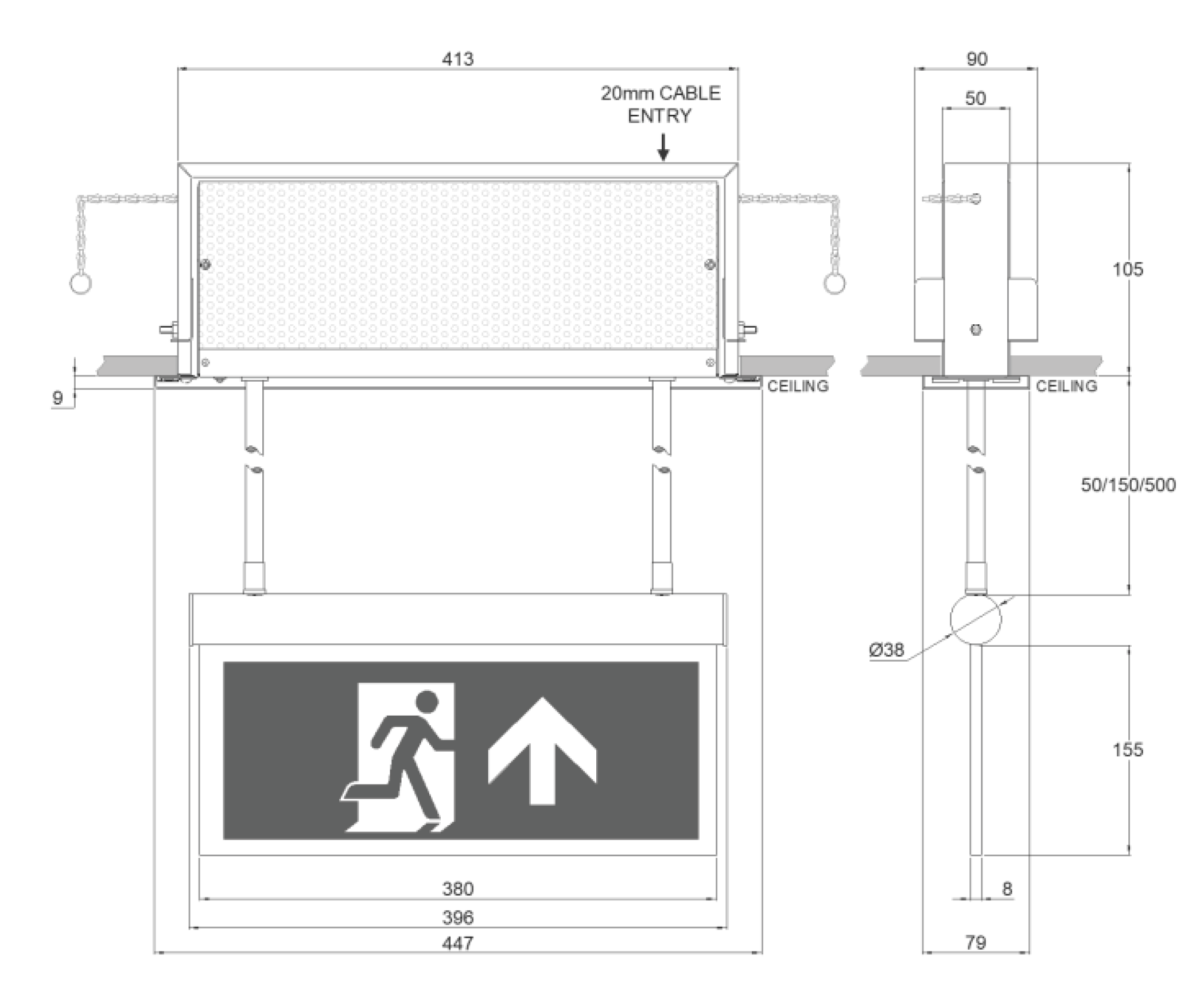

Dimensions
