300CM

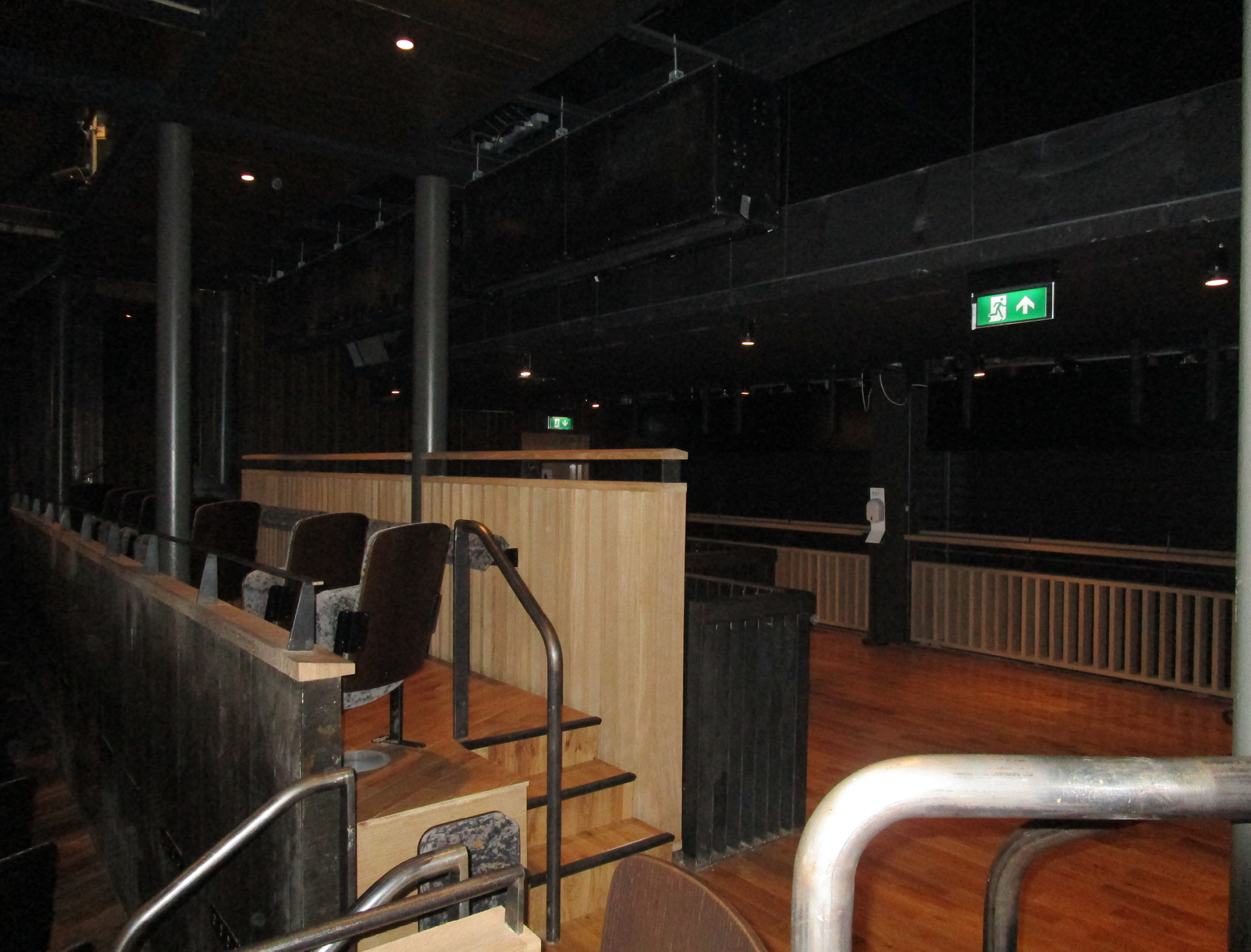

The 300CM can be fixed directly to the ceiling or suspended using a versatile rod suspension kit.

Payne have always favoured rods over the more commonly used chain suspension method as this provides superior rigidity and appearance. All rod kits are colour coordinated with the CM covers which are available in all Payne finishes. The standard rod kit comes with 12.5mm rods through which mains cables are fed directly into the sign. Batteries if not centrally located are housed inside the CM enclosure.

  • VOLTAGE
    • 230v
  • IP
    • 20
  • WEIGHT
    • 1.5kg
  • GEAR OPTIONS
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALi
  • Legends

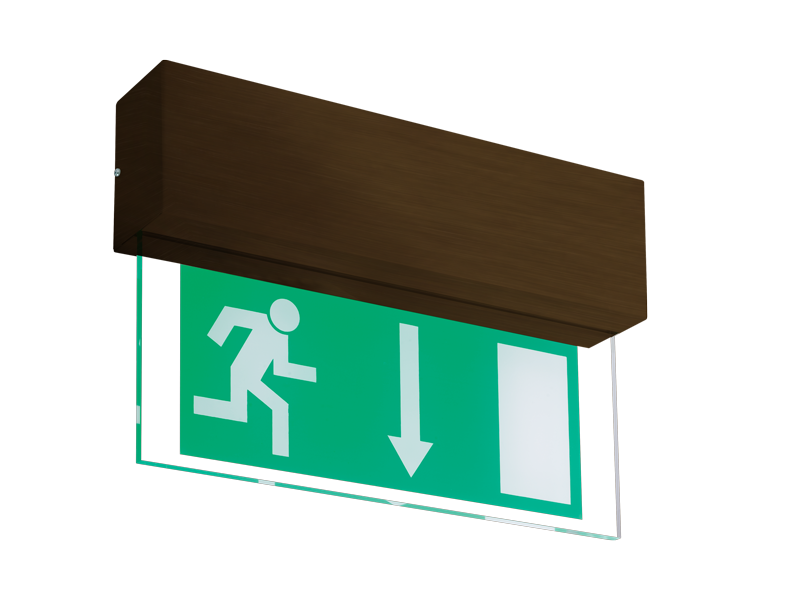

  • Available Finish

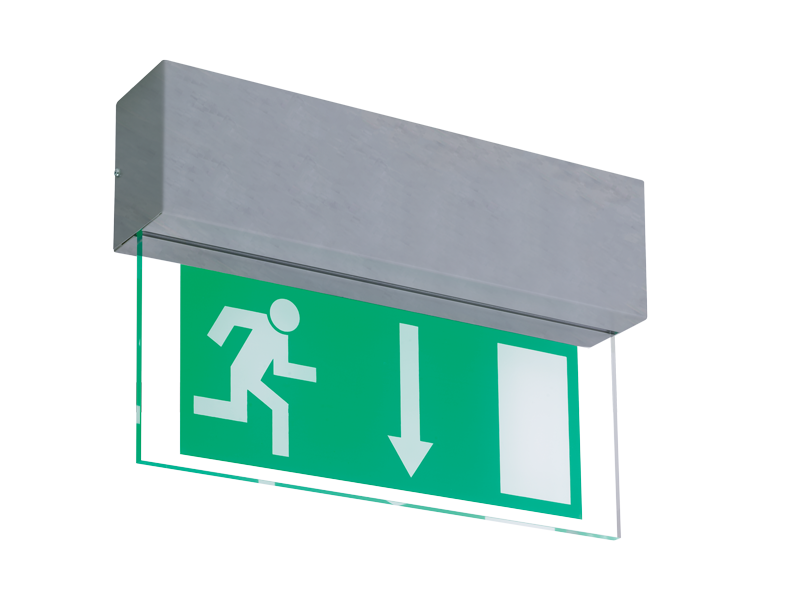

    • Satin Chrome

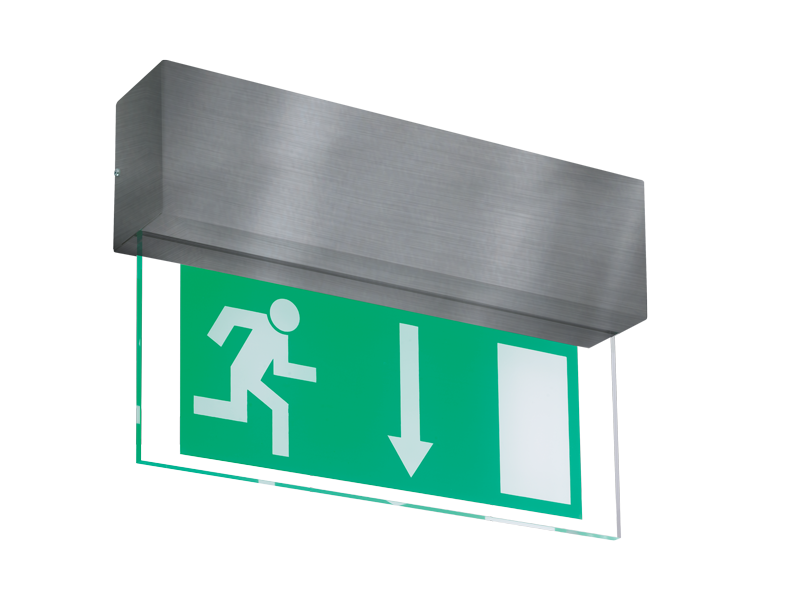

    • Polished Chrome

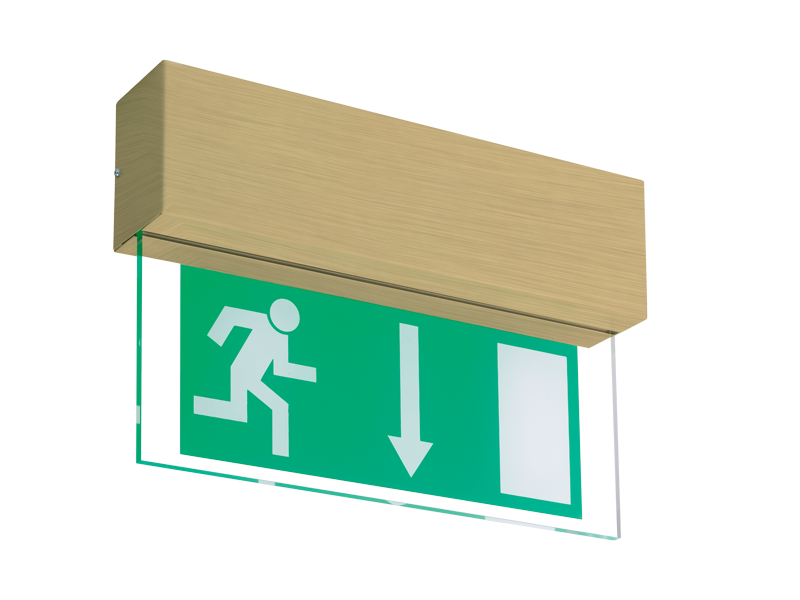

    • Polished Brass

    • BMA

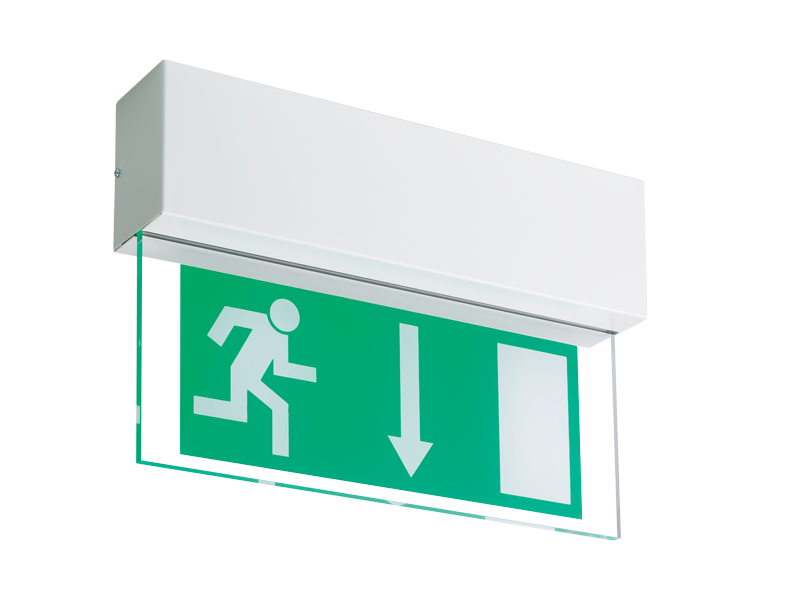

    • RAL 9010

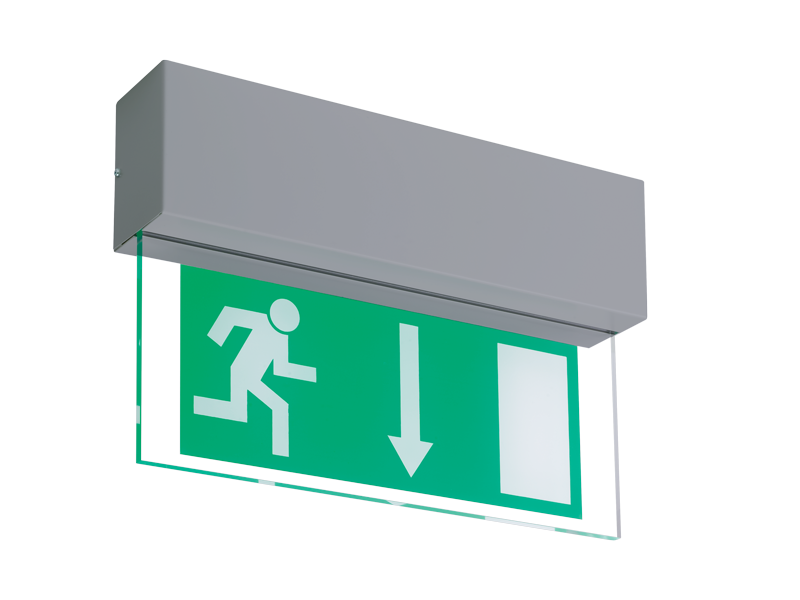

    • RAL 9006

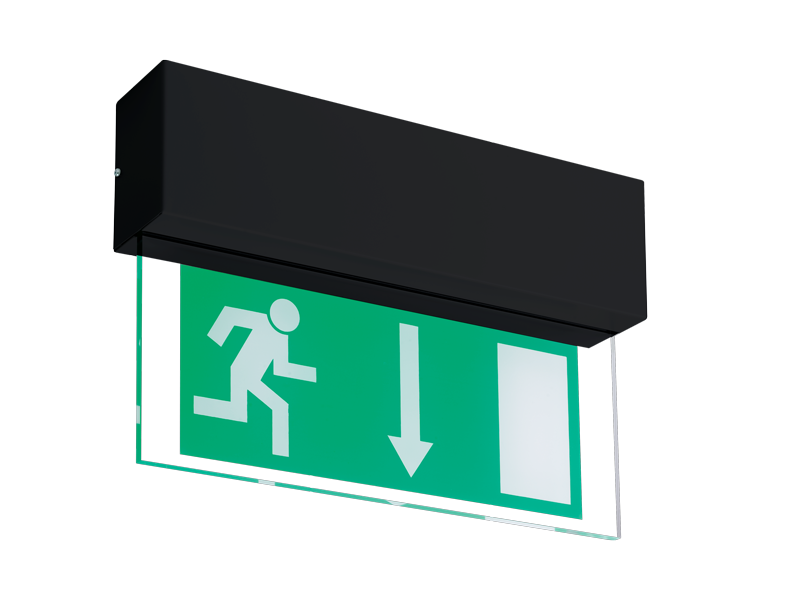

    • RAL 9005

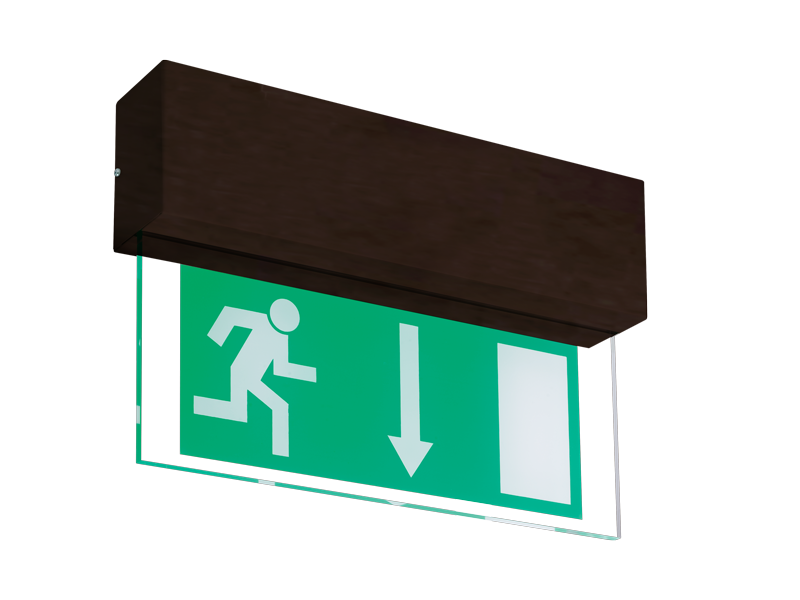

    • Penny Bronze

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance

  • Weight 1.5kg

  • Double Sided

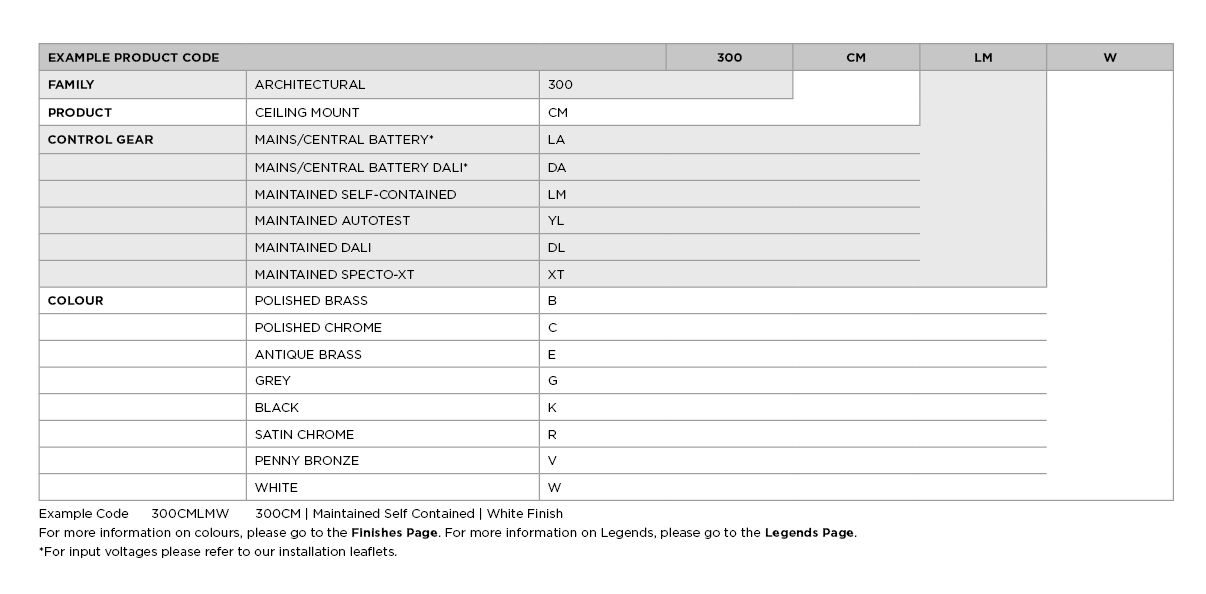

Part Numbers

  • 300CMLA 230v AC/DC Central Supply
  • 300CMDA 230v AC/DC Central Supply DALi
  • 300CMLM 3hr Self Contained Maintained/ Non-Maintained
  • 300CMYL 3hr Self Contained Self Test
  • 300CMDL 3hr Self Contained DALi
  • 300RSK Comprising of 1 pair of 500mm rods (can be cut to size on site plus ceiling fixing plate & cover)

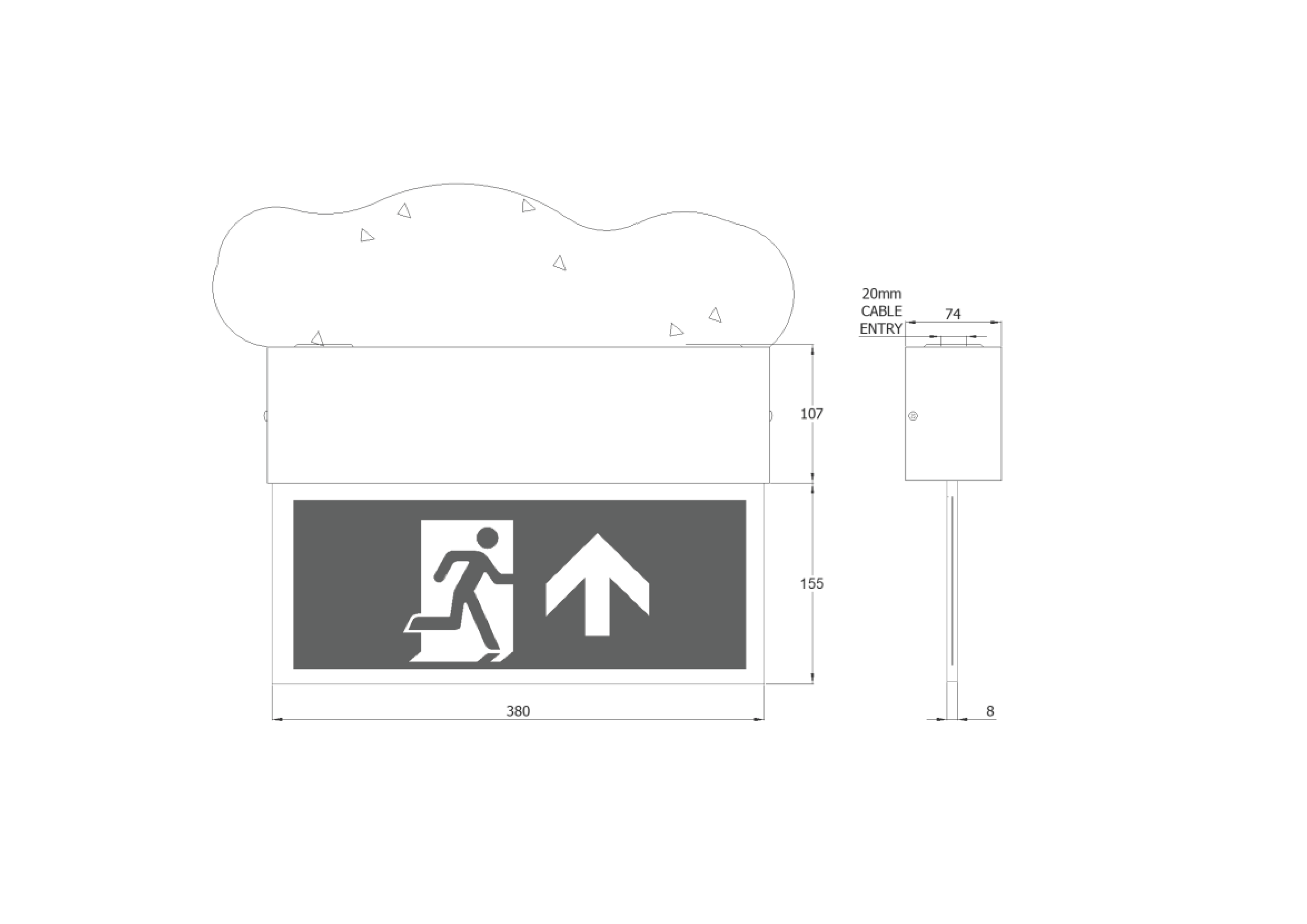

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    300CM Data Sheet
    227.50 KB | pdf

    Download
  • Legend Sheet

    300CM Legend Sheet
    133.82 KB | pdf

    Download
  • Revit Files

    300CM Revit Files
    778.08 KB | zip

    Download
  • Installation Sheet

    300CM Installation Sheet
    120.56 KB | pdf

    Download
