300CBH

The CBV with square back box and 50mm/150mm/500mm options provides 3 standard “from ceiling” vertical drops.

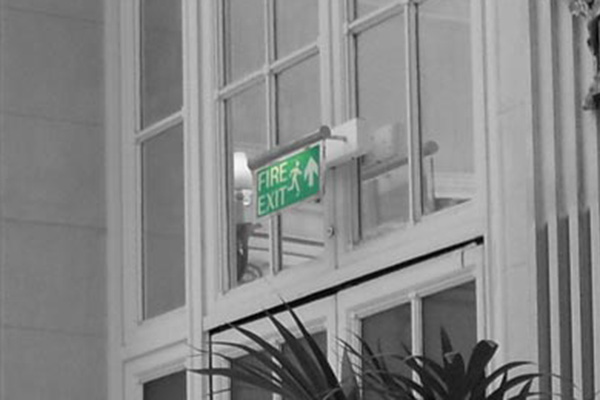

The CBH fitting provides a wall mounted alternative for over door and wall mounting requirements.

Both versions are supplied with a first fix back box along with pre wired plug and
socketed arm kits and cover for subsequent installation.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALi
  • Legends
  • Available Finish

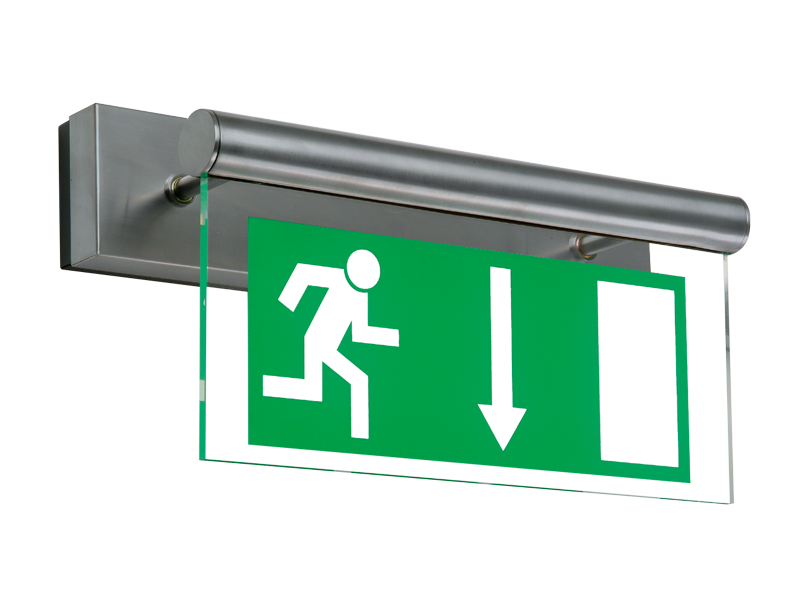

    • Satin Chrome

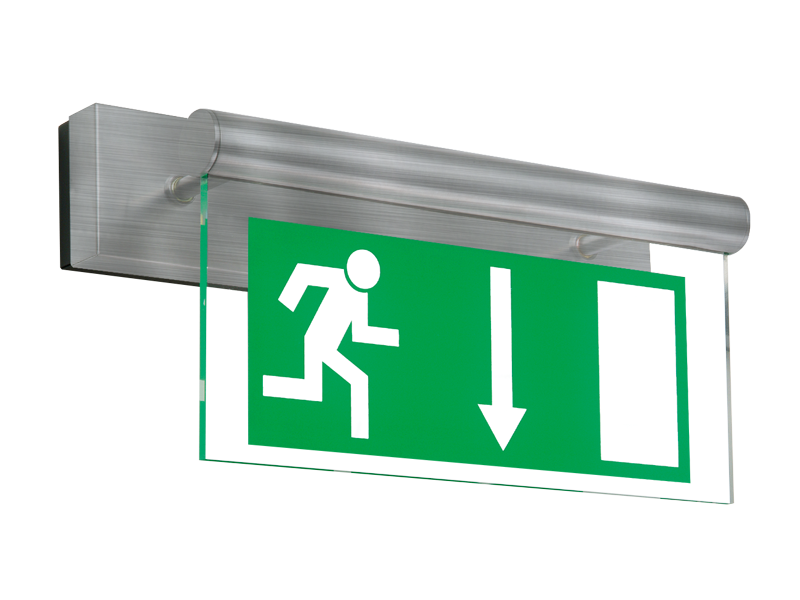

    • Polished Chrome

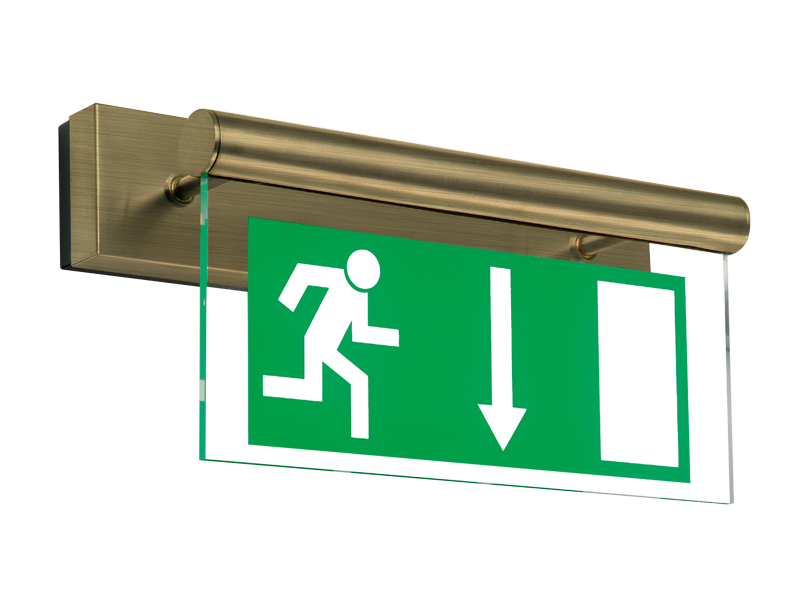

    • Polished Brass

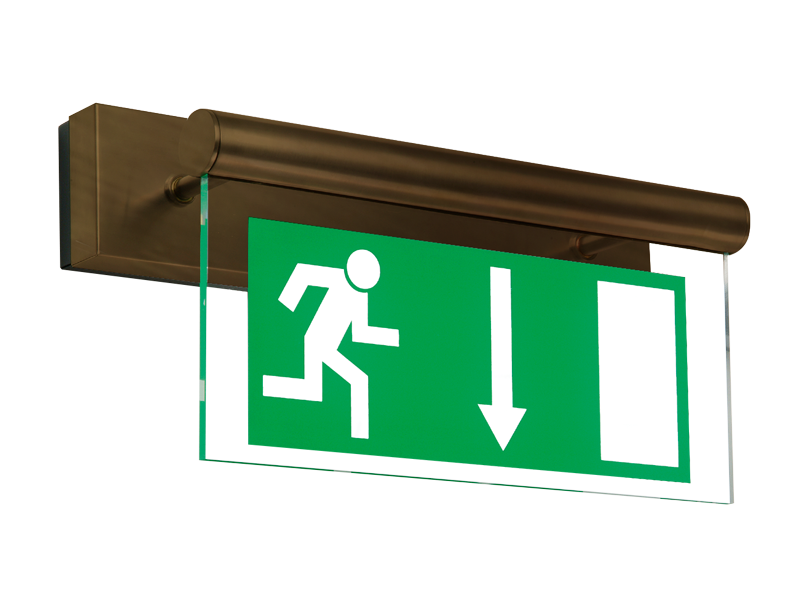

    • BMA

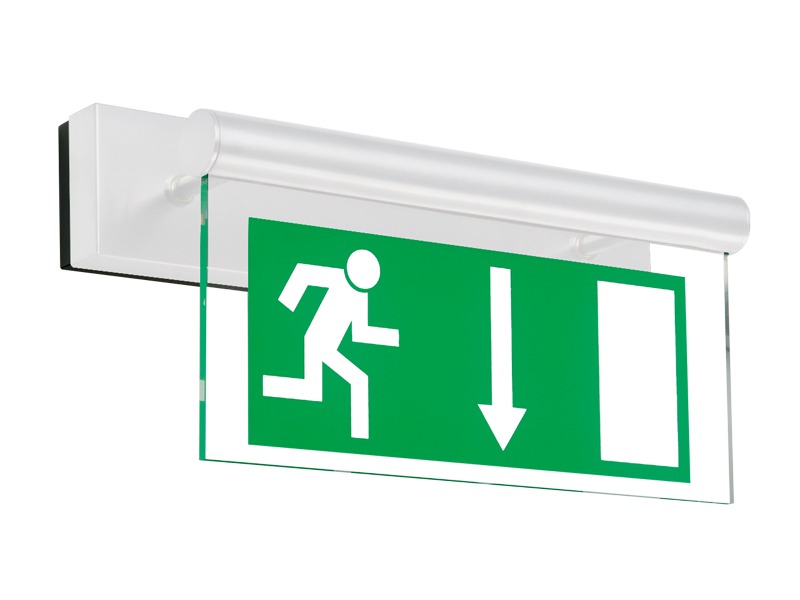

    • RAL 9010

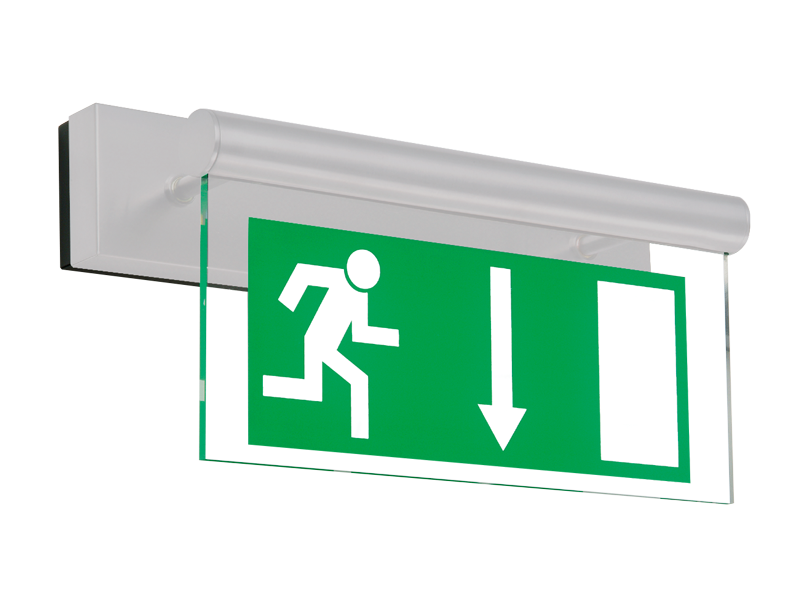

    • RAL 9006

    • RAL 9005

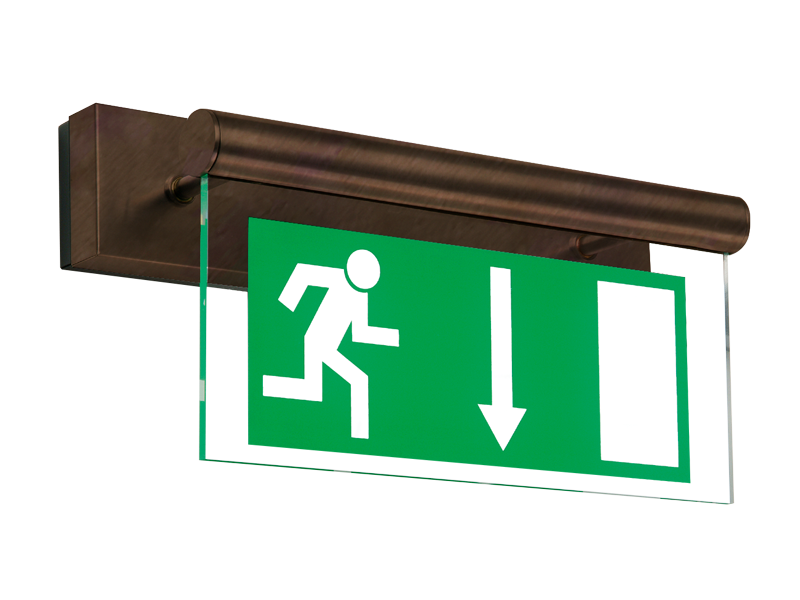

    • Penny Bronze

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance

  • Weight 1.5kg

  • Double Sided

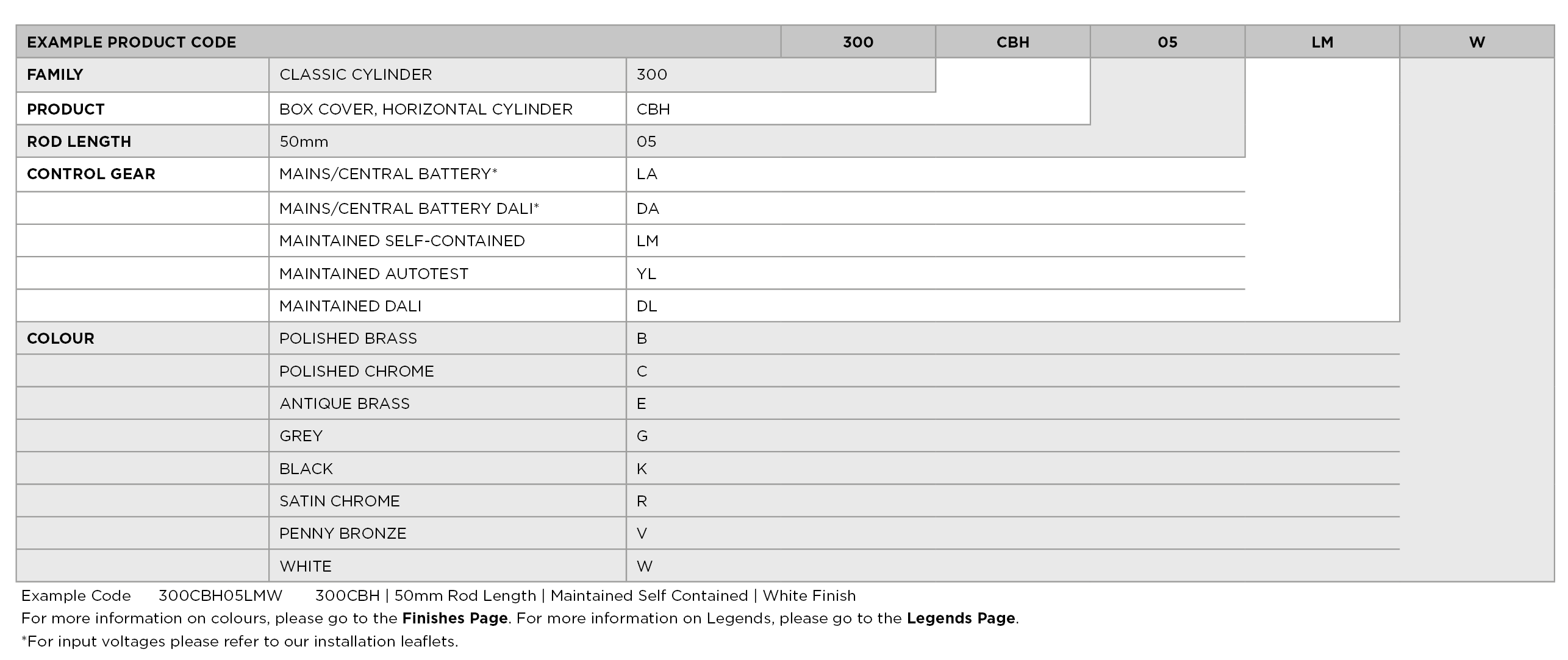

Part Numbers

  • 300CBH05LA 230v AC/DC Central Supply
  • 300CBH05DA 230v AC/DC Central Supply DALi
  • 300CBH05LM 3hr Self Contained Maintained/Non-Maintained
  • 300CBH05YL 3hr Self Contained Self Test
  • 300CBH05DL 3hr Self Contained DALi

Dimensions
