250MCRV

The Mini Cylinder can be wall mounted or ceiling mounted with self-contained or central battery backup for the LED light-source.

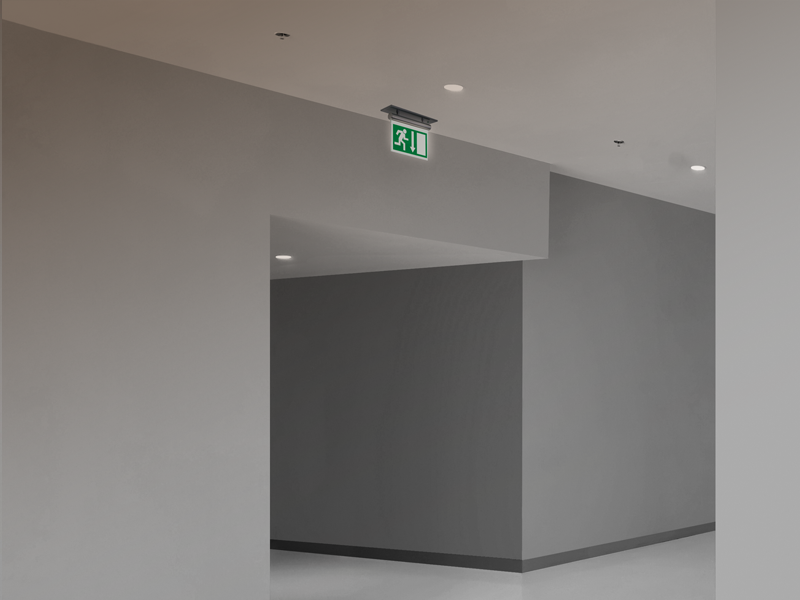

The Ceiling mounted product has a short drop designed for conventional ceilings although factory adaptations are available to extend these to client requirements. In ornate high ceiling environments with the correct finish applied, this allows what becomes an unobtrusive item to be suspended into view to permit safe egress in an emergency situation. With the addition of a rotated graphic the standard ceiling product can be turned through 90° to create a “Bus stop” sign. This is particular useful in high ceiling corridors or concourses where ceiling mounting can be challenging and where the evacuation plan can be complicated.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALi
  • Legends
  • Available Finish

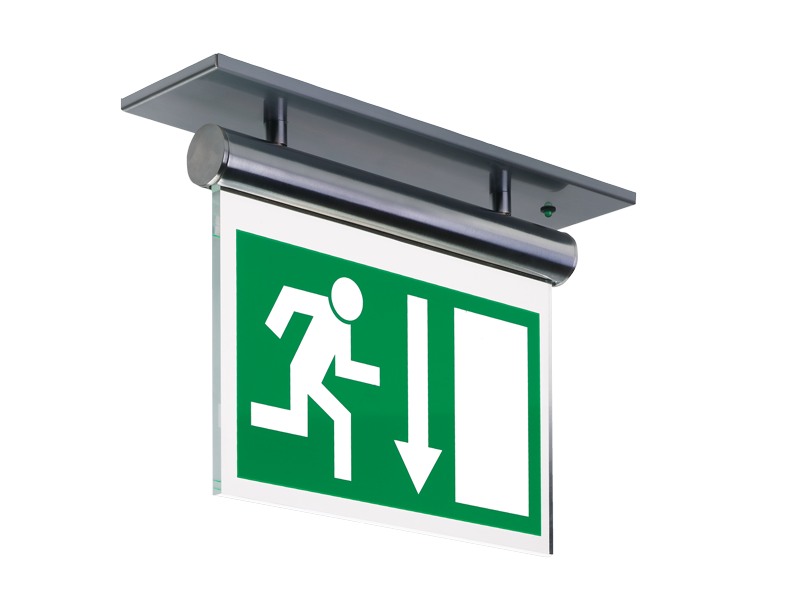

    • Satin Chrome

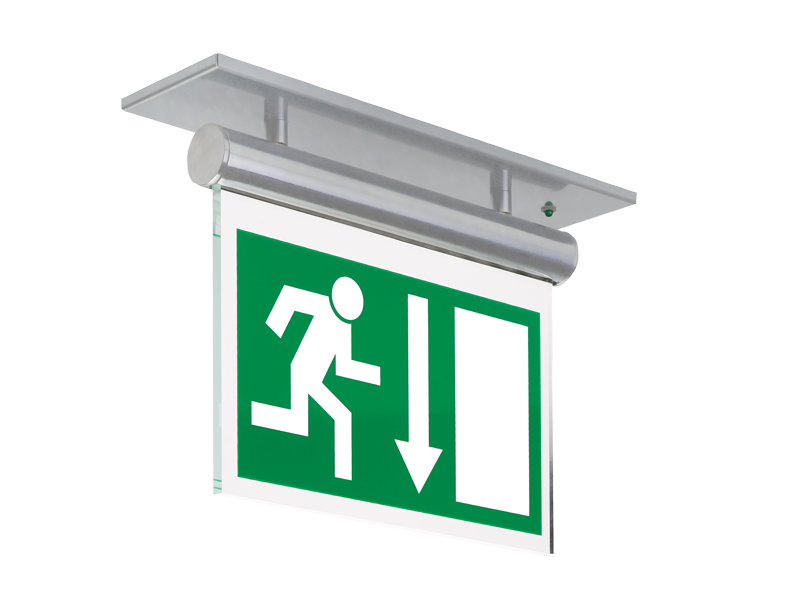

    • Polished Chrome

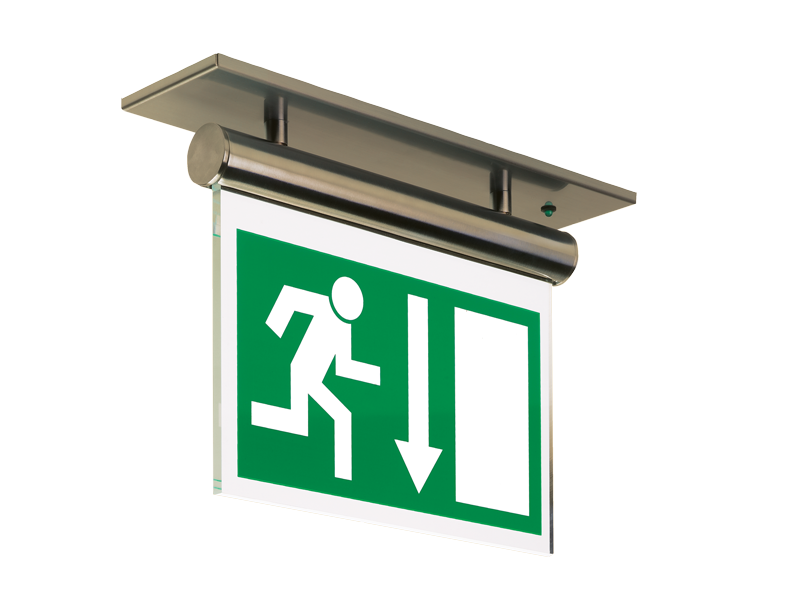

    • Polished Brass

    • BMA

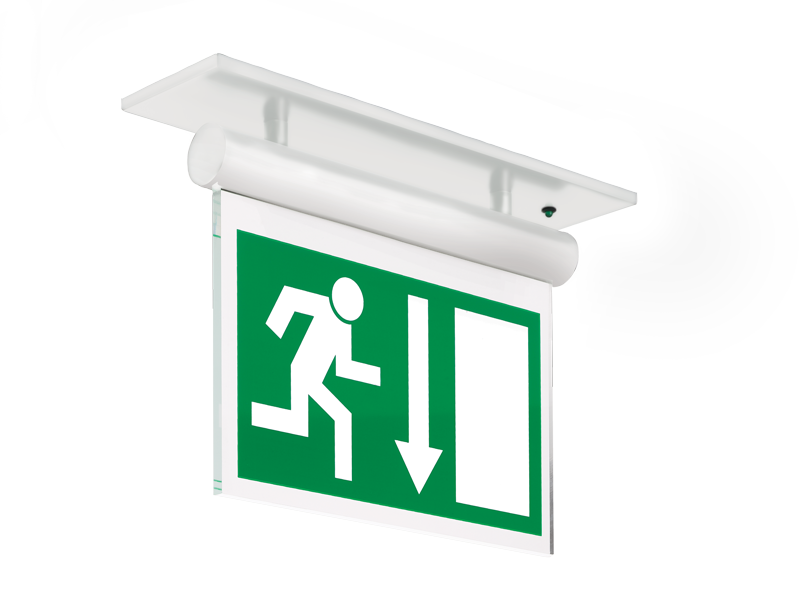

    • RAL 9010

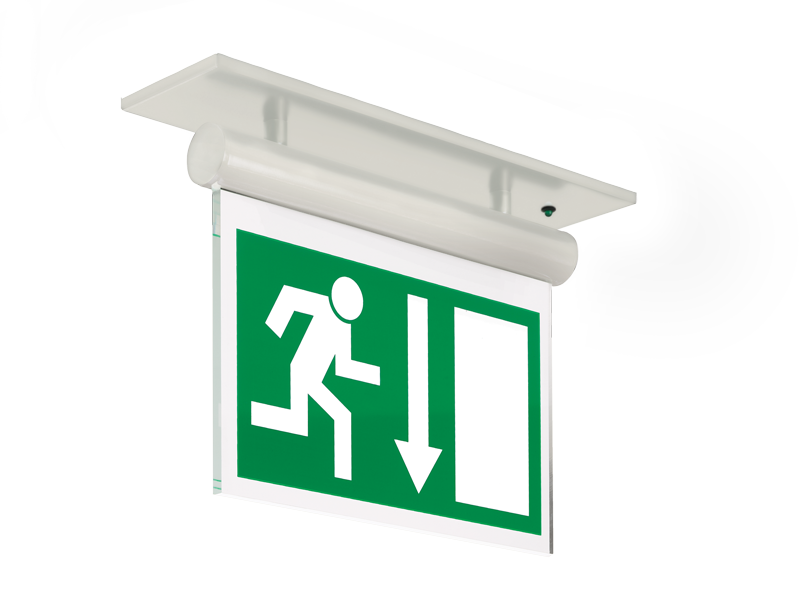

    • RAL 9006

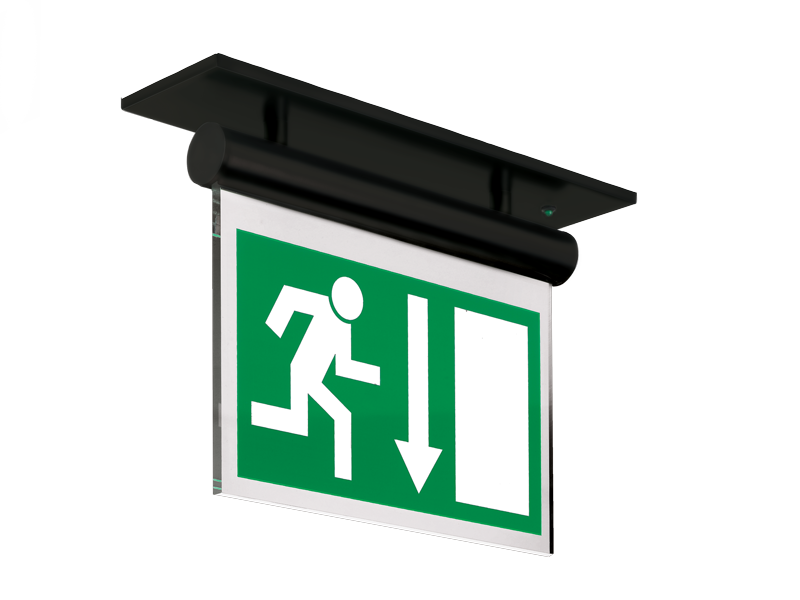

    • RAL 9005

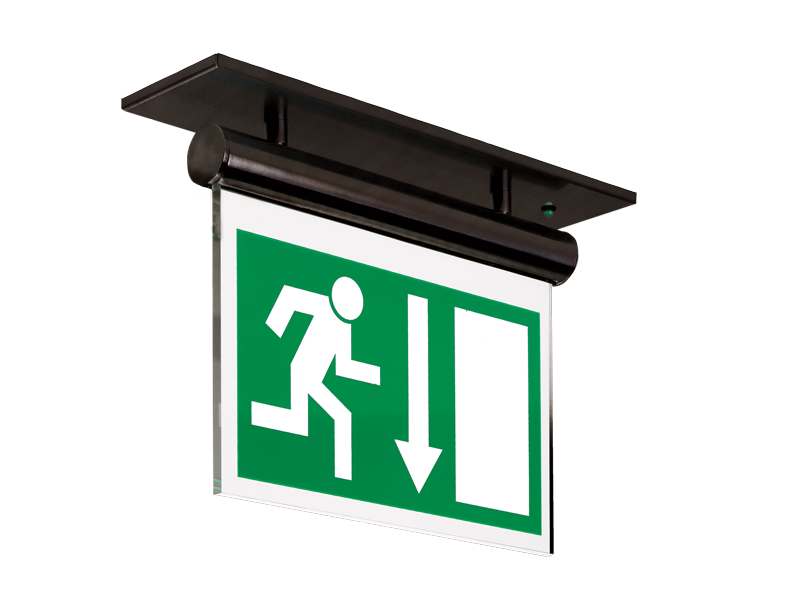

    • Penny Bronze

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance

  • Weight 1.5kg

  • Double Sided

  • CDA

  • BSI Kitemark

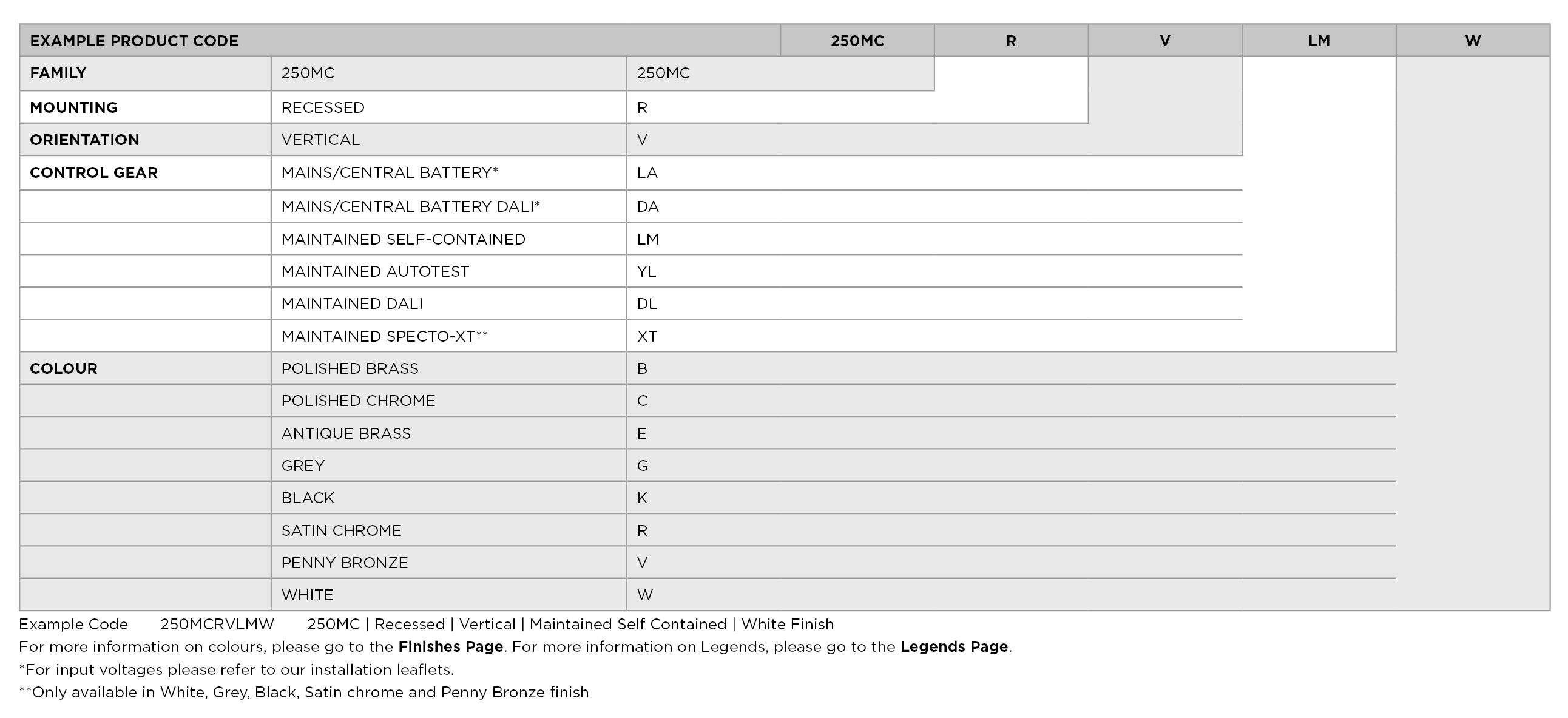

Part Numbers

  • 250MCRVLA 230v AC/DC Central Supply
  • 250MCRVLE 230v AC Central Supply
  • 250MCRVDA 230v AC/DC Central Supply DALi
  • 250MCRVLM 3hr Self Contained Maintained
  • 250MCRVYL 3hr Self Contained Self Test
  • 250MCRVDL 3hr Self Contained DALi

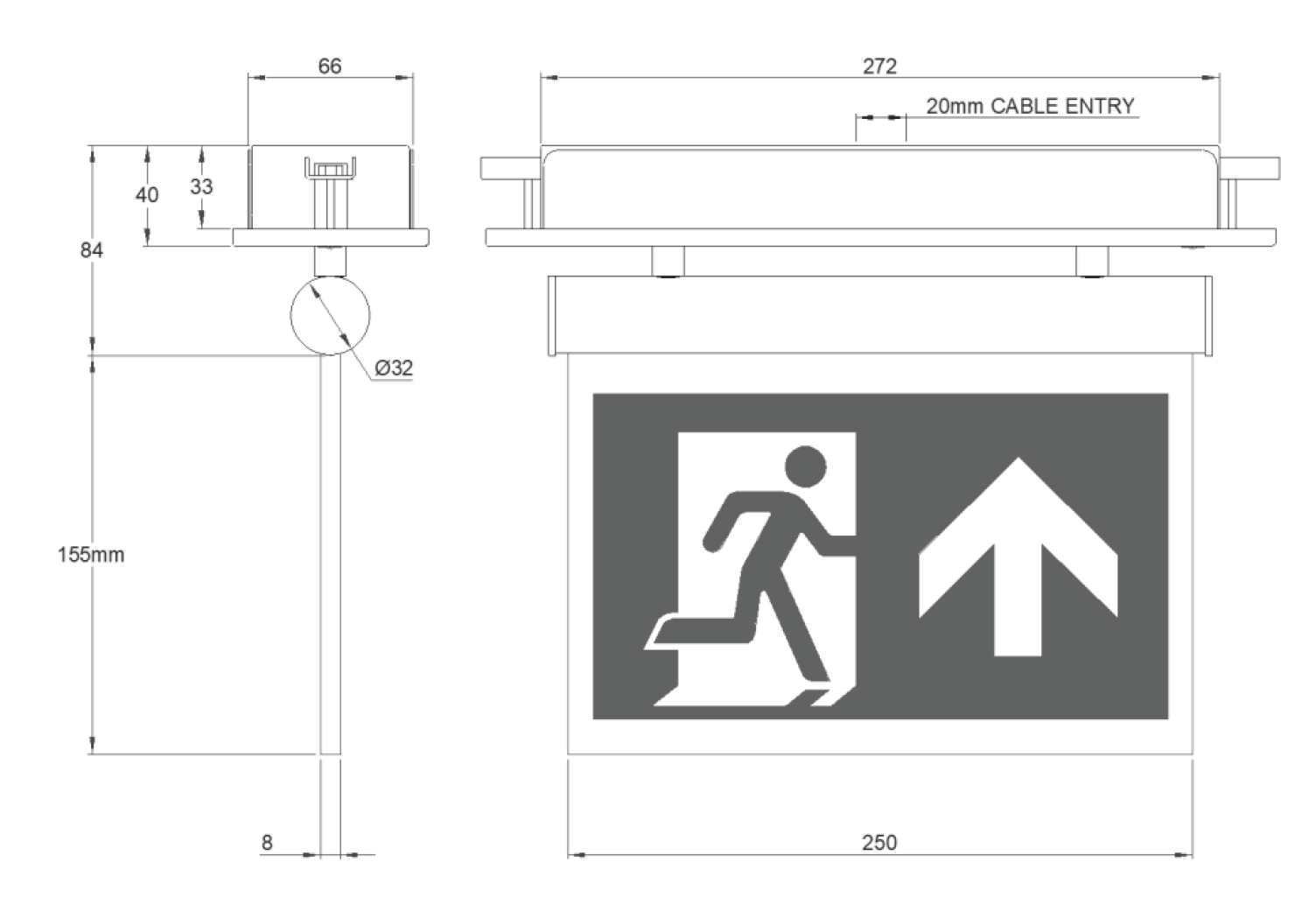

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    MC Ceiling Data Sheet
    165.76 KB | pdf

    Download
  • Legend Sheet

    250MCRV Legend Sheet
    193.38 KB | pdf

    Download
  • Revit Files

    250MCRV Revit Files
    2.03 MB | zip

    Download
  • Installation Sheet

    250MCRV Installation Sheet
    893.13 KB | pdf

    Download
