250FB

The original Philip Payne FC was one of, if not the first slot or ‘blade’ fitting to be made.

But now Philip Payne have adapted one of their bestselling ranges to further augment the architectural and aesthetic appeal of the original FC range.
Subtle mechanical changes and the addition of 25mm printed panel provides a facelift to the ever popular 250FC that ensures this new variant further complements the most modern of designed spaces.

As with all Philip Payne products the 250FB is LED with options for self-contained or central battery and controls for monitored systems. Trim-plates are available in all the Payne finishes.

  • Voltage
    • 230v
  • IP
    • 20
  • Weight
    • 1.5kg
  • Gear Options
    • 230v Central Supply
    • 3hr Non-Maintained
    • 3hr Maintained
    • 3hr Self Test
    • 3hr DALi
    • 3hr Specto-XT
  • Legends

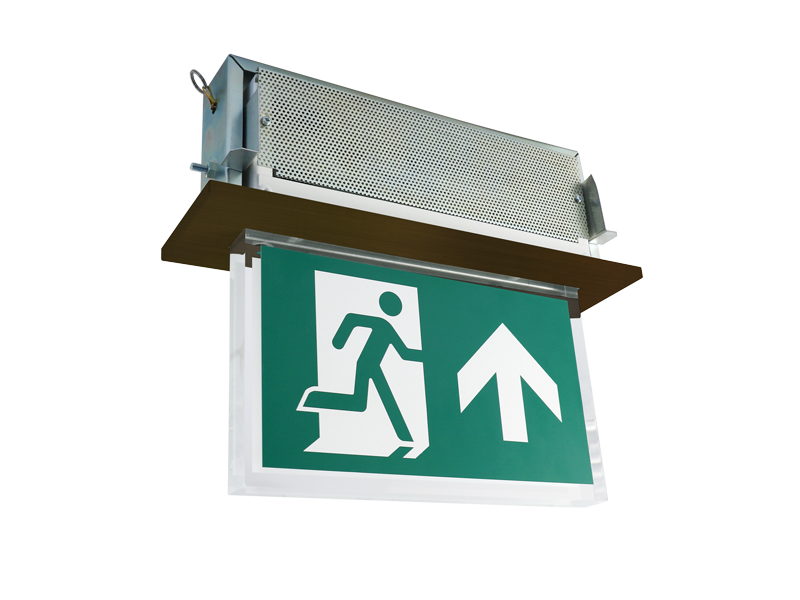

  • Available Finish
    • Satin Chrome

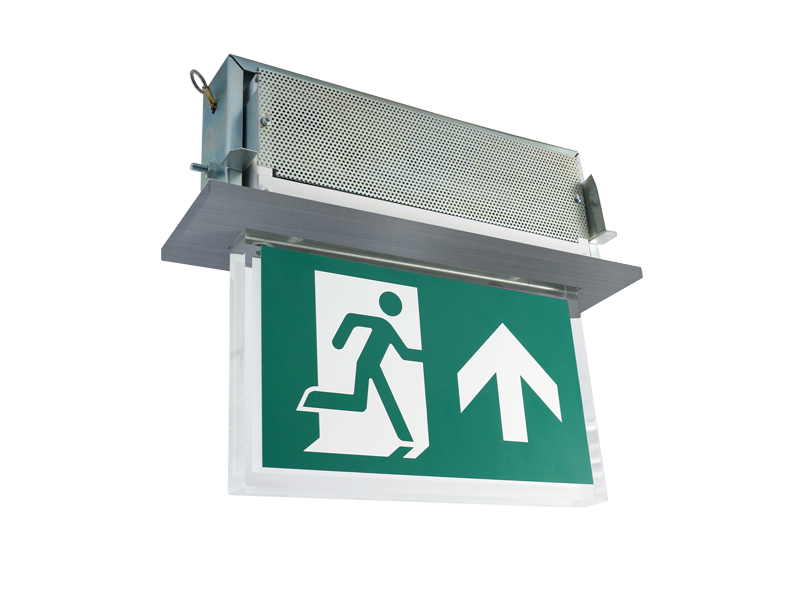

    • Polished Chrome

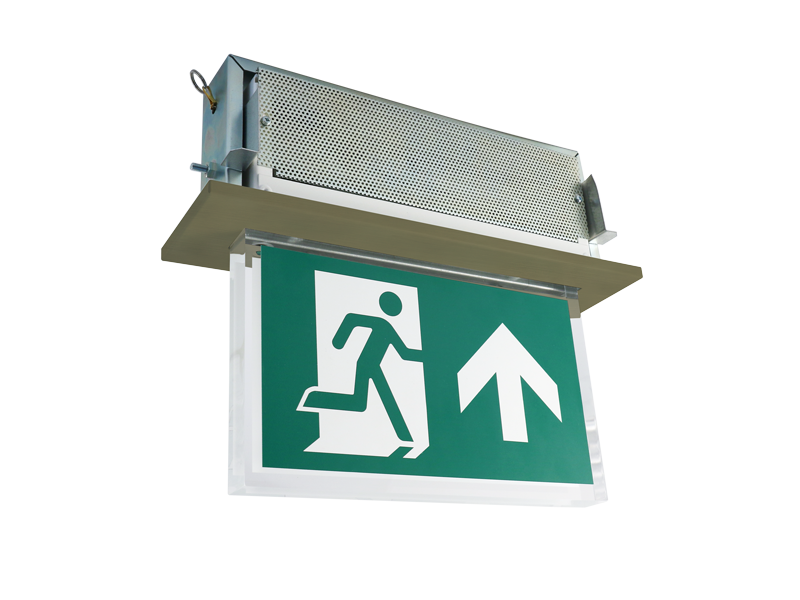

    • Polished Brass

    • BMA

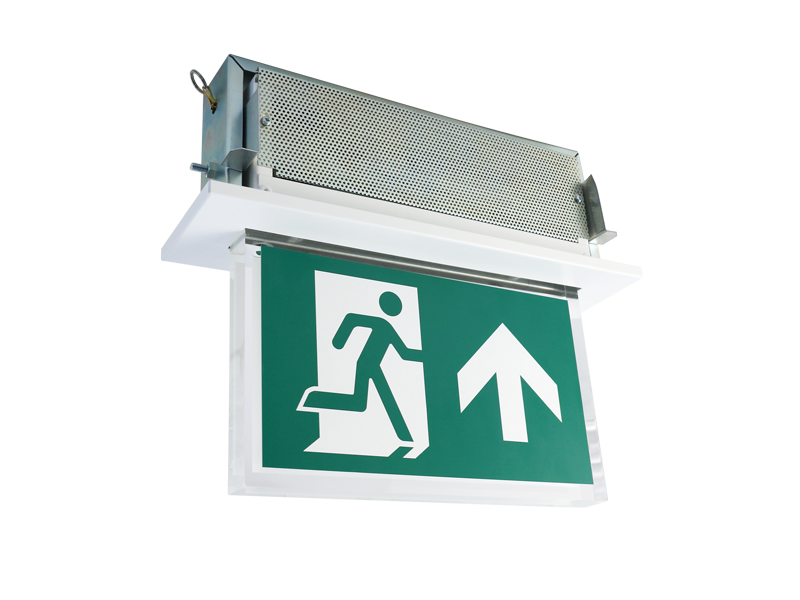

    • RAL 9010

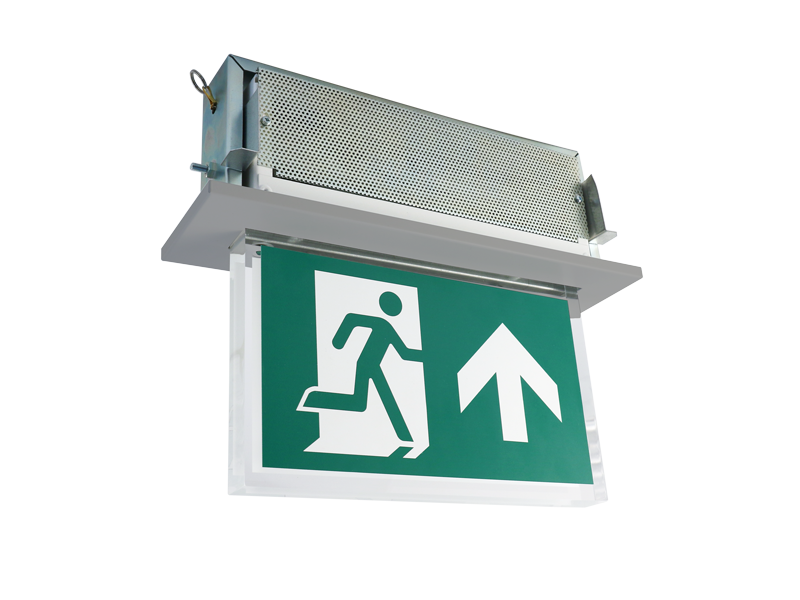

    • RAL 9006

    • RAL 9005

    • Penny Bronze

Specification

  • Conformité Européene

  • F Mark

  • Maintained

  • Non Maintained

  • LED

  • Self Test

  • IP 20

  • DALi

  • Viewing Distance

  • Weight 1.5kg

  • Double Sided

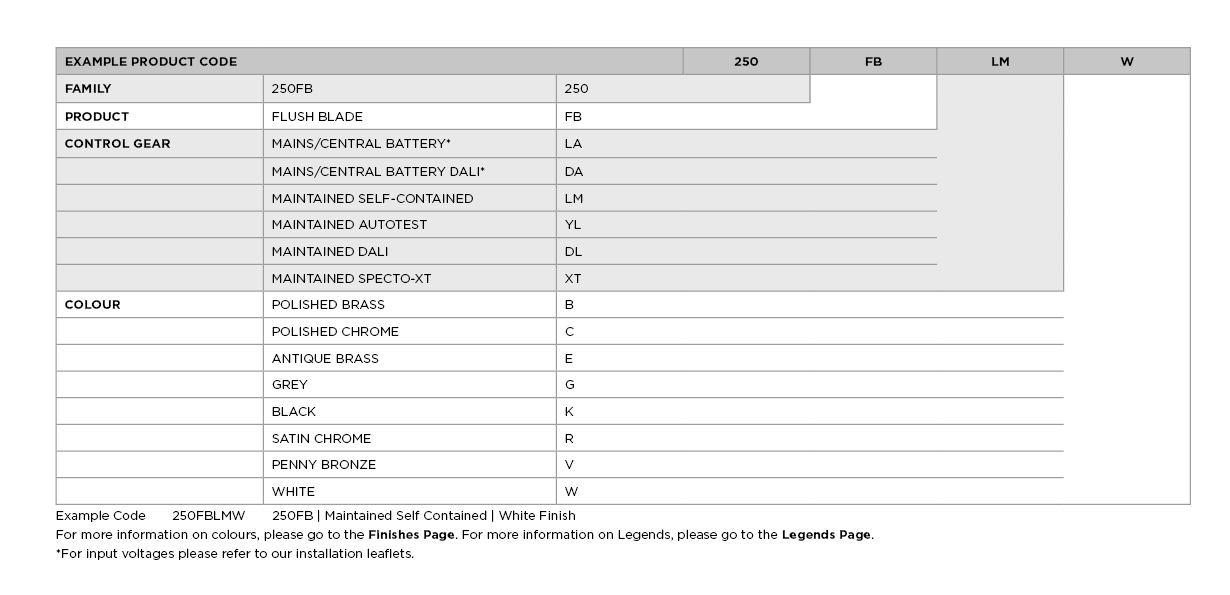

Part Numbers

  • 250FBLA 230v AC/DC Central Supply
  • 250FBLE 230v AC Central Supply
  • 250FBDA 230v AC/DC Central Supply DALi
  • 250FBLM 3hr Self Contained Maintained/ Non-Maintained
  • 250FBYL 3hr Self Contained Self Test
  • 250FBDL 3hr Self Contained DALi
  • 250FBXT 3hr Self Contained Specto-XT

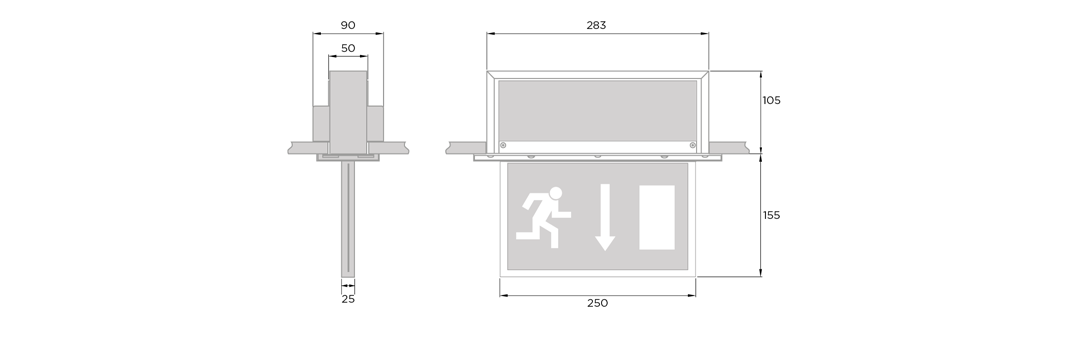

Dimensions

Click image to expand

Dimensions

Environment

Find out about our commitment to the Environment

Click Here

Downloads

  • Data Sheet

    250FB Data Sheet
    340.52 KB | pdf

    Download
  • Legend Sheet

    250FB Legend Sheet
    208.75 KB | pdf

    Download
  • Installation Sheet

    250FB Installation Sheet
    303.11 KB | pdf

    Download
